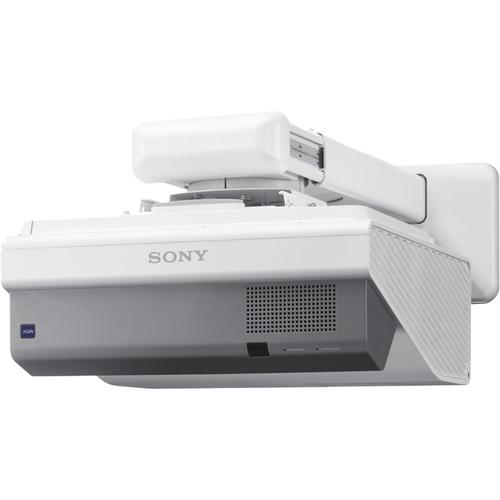

Product description The VPL-SX631M 3300-Lumen XGA Ultra Short Throw Projector with Mount from Sony features a throw ratio of 0.27:1 and is capable of projecting onto an 80" wide screen from 18.5". This makes the projector suitable for areas with limited projection space, such as teaching and training environments. Presenters can move about freely without disrupting the projected image. - Good Image Quality & Rich Color Reproduction
- BrightEra 3LCD panel technology creates high contrast and a 3300-lumen color light output. The projector also features a 12-bit 3D Digital Gamma Correction circuit that helps in reproducing smooth gradations.
- Long-Lasting Lamp
- With Sony's lamp-driving technology, the expected lamp life can go up to 10,000 hours, depending on the lamp mode selected.
- Auto Lamp Dimming
- The lamp works intelligently to reduce energy consumption. In the event the projector is left powered while not in use, the lamp automatically detects no change of signal input and will dim the lamp, as low as 30% of original brightness, to significantly reduce energy consumption.
- Network Presentation
- Project images over a wired LAN or a wireless network using supplied Network Presentation software. The projector can simultaneously display computer images from up to four different sources. Optional USB dongle (IFU-WLM3) is required for wireless projection.
- Tablet & Smartphone Presentation
- Allows for quick and easy presentation directly from one's tablet or phone. Users of PC's and iOS or Android devices can present at the same time (software not included).
UPC: 027242285439 In the Box Sony VPL-SX631M 3300-Lumen XGA Ultra Short Throw Projector with Mount Wall Mount Kit RM-PJ8 Remote Commander CR2025 Battery AC Power Cord Limited 3-Year Warranty, First Year Includes On-Time Support Brochure PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony VPL-SX631M 3300-Lumen XGA Ultra Short Throw Projector with Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony VPL-SX631M Specs | | | Display System | 3-Chip LCD | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Maximum: 1600 x 1200 @ 60 Hz | | Max Brightness | 3300 Lumens
2600 Lumens
2100 Lumens | | Contrast Ratio | 3000:1 | | Scan | Horizontal: 15 to 92 kHz
Vertical: 48 to 92 Hz | | | | Lens Shift | Vertical: ± 3.1%

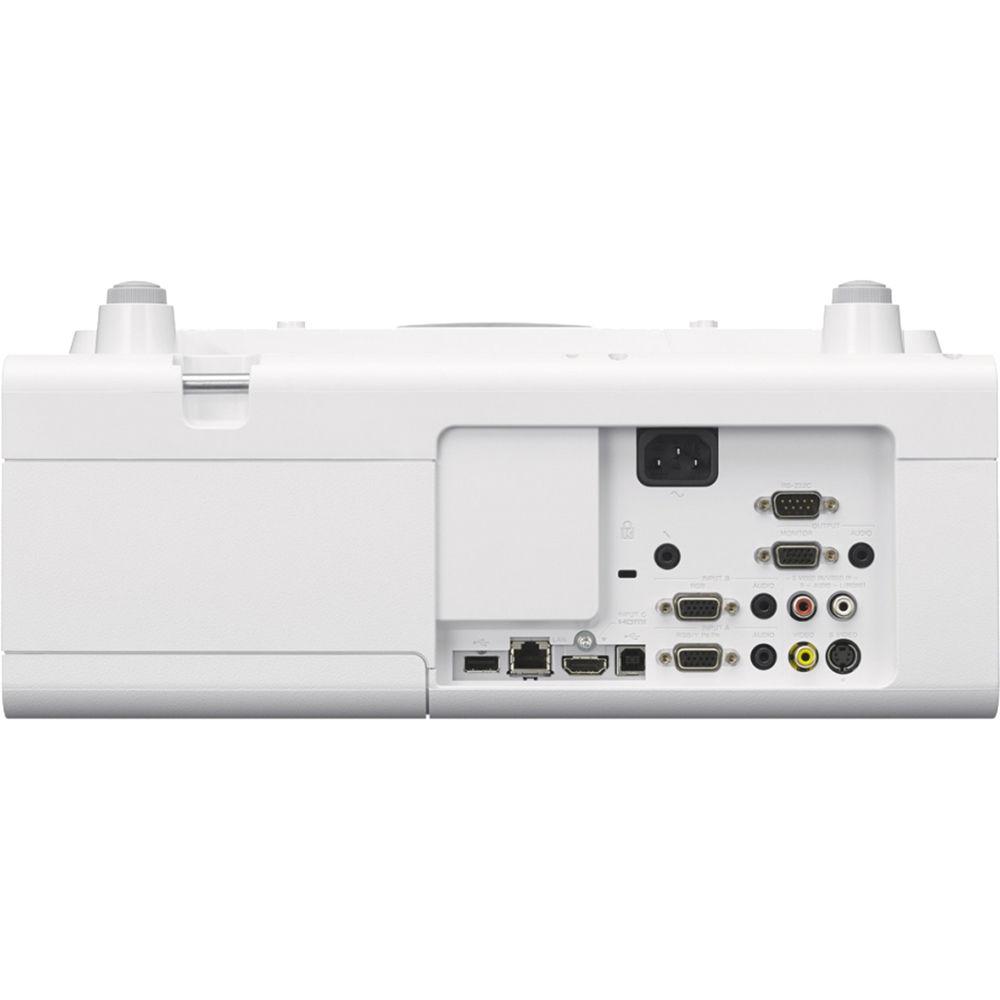

Horizontal: ± 2.3% | | Throw Ratio | 0.27:1 | | Projection Size | 70 - 115" / 177.80 - 292.10 cm | | | | Built-In Speaker | Yes (Mono) | | Speaker Power | 16W | | | | Inputs/Outputs | 1 x Composite (RCA) Video
1 x Mini-VGA port Video
1 x HDMI Audio/Video
1 x USB Type-A Female | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Light Source | Lamp (1 x UHP) | | Lamp Power | 225 W | | Expected Lamp Life | Full Brightness: 4000 Hours
Medium Brightness: 6000 Hours
Low Brightness: 10,000 Hours | | Dimensions (W x H x D) | 14.6 x 8.6 x 15.0" / 37.1 x 21.8 x 38.1 cm | | Weight | 13.00 lb / 5.90 kg | | | | Package Weight | 32.4 lb | | Box Dimensions (LxWxH) | 21.5 x 20.5 x 19.3" |
