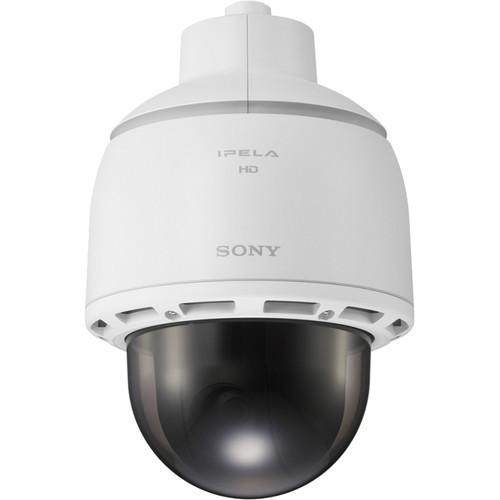

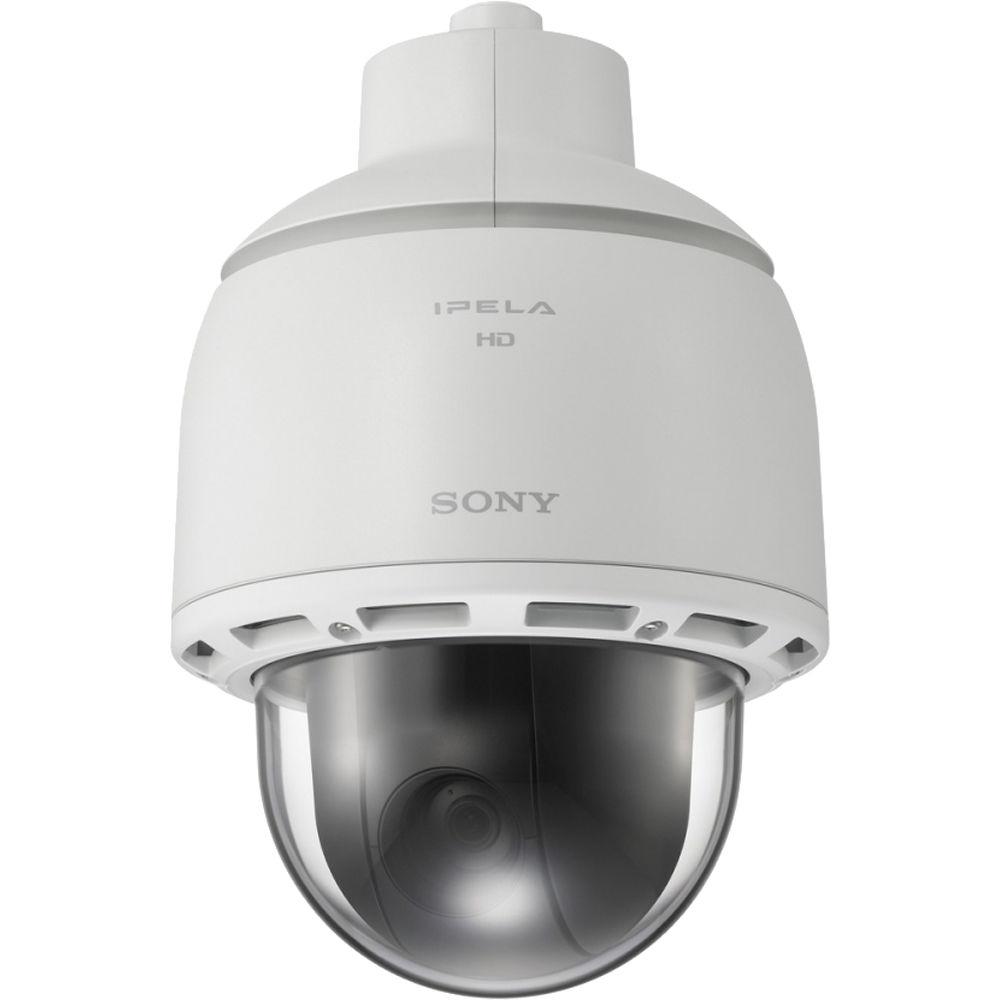

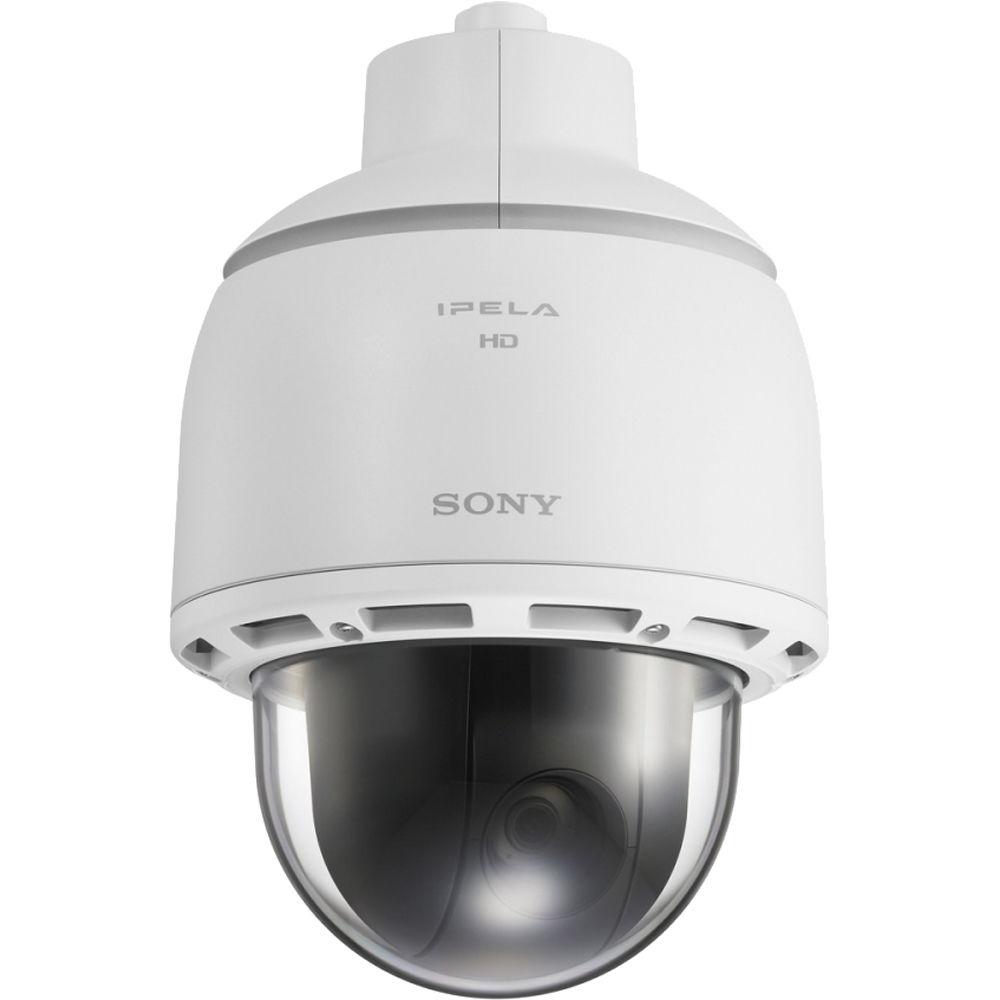

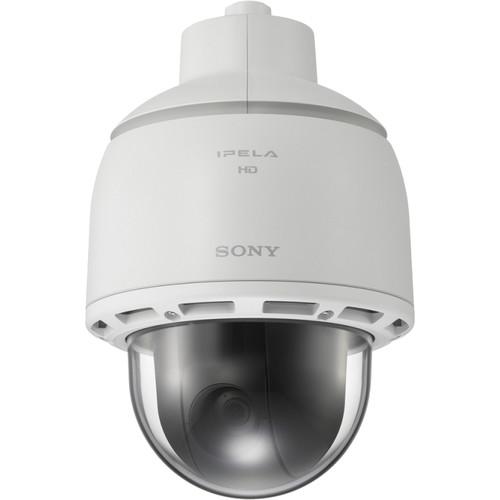

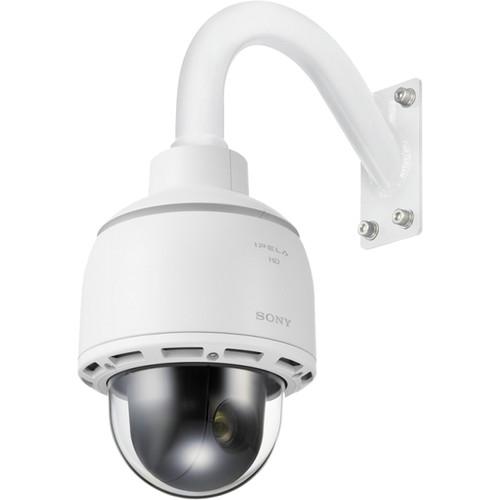

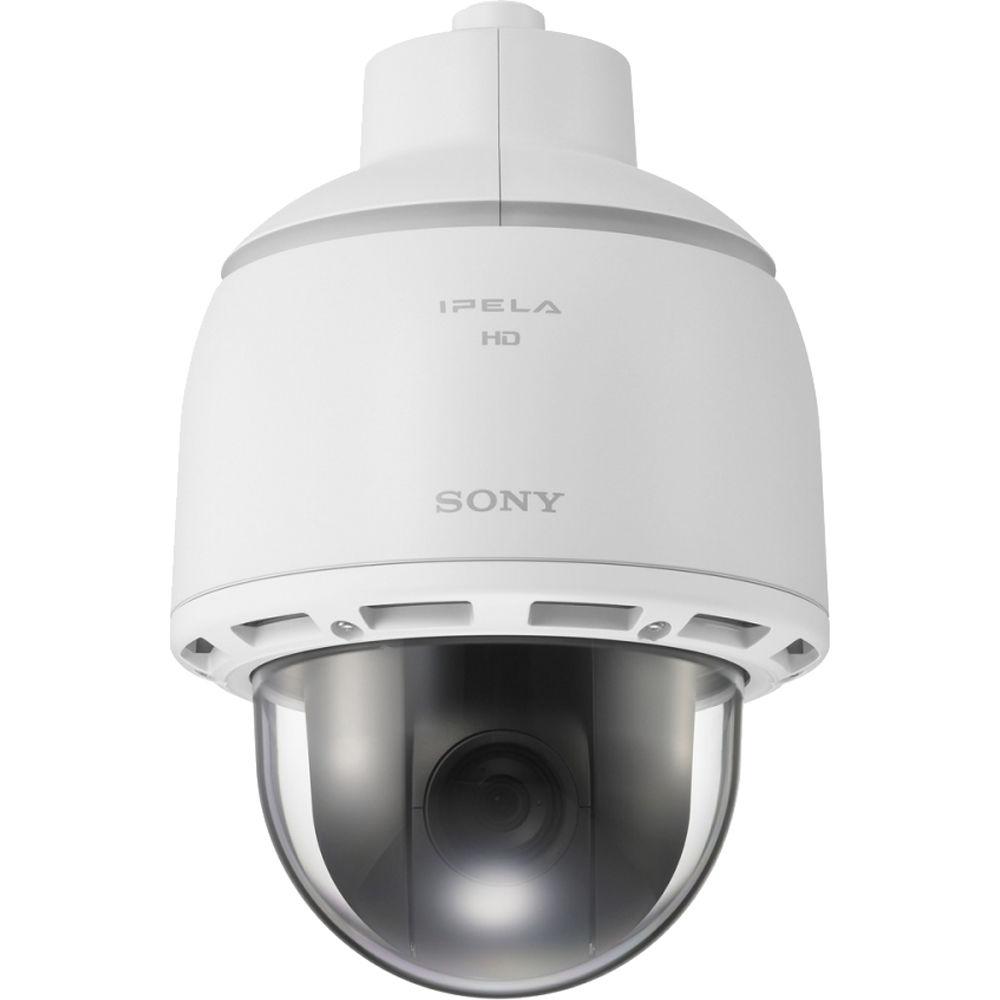

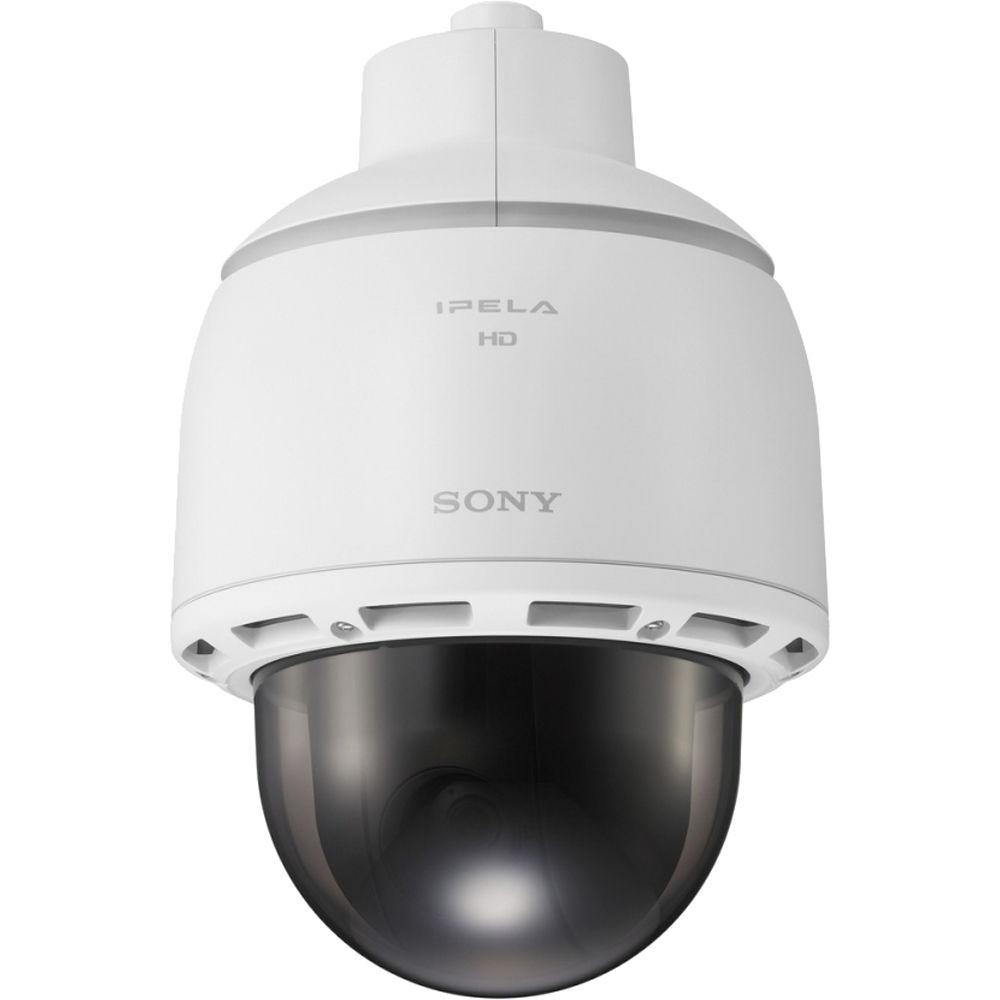

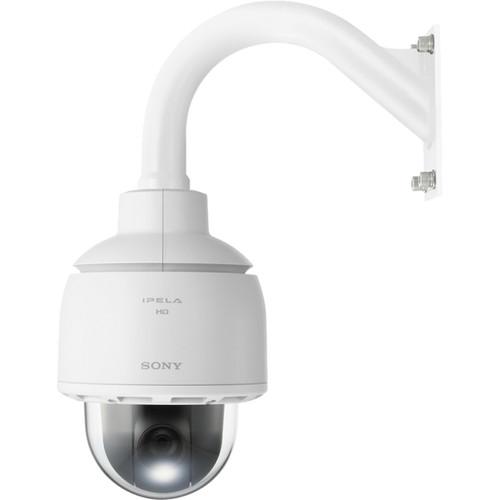

User Manual for Sony W Series SNC-WR632C Outdoor 1080p Network PTZ Dome Camera with 4.3-129mm Lens Click to enlarge the picture
Contents of the user manual for the Sony W Series SNC-WR632C Outdoor 1080p
- Product category: Wired IP Cameras Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wired IP Cameras
 |
User manual for the Sony W Series SNC-WR632C Outdoor 1080p contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The W Series SNC-WR632C Outdoor 1080p Network PTZ Dome Camera from Sony provides unique features for capturing clear images in a wide variety of conditions. View-DR wide dynamic range technology allows capturing the images under severe backlight or highlight conditions. The effect of camera shaking or vibration is reduced with the help of a Gyroscopic Image Stabilizer, which helps minimize image blur. Focal Plane Distortion Correction technology corrects image distortion generated in a scene by the CMOS sensor focal plane phenomenon. It also includes DEPA advanced intelligent video analytics to trigger an alarm based on user-defined rules and defog image processing to increase image visibility in poor weather conditions such as rain, fog, or smog. The Visibility Enhancer (VE) feature helps dynamically optimize the brightness and color reproduction of an image on a pixel-by-pixel basis while continuously adapting to the scene within a given dynamic range. It also captures images with virtually no motion blur under low illumination thanks to XDNR (excellent Dynamic Noise Reduction) technology. The camera features 30x optical zoom capability to shoot over a wide and to capture video from a great distance. It captures video at a frame rate of 60 fps to provide less blurry video of moving objects. The IP66-rated, water-resistant, and dust-tight housing protects the camera and makes it suitable for outdoor and indoor surveillance applications. It has also been rated IK10 for vandal resistance. - 1920 x 1080 recording at 60 fps
- Powered by IPELA ENGINE PRO technology provides unique features such as a high frame rate, View-DR, XDNR, DEPA advanced intelligent video analytics, gyroscopic image stabilizer, focal plane distortion correction, and defog image processing
- Maximum resolution of 1920 x 1080 pixels with the Exmor CMOS sensor
- 30x optical zoom capability to shoot various scenes over a wide area, allowing capture of high resolution images even from a great distance
- Dynamic range equivalent to 130 dB in HD mode achieved with View-DR technology
- ONVIF (Open Network Video Interface Forum) Profile S conformance ensures interoperability and flexibility in building multi-vendor systems
- Built-in heater for operation in low temperatures
UPC: 027242883208 In the Box Sony W Series SNC-WR632C Outdoor 1080p Network PTZ Dome Camera with 4.3-129mm Lens CD-ROM (Supplied Programs) Dome Cover Top Sunshade Coupling Wire Fixing Belt Wire Bracket 2 x Bolts 3-Pin Power Supply Connector 14-Pin I/O Harness Harness Band Band Mount Connection Cord with BNC Connector Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony W Series SNC-WR632C Outdoor 1080p Network PTZ Dome Camera with 4.3-129mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony SNC-WR632C Specs | | | Image Sensor | 1/2.8" Progressive Scan Exmor CMOS | | Number of Effective Pixels | Approximately 2.38 MP | | Signal System | NTSC/PAL (switchable) | | Sync System | Internal | | Minimum Illumination | (50 IRE) Color: 0.4 lux (f/1.6, View-DR Off, VE Off, AGC On, 1/30 sec, 30 fps)
B&W: 0.003 lux (f/1.6, View-DR Off, VE Off, AGC On, 1/30 sec, 30 fps)
(30 IRE) Color: 0.24 lux (f/1.6, View-DR Off, VE Off, AGC On, 1/30 sec, 30 fps)
B&W: 0.018 lux (f/1.6, View-DR Off, VE Off, AGC On, 1/30 sec, 30 fps) | | Dynamic Range | Equivalent to 130 dB with View-DR technology | | S/N Ratio | More than 50 dB (Gain 0 dB) | | Gain | Auto/Manual | | Shutter Speed | 1/10,000 to 1 sec | | Exposure Control | Full auto, Shutter priority, Iris priority, Manual | | White Balance | ATW, ATW PRO, Indoor, Outdoor, Fluorescent lamp, Mercury lamp, Sodium vapor lamp, Metal halide lamp, White LED, One push WB, Manual | | Lens | Auto-focus zoom lens with powered zoom | | Zoom | Optical: 30x
Digital: 12x
Total: 360x | | Viewing Angle | Horizontal: 2.3 to 63.7°
Vertical: 1.3 to 38.5° | | Focal Length | 4.3-129mm | | F-Number (f) | f/1.6 to f/4.7 | | Minimum Object Distance | 11.8" (30.0 cm) | | Pan/Tilt | 360° endless / 220° | | Pan / Tilt Speed | 700°/sec maximum | | Number of Preset Positions | 256 | | Tours | 5 | | | | Day/Night | True D&N | | Wide-D | View-DR | | Additional | Tone Correction (Visibility Enhancer (VE)), Wide-D View-DR, Defog Image Processing, Noise Reduction XDNR, Picture Mode, Edge Storage, Voice Alert, and Smartphone viewer
Superimpose Number: 3 independent positions for characters (Codec, Date & Time, Event, Direction, Text (maximum 64 characters)), 1 independent position for logo marks | | Image Stabilizer | Gyroscopic Image Stabilizer | | Privacy Masking | Number: 12
Shape: Quadrangle
Color/Effect: Opaque: 14 colors (Black, White, Red, Green, Blue, Cyan, Yellow, Magenta, Gray (6 scales)), Mosaic | | Vandal Resistance | IK10 | | Ingress Protection Rating | IP66 | | Language | Superimpose Language: English
Menu Language: English, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai, Turkish, Polish | | | | Resolution | 1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184 | | Compression Format | H.264 (High/Main/Baseline Profile), JPEG | | Maximum Frame Rate | H.264: 60 fps (1920 x 1080)
JPEG: 60 fps (1280 x 720) | | Control | Bit Rate Compression Mode: CBR/VBR (selectable)
Range of Bit Rate Setting: 64 kb/s to 32 Mb/s
Adaptive Rate Control: H.264 | | Streaming | Triple streaming | | Number of Clients | 20 | | | | Architecture | DEPA Advanced | | Features | Intelligent Motion Detection, Face Detection, Tamper Alarm | | Scene Analytics | Passing, Intrusion, Left Object Detection, Removed Object Detection | | | | Compression Format | G.711/G.726/AAC (16 kHz, 48 kHz) | | | | Operating System | Windows XP (32 bit) Professional Edition, Vista (32 bit) Ultimate, Business Edition, 7 (32/64 bit) Ultimate, Professional Edition, 8 Pro (32/64 bit), Windows 8.1 Pro (32/64 bit) | | Processor | Intel Core i7 2.8 GHz or higher | | Memory | 2 GB or more | | Web Browser | Microsoft Internet Explorer Ver. 7.0, 8.0, 9.0, 10.0, 11.0, Firefox Ver. 19.02 (plug-in free viewer only), Safari Ver. 5.1 (plug-in free viewer only), Google Chrome Ver. 25.0 (plugin free viewer only) | | | | Protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, SMTP over HTTP, IPv6, HTTPS, SNMP (v1, v2c, v3), SSL | | ONVIF Conformance | Profile S | | QoS | DSCP | | Authentication | IEEE 802.1X | | | | Analog Video Output | BNC x1, 1 V p-p, 75 Ohms, unbalance, sync negative | | Microphone | Mini jack (monaural), Mic In/Line In: 2.5 VDC plugin power | | Line Input | Mini jack (monaural) | | Line Output | Mini jack (monaural), Maximum output level: 1 Vrms | | Network Access | 10Base-T/100Base-TX (RJ45) | | Alarm Input | x4, make contact, break contact | | Alarm Output | x2, 24 VAC/DC, 1 A (mechanical relay outputs electrically isolated from the camera) | | Serial Interface | RS-422/RS-485 (PELCO D protocol) | | Card Slots | 1 x SD card slot | | Memory Card Support | Up to 64 GB (available separately) | | | | Power Requirements | HPoE+ system, 24 VAC | | Power Consumption | Maximum 30 W (24 VAC/HPoE+, heater OFF)
Maximum 80 W (24 VAC, heater ON)
Maximum 55 W (HPoE+, heater ON) | | Operating Temperature | -40 to 122°F (-40 to 50°C) (24 VAC)
-22 to 122°F (-30 to 50°C) (HPoE+) | | Cold Start | -40 to 122°F (-40 to 50°C) (24 VAC)
-22 to 122°F (-30 to 50°C) (HPoE+) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Operating Humidity | 20 to 80% | | Storage Humidity | 20 to 95% | | Material of Construction | Dome Cover: PC
Top Sunshade & Sun Shade: PC
Coupling, Top Cabinet, & Dome Flange: ADC12 | | Color | Top Sunshade & Sun Shade: 6.4GY 8.0/0.3
Coupling, Top Cabinet, Dome Flange: 3.6GY 8.4/0.3 | | Safety Regulations | JATE Technical Standard (LAN), UL2044, IEC60950-1 (CB), VCCI (Class A), FCC (Class A), IC (Class A), KCC, EMC-TR
Emission: EN55022 (Class A) + EN50130-4
Immunity: EN55022 (Class A) + EN55024
Emission: AS/NZS CISPR22 (Class A) | | Dimensions (Ø x H) | 8.8 x 12.9" (22.2 x 32.4 cm) | | Weight | 9.03 lb (4.10 kg) | | | | Package Weight | 13.95 lb | | Box Dimensions (LxWxH) | 20.1 x 17.0 x 12.5" |
