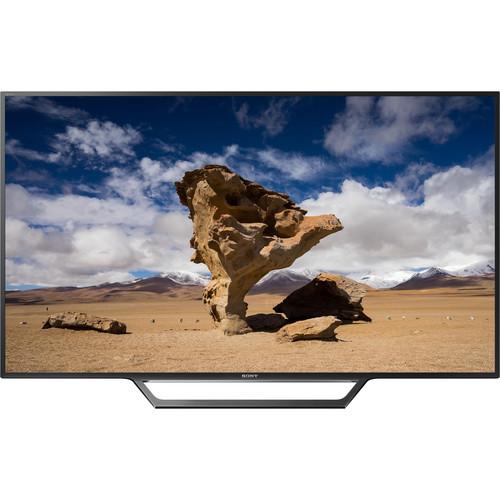

User Manual for Sony W650D 55" Class Full HD Smart LED TV Click to enlarge the picture
Contents of the user manual for the Sony W650D 55" Class Full HD
- Product category: Televisions Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Televisions
 |
User manual for the Sony W650D 55" Class Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

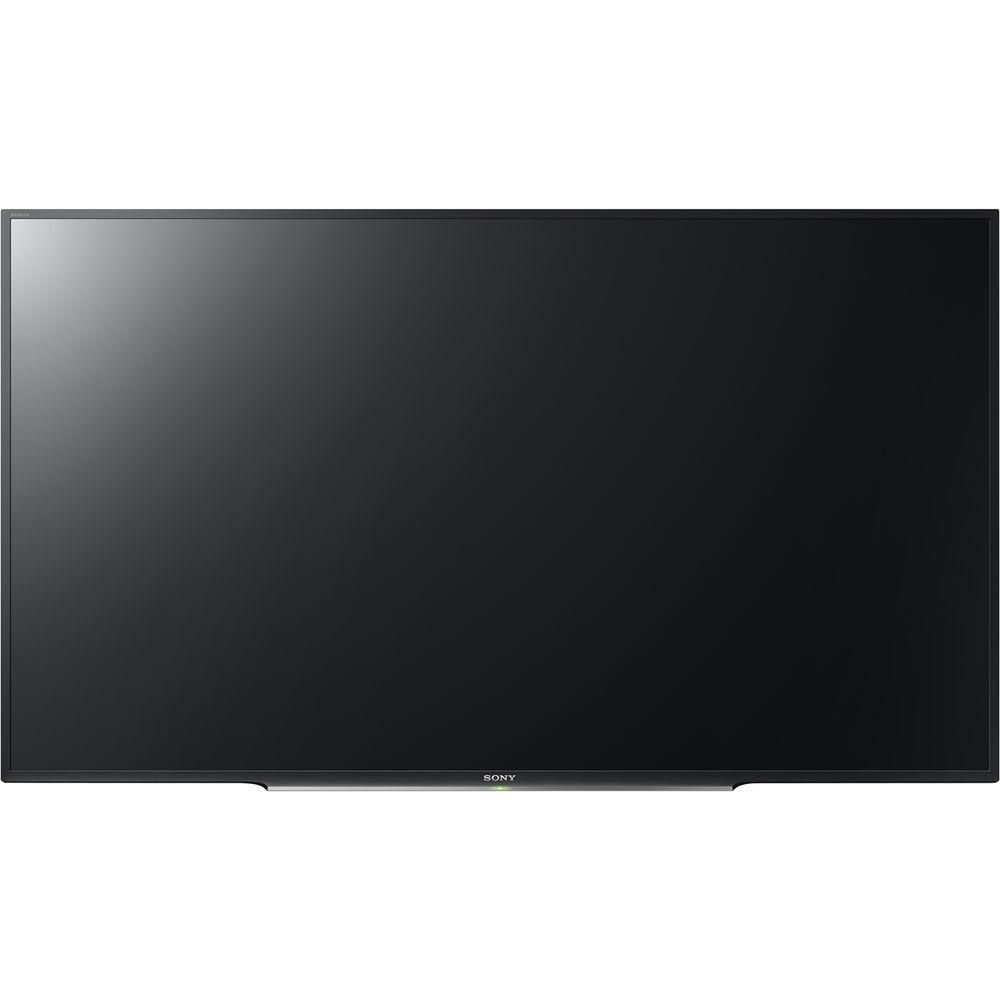

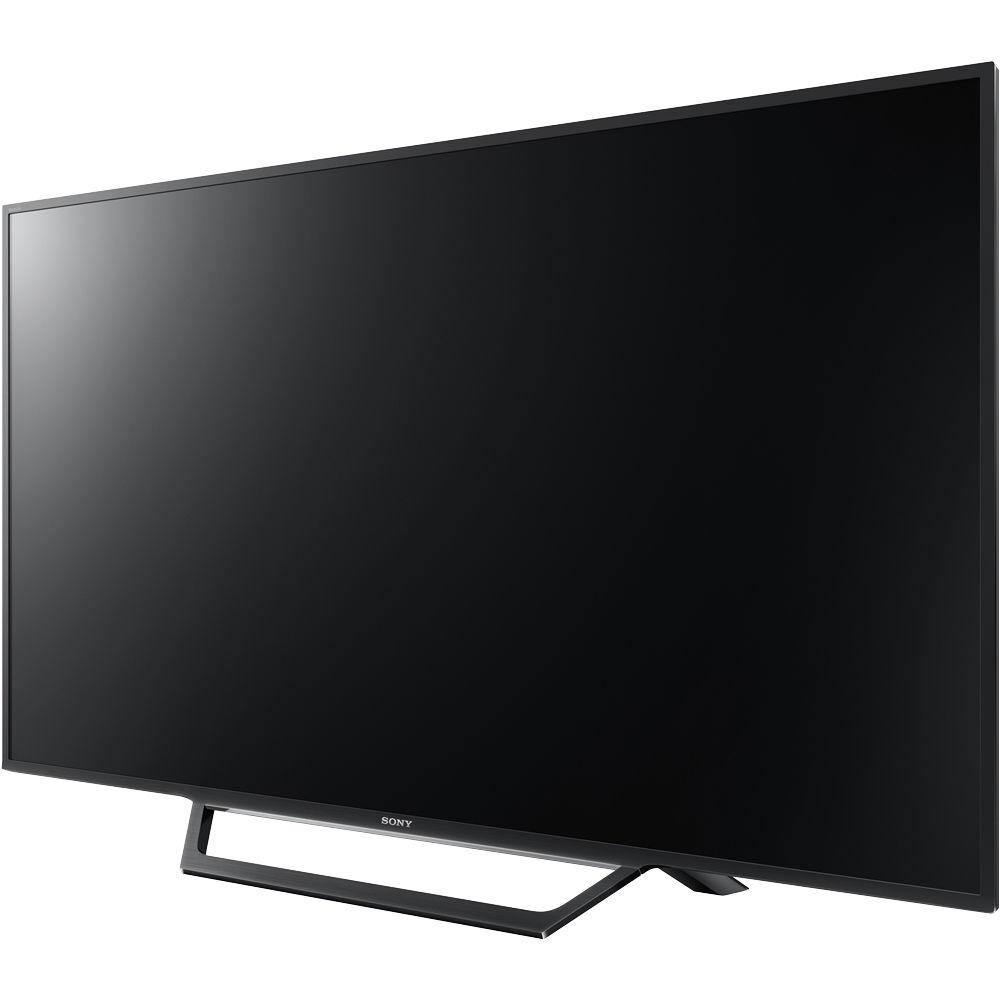

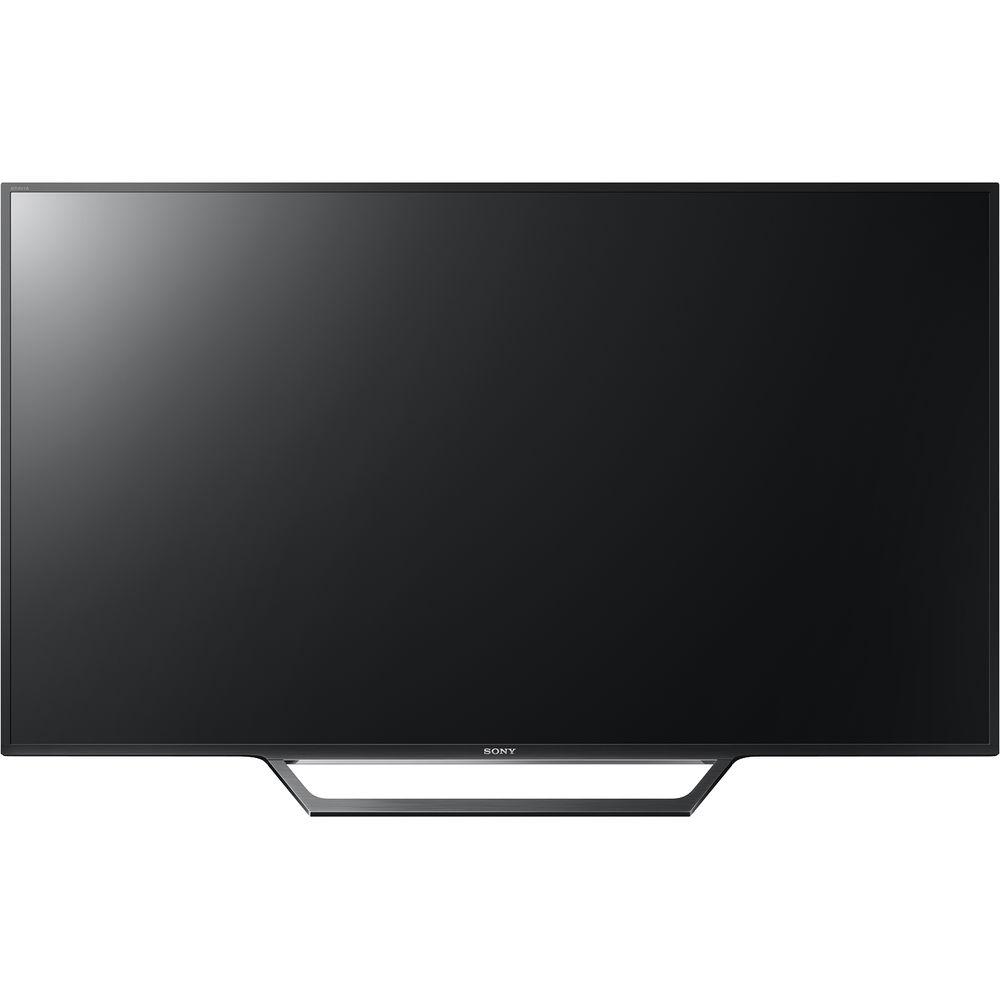

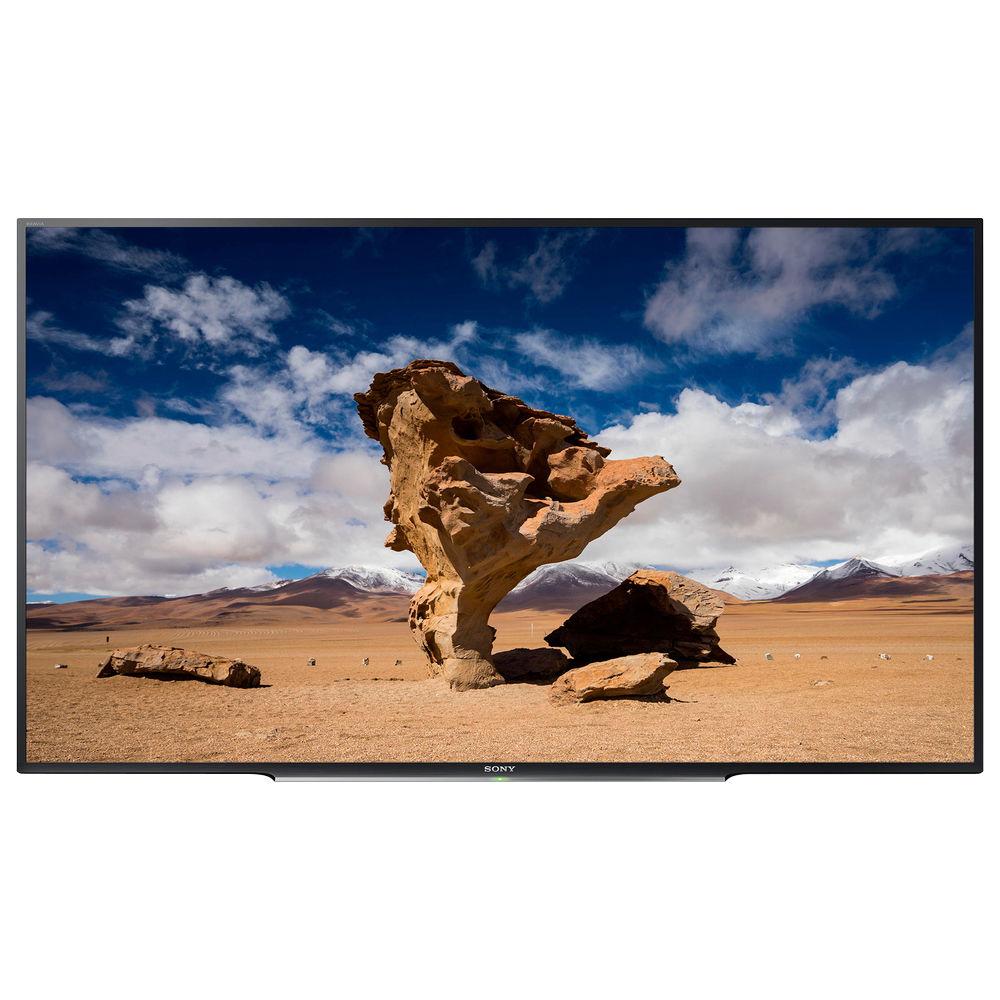

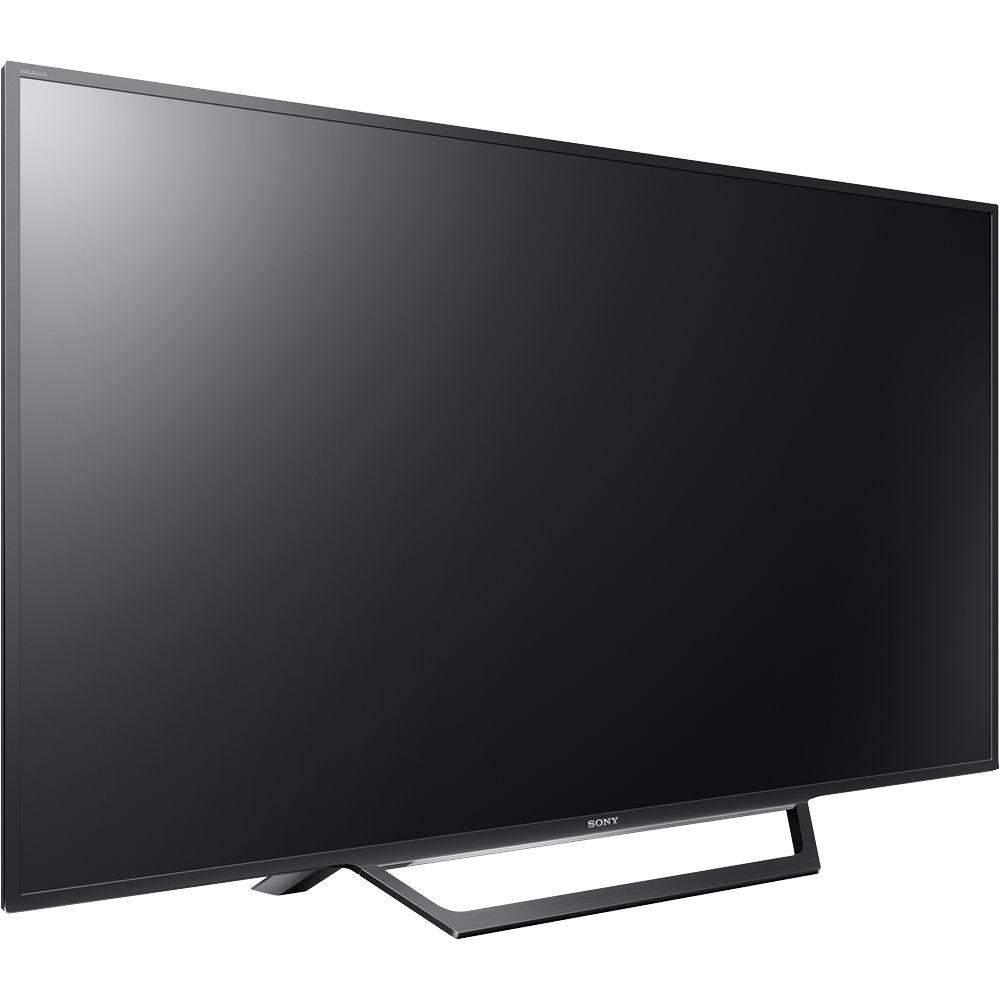

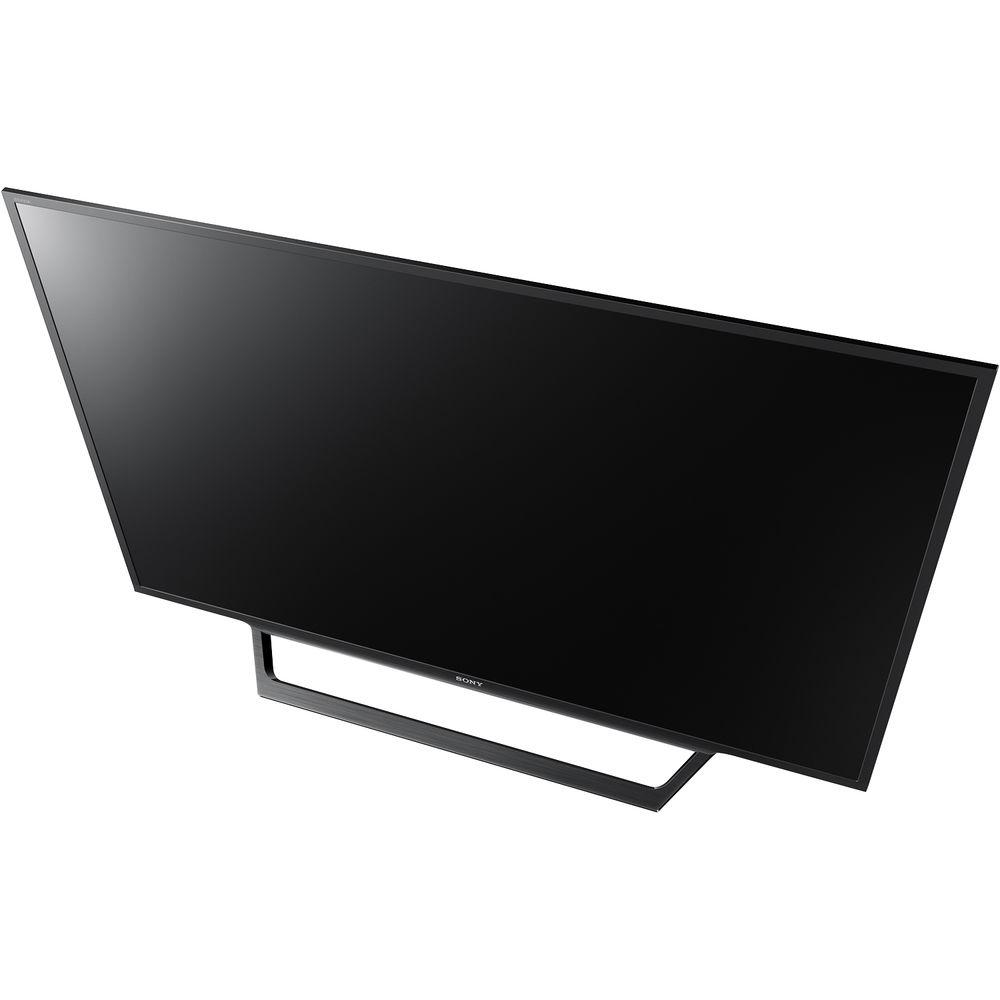

Product description The Big March TV Tournament Read More View content in 1080p Full HD with the Sony W650D 55" Class Full HD Smart LED TV. It features a 54.6" LED-backlit LCD display and incorporates Sony Motionflow XR technology to digitally enhance fast-moving images to reduce blur. The KDL-W650D has built-in Wi-Fi and Ethernet connectivity to allow access to your favorite apps and Internet-based content via its Smart TV OS, plus content sharing and screen mirroring with your other smart devices such as your smartphone or tablet.
With one component and two HDMI inputs, there are a number of options for connecting high-definition video sources. The component input also acts as a hybrid port, allowing you to connect a composite video source. Two USB ports are also onboard for connecting multimedia peripherals like flash drives. Note: Content acquired via certain apps may require subscription to a service. - X-Reality PRO for a Cleaner, More Refined Picture
- Enjoy augmented clarity, sharpness, and picture quality with everything you watch. The built-in combination of noise reduction technologies sharpen every scene, so the picture gleams with clear detail.
- Enjoy Full HD 1080p
- Experience the detail of Full HD across all your entertainment. From Blu-ray Discs to your favorite TV shows, you can see it all clearly on the screen with the W650D.
- Enjoy Entertainment and Apps Wirelessly with Built-In Wi-Fi
- Link up directly to your home network. With built-in Wi-Fi, you're free to go online and browse movies, enjoy video channels like YouTube, and access services like Netflix and Hulu. Plus, you can stream entertainment from your wireless home network and the Internet, and download a variety of apps without the clutter of cables.
- Enjoy Digital Content via USB
- Play music, video clips, and photo collections all through your TV with multi-format USB play. Supporting a wide range of codecs, you can experience broad format versatility - simply plug in and you're ready to go.

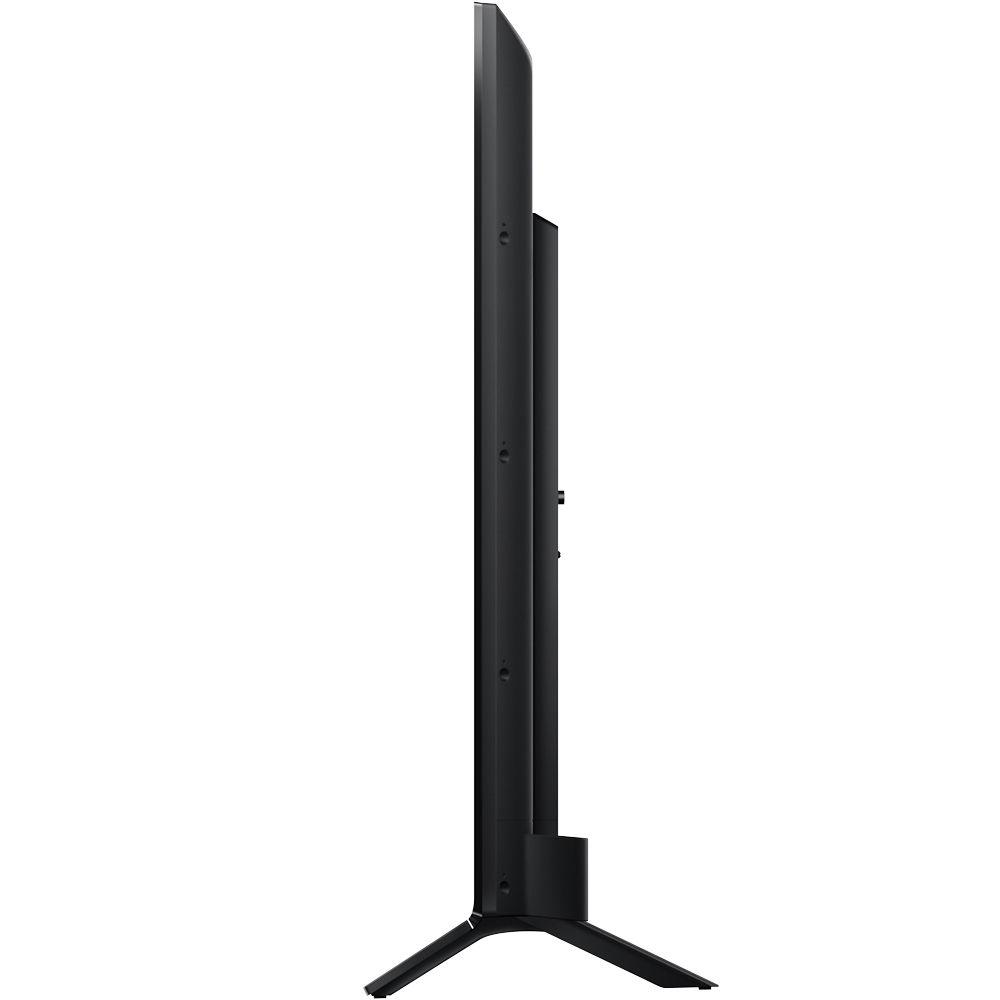

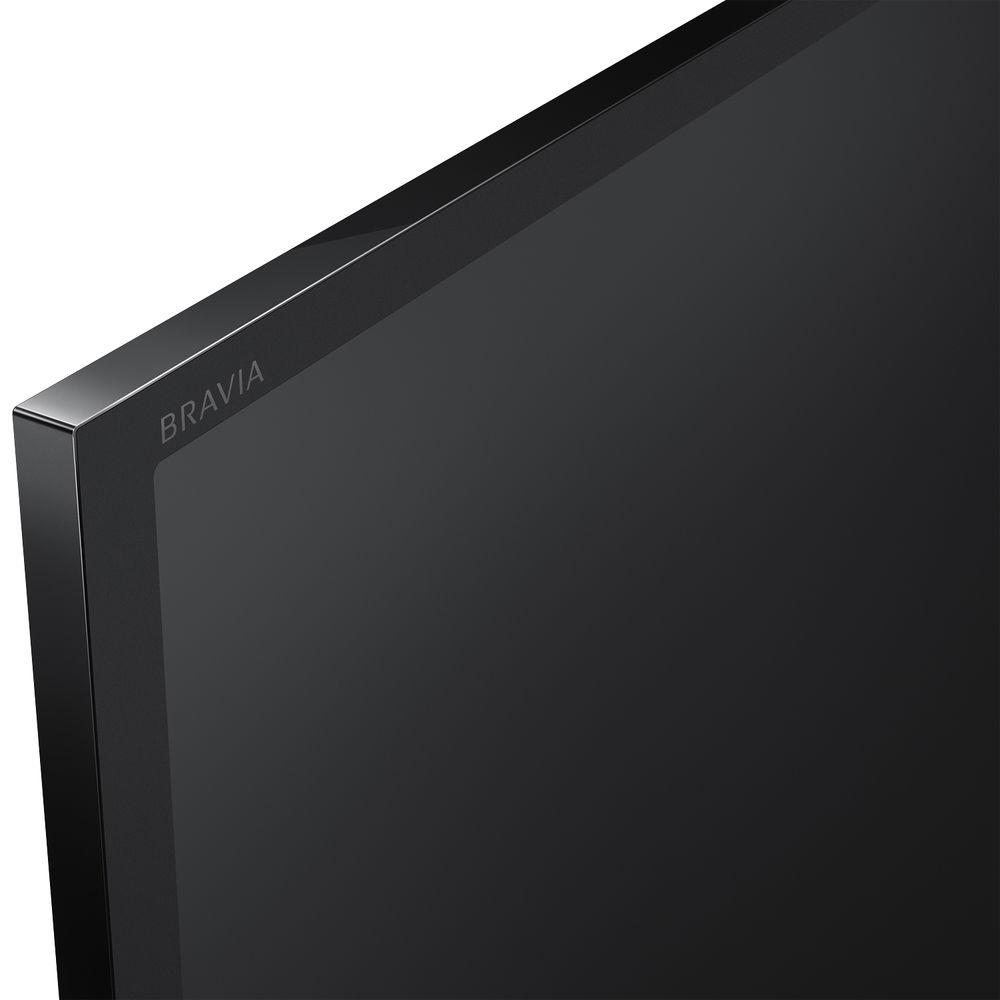

- Slim Design
- The screen is designed with a narrow frame, accented with minimal bezels, so you can focus on your entertainment with near edge-to-edge pictures.
- Integrated Cable Management Keeps Wires Out of Sight
- All of your cables can be neatly arranged across the back of the TV and channeled into the stand, so everything looks tidy.
- Motionflow Helps Keep the Action Smooth
- Motionflow XR refresh rate technology is designed to allow fast-moving action sequences in sports and movies to be seen with enhanced motion clarity.
- Clear Phase for Enhanced Audio
- Enjoy enhanced audio with smooth, even reproduction of all frequencies. The W650D uses a computer model to analyze and compensate for inaccuracies in speaker response by "sampling" the speaker frequency with higher precision.
- Share Content From Your Smartphone to the TV with Miracast
- Miracast Screen mirroring lets you enjoy content and apps from your smartphone on your W650D. Supersize all your memories and enjoy them on the TV with family and friends.
- Share Your Photos with Photo Sharing Plus
- Up to ten people in the room can send photos and short video clips wirelessly from their smartphone straight to the TV to enjoy with a choice of your own optional background music. The W650D even creates its own dedicated Wi-Fi network, so an active Internet connection isn't required.
UPC: 027242899445 In the Box Sony W650D 55" Class Full HD Smart LED TV Table-Top Stand Remote Control with Batteries Mini-Plug Video Adapter AC Power Adapter and Cord Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 xsqattvqau The B&H Television Buying Guide Lawrence Neves 01/31/2018 User Manual PDF 7.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony W650D 55" Class Full HD Smart LED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony KDLW650D Specs | | | Screen Size (Diagonal) | 54.6" | | Panel Type | LCD | | Aspect Ratio | 16:9 | | Pixel Resolution | 1920 x 1080 | | Viewing Angle (H x V) | 178 x 178° | | | | Video System | NTSC / | | TV Tuner | Yes | | | | Primary Connectivity Location | Display | | Input Ports | 1 x HDMI – Audio, Video (Side)
1 x RCA Stereo (L/R) – Audio (Bottom)
1 x HDMI – Audio, Video (Rear)
1 x RF Antenna – Audio, Video (Side) | | Output Ports | 1 x TOSLINK Optical – Audio (Rear)
1 x RCA Stereo (L/R) – Audio (Side)
1 x 1/8" / 3.5 mm – Audio (Bottom) | | USB Ports | 2 x USB (Version Unspecified) – Audio, Photo, Video | | Ethernet | LAN | | Control | None | | | | Sound | Stereo | | Orientation | Bottom | | Dolby Digital | Yes | | | | Wi-Fi | Built-In | | Picture Modes | Cinema, Custom, Game, Graphics, Photo, Sports, Standard, Vivid | | Sound Modes | Cinema
Game
Music
Sport
Standard | | Media Player | AVCHD
AVI
JPEG
MKV
MP3
MP4
MPEG1
MPEG2PS
MPEG2TS
WAV
WEBM
WMA
WMV
Xvid | | Supported Languages | English
French
Spanish | | Remote Control | Yes | | Wall Mounting | 400 x 200mm | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Operational: 144.0 W
Standby: 0.5 W | | ENERGY STAR Compliant | Yes | | Dimensions (W x H x D) | 48.8 x 28.4 x 3.8" / 124.0 x 72.1 x 9.7 cm Without stand
48.8 x 29.8 x 11.0" / 124.0 x 75.7 x 27.9 cm With stand | | Weight | 37.00 lb / 16.78 kg Without stand
40.00 lb / 18.14 kg With stand | | | | Package Weight | 50.0 lb | | Box Dimensions (LxWxH) | 52.5 x 32.3 x 7.5" |
