User Manual for Sony WH-CH700N Wireless Noise-Canceling Over-Ear Headphones Click to enlarge the picture
Contents of the user manual for the Sony WH-CH700N Wireless Noise-Canceling Over-Ear Headphones
- Product category: Bluetooth Headphones Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Bluetooth Headphones
 |
User manual for the Sony WH-CH700N Wireless Noise-Canceling Over-Ear Headphones contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

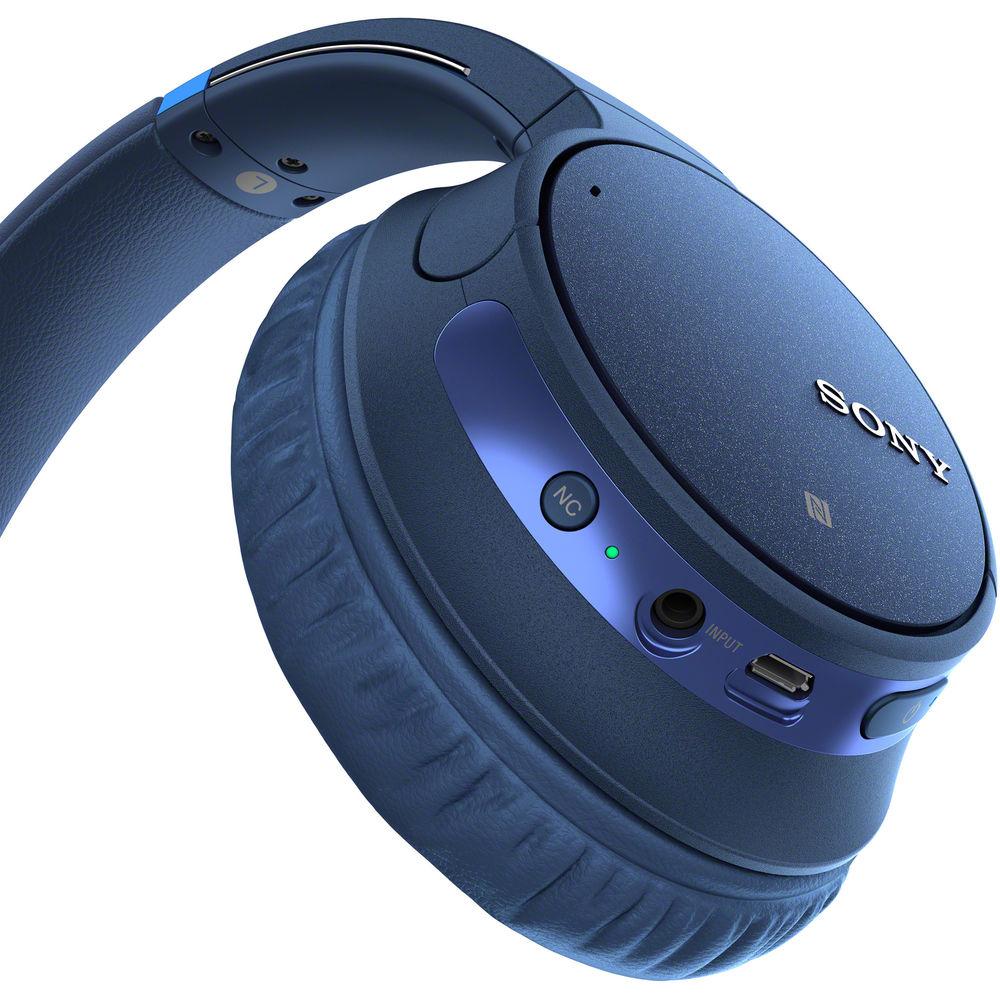

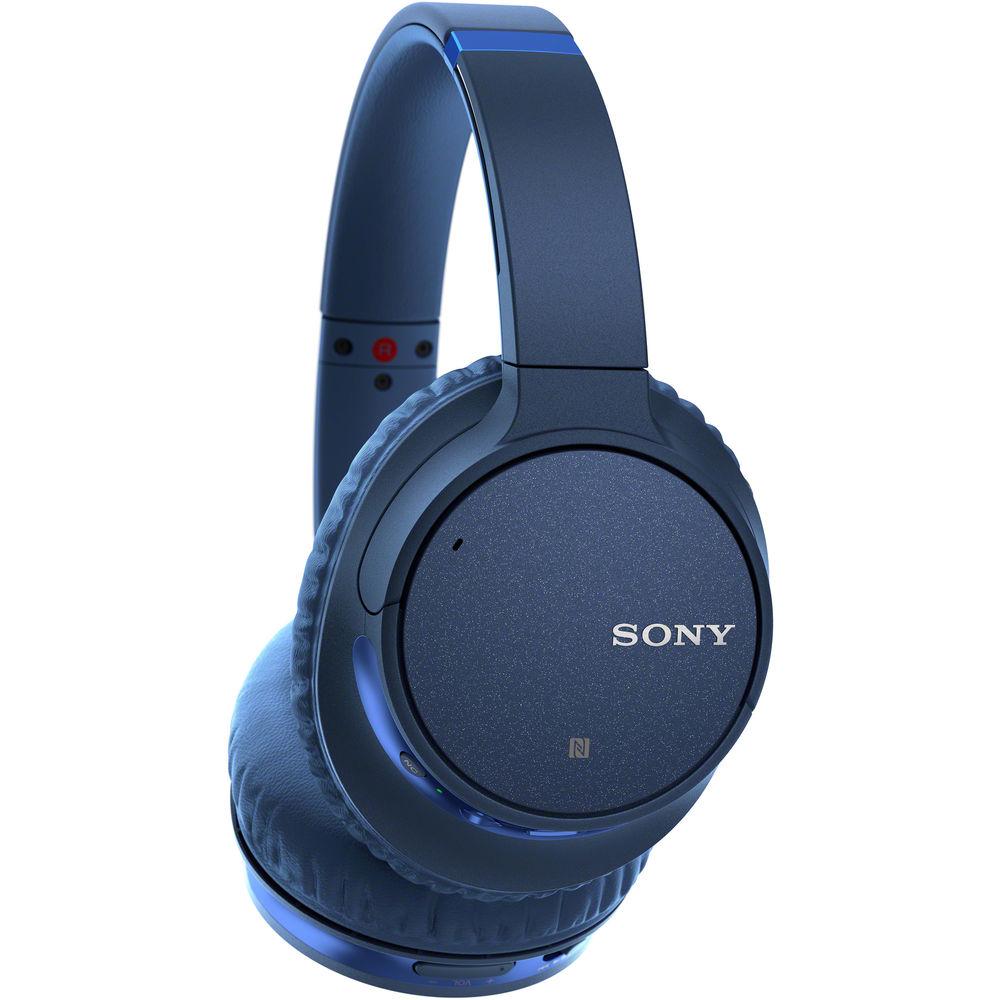

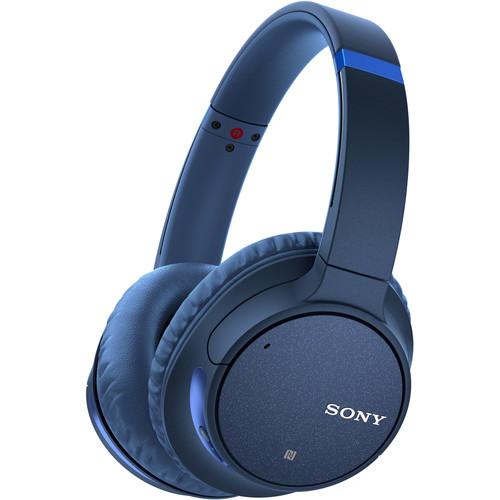

Product description The blue Sony WH-CH700N are wireless over-ear headphones designed to deliver extended listening time, noise cancellation, and convenient voice control for music lovers and media enthusiasts traveling, relaxing, or studying inside or outdoors. Their 40mm dynamic drivers utilize neodymium magnets and produce a wide frequency response of 20 Hz to 20 kHz. Bluetooth version 4.1 and NFC technology grant simple and effective wireless integration with your mobile device. An 1/8" cable is included for battery-saving wired operation.Active noise cancellation attenuates background noise and is selectable via a dedicated button. The built-in rechargeable battery affords up to 35 hours of wireless listening time via a full charge or up to 200 hours of standby time. Thanks to the integrated microphone and remote buttons, you can take calls and control track playback and volume without accessing your smartphone. Compatibility with iOS and Android voice assistants lets you enjoy efficient app access via voice commands.The headphones ship with a micro-USB cable for battery charging. The swivel design of the WH-CH700N allows the earcups to lie flat for more compact storage and transport. - Bluetooth and NFC
- Stream effortlessly with Bluetooth and NFC one-touch listening. Near-Field Communication (NFC) technology makes complex set-up sequences a thing of the past. Simply touch selected NFC-enabled devices to the on-body N-mark for a quick, seamless connection, then start streaming content via Bluetooth. No NFC? No problem. You can still manually connect to Bluetooth using your device's settings menu.
- Selectable Noise Cancellation
- Press and hold the Noise Canceling button to activate Artificial Intelligence Noise Cancelation (AINC) and adapt noise cancellation to your environment. Background noise is analyzed and adjusted for optimal performance on airplanes and other noisy environments.
- Convenient Remote Control
- Use the buttons to play, stop, or skip through tracks and adjust the volume. Conversation flows freely with easy hands-free calling via the built-in microphone—no need to take your phone from your pocket.
- Voice Commands
- A simple button press connects you to your smartphone's voice assistant to get directions, play music, and communicate with contacts.
- Extended Battery Life
- The built-in rechargeable battery life allows up to 35 hours of playback and up to 200 hours of standby time. Quick charging gives 1 hour of music playback from a 10-minute charge. Recharge via USB connection with the supplied charging cable.

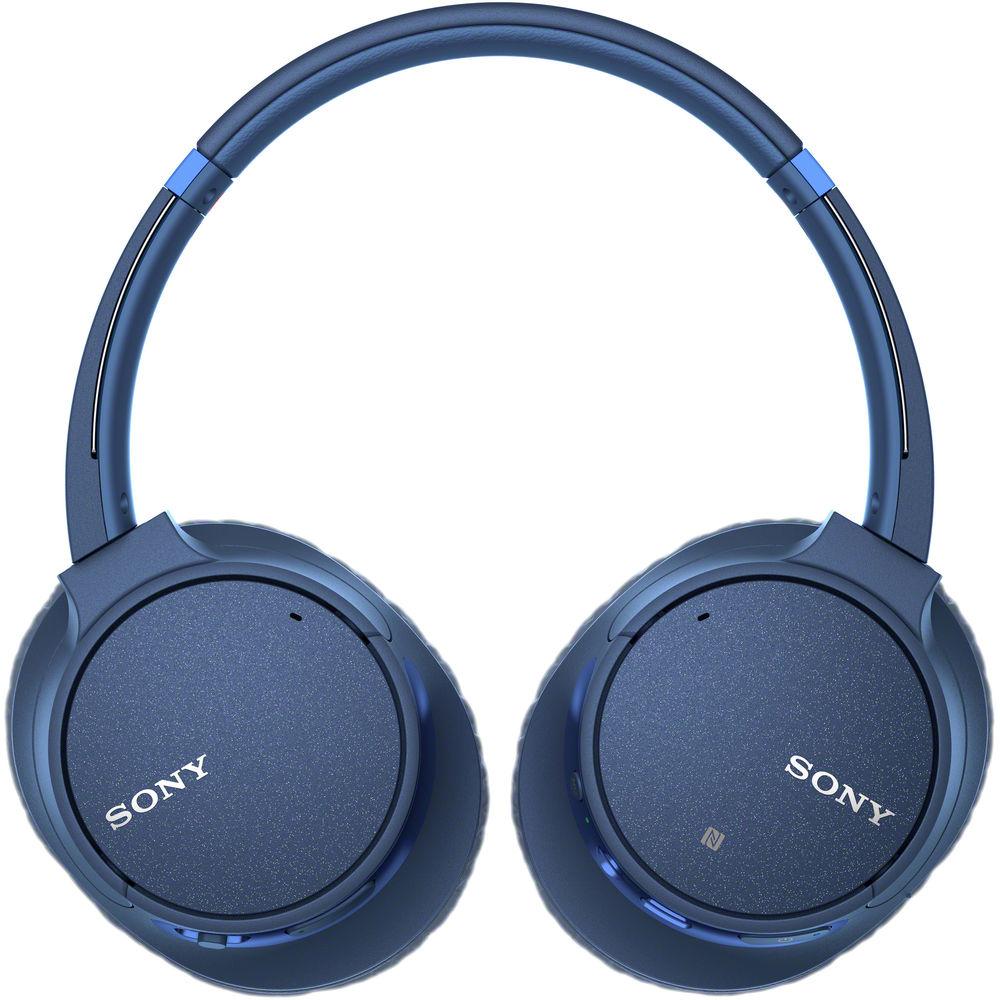

- Swivel Design
- A swivel design makes it simple and safe to store the headphones when you're on the move. The earcups swivel flat to slip easily into a suitcase or bag.
- Wired or Wireless Operation
- Use Bluetooth for wireless operation or connect via the included 1/8" headphone cable for up to 50 hours of noise canceling music playback. The frequency response remains at 20 Hz to 20 kHz in wired and wireless configurations.
- DSEE
- When an original music source is compressed, it often loses high-frequency elements that add detail and richness. The Digital Sound Enhancement Engine (DSEE) restores these to produce enhanced quality that's closer to the original recording.
- App-Based Optimization
- Tune your headphones to your ideal sound with the free Sony Headphone Connect app. Adjust audio levels and digital soundfield modes with a range of presets and customizable EQ settings easily from your smartphone. Virtualphones Technology (VPT) simulates outdoor-stage, club, hall, or arena-style sound.

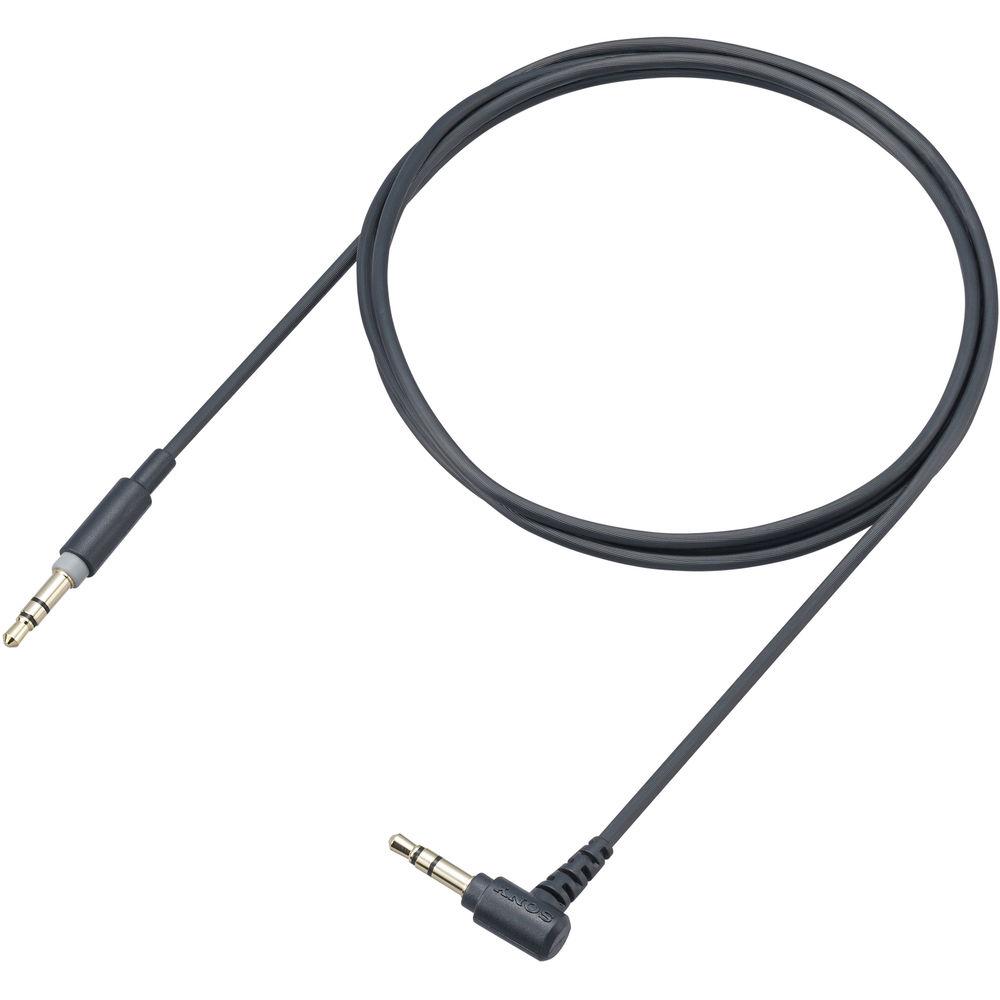

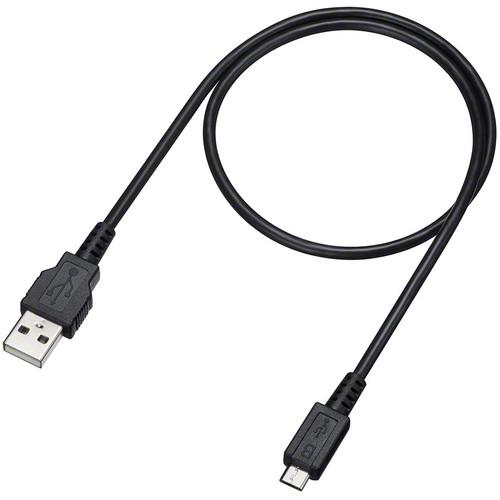

UPC: 027242908741 In the Box Sony WH-CH700N Wireless Noise-Canceling Over-Ear Headphones (Blue) Micro-USB Cable 1/8" Headphone Cable Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony WH-CH700N Wireless Noise-Canceling Over-Ear Headphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony WH-CH700N Specs | | | Driver Size | 1.57" / 40 mm | | Magnet Type | Neodymium | | Active Noise Cancellation | Yes | | Design | Over-Ear (Circumaural) | | | | Frequency Response | 20 Hz to 20 kHz (Wired)
20 Hz to 20 kHz (Wireless) | | Sensitivity | 97 dB at 1 kHz (Active)
98 dB at 1 kHz (Passive) | | Impedance | 22 Ohms (Active)
48 Ohms (Passive) | | Controls/Microphone Location | Earpiece | | Foldable | No | | Storage Capacity | None | | | | Number of Mics | 1 | | Beamforming Support | None | | | | Supported Audio Codecs | AAC, SBC, aptX, aptX HD | | Bluetooth Profiles | A2DP
AVRCP
HFP
HSP | | Bluetooth Version | 4.1 | | Wireless Range | 30' / 9.1 m | | Frequency | 2.4 GHz | | NFC | Yes | | | | Audio Connector | 1/8" / 3.5 mm TRS Right-Angled | | Cable Length | 3.94' / 1.2 m | | Headphone Charging Port | Micro-USB | | | | Runtime | 35 Hours (BT+ANC)
200 Hours (Standby) | | Quick Charging Times | 10 Minutes for 1 Hour | | Recharge Time | 7 Hours | | | | IP Rating | None | | LED Indicator | Yes | | Dimensions (W x H x D) | 8.7 x 7.0 x 2.7" / 221.0 x 177.8 x 68.6 mm | | Weight | 8.5 oz / 241 g | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 10.2 x 8.8 x 2.7" |
