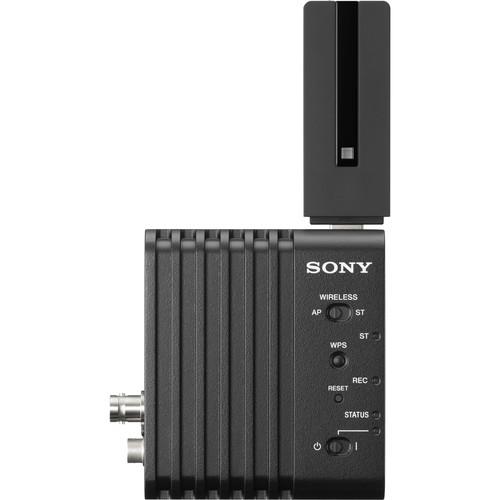

User Manual for Sony Wireless Adapter Kit for Select XDCAM Camcorders Click to enlarge the picture
Contents of the user manual for the Sony Wireless Adapter Kit for Select
- Product category: Camcorder Accessories Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Camcorder Accessories
|
User manual for the Sony Wireless Adapter Kit for Select contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description This Wireless Adapter Kit from Sony connects directly to select XDCAM cameras to enable easy transmission of content over a wireless network, significantly accelerating the ENG workflow. It allows XAVC proxy files to be created and then saved on the adapter to an SD card. The adapter is then able to upload the proxy content and the original high-resolution content (depending on the model) via 3G/4G/LTE/wireless LAN to a broadcast station, an on-premises server, or a cloud environment.
By supporting wireless LAN connectivity, this adapter allows tablets and smartphones to interact with it and control it via the Content Browser Mobile application. This allows users to remotely control the camera and review content on their mobile device without having to connect a monitor to the camcorder. In the Box Sony Wireless Adapter Kit for Select XDCAM Camcorders 5 GHz / 2.4 GHz Dual Band Wireless LAN Adapter for PXW-X500, PXW-X200, and PXW-X180 2 x Brackets Guard Bracket 2 x Pads DC Cable BNC Cable USB Cable 5 x Screws Limited 1-Year Warranty on Parts Limited 90-Days Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony Wireless Adapter Kit for Select XDCAM Camcorders in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony CBK-WA100/02 Specs | Compatibility | PDW-850, PMW-500/400/300/200/160/150/50 (with HD-SDI connection and USB connection)
PMW-320, PDW-F800/700/680 (with HD-SDI connection) | | Power Requirements | 12 VDC | | Power Consumption | 4.5 W (not including external USB devices) | | Proxy Video Format | XAVC Proxy, AVC/H.264 main profile, 4:2:0 long GOP
1280 x 720, 29.5' / 9 m (VBR)
640 x 360, 9.8' / 3 m (VBR)
480 x 270, 3.3' / 1 m (VBR) | | Proxy Audio Format | AAC-LC, 2 channels, 128 kb/s for stereo | | Input | 4-pin male, DC
BNC, HD-SDI | | USB | 1 x mini-USB Type-B for camcorder
2 x USB Type-A for wireless LAN USB device and 3G/4G/LTE modem | | Recording Media | 1 x SD card slot, supports SDHC class-4 and higher, 32 GB max. | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 3.3 x 3.7 x 1.2" / 8.4 x 9.5 x 3.0 cm, without projection | | Weight | 7.8 oz / 220 g approx. | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 7.6 x 6.3 x 6.2" |
