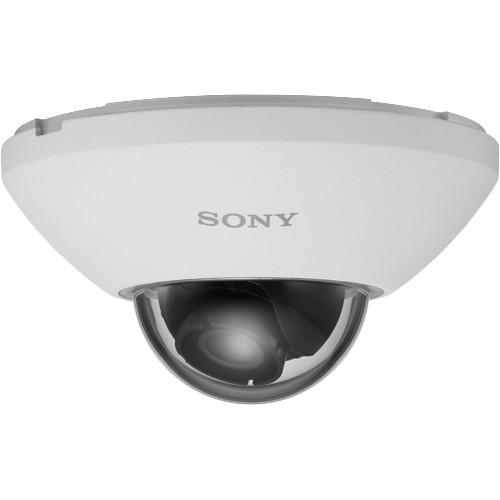

User Manual for Sony X Series 2.1MP Network Mini Dome Camera Click to enlarge the picture
Contents of the user manual for the Sony X Series 2.1MP Network Mini
- Product category: Wired IP Cameras Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wired IP Cameras
|
User manual for the Sony X Series 2.1MP Network Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The X Series 2.1MP Network Mini Dome Camera from Sony features a 1/2.9" progressive scan Exmor CMOS sensor and 2.8mm fixed lens to capture images at a maximum resolution of 1920 x 1080. The IPELA ENGINE EX signal processing system is based on Sony's signal processing and video analytics technologies to provide features such as View-DR, XDNR, and DEPA Advanced technologies. View-DR wide dynamic range (90 dB) technology enables the camera to capture objects clearly and adaptively even under low backlit and highlight conditions. In addition, the camera complies with IK10 standards for vandal and impact resistance. - Visibility Enhancer (VE) to optimize the brightness and color reproduction of an image dynamically on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range
- XDNR (eXcellent Dynamic Noise Reduction) technology for clear images without introducing motion blur under low lighting conditions
- DEPA Advanced Intelligent Video Analytics to trigger an alarm based on user-defined rules
- Includes SNC Easy IP Setup Guide application for quick network setup
- Powered by IEEE 802.3af (PoE) connection
- IK10-rated vandal-resistant housing
- Electronic D/N (Day/Night) function to switch to day or night mode depending on light levels
- Picture mode allows users to easily adjust camera settings based on a scene requirement
- VBR (variable bit rate) capable of maximum bit rate setting or CBR (constant bit rate) compression mode selectable to correspond with various network conditions
- Smartphone viewer to display an image of the camera on a smartphone's screen and control the camera's pan, tilt, and zoom functions by simple touch panel operation
- ONVIF (Open Network Video Interface Forum) Profile S conformance ensures interoperability and increased flexibility in building multi-vendor systems
- e-Varifocal to electronically zoom an image and adjust the field of view for easy and flexible installation
- Image Stabilizer to help minimize the effect of camera shakes or vibrations to achieve less blurry images
- Three-axis hinge structure to adjust the lens unit in pan, tilt, and rotate directions for easy field of view adjustments during installation
- SD/SDHC card slot for edge storage
- e-Flip and multicast streaming support
- Intelligent motion detection, face detection, and tamper alarm
- Compatible with cloud services
UPC: 027242879409 In the Box Sony X Series 2.1MP Network Mini Dome Camera Software CD-ROM Template I/O Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony X Series 2.1MP Network Mini Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony SNC-XM631 Specs | | | Image Sensor | 1/2.9" progressive scan Exmor CMOS sensor | | Number of Effective Pixels | Approximately 2.14 MP | | Minimum Illumination | At 50 IRE
Color: 0.3 lux (f/2, View-DR OFF, VE OFF, AGC ON, 1/30 sec, 30 fps)
At 30 IRE
Color: 0.18 lux (f/2 View-DR OFF, VE OFF, AGC ON, 1/30 sec, 30 fps) | | Dynamic Range | Equivalent to 90 dB with View-DR technology | | Gain | Auto | | Shutter Speed | 1/10,000 to 1 sec | | Exposure Control | Exposure compensation, AGC, Shutter speed | | White Balance | ATW, ATW-PRO, fluorescent lamp, mercury lamp, sodium vapor lamp, metal halide lamp, white LED, one push WB, manual | | Lens | Fixed lens | | Zoom Ratio | Digital: 4x | | Horizontal Viewing Angle | 113° | | Vertical Viewing Angle | 61° | | Tilt Angle | 151° | | Focal Length | 2.8mm | | F Number | f/2.0 | | Minimum Object Distance | 19.6" (500 mm) | | Manual Controls | Pan: 350°
Tilt: 0 to 60°
Rotation: ±175° | | | | Day/Night | Electronic D/N | | Wide-D | View-DR | | Correction Method | Tone: Visibility Enhancer (VE) | | Noise Reduction | XDNR | | Privacy Masking | Number: 20
Shape: Quadrangle formed by any four corner points
Opaque: 14 colors (black, white, red, green, blue, cyan, yellow, magenta, gray (6 scales)), mosaic | | Vandal Resistance | IK10 | | Superimpose Number | Superimpose Number: 3 independent positions for character (Codec, Date & time, Event, Text (maximum 64 characters)), 1 independent position for logo mark
Superimpose Language: English | | Menu Language | English, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai, Turkish, Polish | | | | Resolution | 1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184 (H.264, JPEG) | | Compression Format | H.264 (high / main / baseline profile), JPEG | | Maximum Frame Rate | 30 fps at 1920 x 1080 | | Bit Rate | Compression Mode: CBR/VBR (selectable)
Range of Bit Rate Setting: 64 kb/s to 32 Mb/s | | Control | Adaptive Rate Control: H.264 | | Bandwidth Control | JPEG | | Multi-Streaming | Triple streaming | | Number of Clients | 20 | | | | Analytics | Analytics Architecture: DEPA Advanced | | Scene Analytics | Passing, intrusion, left object detection, removed object detection | | | | Operating System | Windows XP (32-bit) Professional Edition, Vista (32-bit) Ultimate, Business Edition, 7 (32/64-bit) Ultimate, Professional Edition, 8 Pro (32/64-bit), 8.1 Pro (32/64-bit) | | Processor | Intel Core i7 2.8 GHz or higher | | Memory | 2 GB or more | | Web Browser | Microsoft Internet Explorer Version 7.0, 8.0, 9.0, 10, 11
Firefox Version 19.02 (plug-in free viewer only)
Safari Version 5.1 (plug-in free viewer only), Google Chrome Version 25 (plug-in free viewer only) | | | | Protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, RTSP over HTTP, SMTP, IPv6, HTTPS, SNMP (v1, v2c, v3), FTP (client only), SSL | | QoS | DSCP | | ONVIF Conformance | Profile S | | Authentication | IEEE 802.1X | | Interface | Network Port: 10Base-T/100Base-TX (RJ45)
Alarm Input (Sensor Input): 1, make contact, break contact
Alarm Output: 1,
