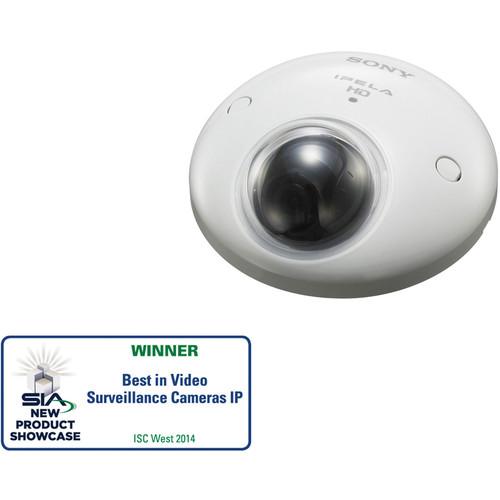

User Manual for Sony X-Series SNC-XM636 Mini Dome Vandal- & Weather-Resistant Outdoor Full HD Network Camera with IPELA ENGINE EX Technology Click to enlarge the picture
Contents of the user manual for the Sony X-Series SNC-XM636 Mini Dome Vandal-
- Product category: Wired IP Cameras Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wired IP Cameras
|
User manual for the Sony X-Series SNC-XM636 Mini Dome Vandal- contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony X-Series SNC-XM636 Mini Dome Vandal- & Weather-Resistant Outdoor Full HD Network Camera with IPELA ENGINE EX Technology is equipped with a 1/2.9" Exmor CMOS sensor that captures clear images with a maximum resolution of up to 1920 x 1080 pixels. The IPELA ENGINE EX signal processing system has been developed based on Sony’s signal processing and intelligent video analytics technologies to provide features such as View-DR, XDNR, and DEPA Advanced technologies. Thanks to the View-DR wide dynamic range technology, the camera is able to capture images clearly and adaptively even under severe backlight or highlight conditions.The built-in Visibility Enhancer (VE) dynamically optimizes the brightness and color reproduction of an image on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range. With the IK10-rated vandal-resistant housing, the camera can be safeguarded from destructive activities. The IP66-rated water-resistant and dust-tight feature of the housing makes the camera suitable for both outdoor surveillance as well as indoor locations where water ingress may pose a threat. - Maximum resolution of 1920 x 1080 pixels with the 1/2.9" Exmor CMOS sensor
- Wide dynamic range of 90dB achieved with View-DR technology
- Minimum illumination of 0.3 lux in Color and B&W modes at 50 IRE
- IK10-rated vandal-resistance and IP66-rated water-resistant/dust-tight features of the housing allows the camera to be installed outdoors even in areas threatened by vandalism activities
- Horizontal viewing angle of 83°
- Meets safety regulations for indoor train applications, including EN45545 and EN50155
- IPELA ENGINE EX signal processing system has been developed based on Sony's signal processing and intelligent video analytics technologies for features such as View-DR, XDNR, and DEPA Advanced technologies
- View-DR wide dynamic range technology helps capture images clearly and adaptively even under severe backlight or highlight conditions
- Visibility Enhancer (VE) optimizes the brightness and color reproduction of an image dynamically on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range
- IK10-rated vandal-resistant feature protects the camera from destructive behaviors
- IP66-rated water-resistant and dust-tight feature is suitable for outdoor surveillance and indoor locations where water ingress may pose an issue
- DEPA Advanced Intelligent Video Analytics to trigger an alarm based on user-defined rules
- XDNR (eXcellent Dynamic Noise Reduction) technology for clear images with virtually no motion blur under low illumination
- Three-hinge structure to turn the lens unit in panning, tilting, and rotating directions for easy and flexible camera angle adjustment
- Picture mode selectable from a range of camera scenes in the setting menu to help optimize picture quality in various applications
- Variable Bitrate (VBR) or Constant Bitrate (CBR) compression modes selectable to correspond with various network conditions
- Edge Storage function to record video and audio data with an SD/SDHC card attached to the camera
- Image Stabilizer to help minimize the effect of camera shake or vibration to achieve less blurry images
- Electronic Day/Night (D/N) function to switch to Day or Night mode depending on the light level
- Smartphone viewer displays an image of the camera on a smartphone screen and lets you control the camera's pan, tilt, and zoom functions by simple touch-panel manipulation
- Open Network Video Interface Forum (ONVIF) Profile S conformance firmware ensures interoperability and flexibility in building multi-vendor systems
- Easy initial network settings by supplied SNC Easy IP Setup Guide application
- Built-in microphone and heater
- Powered by IEEE 802.3af (PoE system) via an M12 connector for easy installation
In the Box Sony X-Series SNC-XM636 Mini Dome Vandal- & Weather-Resistant Outdoor Full HD Network Camera with IPELA ENGINE EX Technology Template Lens Adjusting Tool Wrench Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony X-Series SNC-XM636 Mini Dome Vandal- & Weather-Resistant Outdoor Full HD Network Camera with IPELA ENGINE EX Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony SNC-XM636 Specs | | | Image Sensor | 1/2.9" Progressive Scan Exmor CMOS | | Number of Effective Pixels | Approximately 2.14 MP | | Minimum Illumination | Color: 0.3 lux, B&W: 0.3 lux at 50 IRE
Color: 0.18 lux, B&W: 0.18 lux at 30 IRE | | Dynamic Range | Equivalent to 90 dB with View-DR technology | | Gain | Auto | | Shutter Speed | 1/1 to 1/10,000 sec | | Exposure Control | Exposure compensation, AGC, Shutter speed | | White Balance | ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapor lamp, Metal halide lamp, White LED, One push WB, Manual | | Lens | Fixed lens | | Zoom Ratio | 4x digital | | Viewing Angle | Horizontal: 83°
Vertical: 45° | | Tilt Angle | 135° | | Focal Length | f = 3.8 mm | | F-Number (f) | F2.2 | | Pan / Tilt / Rotate | Manual Pan: ±30°
Tilt: 0 to +90°
Rotation: ±175° | | | | Day/Night | Electronic D/N | | Wide-D | View-DR | | Correction Method | For Tone Correction: Visibility Enhancer (VE) | | Noise Reduction | XDNR | | Privacy Masking | 20, Shape: Quadrangle formed by any four corner points
Color/effect: Opaque (14 colors: Black, White, Red, Green, Blue, Cyan, Yellow, Magenta, Gray (6 scales)), Mosaic | | Vandal Resistant | IK10 | | Ingress Protection Rating | IP66 | | Positions | 3 independent positions for characters (Codec, Date & time, Event, Text (maximum 64 characters)), 1 independent position for logo marks | | Language | Superimpose Language: English | | Menu Languages | English, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai | | | | Resolution | 1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184 (H.264, JPEG) | | Compression Format | H.264 (High/Main/Baseline Profile), JPEG | | Maximum Frame Rate | H.264: 30 fps (1920 x 1080), JPEG: 30 fps (1920 x 1080) | | Bitrate Control Method | CBR/VBR (selectable) | | Range | 64 kb/s to 32 Mb/s | | Rate Control | H.264 | | Bandwidth Control | JPEG | | Multi-Streaming | Triple streaming | | Number of Clients | 20 | | | | Architecture | DEPA Advanced | | Scene Analytics | Passing, Intrusion, Left Object Detection, Removed Object Detection | | | | Compression Format | G.711/G.726/AAC (16 kHz, 48 kHz) | | | | Operating System | Windows XP (32-bit) Professional Edition
Windows Vista (32-bit) Ultimate, Business Edition
Windows 7 (32/64-bit) Ultimate, Professional Edition
Windows 8 Pro (32/64-bit) | | Processor | Intel Core i7 2.8 GHz or higher | | Memory | 2 GB or more | | Web Browser | Microsoft Internet Explorer Ver. 7.0, Ver. 8.0, Ver. 9.0, Ver. 10.0
Firefox Ver. 19.02 (plug-in free viewer only)
Safari Ver. 5.1 (plug-in free viewer only)
Google Chrome Ver. 25.0 (plug-in free viewer only) | | | | Protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP*, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, RTSP over HTTP, SMTP, IPv6, HTTPS, SNMP (v1, v2c, v3), SSL QoS DSCP | | ONVIF Conformance | Profile S | | Authentication | IEEE 802.1X | | | | Microphone Input | Built-in microphone | | Port | 10BASE-T/100BASE-TX (M12) | | Card Slots | 1 x SD card | | Memory Card | SDHC (no support for SDXC) | | | | Power Requirements | IEEE 802.3af compliant (PoE system) | | Power Consumption | 10.0 W maximum (Heater On)
3.8 W maximum (Heater Off) (equivalent to PoE Class 1) | | Temperature | Operating: -13 to +122°F (-25 to +50°C)
Cold Start Temperature: Greater than -4°F (-20°C)
Storage Temperature: -22 to +140°F (-30 to +60°C) Humidity: Operating: 20 to 80%, Storage: 20 to 80% | | Material | External: Top Cover/Dome Cover: PC (polycarbonate) | | Color | External:Top Cover: Munsell 4.4BG 8.4/0.2 | | Fire Protection | UL2044 | | Safety Regulations | UL2044, UL50, IEC60950-1, IEC60529, IEC62262, EN45545 (fire protection on railway vehicles), EN50155 (electronic equipment used on rolling stock), EN55022, EN61000-3-2, EN61000-3-3, EN55024, EN50130-4, FCC/IC (Class B), AU/NZ EMC, KN22/KN24 (Class B), EN50121, VCCI (Class B), EAC (GOST-R) | | Dimensions (ØxH) | Approximately 4.5 x 1.9" (114.00 x 47.00 mm) | | Weight | Approximately 9.7 oz (275.0 g) |
