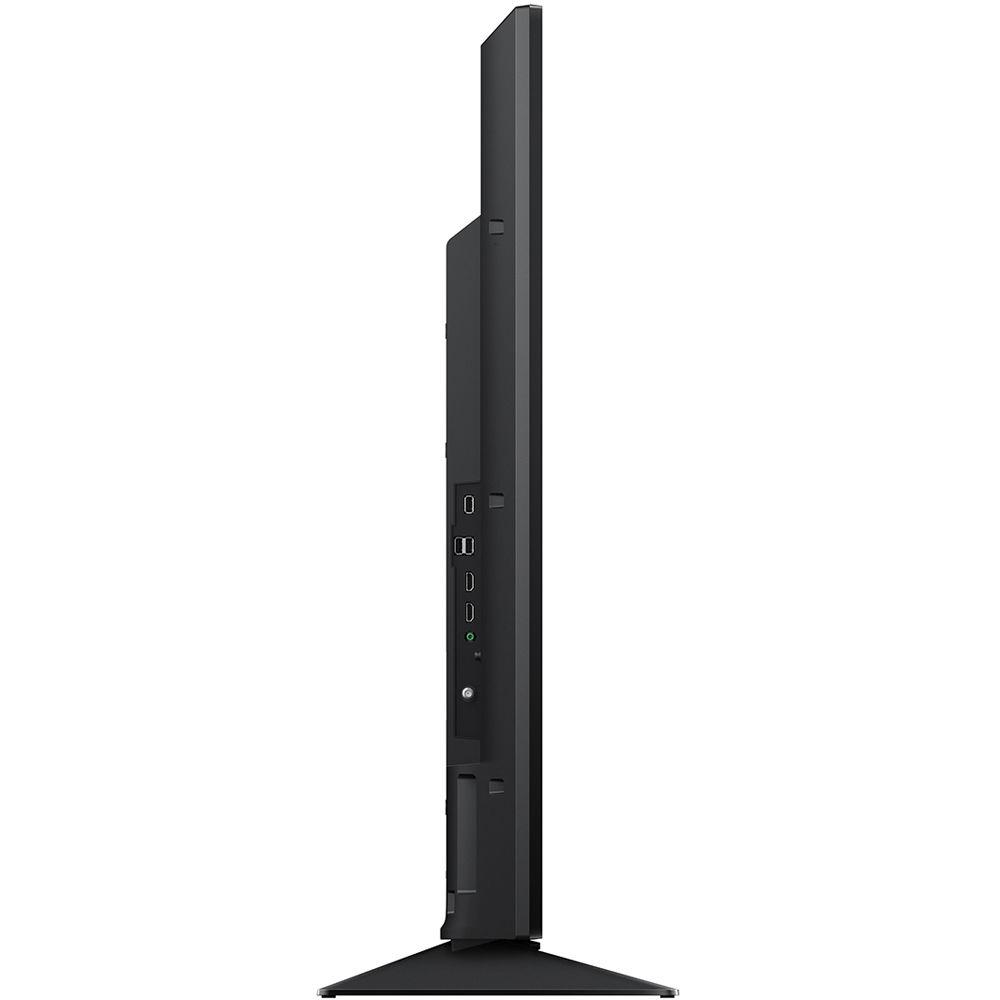

User Manual for Sony X690E 60" Class HDR UHD Smart LED TV Click to enlarge the picture
Contents of the user manual for the Sony X690E 60" Class HDR UHD
- Product category: Televisions Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Televisions
 |
User manual for the Sony X690E 60" Class HDR UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

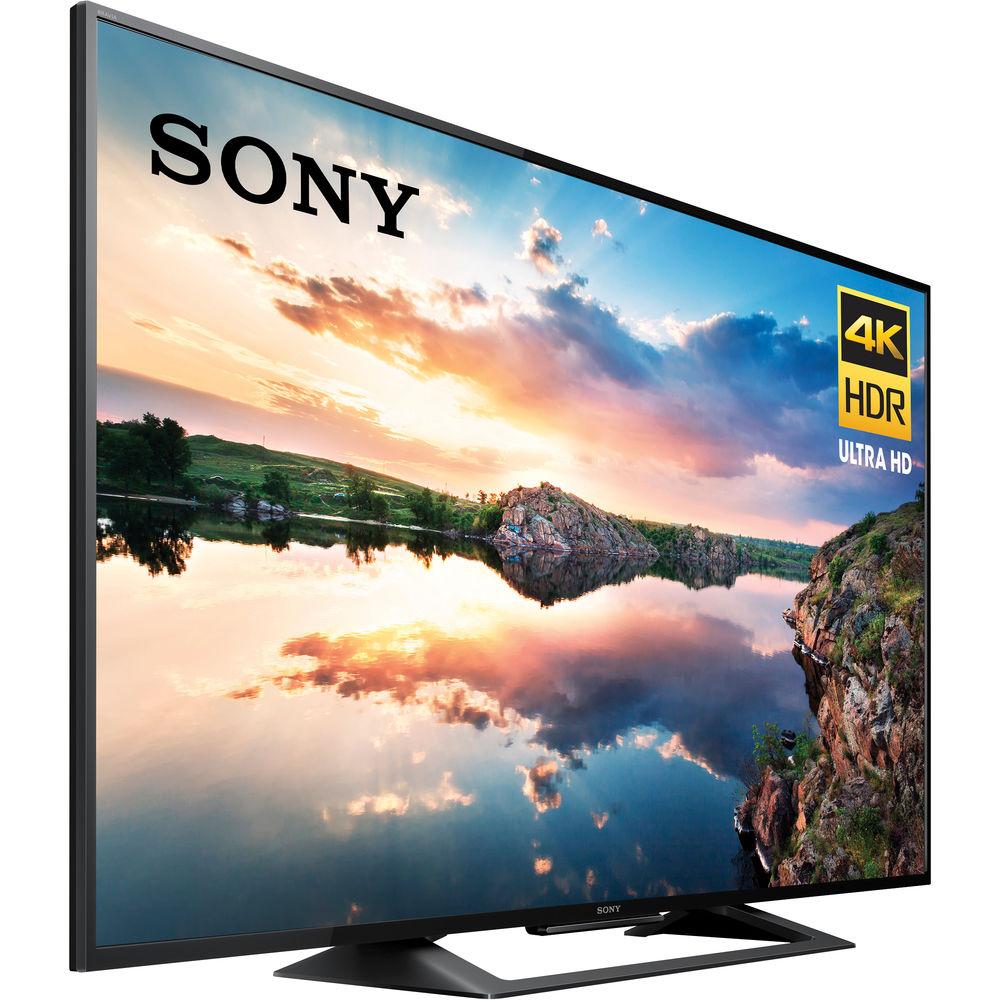

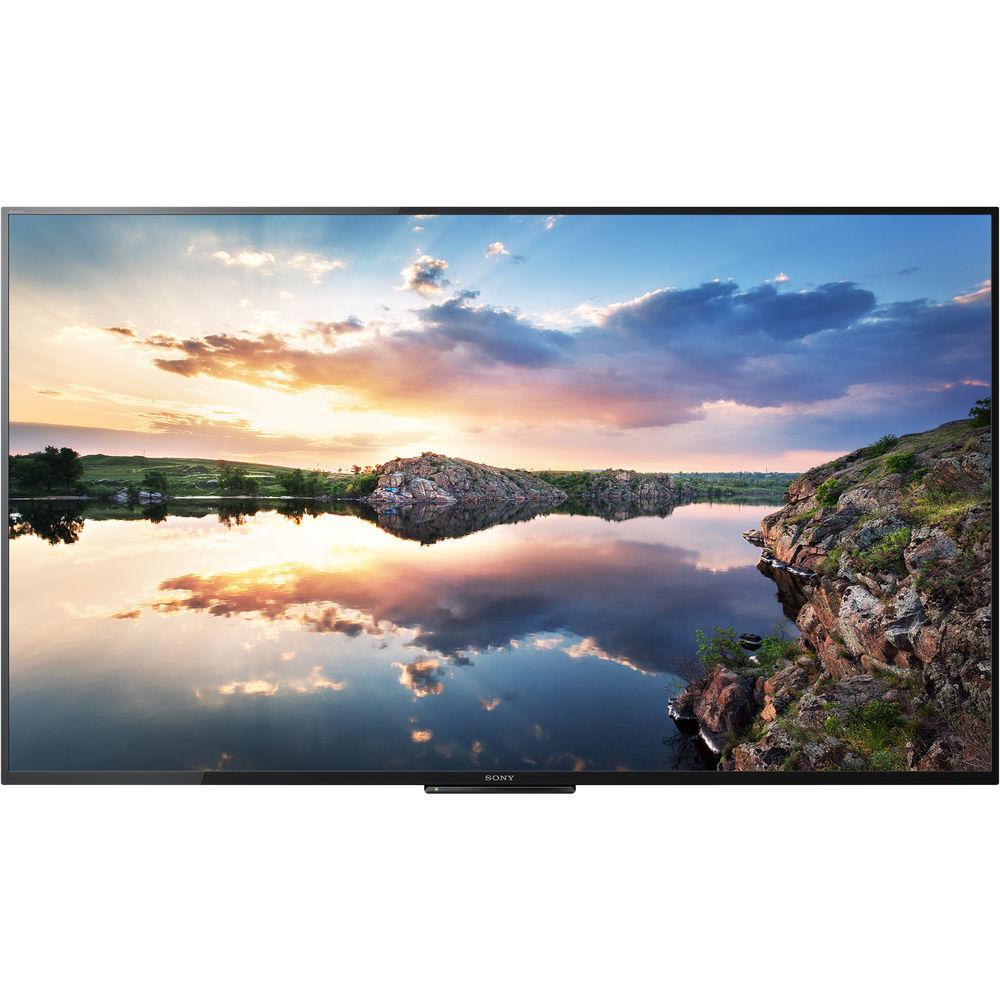

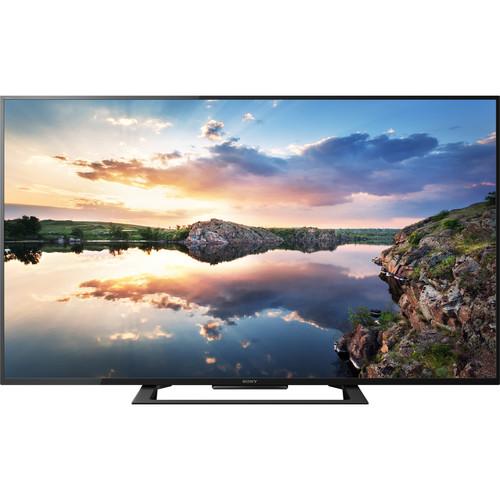

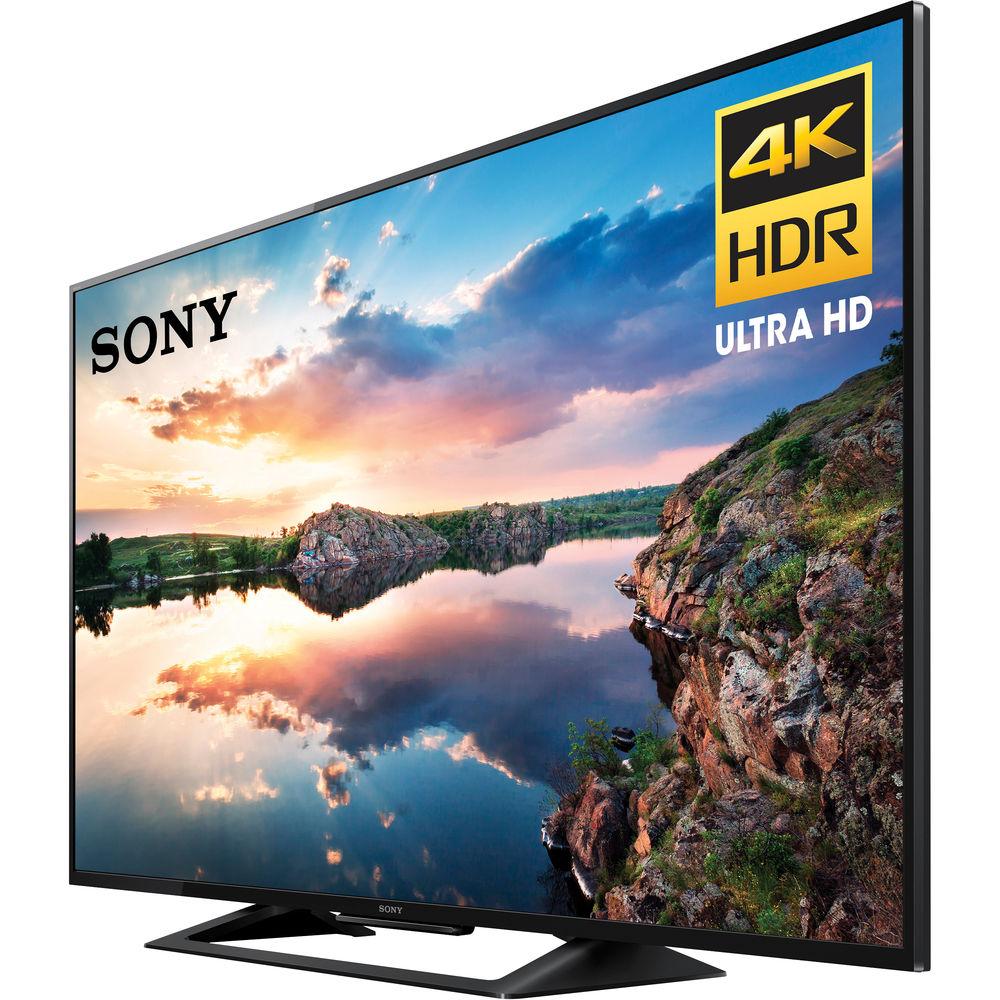

Product description The Big March TV Tournament Read More View content at four times the resolution of 1080p with the Sony X690E 60" Class HDR UHD Smart LED TV. It has a 60" LED-backlit LCD display, and incorporates Sony's Motionflow XR 240 technology to digitally enhance fast-moving images to reduce blur. This TV will also upscale images to near-4K resolution with the 4K X-Reality PRO engine. The X690E has built-in Wi-Fi and Ethernet connectivity to allow access to your favorite apps and Internet-based content via the Opera app store, plus content sharing and screen mirroring with your other compatible smart devices such as your smartphone or tablet.
With one component video and three HDMI inputs, there are multiple options for connecting high-definition video sources. The component input also acts as a hybrid port, which allows you to connect a composite video source instead. Three USB ports are available for connecting compatible multimedia peripherals like flash drives. Note: Content acquired via certain apps may require subscription to a service. Not all services are available in all areas. - 4K HDR
- Combined with 4K Ultra HD resolution and compatible content, HDR video content delivers enhanced detail, color, and contrast, with a wider range of brightness than other video formats for enhanced highlights and detail.
- 4K X-Reality PRO
- The 4K X-Reality PRO engine upscales images to near-4K clarity. Individual parts of each scene are analyzed and matched with an image database that independently addresses texture, contrast, color, and edges for enhanced detail.
- Enhanced Sound and Dialog
- ClearAudio+ is designed to fine-tune TV sound for a more immersive experience, allowing you to hear music and dialogue with enhanced clarity and separation.
- Motionflow XR 240 Helps Keep the Action Smooth
- Sony's refresh rate technology, Motionflow XR 240, is designed to allow fast-moving action sequences in sports and movies to be seen with enhanced motion clarity.
- DSEE Restores Detail to Digital Music
- A large amount of information gets lost when digital audio is compressed. With Digital Sound Enhancement Engine (DSEE) technology, lost frequency components, especially high frequencies, are restored for a more natural sound.
- One-Click YouTube Access
- Go straight to YouTube and enjoy all your favorite videos with the YouTube button built into the remote control.
- S-Force Front Surround
- S-Force Front Surround is designed to mimic the way the brain correlates sound sources to help create proper volume, time lag, and sound-wave spectrum, using only left and right speaker channels. This emulation of three-dimensional sound fields will help you enjoy rich, high-fidelity audio across a wider listening area.
- Wireless Entertainment with Built-In Wi-Fi
- With built-in 802.11b/g/n Wi-Fi, you're able to go online and browse movies, enjoy video channels like YouTube, and access services such as on-demand TV. You can also stream entertainment from your wireless home network without the clutter of cables.
- Clear Phase Technology
- Clear Phase Technology uses a computer model to analyze and compensate for inaccuracies in speaker response by "sampling" the speaker frequency with higher precision. This information is fed back to cancel out any peaks or dips in the speaker's natural response, resulting in more pure, natural audio with smooth, even reproduction of all frequencies.
- Multi-Format USB Playback
- Play music, video clips, and view photo collections through the TV with support for a range of popular codecs. The USB ports support FAT16, FAT32, and NTFS formatted drives.
- Screen Mirroring with Miracast and Photo Sharing Plus
- Screen mirroring lets you enjoy content and apps from your compatible smartphone on the TV. Enlarge all your memories and enjoy them on the big screen with family and friends.
- Additional Features
-
- Stand width of 24.97"
- HDCP 2.2 with HDMI CEC and ARC
- Direct-lit LED with Frame Dimming
- Live Color enhancement technology
- Dynamic Contrast Enhancer
- Open baffle speaker
- Support for Dolby Digital, Dolby Digital Plus, Dolby Pulse, and DTS Digital Surround
- Linux-based operating system
- Opera app store
- On/off timer / sleep timer
- Analog and digital closed captioning
- Power saving/backlight off mode
- Dynamic backlight control
- Plastic with metal stand design
UPC: 027242906037 In the Box Sony X690E 60" Class HDR UHD Smart LED TV Remote Control with Batteries Stand Assembly AC Power Cord Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 xsqattvqau The B&H Television Buying Guide Lawrence Neves 01/31/2018 User Manual PDF 4.4mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony X690E 60" Class HDR UHD Smart LED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

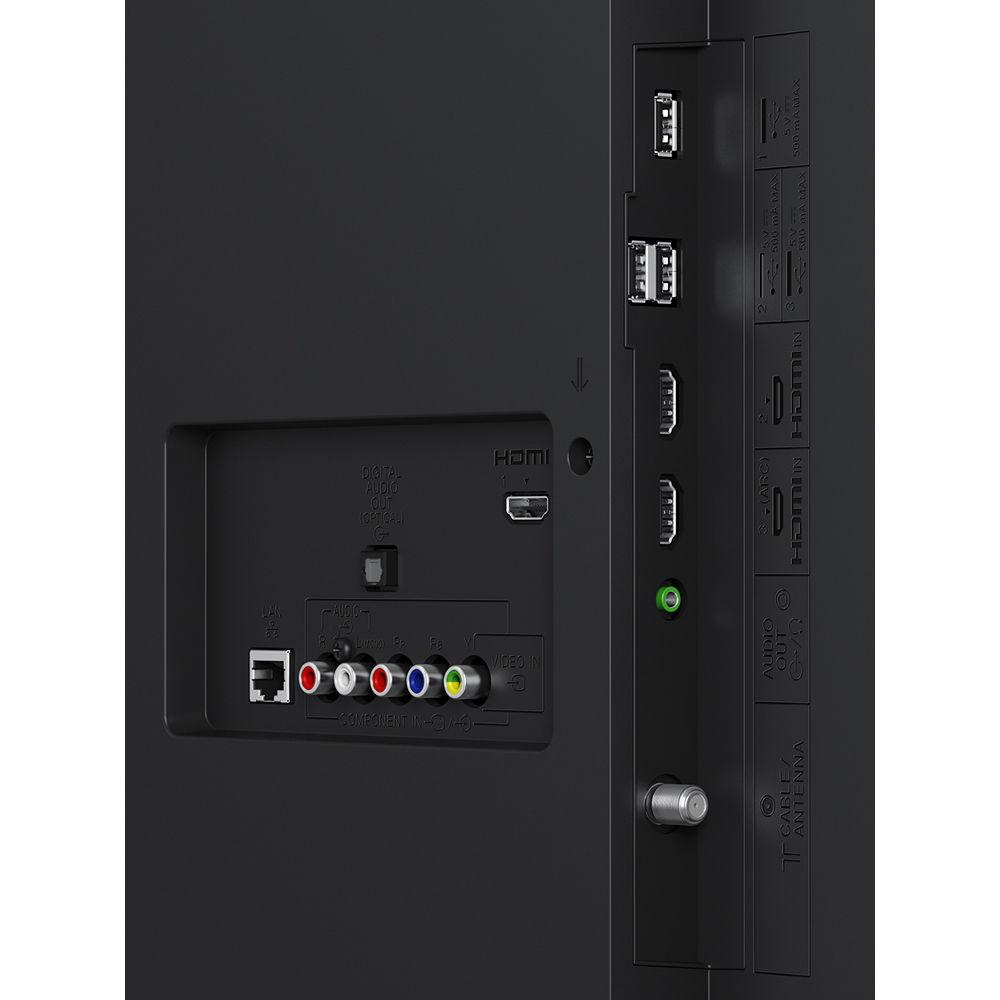

Technical parametersSony X960E Specs | | | Screen Size (Diagonal) | 60" | | Panel Type | LCD | | Aspect Ratio | 16:9 | | Pixel Resolution | 3840 x 2160 | | HDR Compatibility | HDR10, Hybrid Log Gamma | | Refresh Rate | 60 Hz | | | | Video System | NTSC / | | TV Tuner | Yes | | 3D | No | | | | Primary Connectivity Location | Display | | Input Ports | 2 x HDMI – Audio, Video (Side)
1 x HDMI – Audio, Video (Rear)
1 x RF Antenna – Audio, Video (Side)
1 x RCA Component/Composite Combo – Video (Rear)
1 x RCA Stereo (L/R) – Audio (Rear) | | Output Ports | 1 x TOSLINK Optical – Audio (Rear)
1 x 1/8" / 3.5 mm – Audio, Headphone (Side) | | USB Ports | 3 x USB (Version Unspecified) – Audio, Photo, Video (Side) | | Ethernet | LAN | | | | Sound | Stereo | | Subwoofer | None | | Power | 20 W | | Dolby Digital | Yes | | | | Virtual Assistant Support | None | | Wi-Fi | Built-In | | Picture Modes | Cinema, Custom, Game, Graphics, Photo, Sports, Standard, Vivid | | Sound Modes | Cinema
Music
Sport
Standard | | Media Player | AVCHD
AVI
JPEG
MKV
MP3
MPEG1
MPEG2PS
MPEG2TS
WAV
WEBM
WMA
Xvid | | Supported Languages | English
French
Spanish | | Remote Control | Yes | | Wall Mounting | 400 x 300mm | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Operational: 162.0 W
Standby: 0.5 W | | Dimensions (W x H x D) | 53.5 x 31.0 x 3.5" / 135.9 x 78.7 x 8.9 cm Without stand
53.5 x 32.9 x 12.1" / 135.9 x 83.5 x 30.8 cm With stand | | Weight | 41.9 lb / 19.0 kg Without stand
44.5 lb / 20.2 kg With stand | | | | Package Weight | 60.0 lb | | Box Dimensions (LxWxH) | 62.0 x 34.5 x 7.0" |
