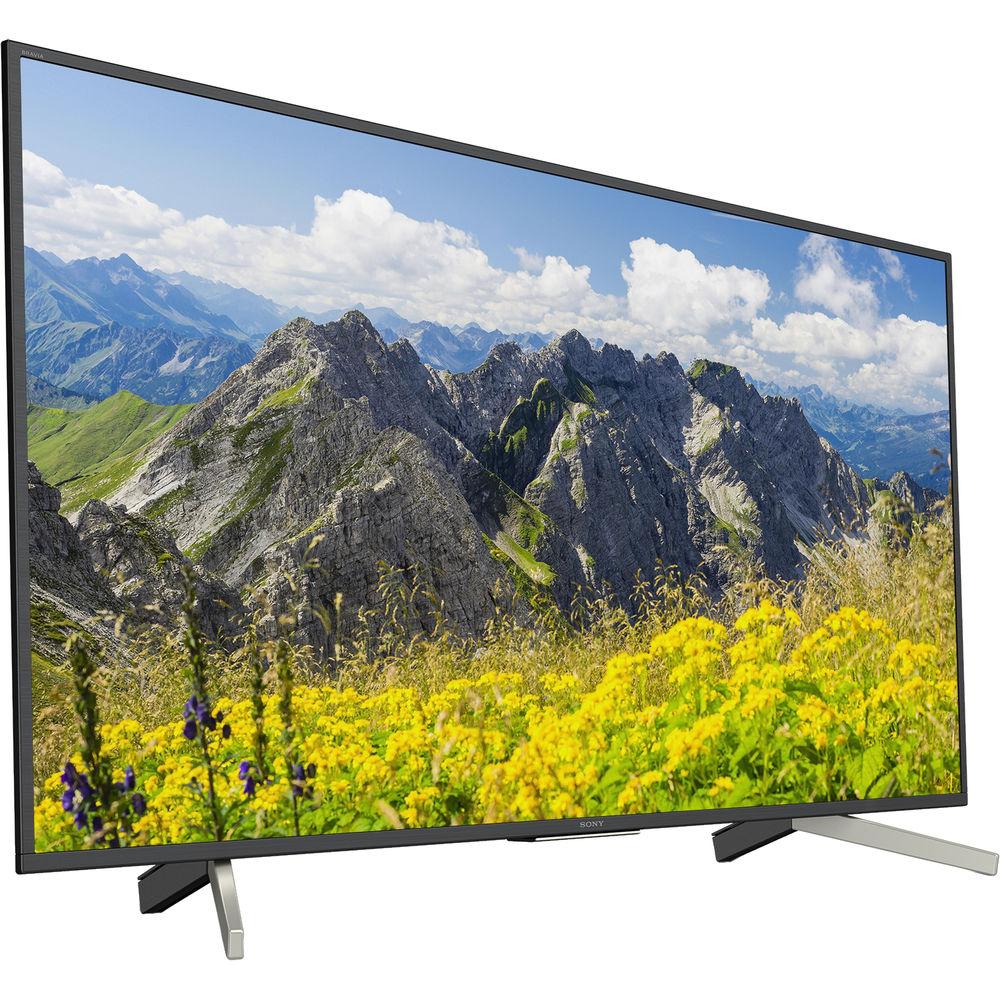

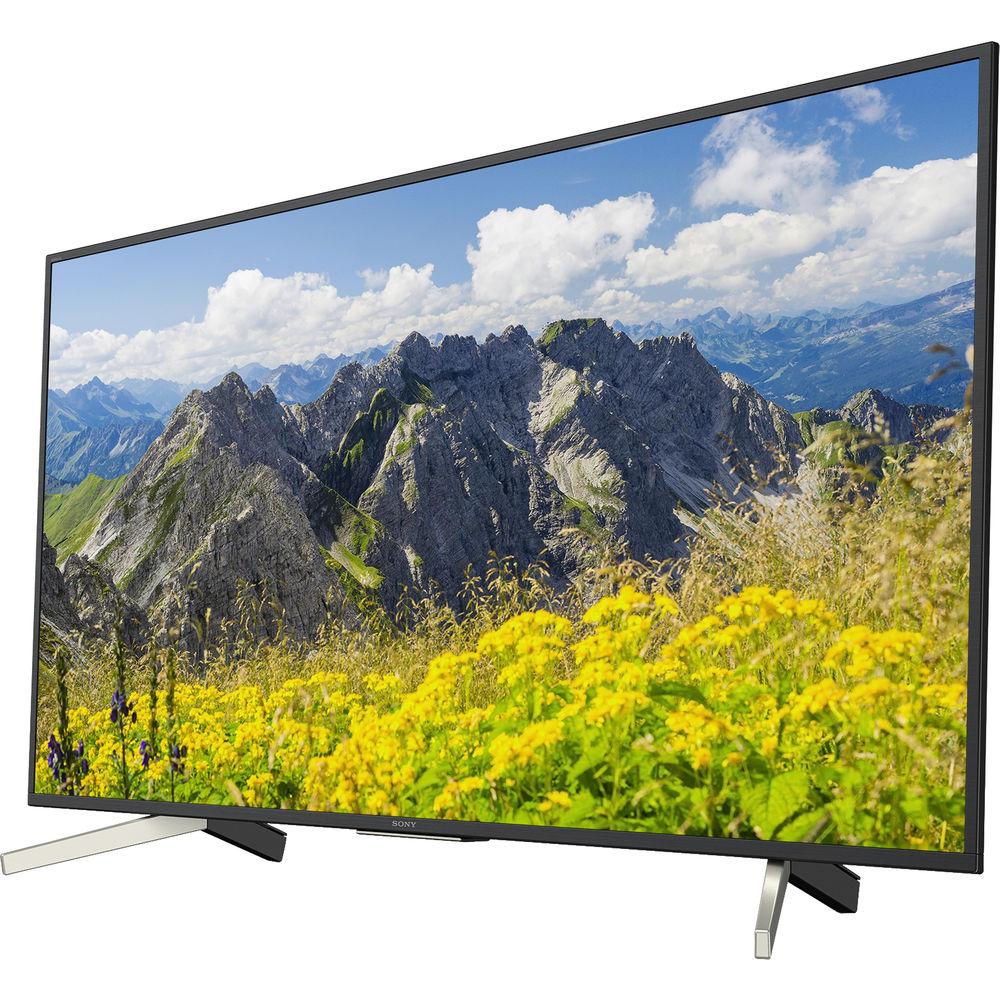

Product description The Big March TV Tournament Read More View content at four times the resolution of 1080p with the Sony X750F 55" Class HDR UHD Smart LED TV. It has a 54.6" LED-backlit display, and incorporates Sony's Motionflow XR 240 technology to digitally enhance fast-moving images to reduce blur. HDR10 and HLG HDR compatibility provide a wide color gamut for compatible content.
The X750F series has built-in Wi-Fi and Ethernet connectivity to allow access to the Google Play store, your favorite apps, and Internet-based content via its Android operating system, plus content sharing and screen mirroring with your other compatible smart devices such as your smartphone or tablet. The Vewd web browser is also available for download through the Google Play store. With four HDMI inputs, there are multiple options for connecting high-definition video sources. A component video input is also available for connecting legacy HD equipment; it's a hybrid port that allows you to connect a composite video source instead. Three USB ports are onboard for connecting compatible multimedia peripherals like flash drives. Note: Content acquired via certain apps may require subscription to a service. - 4K X-Reality PRO
- 4K X-Reality PRO is designed to upscale every image closer to true 4K quality for enhanced clarity, sharpening and refining images in real time.
- HDR10 & HLG
- HDR10 and HLG (Hybrid Log-Gamma) are designed to provide enhanced color, sharpness, and detail with compatible source equipment and media.
- Motionflow XR 240
- Motionflow XR 240 is engineered to create and insert extra frames between the original ones. It compares key visual factors on successive frames, then calculates the split second of missing action in the sequences to help reduce the blur commonly associated with fast-moving on-screen objects.
- Connect with Google Home
- Connect your Google Home for hands-free control of the TV. With Google Home, you can find and cast your favorite videos to the TV without lifting a finger.
- Google Assistant Built-In
- You can ask your Google Assistant to find your favorites. Control the TV and other connected compatible devices using just your voice.
- Works with Amazon Alexa
- Connect your Amazon Alexa-enabled devices for hands-free control of the TV. With Amazon Alexa, you can power up the TV, change channels, control volume, and more.
- Chromecast built-in
- The X750F series has Chromecast built-in so you can easily cast your favorite entertainment like YouTube or Netflix from your personal device to the screen from Android, iOS, or your compatible laptop.
- Direct Netflix Access via the Remote

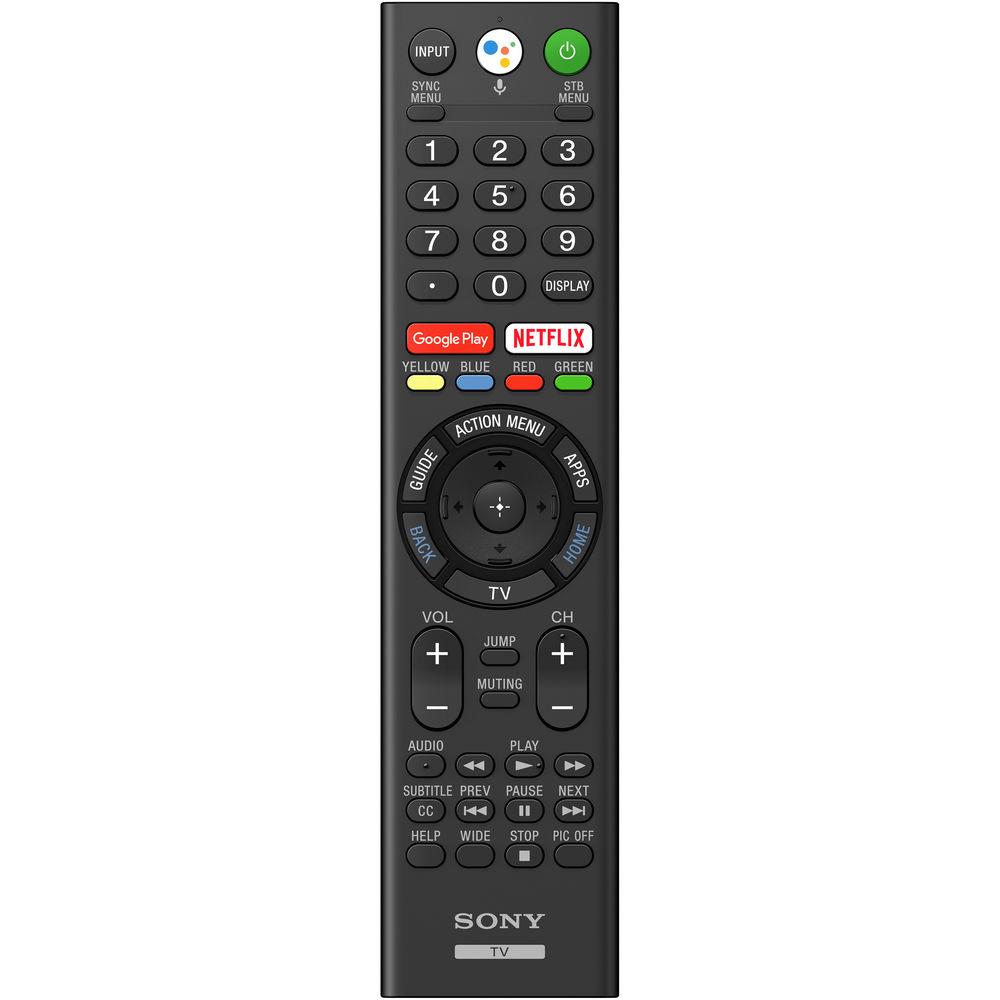

- The remote included with this TV has a dedicated Netflix button, designed to get you directly to the app from whatever other app or source you're using.
- Voice Search
- Voice search on the Android TV OS, powered by Google search, enables you to find content across different services without the hassle of time-consuming text entry. You can also get recommendations; asking for "romantic comedies," for example, brings up a list of suitable options.
- Cinematic S-Force Front Surround
- S-Force Front Surround is engineered to mimic the way the brain correlates sound sources to create proper volume, time lag, and sound wave spectrum, using only left and right speaker channels. With these emulated three-dimensional sound fields, you'll enjoy high-fidelity audio across a wider listening area.
- ClearAudio+
- ClearAudio+ is designed to fine-tune TV sound to help provide an immersive experience that seems to surround you. Hear music, dialogue, and surround effects with augmented clarity and separation, whatever you're watching.
- DSEE Helps Restore Detail to Your Digital Music
- With Digital Sound Enhancement Engine (DSEE) technology, lost frequency components, especially high frequencies, are restored in highly compressed audio formats like Internet video for a more natural sound.
- Clear Phase Technology
- Clear Phase technology uses a computer model to analyze and compensate for inaccuracies in speaker response by "sampling" the speaker frequency. This information is fed back to cancel out any peaks or dips in the speaker's natural response to help provide more pure, natural audio with smooth, even reproduction of all frequencies.
- Smart Plug and Play
- Smart Plug and Play lets you easily share videos, photos and music from your compatible smartphone or USB drive.
- Enhanced Web Surfing with USB Tethering
- With USB Tethering, you can use your compatible smartphone's mobile network to access and explore the Internet on the TV.
- Google Play App Access
- Discover movies, TV shows, games, apps, and more from Google Play.
- Included IR Blaster for Universal Control
- The included IR blaster lets you control other devices in your home, such as your cable box, directly from the TV remote.
- Integrated Cable Management
- Hide all the cables in the stand and hold them in place with the included cable holder.

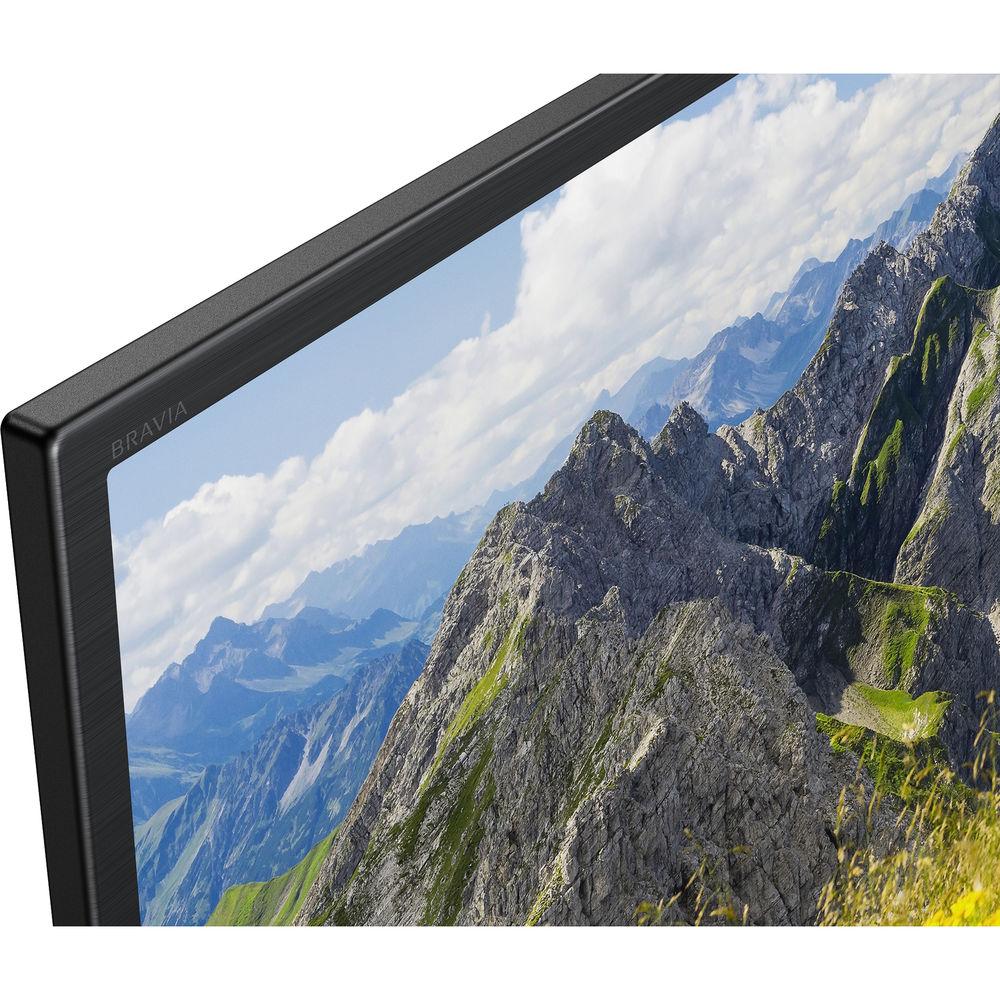

- Aluminum-Look Frame
- The screen is edged with a slim frame designed to maximize the viewing area and help the TV look elegant.
- Additional Features
-
- Bluetooth 4.1 HID (mouse/keyboard connectivity)/HOGP (Low Energy device connectivity)/SPP (Serial Port Profile)
- Screen mirroring via Miracast
- Video & TV SideView (iOS/Android)
- HDCP 2.2 for all HDMI inputs
- HDMI CEC & ARC
- USB support for FAT16, FAT32, exFAT, and NTFS drives
- Direct LED backlighting
- Live Color enhancement
- Dynamic Contrast Enhancer
- Bass-reflex speaker design
- Supports Dolby Digital, Dolby Digital Plus, Dolby Pulse, and DTS Digital Surround
- Content Bar
- Electronic Program Guide
- Compatible with the Vewd Internet browser
- On/off and sleep timers
- Analog & digital closed captioning
- Power saving/backlight off mode
- Dynamic backlight control

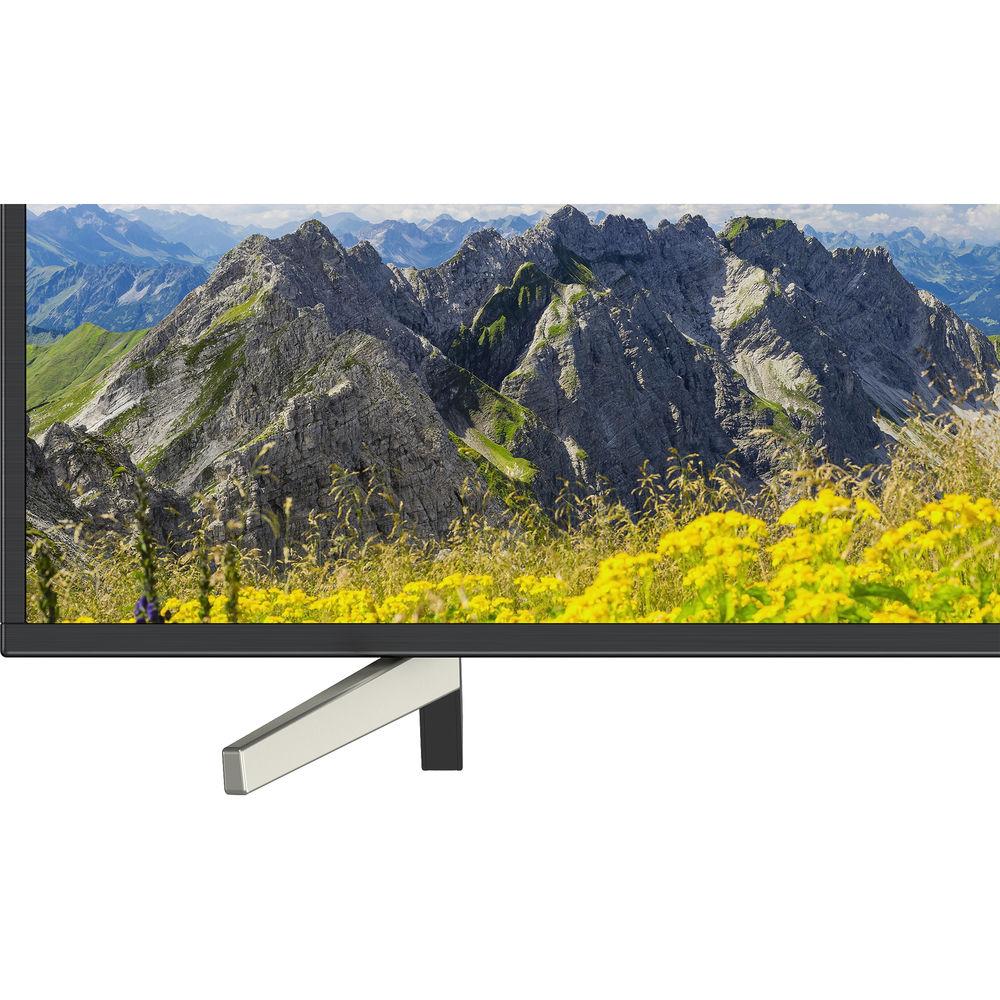

- Silver chevron stand design
UPC: 027242909908 In the Box Sony X750F 55" Class HDR UHD Smart LED TV Voice Remote Control with Batteries IR Blaster Stand Assembly AC Power Cord Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 The B&H Television Buying Guide Lawrence Neves 01/31/2018 User Manual PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony X750F 55" Class HDR UHD Smart LED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

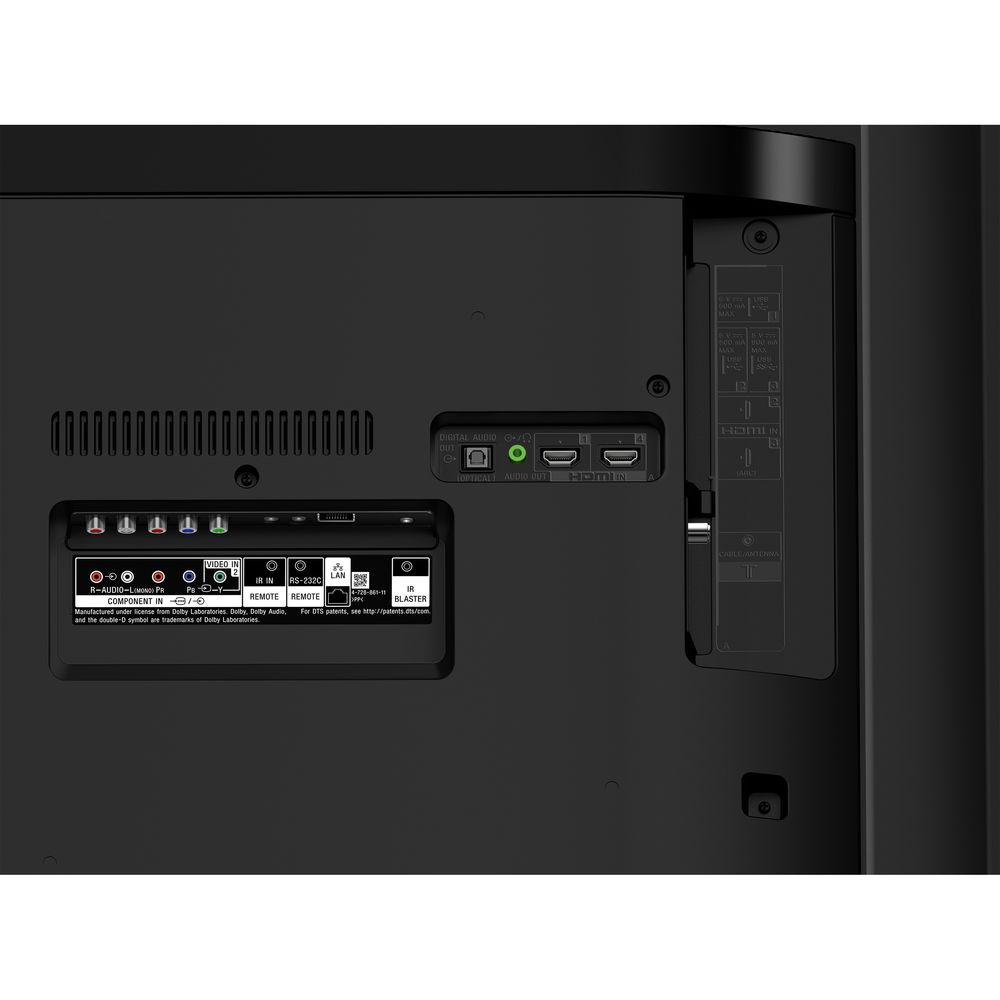

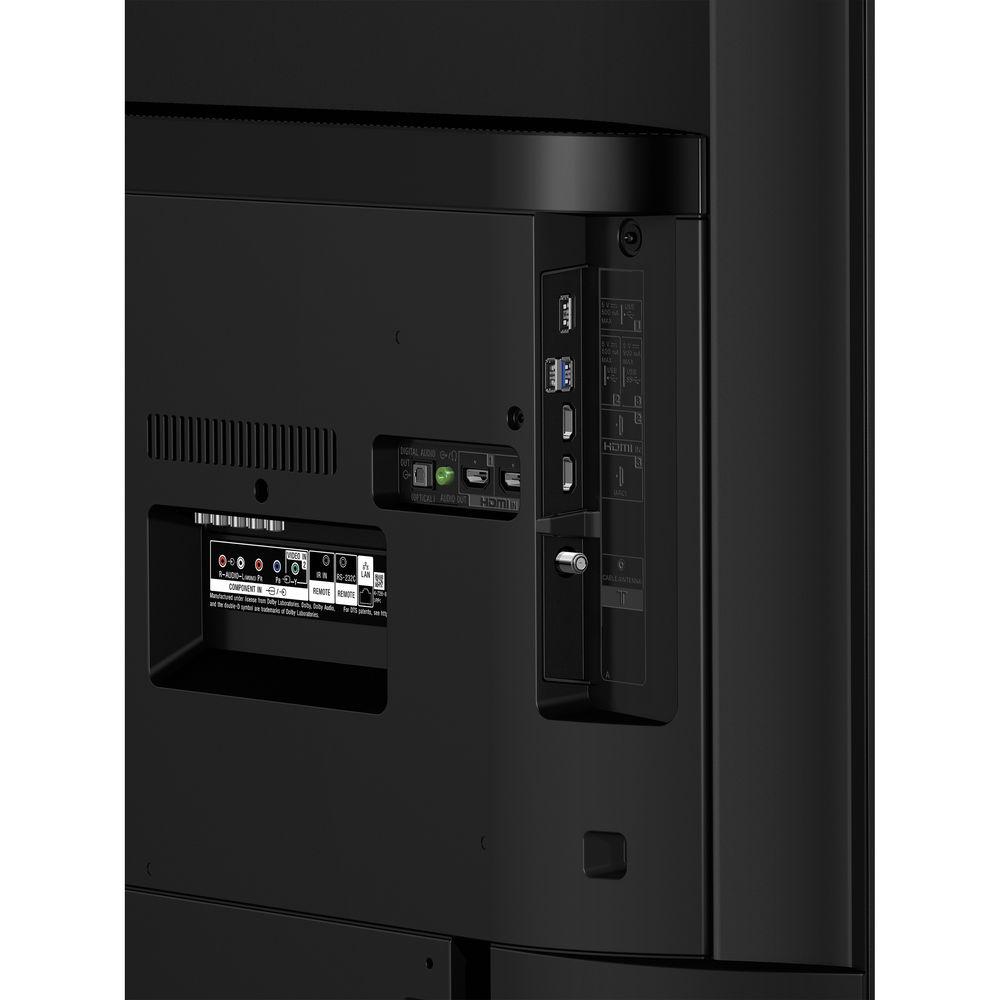

Technical parametersSony X750F Specs | | | Screen Size (Diagonal) | 54.6" | | Panel Type | LCD | | Aspect Ratio | 16:9 | | Pixel Resolution | 3840 x 2160 | | HDR Compatibility | HDR10, Hybrid Log Gamma | | Refresh Rate | 60 Hz | | | | Video System | NTSC | | TV Tuner | Yes - ATSC, Clear QAM | | 3D | No | | | | Primary Connectivity Location | Display | | Input Ports | 2 x HDMI – Audio, Video (Side)
2 x HDMI – Audio, Video (Rear)
1 x RF Antenna – Video (Side)
1 x RCA Component/Composite Combo – Video (Bottom)
1 x RCA Stereo (L/R) – Audio (Bottom) | | Output Ports | 1 x TOSLINK Optical – Audio (Rear)
1 x 1/8" / 3.5 mm – Audio, Headphone (Rear) | | USB Ports | 3 x USB (Version Unspecified) – Audio, Photo, Video (Side) | | Ethernet | LAN | | Control | RS-232C | | | | Sound | Stereo | | Subwoofer | None | | Power | 20 W | | Dolby Digital | Yes | | | | Virtual Assistant Support | Amazon Alexa, Google Assistant | | Operating System | Android | | Wi-Fi | Built-In | | Picture Modes | Cinema, Custom, Game, Graphics, Photo, Sports, Standard, Vivid | | Sound Modes | Cinema
Music
Sport
Standard | | Media Player | 3GPP
ASF
AVCHD
AVI
FLAC
JPEG
MKV
MOV
MP3
MP4
MPEG1
MPEG2
MPEG2PS
MPEG2TS
MPEG4
VP8
WAV
WEBM
WMA
WMV
Xvid | | Supported Languages | English
French
Spanish | | Remote Control | Yes | | Wall Mounting | 200 x 200mm | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Operational: 180.0 W
Standby: 0.5 W | | Dimensions (W x H x D) | 48.9 x 28.4 x 3.1" / 1242.0 x 721.0 x 80.0 mm Without stand
48.9 x 30.9 x 14.0" / 1242.0 x 784.0 x 356.0 mm With stand | | Weight | 35.7 lb / 16.19 kg Without stand
38.4 lb / 17.42 kg With stand | | | | Package Weight | 47.5 lb | | Box Dimensions (LxWxH) | 52.0 x 32.5 x 6.5" |
