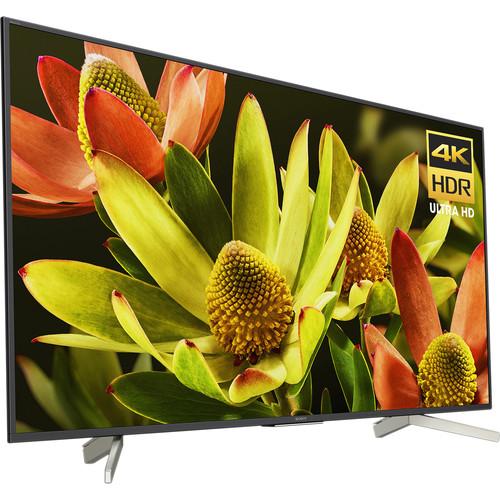

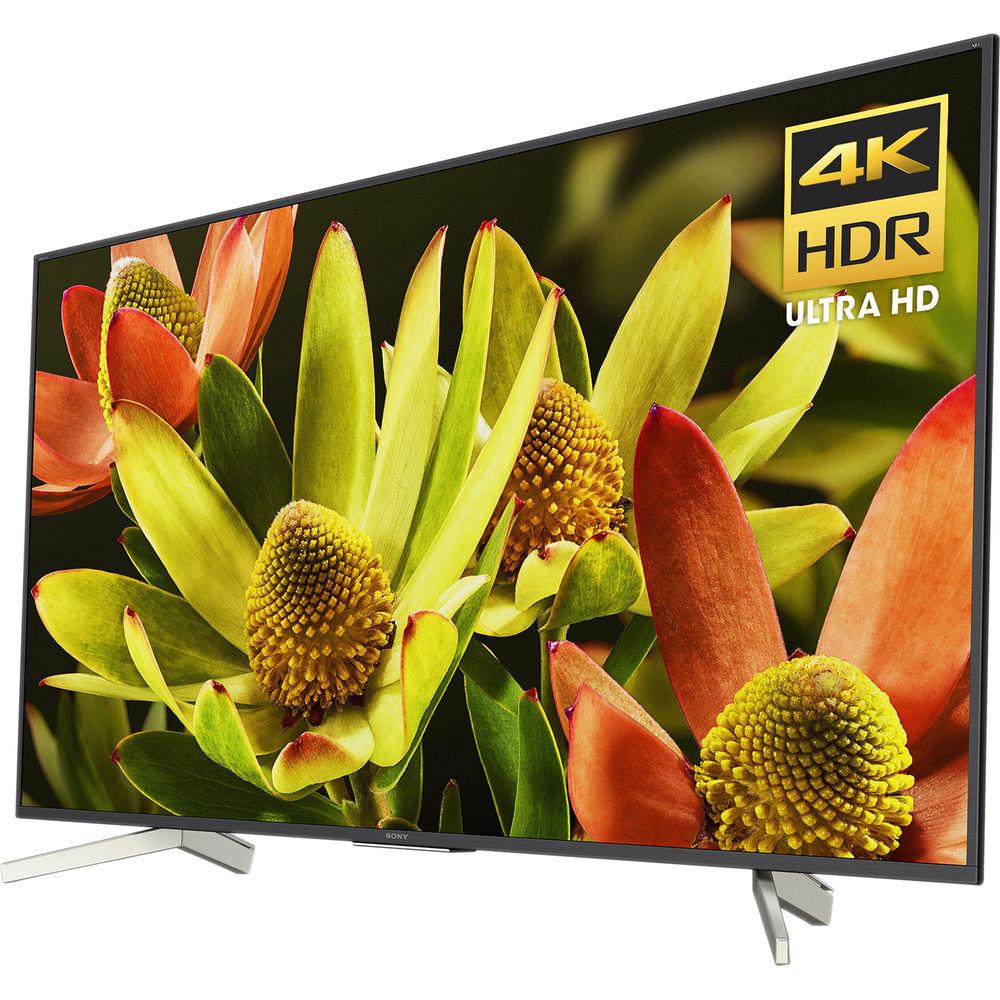

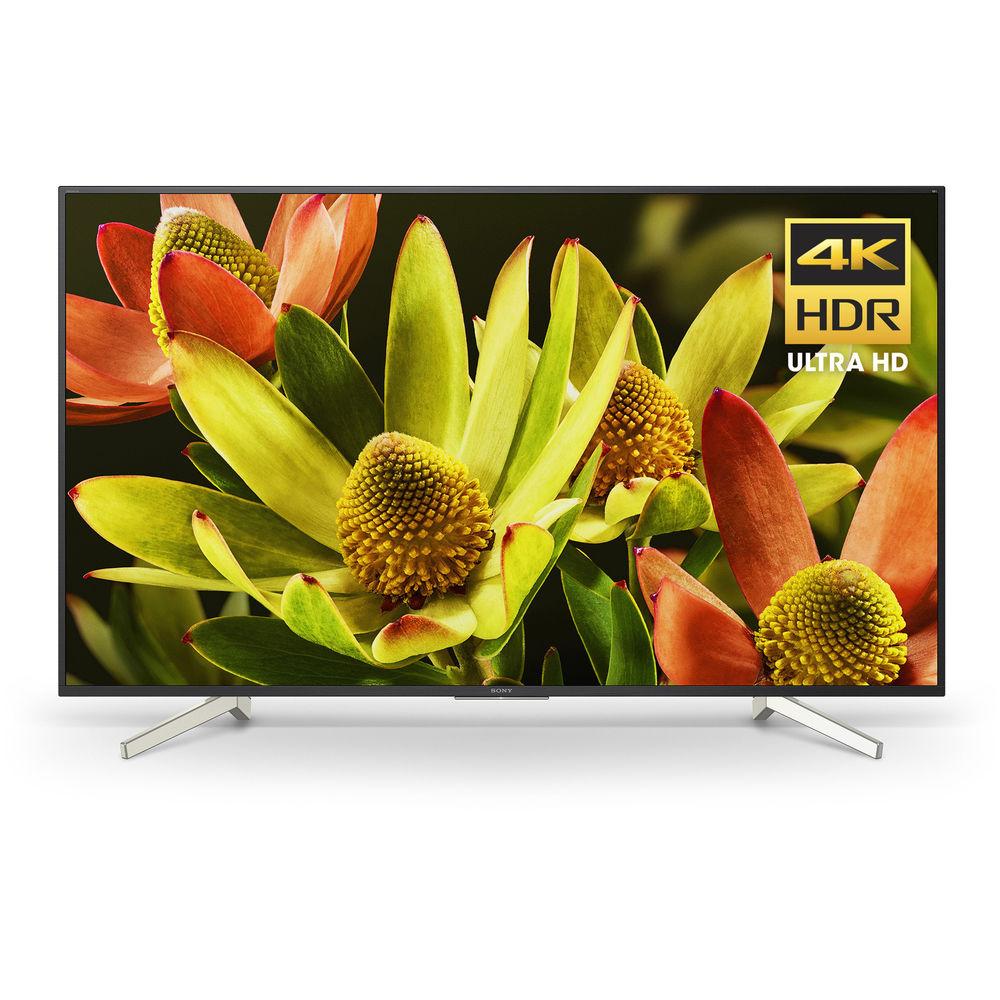

Product description The Big March TV Tournament Read More View content at four times the resolution of 1080p with the Sony X830F 70" Class HDR UHD Smart LED TV. It has a 69.5" LED display, and incorporates Sony's Motionflow XR 960 technology to digitally enhance fast-moving images to reduce blur. HDR10 and HLG compatibility provide a wide color gamut for compatible content, and the 4K HDR Processor X1 enhances non-HDR video to near-4K HDR quality.
The X830F series has built-in Wi-Fi and Ethernet connectivity to allow access to the Google Play store, your favorite apps, and Internet-based content via its Android operating system, plus content sharing and screen mirroring with your other compatible smart devices such as your smartphone or tablet. The Vewd web browser is also available for download through the Google Play store. With four HDMI inputs, there are multiple options for connecting high-definition video sources. A combination component/composite video input is also available for connecting legacy equipment, while three USB ports are onboard for connecting compatible multimedia peripherals like flash drives. Note: Content acquired via certain apps may require subscription to a service. - Enjoy Enhanced Detail with 4K HDR
- High Dynamic Range, combined with UHD resolution, delivers video content with enhanced detail, color, and contrast, thanks to a wider range of brightness than non-HDR formats.
- 4K HDR Processor X1 Enhances Non-HDR Video
- The 4K HDR Processor X1 is designed to provide real-time image processing for detailed pictures. It also upscales everything you watch to near-4K HDR quality. Object-based HDR Remaster technology is engineered to detect, analyze, and enhance each object in the picture individually to adjust the overall contrast for a more natural and realistic image.
- TRILUMINOS Display with 4K HDR Super Bit Mapping
- TRILUMINOS Display technology helps produce more shades of red, green, and blue for richer, more vibrant colors. Additionally, 4K HDR Super Bit Mapping is designed to reveal additional shades and gradations of color for brighter sunsets.

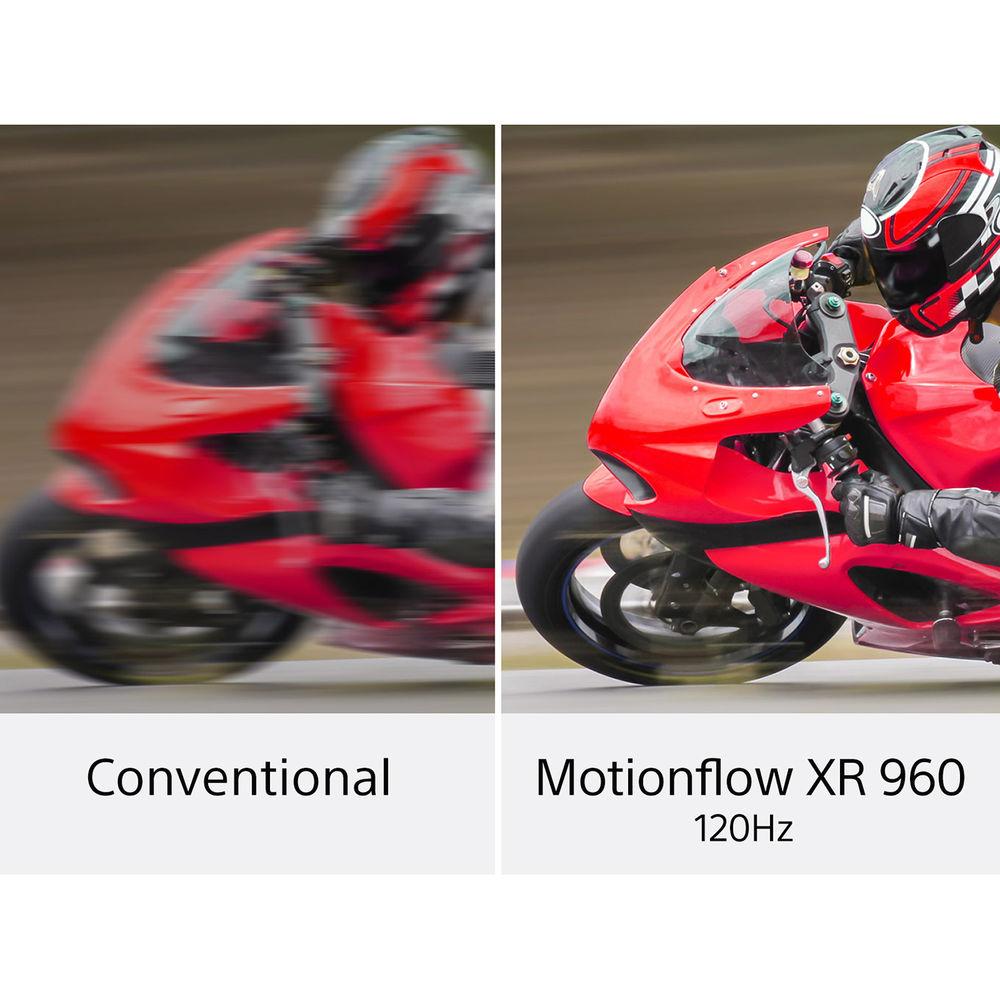

- Motionflow XR 960
- Motionflow XR 960 refresh rate technology is engineered to build upon the native 120 Hz panel to allow fast-moving sequences in sports and movies to be seen with lifelike clarity.
- 4K X-Reality PRO
- Two image-improvement databases work together to dynamically enhance images in real time, and 4K X-Reality PRO upscales the images to near-4K quality while a second database helps clean the image and reduce on-screen noise, enhancing every pixel.
- Dynamic Contrast Enhancer
- The Dynamic Contrast Enhancer is designed to add texture to every scene with brighter highlights, deeper blacks, and more natural tonal gradation.
- Google Assistant Built-In
- The Android TV has Google Assistant built-in, allowing you to ask it to play your favorite movie, check the score of your favorite team, and control the TV or your compatible smart home devices.
- Android TV
- From movies and TV shows to thousands of apps, including your favorite Android games, Sony's Android TV can bring you what you're looking for. Cast your favorite apps with Chromecast built-in, or enjoy a range of apps from the Google Play store, including YouTube, Netflix, Amazon Video, Hulu, Pandora, and more. With Google Home and Amazon Alexa compatibility, you can voice-control your TV and ask it to do things like cast and control YouTube videos with your Google Home, or change the channel or volume with your Amazon Alexa device.
- Integrated Cable Management
- Wires are managed and kept out of sight inside the TV stand for a clean look.
- PlayStation Vue Service for Live TV with No Annual Contract
- PlayStation Vue service is available on Android TV, allowing you to enjoy live TV streaming with no annual contract. Experience sports, news, and more from your favorite networks.
- Additional Audio Features
-
- Balance control
- DSEE
- Dual 1.4 x 3.5" full-range down-firing drivers
- Bass reflex design
- Advanced Auto Volume
- Alternate audio (digital)
- 2-channel linear PCM ARC output – 48 kHz, 16 bits, Dolby Digital, Dolby Digital Plus, DTS
- Fixed & variable audio outputs
- Auto Surround
- Clear Audio+
- Clear Phase
- Dolby Digital, Dolby Digital Plus, Dolby Pulse, DTS Digital Surround
- 5.1-channel linear PCM input via HDMI
- Headphone/Speaker Link
- S-Force Front Surround
- S-Master Digital Amplifier
- Additional Convenience Features
-
- Google Play Store built-in
- Auto Picture Mode
- Auto shut-off
- Analog & digital channel blocking with password protection
- HDMI-CEC
- i-Manual
- On/off timer
- On-screen clock
- Parental control
- Digital & analog show/hide channel option
- Sleep Timer
- Multiple text input language options
- Supports USB drives in FAT16, FAT32, exFAT, and NTFS formats
- RS-232C control
- Additional Video Features
-
- HDCP 2.2-compatibility on all HDMI inputs
- 4K 60p (up to 6 Gb/s) supported by HDMI 2 & 3 inputs
- 24p True Cinema
- 4:3 Default
- Auto Wide
- Frame blinking
- Live Color technology
- Mastered in 4K
- PhotoTV HD
- Wide modes – Wide, Normal, Full, Full1, Full2 for PC
- Additional Network Features
-
- Featured (content bar)
- Home Network Client, Home Network Renderer
- Compatible with the Vewd browser (not pre-installed)
- Related Info
- Screen mirroring with Miracast
- Wi-Fi Certified with Wi-Fi Direct
- Dual-band Wi-Fi, 2.4 / 5 GHz 802.11a/b/g/n/ac
- Android 7.0 Nougat OS
- Additional Features
-
- Frame-dimming design
- Direct LED backlight
- Illumination LED
- Chevron stand design
- Dynamic backlight control
- Power-saving modes
- Analog & digital closed captioning
- Demo mode
- Hotel mode menu
- LightSensor technology
UPC: 027242909977 In the Box Sony X830F 70" Class HDR UHD Smart LED TV Voice Remote Control with Batteries IR Blaster Tabletop Stand Assembly 59" AC Power Cord Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 The B&H Television Buying Guide Lawrence Neves 01/31/2018 Spec sheet PDF 238.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony X830F 70" Class HDR UHD Smart LED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony X830F Specs | | | Screen Size (Diagonal) | 69.5" | | Panel Type | LCD | | Aspect Ratio | 16:9 | | Pixel Resolution | 3840 x 2160 | | HDR Compatibility | HDR10, Hybrid Log Gamma | | Refresh Rate | 120 Hz | | Viewing Angle (H x V) | 178 x 178° | | | | Video System | NTSC / | | TV Tuner | Yes | | 3D | No | | | | Primary Connectivity Location | Display | | Input Ports | 3 x HDMI – Audio, Video (Side)
1 x HDMI – Audio, Video (Rear)
1 x RF Antenna – Audio, Video (Side)
1 x RCA Component/Composite Combo – Video (Rear)
1 x RCA Stereo (L/R) – Audio (Rear) | | Output Ports | 1 x TOSLINK Optical – Audio (Rear)
1 x 1/8" / 3.5 mm – Audio, Headphone (Side) | | USB Ports | 3 x USB 2.0 – Audio, Photo, Video (Side) | | Ethernet | LAN | | Control | RS-232C | | | | Sound | Stereo | | Subwoofer | None | | Power | 20 W | | Dolby Digital | Yes | | | | Virtual Assistant Support | Amazon Alexa, Google Assistant | | Operating System | Android | | Wi-Fi | Built-In | | Picture Modes | Cinema, Custom, Game, Graphics, Photo, Sports, Standard, Vivid | | Sound Modes | Cinema
Music
Sport
Standard | | Media Player | ASF
AVCHD
AVI
FLAC
JPEG
MKV
MOV
MP4
MPEG1
MPEG2
MPEG2PS
MPEG2TS
MPEG4
MPEG4/AVC
VP8
WAV
WEBM
Xvid | | Supported Languages | English
French
Spanish | | Remote Control | Yes | | Tilt/Swivel | None | | Wall Mounting | 400 x 300mm | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Standby: 0.5 W | | Dimensions (W x H x D) | 61.7 x 35.7 x 3.1" / 1568.0 x 907.0 x 78.0 mm Without stand
61.7 x 38.3 x 12.4" / 1568.0 x 972.0 x 315.0 mm With stand | | Weight | 56.4 lb / 25.58 kg Without stand
58.6 lb / 26.58 kg With stand | | | | Package Weight | 76.0 lb | | Box Dimensions (LxWxH) | 66.0 x 40.5 x 7.0" |
