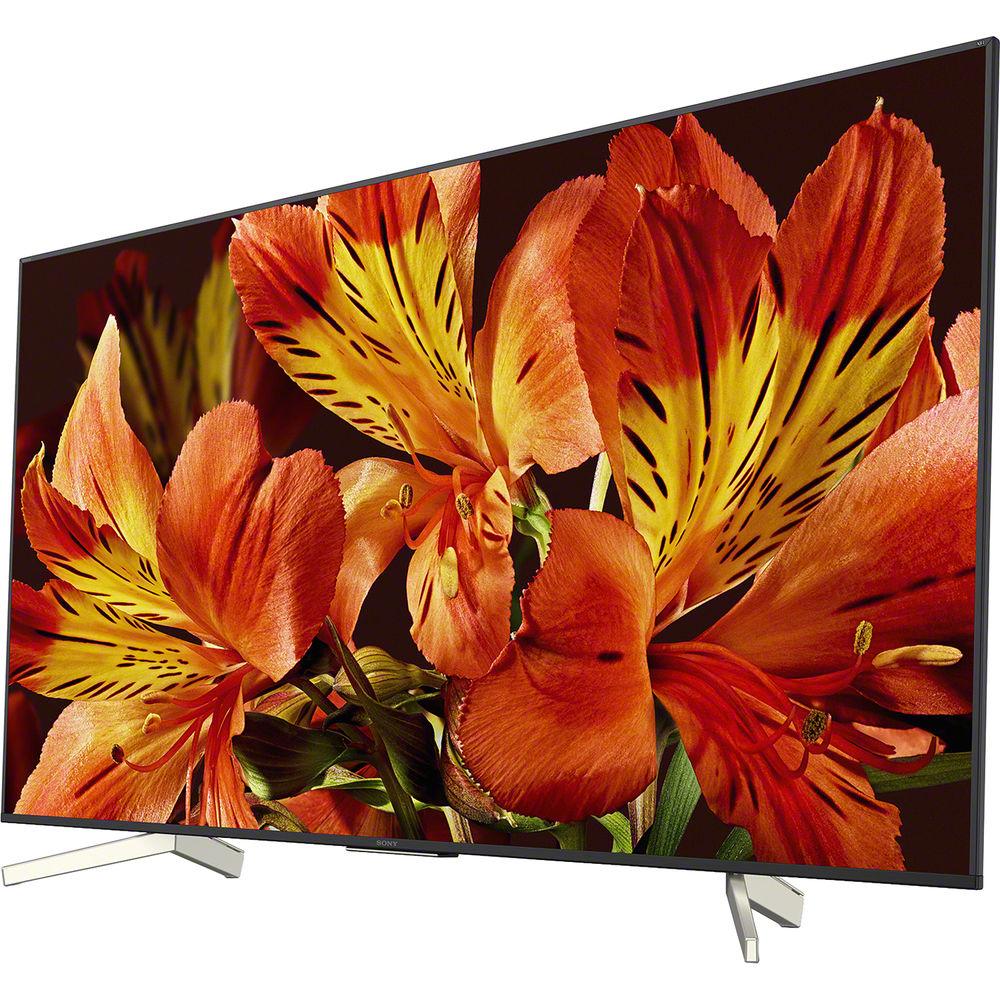

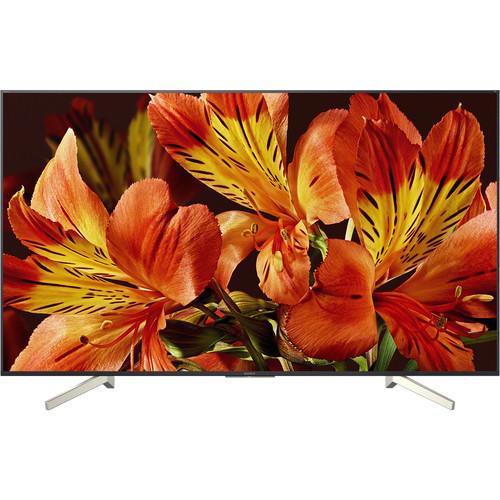

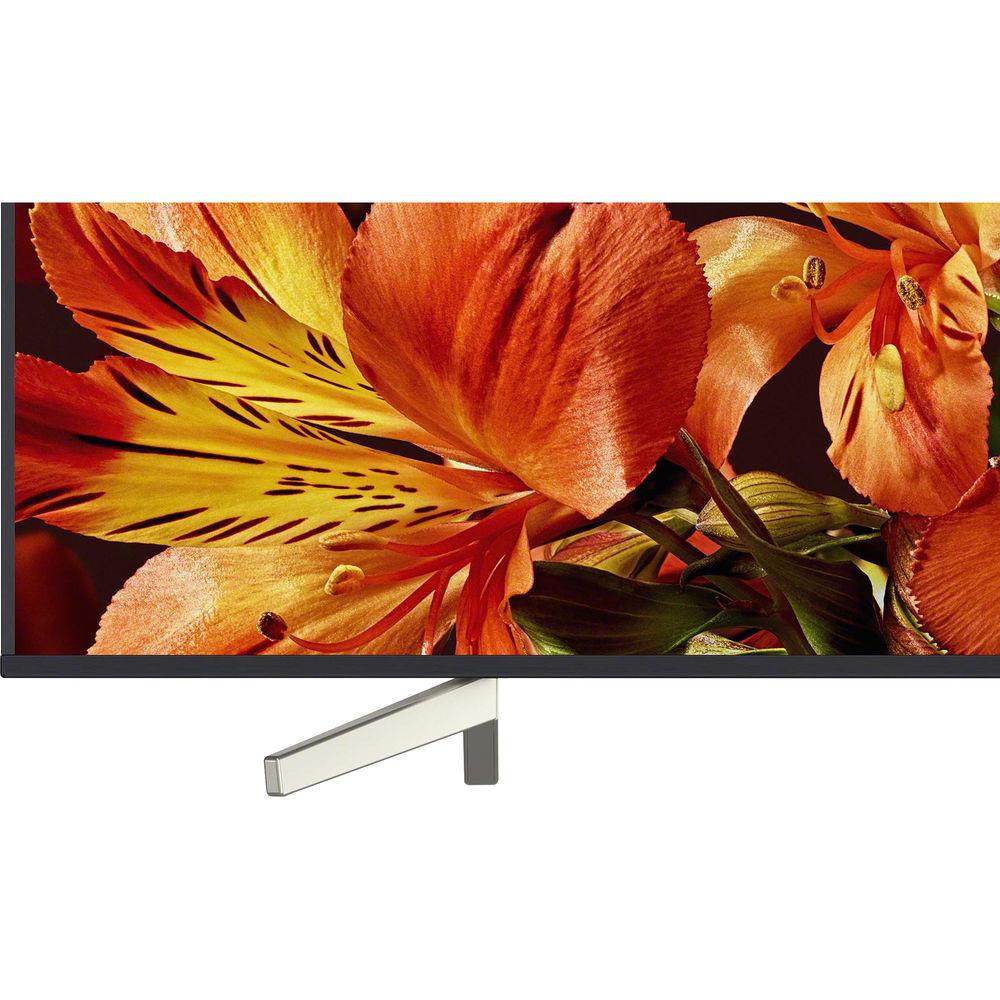

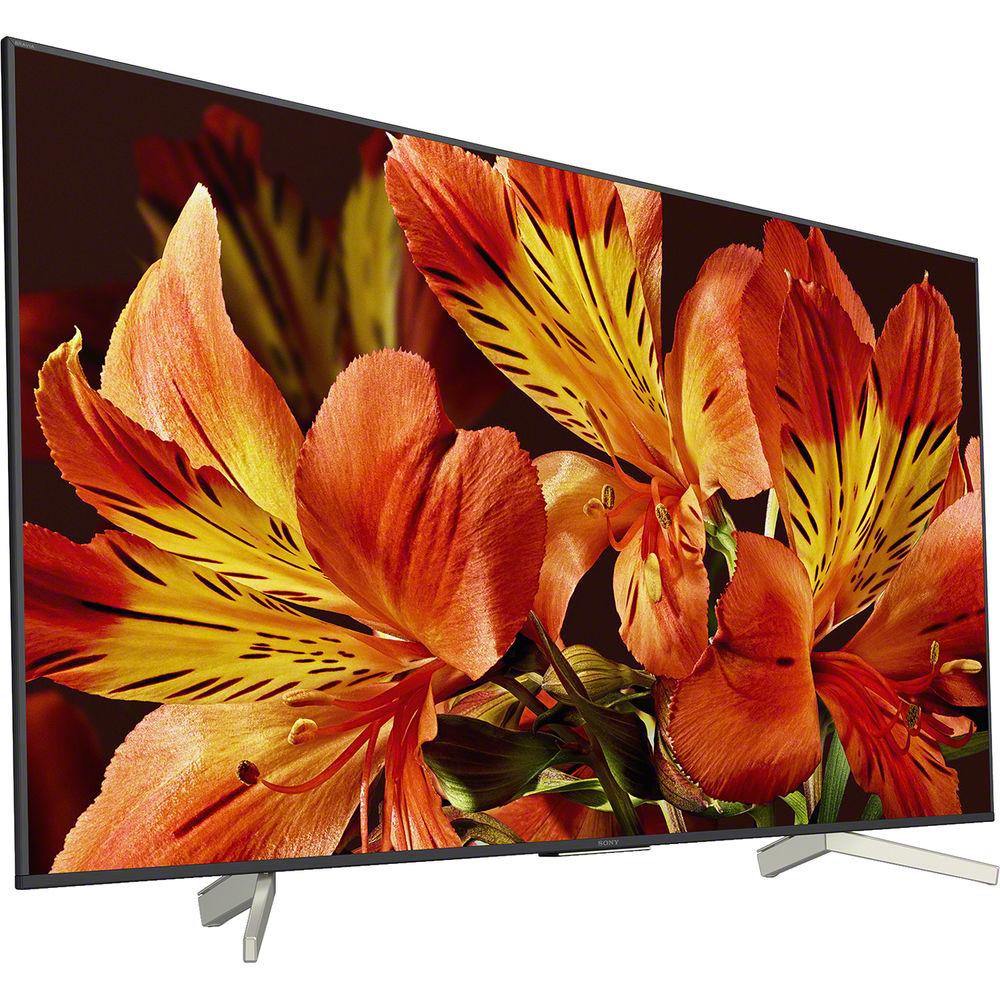

User Manual for Sony X850F 65" Class HDR UHD Smart LED TV Click to enlarge the picture
Contents of the user manual for the Sony X850F 65" Class HDR UHD
- Product category: Televisions Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Televisions
 |
User manual for the Sony X850F 65" Class HDR UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Big March TV Tournament Read More View content at four times the resolution of 1080p with the Sony X850F 65" Class HDR UHD Smart LED TV. It has a 64.5" LED edge-lit display, and incorporates Sony's Motionflow XR technology to digitally enhance fast-moving images to reduce blur. HDR10 and HLG compatibility provide a wide color gamut for compatible content, and Dolby Vision HDR support is scheduled to be made available via a future firmware update.
The X850F series has built-in Wi-Fi and Ethernet connectivity to allow access to the Google Play store, your favorite apps, and Internet-based content via its Android operating system, plus content sharing and screen mirroring with your other compatible smart devices such as your smartphone or tablet. The Vewd web browser is also available for download through the Google Play store. With four HDMI inputs, there are multiple options for connecting high-definition video sources. A component video input is also available for connecting legacy equipment, while three USB ports are onboard for connecting compatible multimedia peripherals like flash drives. The component video input can alternatively serve as a composite video port for standard definition gear. Note: Content acquired via certain apps may require subscription to a service. - 4K HDR Processor X1
- Along with object-based HDR remaster and Super Bit Mapping 4K HDR technology, the 4K HDR Processor X1 helps provide enhanced depth, textures, and natural colors.
- 4K X-Reality PRO
- 4K X-Reality PRO upscales each image to near-4K quality for enhanced clarity.
- TRILUMINOS Display
- TRILUMINOS Display technology is designed to map images from a wide color palette to help reproduce every shade and hue.
- Google Assistant Built-In
- Control your TV and other connected devices using just your voice.
- 4K HDR Compatibility
- The X850F series is HDR10- and HLG-compatible, and Dolby Vision compatibility is scheduled to be added via a future firmware update.
- Connect with Google Home
- Connect your Google Home device for hands-free control and video casting.
- Works with Amazon Alexa
- Connect your Amazon Alexa-enabled devices for hands-free control of the X850F series TV. Alexa allows you to power on the TV, change channels, control volume, and more with your connected Alexa-compatible device.
- Motionflow XR for Smooth Action
- Motionflow XR is designed to create and insert extra frames between the original ones in a fast-motion scene. It compares key visual factors on successive frames, then calculates the split second of missing action in the sequences.
- Integrated Cable Management
- You can hide cables in the stand and hold them in place with an included cable holder.
- Voice Search
- Voice Search on Android TV provides you with the power of Google search, allowing you to find content across different services without the hassle of time-consuming text entry. You can also get recommendations for specific genres, bringing up a list of suitable options.
- Super Bit Mapping 4K HDR
- Super Bit Mapping 4K HDR technology is engineered to reveal thousands of tones, shades, and gradations of light, creating smooth, natural 4K TV picture quality without color banding.
- Object-Based HDR Remaster
- With object-based HDR remaster, the color in individual objects onscreen is analyzed and the contrast adjusted, helping to reproduce greater depth, textures, and more realistic images.
- ClearAudio+
- ClearAudio+ is designed to fine-tune TV sound to help create a more immersive experience. Hear music, dialogue, and surround effects with enhanced clarity and separation.
- Chromecast built-in
- The X850F series has Chromecast built-in so you can cast your favorite entertainment, like YouTube or Netflix, from your compatible Android or iOS device or laptop to the TV.
- Google Play Store
- Discover movies, TV shows, games, and more on your TV.
- S-Force Front Surround
- S-Force Front Surround is designed to mimic the way the brain correlates sound source to produce the proper volume, time lag, and sound wave spectrum using only the left and right speaker channels for high-fidelity audio across a wide listening area.
- Clear Phase
- The X850F series uses a computer model to analyze and compensate for inaccuracies in speaker response by sampling the speaker frequency with enhanced precision. This information is fed back to cancel out any peaks or dips in the speaker's natural response for more natural audio with smooth reproduction of all frequencies.
- DSEE (Digital Sound Enhancement Engine)
- DSEE is engineered to restore frequencies lost in file compression for a more natural sound with a spacious feel.
- Bluetooth Connectivity
- Pair your Bluetooth headphones or earphones with the X850F series TV to enjoy TV shows and music without disturbances or interruptions.
- IR Blaster for Single-Remote Control
- The IR Blaster lets you control other devices in your home, such as your cable box, with the TV remote.
- Bluetooth Features
-
- Version 4.1
- HID (mouse/keyboard connectivity)
- HOGP (low-energy device connectivity)
- SPP (Serial Port Profile)
- A2DP (stereo audio)
- AVRCP (A/V remote control)
- Additional Features
-
- Stand width of 44.38"
- 802.11a/b/g/n/ac Wi-Fi
- Screen mirroring via Miracast
- Video & TV SideView app for iOS & Android
- HDCP 2.2 with CEC for all HDMI inputs
- HDMI ARC
- FAT16/FAT32/exFAT/NTFS drive format support
- Edge-lit LED light source with frame dimming
- Live Color Technology
- Dynamic Contrast Enhancer
- Supports video signals up to 4096 x 2160p (24, 60 Hz)
- Bass reflex speaker
- Dolby Digital, Dolby Digital Plus, Dolby Pulse, & DTS Digital Surround support
- 16GB onboard storage
- Supports multiple text input languages
- Content bar
- Electronic program guide (EPG)
- Vewd browser compatibility
- On/off/sleep timer
- Analog & digital closed captioning
- Power saving/backlight off modes
- Dynamic backlight control
- Light sensor
- Chevron stand design
UPC: 027242909953 In the Box Sony X850F 65" Class HDR UHD Smart LED TV Voice Remote Control with Batteries IR Blaster Stand Assembly AC Power Cord Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 zfsquezsyqzbavvetqxxz The B&H Television Buying Guide Lawrence Neves 01/31/2018 More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony X850F 65" Class HDR UHD Smart LED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

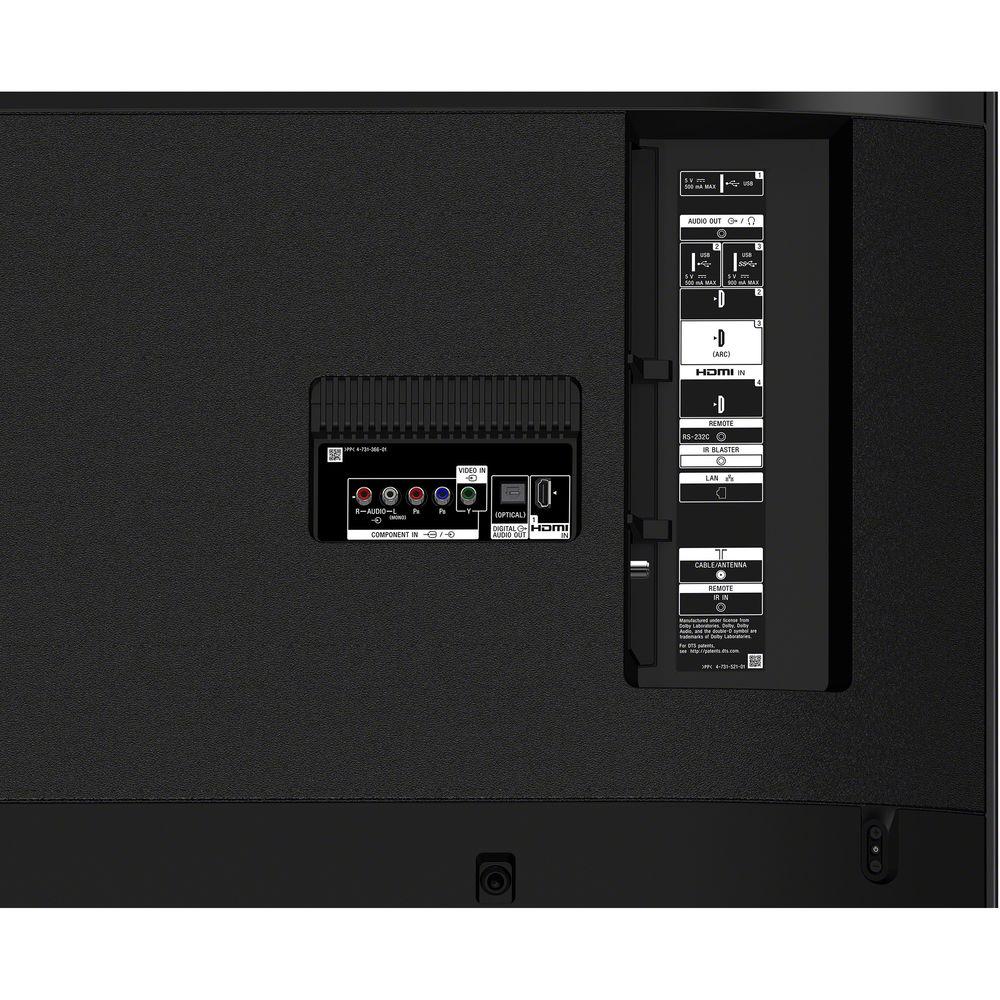

Technical parametersSony X850F Specs | | | Screen Size (Diagonal) | 64.5" | | Panel Type | LCD | | Aspect Ratio | 16:9 | | Pixel Resolution | 3840 x 2160 | | HDR Compatibility | HDR10, Hybrid Log Gamma | | Refresh Rate | 120 Hz | | | | Video System | NTSC / | | TV Tuner | Yes | | 3D | No | | | | Primary Connectivity Location | Display | | Input Ports | 3 x HDMI – Audio, Video (Side)
1 x HDMI – Audio, Video (Rear)
1 x RF Antenna – Audio, Video (Side)
1 x RCA Component/Composite Combo – Video (Rear)
1 x RCA Stereo (L/R) – Audio (Rear) | | Output Ports | 1 x TOSLINK Optical – Audio (Rear)
1 x 1/8" / 3.5 mm – Audio, Headphone (Side) | | USB Ports | 3 x USB (Version Unspecified) – Audio, Photo, Video (Side) | | Ethernet | LAN | | Control | RS-232C | | | | Sound | Stereo | | Subwoofer | None | | Power | 20 W | | Dolby Digital | Yes | | | | Virtual Assistant Support | Amazon Alexa, Google Assistant | | Operating System | Android | | Wi-Fi | Built-In | | Picture Modes | Custom, Game, Graphics, Home Theater, Photo, Sports, Standard, Vivid | | Sound Modes | Cinema
Music
Sport
Standard | | Media Player | 3GPP
ASF
AVCHD
FLAC
JPEG
MOV
MP3
MP4
MPEG1
MPEG2
MPEG2PS
MPEG2TS
MPEG4
VP8
WAV
WEBM
WMA
WMV
Xvid | | Supported Languages | English
French
Spanish | | Remote Control | Yes | | Wall Mounting | 300 x 300mm | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Standby: 0.5 W | | Dimensions (W x H x D) | 57.1 x 32.9 x 2.0" / 1450.0 x 836.0 x 52.0 mm Without stand
57.1 x 35.4 x 12.4" / 1450.0 x 900.0 x 315.0 mm With stand | | Weight | 56.4 lb / 25.6 kg Without stand
58.4 lb / 26.5 kg With stand | | | | Package Weight | 72.95 lb | | Box Dimensions (LxWxH) | 61.0 x 38.0 x 7.0" |
