User Manual for Sony XDCA-FS7 Extension Unit for PXW-FS7 and PXW-FS7M2 Click to enlarge the picture
Contents of the user manual for the Sony XDCA-FS7 Extension Unit for PXW-FS7
- Product category: Camera Adapters & Interfaces Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Camera Adapters & Interfaces
|
User manual for the Sony XDCA-FS7 Extension Unit for PXW-FS7 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

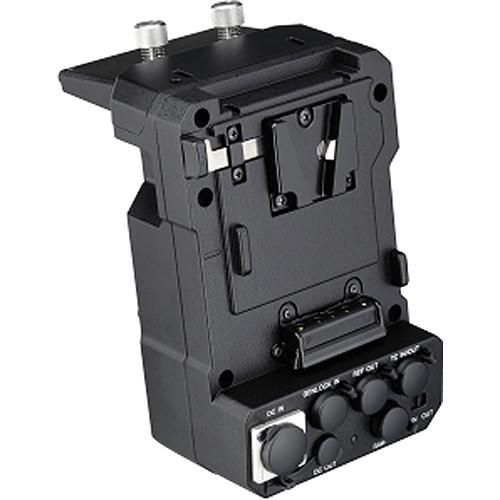

Product description The Sony XDCA-FS7 Extension Unit attaches to the back of your PXW-FS7 or PXW-FS7M2 via a MultiPin connector, adding additional I/O and enabling RAW data output for recording 12-bit 4K/2K RAW footage to compatible external recorders. The unit also features built-in Apple ProRes encoding for recording 1080p ProRes 422 video to an XQD card in the camera. Additionally, the Extension Unit adds Timecode and Genlock connectors for multi-camera operation, as well as a V-Mount battery connector. A 4-pin XLR DC power input and 4-pin Hirose DC power output are also provided.
Note: RAW recording requires the HXR-IFR5 Interface Unit and a compatible recorder. -
- MultiPin connector for cable-free attachment to camera
- Enables 12-bit RAW data output to Sony's optional AXS-R5 recorder (in combination with the optional HXR-IFR5 Interface Unit) or compatible third party RAW recorder
- 4K RAW up to 59.94p (1 to 60 fps Slow and Quick Motion)
- 2K RAW up to 59.94p (240 fps and 120 fps Slow Motion)
- Built-in Full HD ProRes encoding for recording 10-bit 4:2:2 ProRes HQ up to 29.97p to an XQD card in the FS7
- Genlock and Timecode I/O for multi-camera operation
- REC Tally indicator
- Attachment for powering camera from a V-Mount battery
- 4-pin XLR power input
- 4-pin Hirose power output
In the Box Sony XDCA-FS7 Extension Unit for PXW-FS7 and PXW-FS7M2 Limited 90-Day Warranty on Labor Limited 1-Year Warranty on Parts Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony XDCA-FS7 Extension Unit for PXW-FS7 and PXW-FS7M2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony XDCA-FS7 Specs | Camera Interface | 144-pin I/O | | Supported Video Formats | 4K RAW 12-bit
4096x2160 23.98p, 25p, 29.97p, 50p, 59.94p
Slow and Quick Motion: 1 to 60 fps
2K RAW 12-bit
2048x1080 23.98p, 25p, 29.97p, 50p, 59.94p
Slow and Quick Motion: 240 fps, 120 fps
HD ProRes HQ 4:2:2 10-bit
1920x1080 23.98p (176 Mbps), 25p (184 Mbps), 29.97p (220 Mbps)
HD ProRes 4:2:2 10-bit
1920x1080 23.98p (117 Mbps), 25p (122 Mbps), 29.97p (147 Mbps) RAW recording requires the HXR-IFR5 Interface Unit and a compatible recorder | | Audio Format | 24-bit, 48 kHz, 2-channel | | RAW Output | 1 x BNC | | Genlock | 1 x BNC | | Reference Output | 1 x BNC | | Timecode | 1 x BNC (selectable from input and output) | | DC Input | 1 x 4-pin XLR | | DC Output | 1 x 4-pin Hirose | | Battery Connector | 1 x V-Mount | | | | Package Weight | 2.33 lb | | Box Dimensions (LxWxH) | 8.95 x 7.2 x 6.45" |
