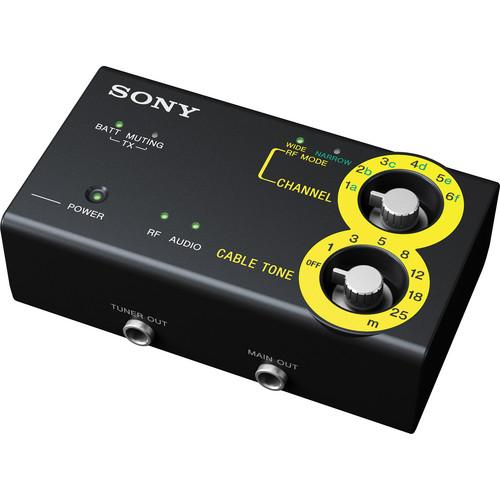

User Manual for Sony ZRX-C30 Digital Wireless Pedalboard Receiver Click to enlarge the picture
Contents of the user manual for the Sony ZRX-C30 Digital Wireless Pedalboard Receiver
- Product category: Wireless Receivers Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wireless Receivers
|
User manual for the Sony ZRX-C30 Digital Wireless Pedalboard Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The ZRX-C30 Digital Wireless Pedalboard Receiver from Sony is capable of receiving 24-bit linear PCM digital signals and is designed to be used with DWZ series wireless systems. It has both XLR and 1/4" instrument outputs and can be integrated into your pedalboard for use in wireless instrument applications. Its cable tone generator allows you to emulate the frequency response of a fully wired system, allowing you to use the same amp settings between wired and wireless setups.
The ZRX-C30 can be powered by a 9-volt battery, the included AC adapter, or via its 9-volt DC jack, allowing it to be powered by your pedalboard power supply. It has a metal body to endure the rigors of being on a pedalboard while its antenna in internal to avoid damage. The 1/4" tuner output allows you to run your signal straight to a stomp box tuner. UPC: 027242866324 In the Box Sony ZRX-C30 Digital Wireless Pedalboard Receiver AC Adapter Cable Clamp Limited 1-Year Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony ZRX-C30 Digital Wireless Pedalboard Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony ZRX-C30 Specs | Type | 1-channel | | Reception Type | Space Diversity | | Antenna Type | Internal monopole | | Receiving Frequency Range | 2402.0 to 2478.5 MHz | | RF Sensitivity | 30 dBu V or less | | Frequency Response | 10 Hz to 22 kHz | | Distortion (THD) | 0.03 % or less (-38 dBu, 1 kHz input) | | Analog Output | 1x balanced XLR-3-32
2x unbalanced phone jack | | Reference Output | Balanced output: -20 dBu
Main/Tuner Output: -28 dBu | | USB | 1x USB for firmware updates | | Power Requirement | DC 12 V
DC 9 V
Square 9 V 6LR61 battery | | Battery Operating Time | 3.5 hours approximate, with continuous use (77°F, 25°C ambient temperature) | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140° (-20 to 60°C) | | Dimensions (WxHxD) | 5 x 1.6 x 3" (132 x 41 x 74 mm) | | Weight | 7.2 oz (205 g) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 9.6 x 5.9 x 3.7" |
