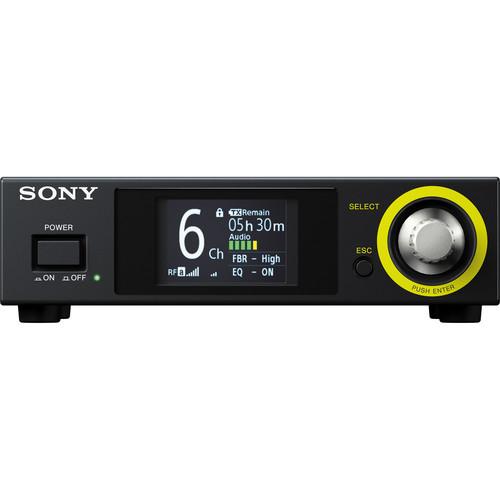

User Manual for Sony ZRX-HR70 Half-Rack Wireless Receiver Click to enlarge the picture
Contents of the user manual for the Sony ZRX-HR70 Half-Rack Wireless Receiver
- Product category: Wireless Receivers Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wireless Receivers
|
User manual for the Sony ZRX-HR70 Half-Rack Wireless Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The ZRX-HR70 Half-Rack Wireless Receiver from Sony is designed for use with DWZ wireless systems. It can handle 128-bit encrypted signals as well as 24-bit linear PCM. It has two RF modes to select from, wide band hopping and narrow band hopping, allowing you to choose the mode that will provide the least amount of interference based upon the RF environment you are in. The ZRX-HR70 features Sony's Clear Channel Scan that detects unoccupied channels and tunes the receiver to the best selection available. The 5-band digital EQ allows you to shape your tone as needed, and is controllable via the front-panel color LCD display and rotary knob. UPC: 027242866331 In the Box Sony ZRX-HR70 Half-Rack Wireless Receiver AC Adapter 2 x Antennas Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony ZRX-HR70 Half-Rack Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony ZRX-HR70 Specs | Receiver Type | Half rackmount, single channel | | Reception Type | Space Diversity | | Antenna Type | External whip | | Receiving Frequency Range | 2402.0 to 2478.5 MHz | | RF Sensitivity | 24 dBuV or less | | Audio Delay | Narrow Band: 3 ms, approximate
Wide Band: 6 ms, approximate
Additional audio delay for intelligent feedback reducer
Low: 0 ms
Mid: 8 ms
High: 16 ms | | Analog Output | 1x Balanced XLR-3-32
2x Unbalanced phone jack | | Reference Output | Balanced Output: Mic: -58 dBu, Line: -12 dBu
Unbalanced Output: -28 dBu | | Encryption | AES 128-bit | | Display | LCD | | USB | 1x USB port for firmware updates | | Power Requirement | External DC Input: 12 V DC | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140° (-20 to 60°C) | | Dimensions (W x H x D) | 6.6 x 1.7 x 3.7" (168 x 44 x 96 mm) | | Weight | 1.1 lb (510 g) | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 11.6 x 5.7 x 3.7" |
