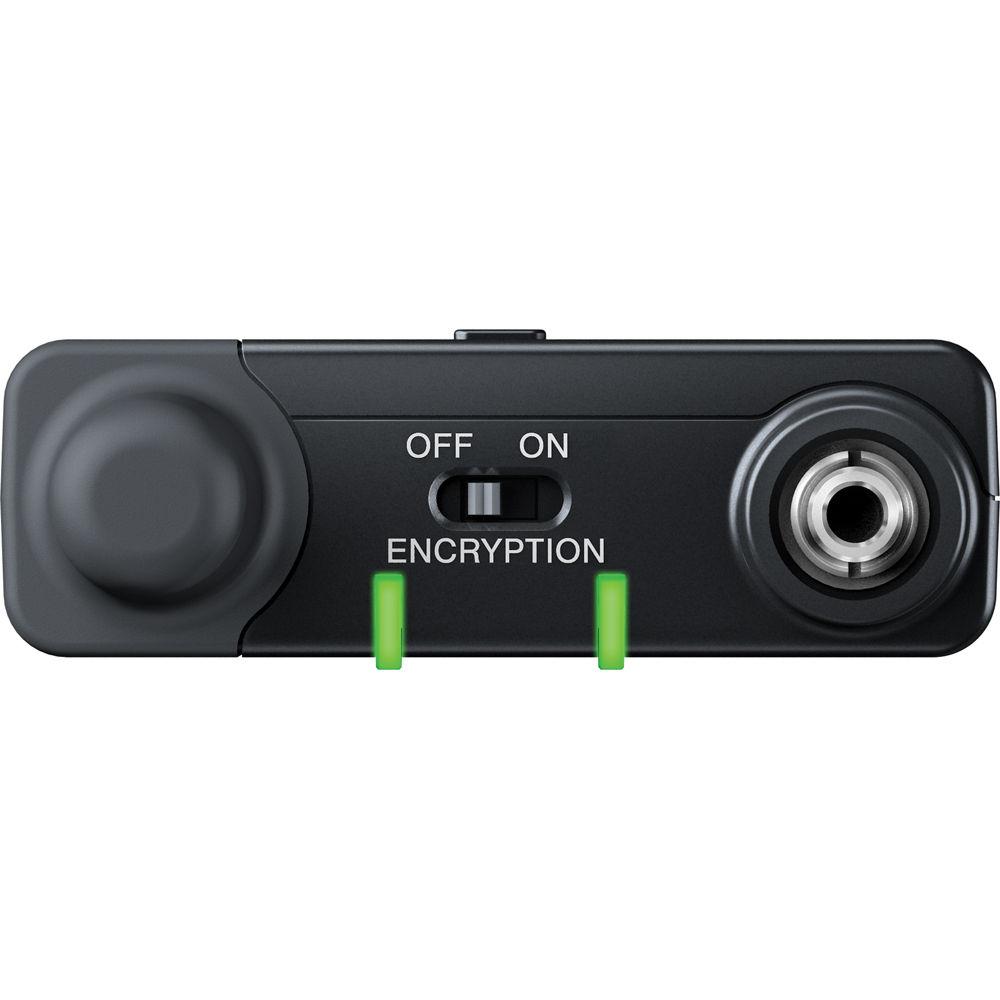

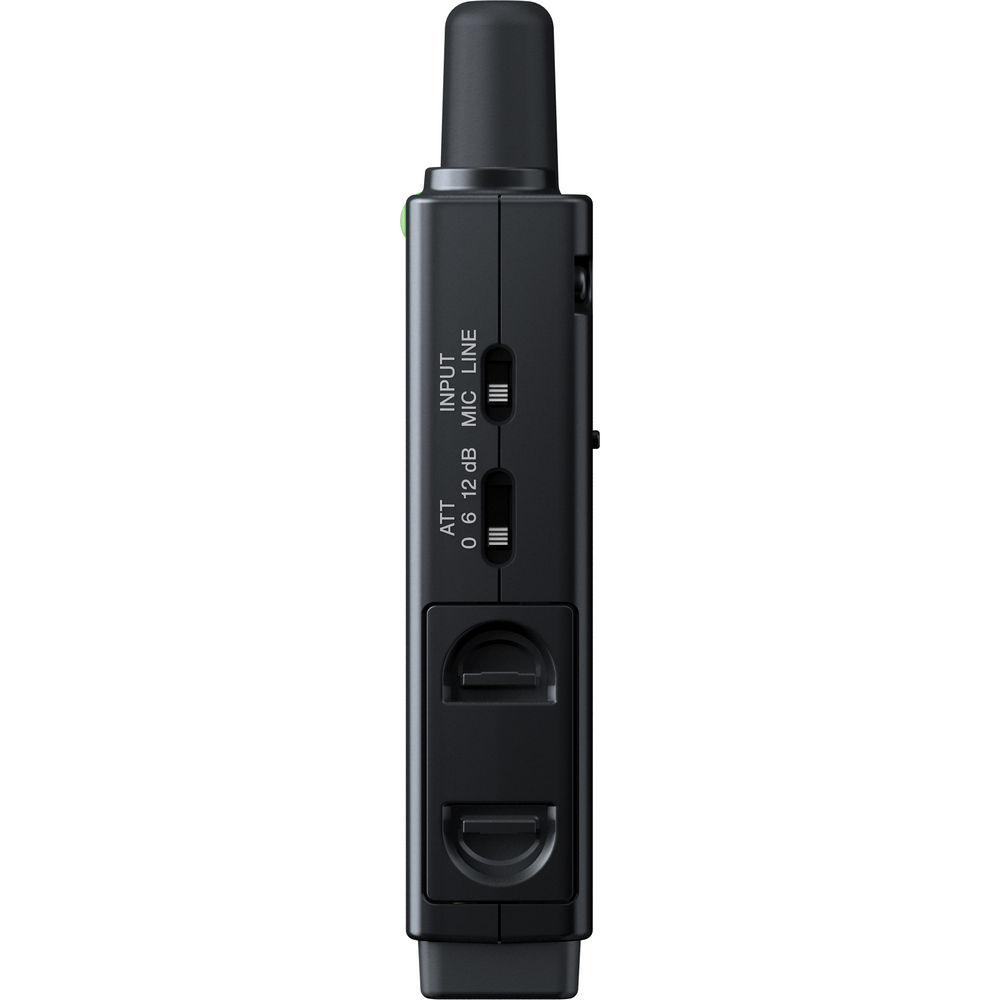

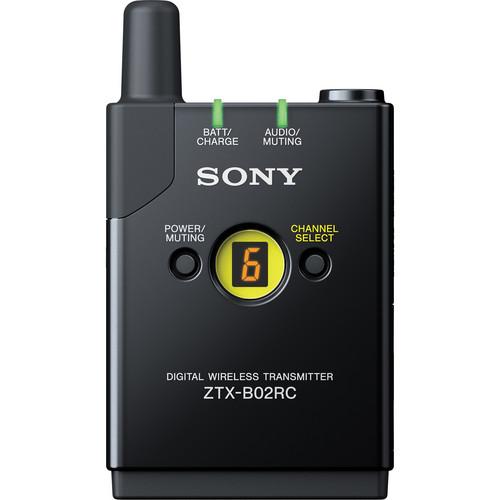

User Manual for Sony ZTX-B02RC Digital Wireless Bodypack Transmitter Click to enlarge the picture
Contents of the user manual for the Sony ZTX-B02RC Digital Wireless Bodypack Transmitter
- Product category: Wireless Transmitters Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wireless Transmitters
 |
User manual for the Sony ZTX-B02RC Digital Wireless Bodypack Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The ZTX-B02RC Digital Wireless Bodypack Transmitter from Sony is a bodypack transmitter designed to work with the DWZ wireless systems. It is capable of transmitting 24-bit linear PCM digital data with 128-bit encryption for secure use. It has two RF transmission modes to select from, wide band hopping and narrow band hopping, allowing you to choose the mode that will provide the least amount of interference based upon the RF environment you are in. In the Box Sony ZTX-B02RC Digital Wireless Bodypack Transmitter Belt Clip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony ZTX-B02RC Digital Wireless Bodypack Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony ZTX-B02RC Specs | Transmitter Type | Bodypack | | Carrier Frequency Range | 2402.0 to 2478.5 MHz | | RF Power Output | 10 mW (e.i.r.p) | | Frequency Response | Transmission: 10 kHz to 22 kHz | | Dynamic Range | Mic input: 102 dB A-weighted
Instrument/Line input: 98 dB A-weighted | | Audio Delay | Narrow Band: 3 ms, approximate
Wide Band: 6 ms, approximate | | Distortion (THD) | 0.03% or less (-38 dBu, 1 kHz input) | | Encryption | AES 128-bit | | USB | 1x USB for firmware update | | Power Requirements | 3 V DC (2x AA alkaline dry cell batteries) | | Battery Operating Time | 10 hours continuous use, approximate @ 77°F (25°C) ambient temperature | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions (W x H x D) | 2.4 x 3.4 x 0.7" (63 x 87 x 20 mm) | | Weight | 5.7 oz (162 g) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 9.8 x 5.8 x 3.6" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
