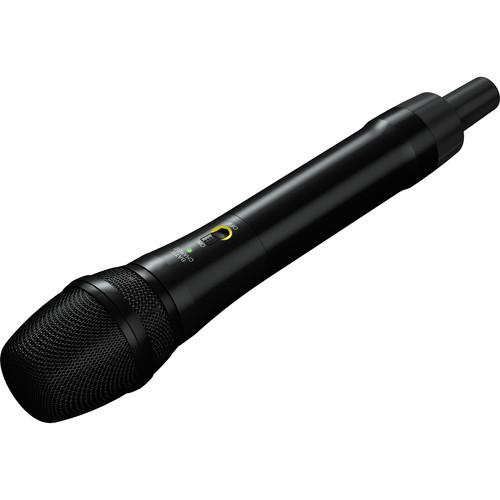

User Manual for Sony ZTX-MO2RC Digital Wireless Handheld Transmitter Click to enlarge the picture
Contents of the user manual for the Sony ZTX-MO2RC Digital Wireless Handheld Transmitter
- Product category: Wireless Transmitters Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wireless Transmitters
|
User manual for the Sony ZTX-MO2RC Digital Wireless Handheld Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The ZTX-MO2RC Digital Wireless Handheld Transmitter from Sony features an interchangeable unidirectional microphone capsule and is designed for use with DMZ wireless systems. The ZTX-MO2RC can transmit 24-bit linear PCM digital data in 128-bit encryption to provide secure and safe use. Its has two RF transmission modes to select from, wide band hopping and narrow band hopping, allowing you to choose the mode that will provide the least amount of interference based upon the RF environment you are in. An integrated attenuator allows you to select from 0, 6, or 12dB of reduction directly from the microphone. The ZTX-MO2RC has a metal body designed for durability. UPC: 027242855076 In the Box Sony ZTX-MO2RC Digital Wireless Handheld Transmitter Mic Holder SAD-34 Screw Stand Adapter Sad-35 Screw Stand Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony ZTX-MO2RC Digital Wireless Handheld Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony ZTX-M02RC Specs | Transmitter Type | Handheld | | Carrier Frequency | 2402.0 to 2478.5 MHz | | RF Power Output | 10 mW (e.i.r.p) | | Microphone Capsule | Dynamic | | Directivity | Unidirectional | | Maximum Input Level | 142 dB SPL (with 12 dB attenuator) | | Attenuation | 0, 6, 12 dB | | Frequency Response | Transmission: 10 Hz to 22 kHz
Microphone: 70 Hz to 16 kHz | | Dynamic Range | 102 dB, A-weighted | | Audio Delay | Narrow Band: 3 ms, approximate
Wide Band: 6 ms, approximate | | Distortion (THD) | 0.03% or less (-38 dBu, 1kHz input) | | Encryption | AES 128-bit | | USB | 1x USB for firmware update | | Power Requirement | 2x AA alkaline dry cell batteries | | Battery Operating Time | 10 hours continuous use, approximate (77°F, 25°C ambient temperature, with 2x Sony LR6 AA Alkaline dry cell batteries) | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions (Ø x L) | 1.8 x 10" (48 x 258 mm) | | Weight | 11 oz (308 g), approximate, including batteries | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 11.5 x 5.7 x 3.5" |
