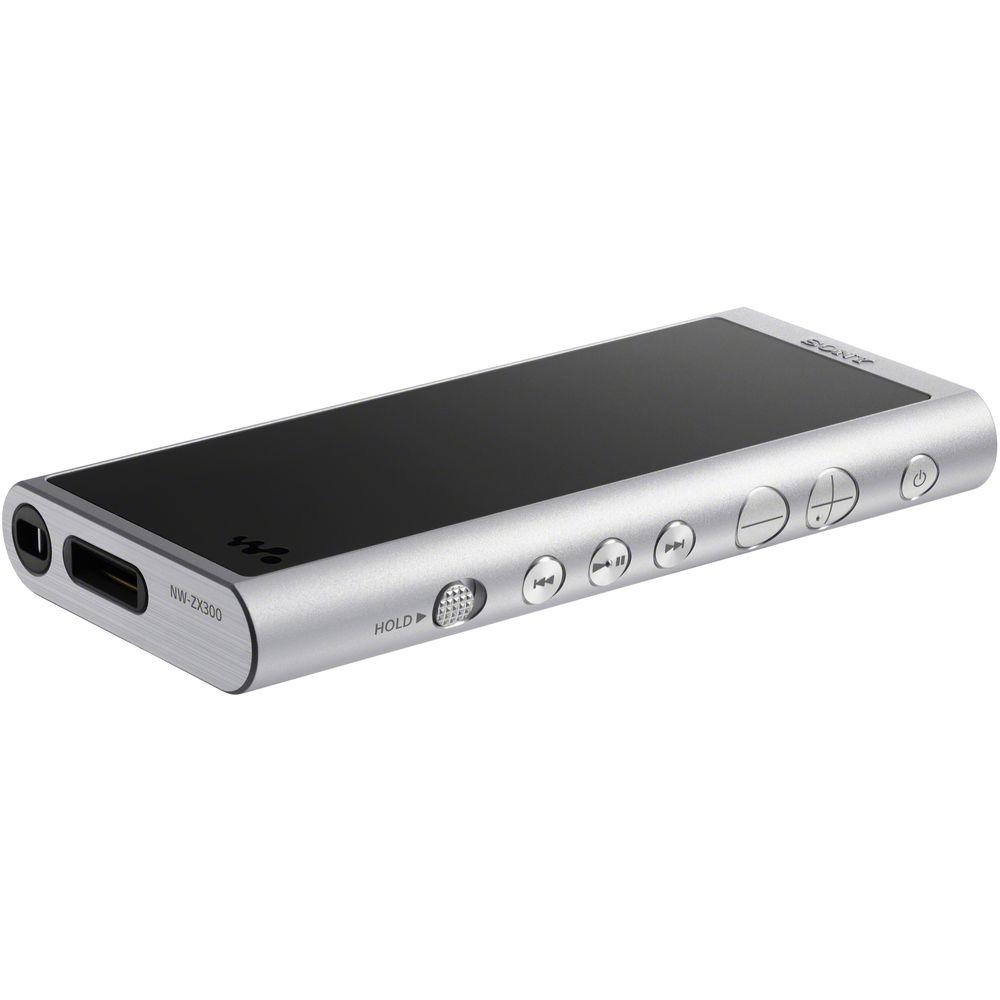

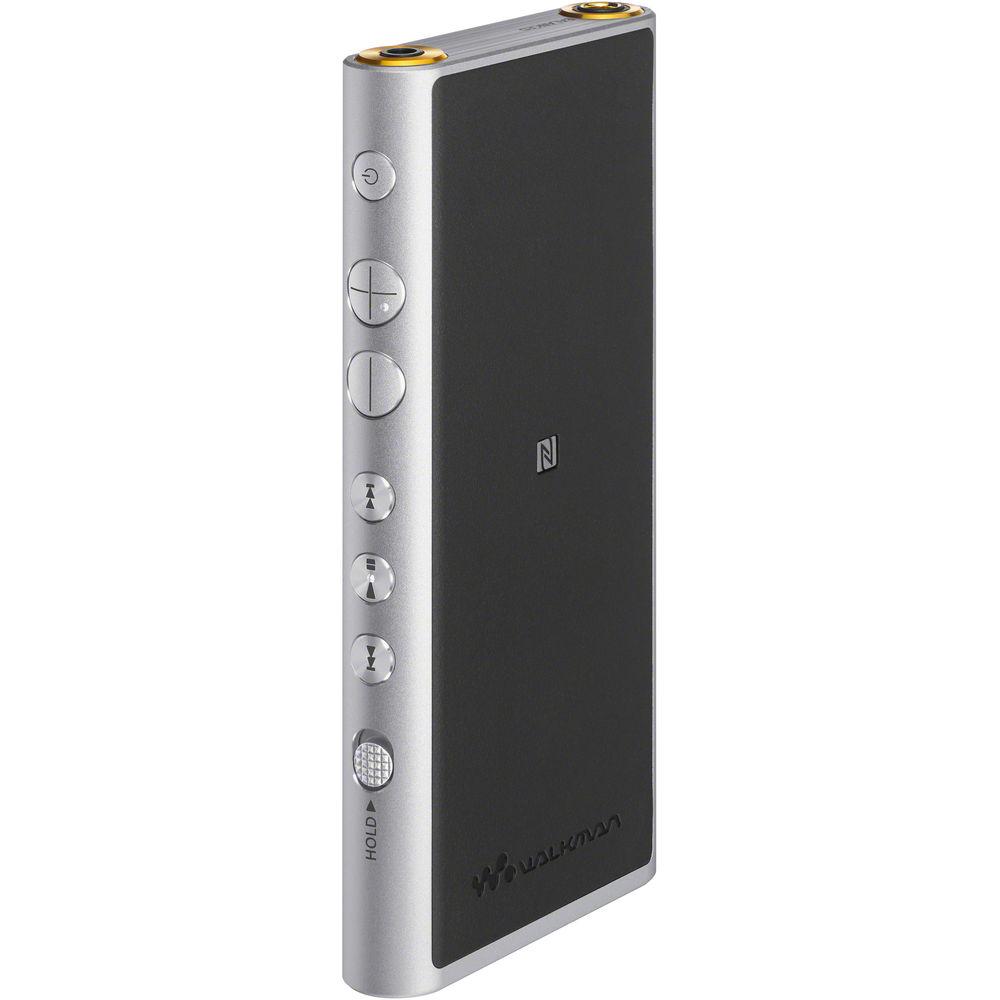

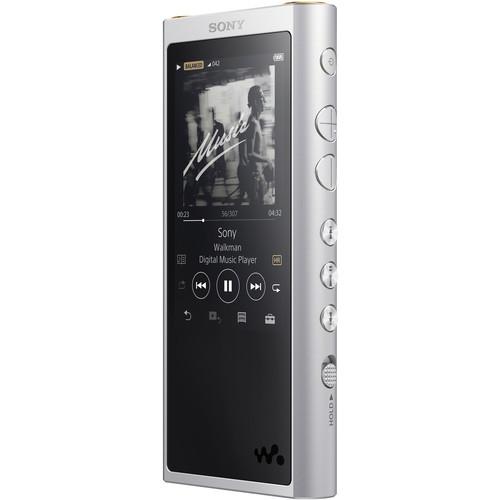

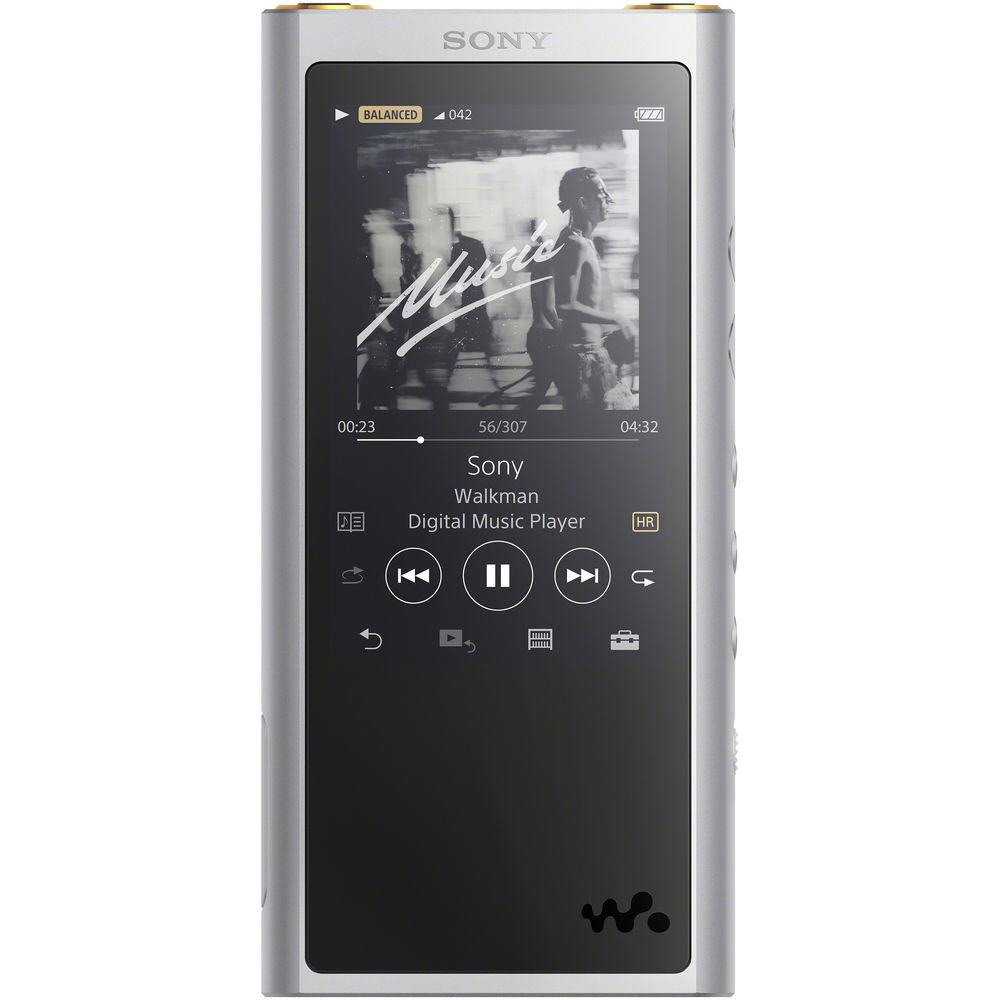

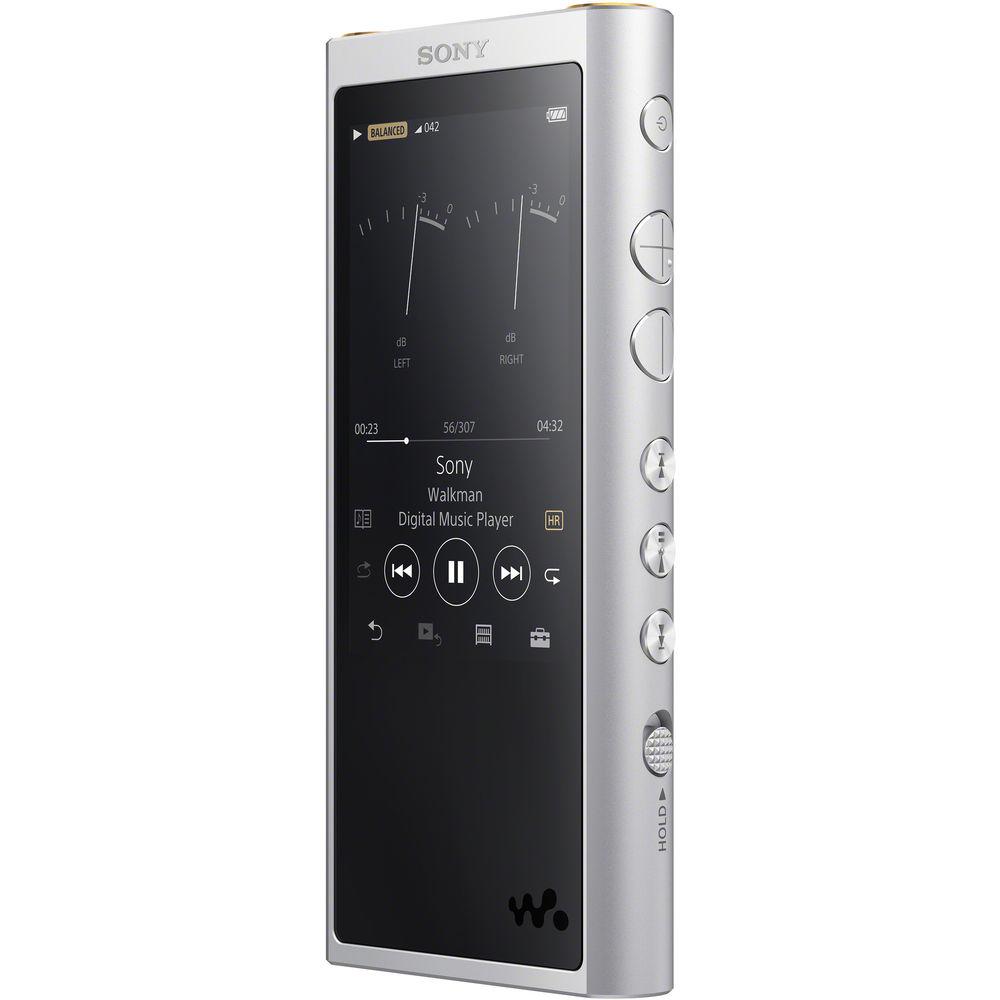

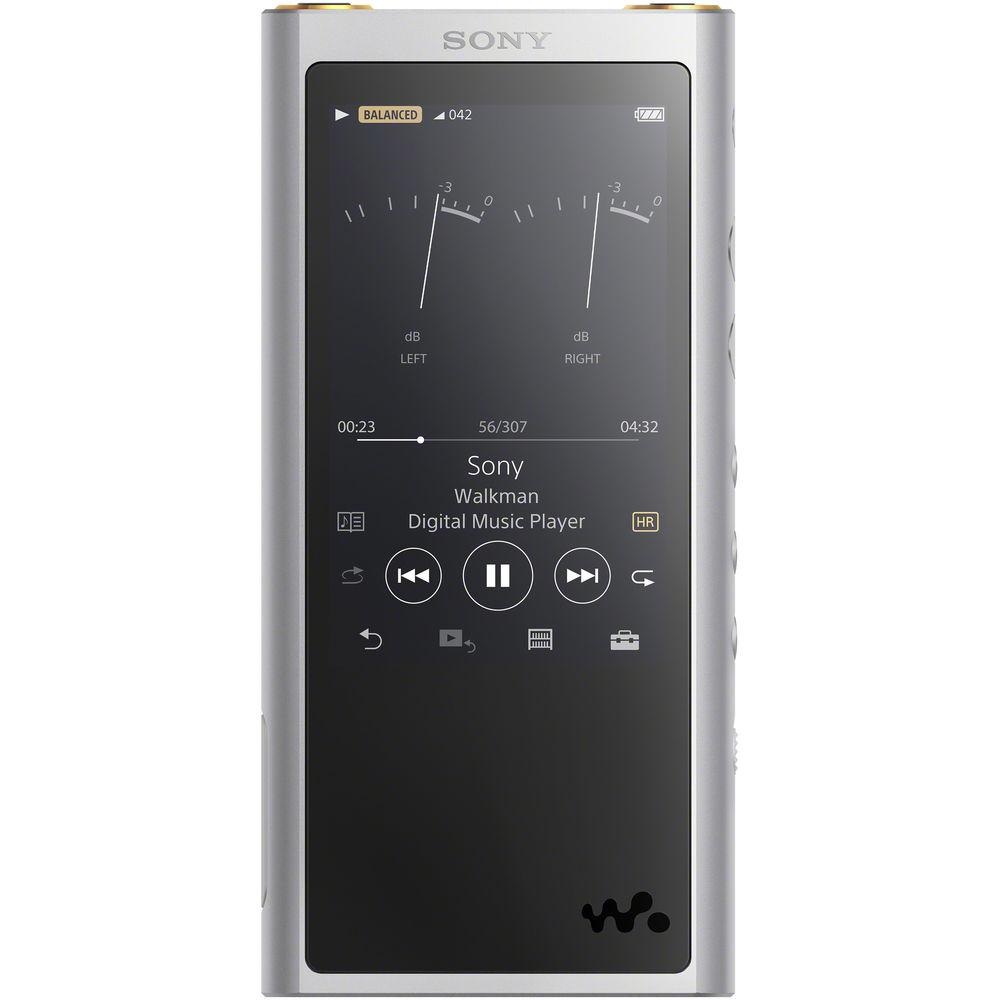

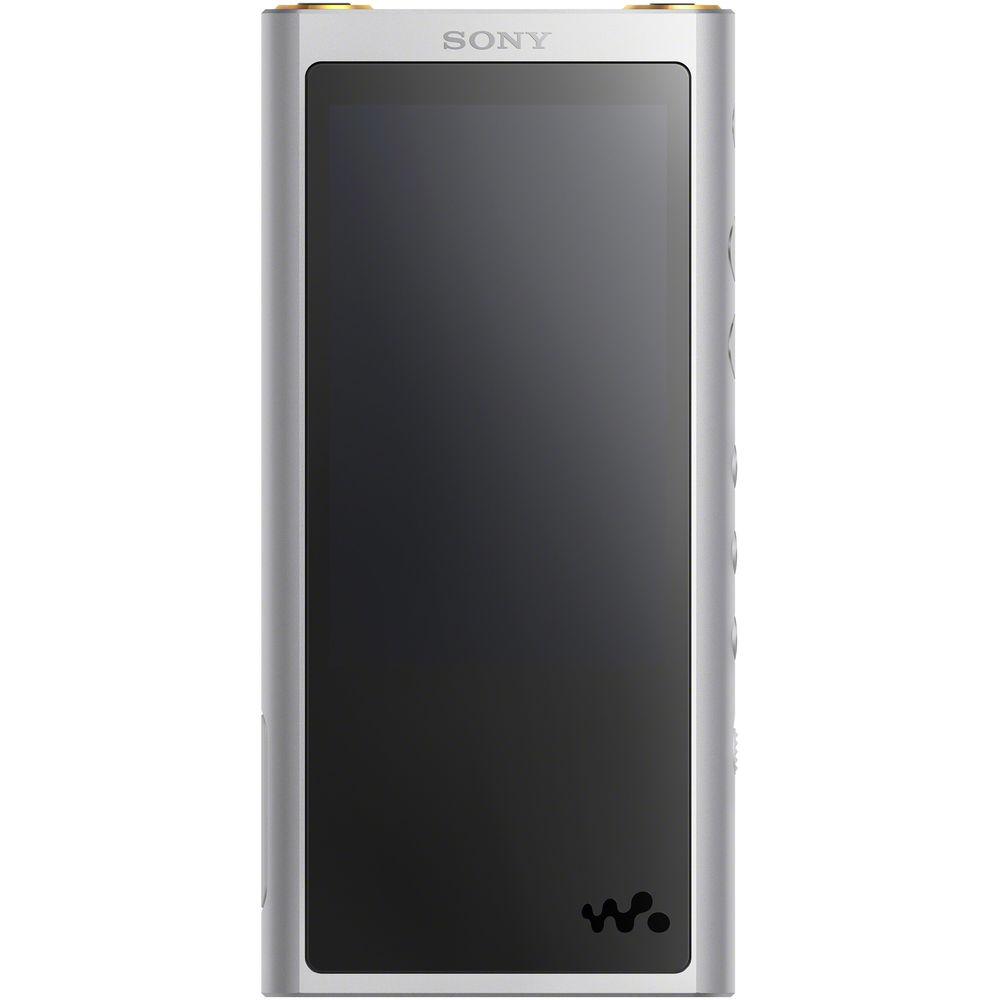

User Manual for Sony ZX300 Walkman Digital Music Player Click to enlarge the picture
Contents of the user manual for the Sony ZX300 Walkman Digital Music Player
- Product category: iPods & Media Players Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony iPods & Media Players
 |
User manual for the Sony ZX300 Walkman Digital Music Player contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Enjoy true DSD playback with the Sony NW-ZX300 Walkman Digital Music Player, offered here in a silver finish. This Walkman supports playback of DSD, AAC, WMA, FLAC, ALAC, and MP3 audio files. It features 64GB of internal flash memory and supports microSD cards. The NW-ZX300 also boasts a 3.1" TFT color LCD touchscreen with an 800 x 480 resolution. Its built-in rechargeable battery provides up to 30 hours of continuous audio playback on a full 5.5-hour charge.This Walkman utilizes several audiophile-friendly technologies, including support for 1-bit DSD playback up to 11.2 MHz, as well as DSEE HX upscaling. Sony's wireless codec, LDAC, delivers a higher bit rate than standard Bluetooth, so you can enjoy an enhanced listening experience with a compatible pair of wireless headphones. You can also pair the Walkman with other compatible devices over conventional Bluetooth with NFC. The NW-ZX300’s proprietary operating system works with Mac and Windows computers, and utilizes a simple drag-and-drop process for quickly moving songs from your computer library to the Walkman. Also, you can use the NW-ZX300 as a USB DAC, circumventing your computer’s sound card and achieving better sound in the process through the unit’s S-Master HX amplifier. - Hi-Resolution Amplifier
- Optimized for High-Resolution Audio, the S-Master HX amplifier reduces distortion and noise, allowing you to enjoy all the subtleties in your music.
- True DSD Playback and Support
- Enjoy sound quality higher than PCM, thanks to the Direct Stream Digital audio codec, designed specifically for high-resolution audio. This 1-bit format can deliver a more natural and detailed sound. The result is clear and crisp.
- DSEE HX Upscaling
- DSEE HX builds on Sony's proprietary DSEE technology, upscaling compressed audio files to a level that's closer to High-Resolution Audio. By restoring the subtleties of the original recording that are lost during the compression process, DSEE HX aims to deliver a rich, studio-quality audio experience for all your music.
- 4.4mm Balanced Connection
- In addition to the standard 3.5mm connection, the NW-ZX300 features a 4.4mm balanced plug, designed for Sony's balanced connection cable. This supplies compatible headphones with fully discrete left and right channels, unlike conventional headphones that share a ground wire. The result is better external noise suppression and improved stereo imaging, as well as more headroom for powerful sound delivery.
- Aluminum Milled Frame
- A rigid aluminum milled frame provides strong resistance to electrical noise, ensuring a clear, stable sound.
- Precision-Engineered Build
- The circuit board has been engineered for efficiency. The layout from the battery to the audio block minimizes the power loop, making the power supply stable. This results in a clear sound with solid low end. Other precision-engineered components include high-quality film capacitors for a linear response across frequency, lead-free solder on the circuit board and the S-Master HX chip (CXD-3778GF), resulting in an efficient electronic connection.
- USB DAC
- You can use this device as a USB DAC (digital-analog converter) by pairing it with a Mac or Windows PC. When connected and activated using the supplied USB cable, the unit replaces your computer's regular sound processing with its own hardware.
- MQA Support
- This device is fully compatible with MQA, furthering its functionality when it comes to lossless music.
- LDAC Transmission
- LDAC uses a conventional Bluetooth connection, but transfers at a maximum data transfer rate up to 990 kbps-approximately three times that of other audio profiles. The result is a wireless listening experience capable of streaming PCM files with high sample rates.
- Long Battery Life
- The NW-ZX300 holds enough charge for up to 30 hours of 128 kbps MP3 playback, or up to 26 hours of 96 kHz/32-bit FLAC High-Resolution Audio playback, so you don't have to worry about finding a charger when you're out and about.
- Matte Glass Screen
- A touch-sensitive matte glass screen allows smooth fingertip control with fewer fingerprints.
- Expandable Memory

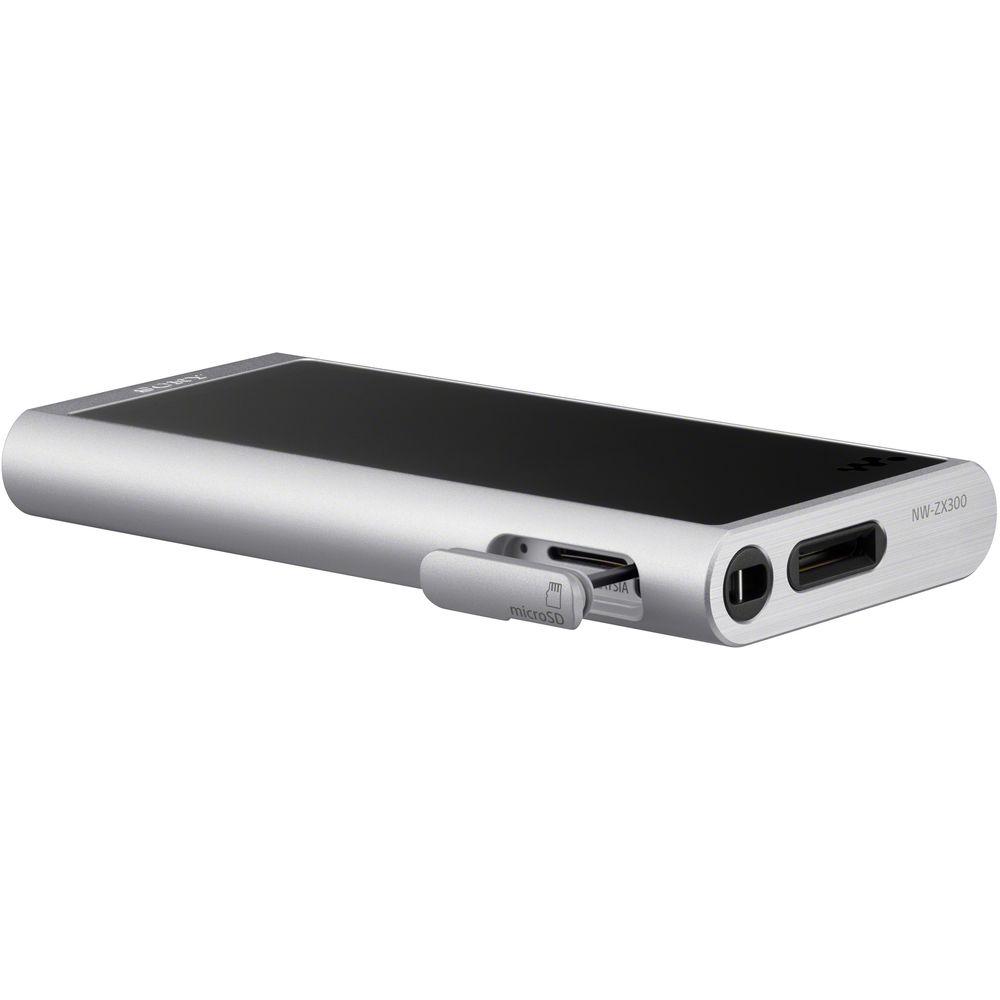

- Want to store more music on your Walkman? Pop in a microSD card (available separately) for additional memory.

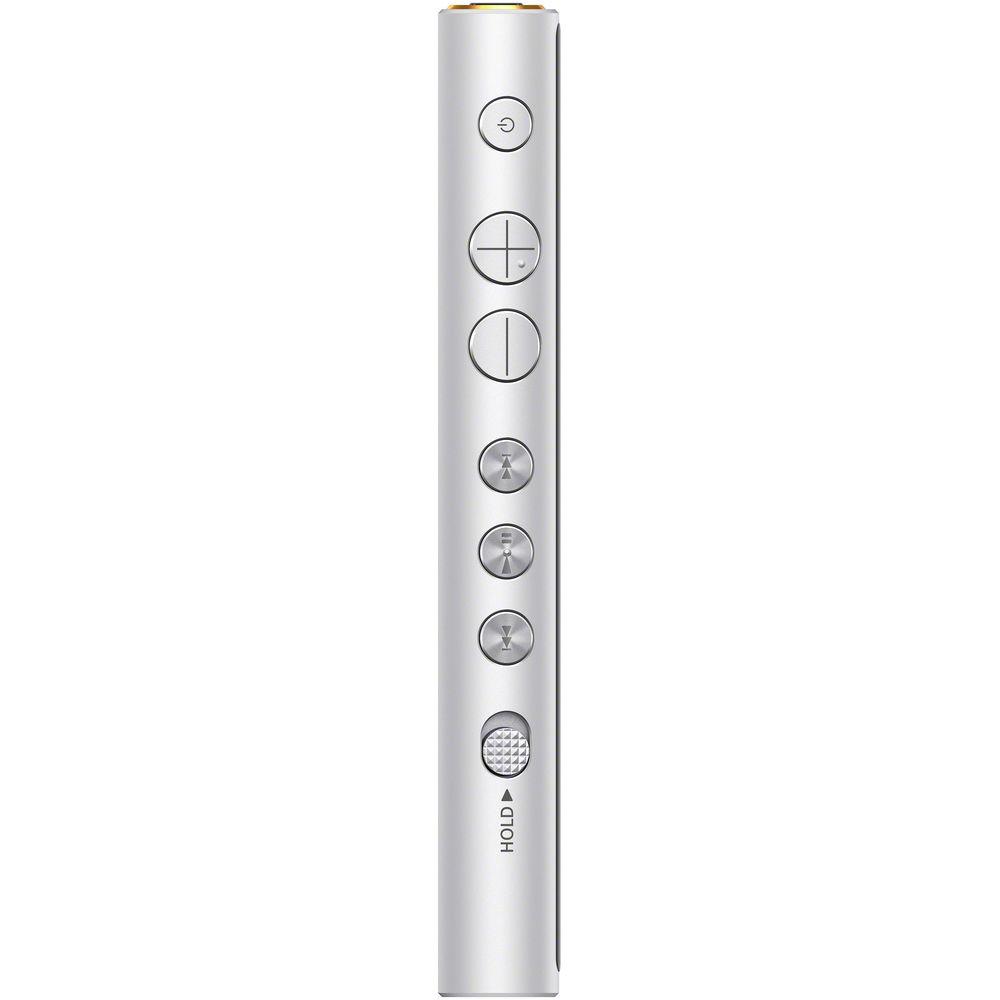

- Handy Buttons for Quick Control
- The play/pause, music selection, and volume buttons on the side panel are shaped and positioned for easy operation.
UPC: 027242906532 In the Box Sony ZX300 Walkman Digital Music Player (Silver) USB Cable Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony ZX300 Walkman Digital Music Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony NW-ZX300 Specs | | | Amplifier | 1 x S-Master HX | | External DAC Functionality | Yes | | Audio Resolution | DSD128: 2.8224 ~ 11.2896 kHz / 1-Bit | | Volume Control | Analog | | Audio Power Output | 50 mW (Unbalanced)
200 mW (Balanced) | | Custom Equalizer | Yes | | | | Operating System | Proprietary | | Internal Storage Capacity | 64 GB | | Flash Media Slot | 1 x microSDXC | | Display | 3.1" LCD (800 x 480 Resolution) | | | | FM Tuner | No | | Formats Supported | Audio: MP3 (32-320 kbps [supports variable bitrate]/ 32-48 kHz)
Audio: WMA (32-192 kbps [supports variable bitrate]/ 44.1 kHz)
Audio: FLAC (16, 24-bit / 8-384 kHz)
Audio: AAC (6-320 kbps / 8-48 kHz)
Audio: HE-AAC (32-144 kbps / 8-48 kHz)
Audio: ALAC (16, 24-bit / 8-384 kHz)
Audio: DSD (1-bit / 2.8224-11.2896 kHz)
Audio: APE (8, 16, 24-bit / 8-192 kHz [Fast, Normal, High]) | | | | Wireless | Bluetooth 2.0 A2DP
Bluetooth 4.2
Bluetooth AVRCP | | Bluetooth Codecs | aptX, LDAC | | Connections | 1 x 4.4 mm Balanced Headphone
1 x 1/8" (3.5 mm) Stereo Headphone
1 x WM-Port | | Built-In Mic | No | | | | Battery | 1x Built-in Rechargeable Lithium-ion Battery
Providing up to 30 Hours per Charge for Audio Playback | | Charging Time | Full Charge: 5.5 Hours | | | | System Requirements | Operating System
Windows 7, 8.1, 10
Mac OS X 10.8 to 10.12
Hardware
USB 2.0 Port | | Dimensions (W x H x D) | 2.3 x 4.7 x 0.6" / 57.7 x 120.4 x 14.9 mm | | Weight | 5.54 oz / 157.06 g | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 6.1 x 3.6 x 2.1" |
