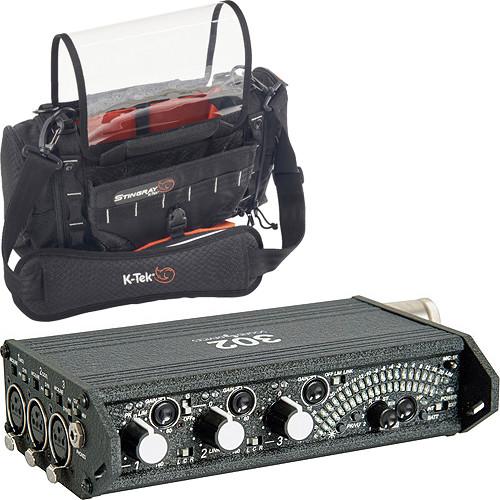

Product description The Sound Devices 302 Compact Production Mixer & K-Tek Stingray Jr Audio Mixer Recorder Bag Kit from is an audio mixer and case kit, designed for a wide range of audio-for-video applications. It can be used for broadcast TV, ENG (Electronic News Gathering), videographers, sound designers, and more. The 302 mixer features three full-featured microphone inputs and level metering, and it has flexible headphone monitoring providing complete control of audio sources. In addition, the K-Tek recorder bag has a rigid vertical frame and side pockets with a bottom trap door, and comes with a clear shield, stealth cover, and shoulder strap. - Sound Devices 302 Portable Compact Production Field Mixer The 302 Portable Compact Production Field Mixer from Sound Devices is a compact, battery-powered professional audio mixer with three mic preamps and balanced transformers designed to handle very low frequencies. It can be used to interface with wireless transmitters and receivers, camera audio inputs, or external audio recorders in ENG (electronic news gathering), EFP (electronic field production), and broadcast TV applications.With a complete feature set like the super-bright LED display, internal limiter, and high-pass filter, the 302 can accommodate nearly any over-the-shoulder production and perform reliably in just about any indoor/outdoor field condition. Controls on the 302 mixer are accessible on its three main surfaces, and the mixer is powered by three internal AA batteries or an external 5 to 18 VDC adapter (sold separately).This mixer is a suitable tool for production companies and camera operators wanting to take control of their audio. In addition, an XL-14 headphone extension cable, four adhesive rubber bumpers, four color dot stickers, and a setup menu reference card are also included.
- 3 Transformer Balanced Inputs
- The compact mixer features 3 transformer-balanced microphone or line-level switchable inputs via XLR female 3-pin connectors.
- Flexible Monitoring
- The 302's headphone monitor out is capable of varying output impedance between 8 to 2000 Ohms. The monitor source is capable of individual channel, mono, stereo, M-S to stereo monitoring, and more.
- Input and Output Limiting
- Each input and stereo outputs provide limiting that prevents signal overload, eliminating noise and distortion.
- Polarity (Phase) Reverse Switch
- Channels 1 & 2 are stereo linkable and channel 2 features a polarity (phase) reverse switch. This makes the 302 ideal for decoding M-S stereo captured audio signal.
- Selectable Phantom Power
- The unit is capable of powering condenser microphones requiring +48V, +12V and +12V-T phantom power. Phantom power is individually switched for every channel.
- High-Pass Filters
- A three-position high-pass filter switch is available on every input and is used to reduce excessive low frequencies at 12 dB per octave at 80 Hz or 160 Hz. Center position is off.
UPC: 859108005253 - K-Tek Stingray Junior - Audio Mixer Recorder Bag The K-Tek Stingray Junior is an audio mixer recorder bag designed for small rigs with a couple of wireless receivers and transmitters. Like its larger brethren, the Stingray Junior offers a dual full vertical frame that allows the bag to better stand on its own, while protecting equipment and providing full access to the sides and bottom of the mixer recorder to access connectors and media. The large trap door on the bottom and zippered side access panels complement the accessibility offered by the frame and further ease setup, cabling, and battery swaps.Oversized side pockets offer plenty of room to store NP batteries, while Hook-and-Loop access allows cabling from side pockets into the main compartment. A separate front compartment can be expanded or closed tight and is protected by a rigid front panel. Various cable pass-through locations and smart storage points allow for versatility when using various equipment choices and recording environments. Web loops, Molle straps, and D-Rings offer plenty of rigging points for additional accessories and allow the Stingray Jr. to be connected by harnesses and waist-belts. The built-in kickstand allows the bag to sit at an angle when placed on a tabletop or when resting on the ground. The Stingray Jr. ships with an adjustable shelf divider, a shoulder strap, a clear shield, and a stealth cover.
- General Features
-
- Rigid internal vertical frame for strength and stability
- Side Pockets large enough to hold NP batteries with cup adapters
- Bottom trap door for fast access and convenience
- Built in kick-stand for table mixing
- Collapsible front pocket with Molle Straps and hard protective front
- Comes with Clear Shield, Stealth Cover and Shoulder Strap
- Perfect companion for the optional K-Tek Waist belt and is fully compatible with the optional Stingray Harness.
- Device Compatibility
-
- Audio Developments AD162
- Fostex FM-3
- Fostex FM-4
- Fostex FR-2LE
- Kamesan KS-T2000
- PSC DVPROMIX3
- PSC Alphamix
- Rolls MX124
- Shure FP33
- Sonosax SX-R4
- Sonosax SX-R4+
- SoundDevices MixPre-10M
- SoundDevices MixPre-10T
- Sound Devices 633
- Sound Devices 744t
- Sound Devices 302
- Tascam DR-680mkII
- Wendt X3
- Zaxcom Maxx
- Zoom F8
- Zoom F4
UPC: 649906207146 In the Box - 302 Portable Compact Production Field Mixer bvtradxerbvswsbbtbwyczrfyvccvacz
- XL14 - Headphone Extension Cable
- Setup Menu Card
- 4 x Color Dot Stickers
- 4 x Adhesive Rubber Bumpers
- Limited 1-Year Warranty
- Limited 2-Year Warranty with Registration
- K-Tek - Stingray Junior - Audio Mixer Recorder Bag
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sound Devices 302 Compact Production Mixer & Stingray Jr Audio Mixer Recorder Bag Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sound Devices 302 Portable Compact Production Field Mixer
| Frequency Response | 20 Hz to 30 kHz, +0.2, -0.5 dB, -1 dB @ 5 Hz and 50 kHz Typical | | Equivalent Input Noise | -126 dBu (-128 dBV) Maximum (22 Hz to 22 kHz Bandwidth, Flat Filter, Trim Control Fully Up) | | Input Clip Level | 0 dBu Minimum (Trim Control Fully Down) | | Line Output | Clipping Level (1% THD): 20 dBu Minimum, 18 dBu Minimum with 600-Ohm Load | | Dynamic Range | 115 dB Minimum (Trim Fully Down) | | Total Harmonic Distortion (THD) + N | 0.007% Typical (1 kHz, +4 dBu at Line out), 0.009 Max (50 Hz to 20 kHz, +18 dBu at Line Out, Fader Fully Up) | | Output Noise | -100 dBu (-102 dBV) Maximum (22 Hz to 22 kHz Bandwidth, Flat Filter, Master Gain Fully Up, Faders Fully Down) | | L/R Gain Matching | ±0.1 dB (Mic In to Line Out) | | Metering | 40-Segment (2 x 20), Sunlight-Viewable Selectable Peak, VU, or Peak (with or without Peak Hold) + VU Ballistics | | High Pass Filter | Switchable 80 Hz or 160 Hz, 12 dB/Oct, Silent Activation | | Microphone Power | None, 12 V Phantom, 48 V Phantom, 12 V T-Power, Selected per Mic Input | | Input Limiter | +18 dBu Threshold, 20:1 Limiting Ratio, 1 mS Attack Time, 200 mS Release Time | | Audio Output Limiter | Affects the Outputs of the Mixer. Threshold Selectable from +4 dBu to +20 dBu, 1 dB steps, 20:1 Limiting ratio, 1 mS Attack Time, 200 mS Release Time | | Power Supply | Internal ±16 VDC (Bipolar) Regulated Audio Rails
Batteries: 3 x AA, 2.4 to 6 V Range, Isolated (Floating)
External Power Supply: 5-18 VDC Locking 4-Pin Hirose Connector, Pin-4 = (+), Pin-1 = (-) | | Power Consumption | 130 mA @ 4.5 V, Internal Batteries, Idle, No Phantom
55 mA @ 12 VDC External, Idle, No Phantom | | Temperature | Operating: -4 to 140°F / -20 to 60°C
0 to 95% Relative Humidity; (non-condensing)
Storage: -40 to 185°F / -40 to 85°C | | Dimensions (H x W x D) | 1.9 x 8.4 x 4.5" / 4.7 x 21.4 x 11.4 cm | | Weight | 1.8 lb / 85 g | | | | Box Dimensions (LxWxH) | 10.8 x 7.4 x 4.9" | - K-Tek Stingray Junior - Audio Mixer Recorder Bag
| Dimensions (L x W x H) | Internal: 8.7 x 3.6 x 7.9" / 22.0 x 9.0 x 20.0 cm
External: 12.6 x 6.3 x 9.1" / 32.0 x 16.0 x 23.0 cm | | Weight | 2.9 lb / 1.3 kg | | | | Box Dimensions (LxWxH) | 13.5 x 10.3 x 7.9" |
