Sound Devices 302 ENG EFP Deluxe

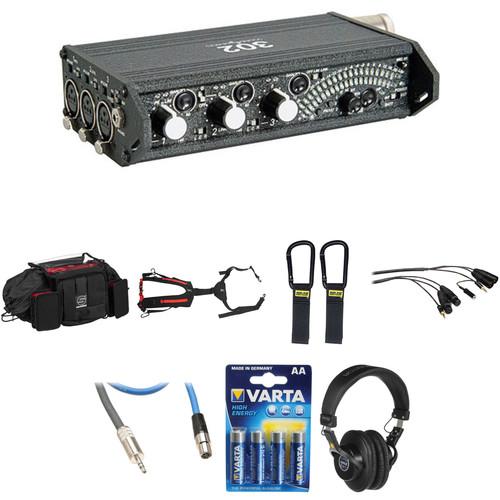

User Manual for Sound Devices 302 ENG EFP Deluxe Field Mixer Kit

• Product category: Field Mixers Sound Devices
• Brand: Sound Devices
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sound Devices Field Mixers

Product description

• Sound Devices 302 Portable Compact Production Field Mixer The 302 Portable Compact Production Field Mixer from Sound Devices is a compact, battery-powered professional audio mixer with three mic preamps and balanced transformers designed to handle very low frequencies. It can be used to interface with wireless transmitters and receivers, camera audio inputs, or external audio recorders in ENG (electronic news gathering), EFP (electronic field production), and broadcast TV applications.With a complete feature set like the super-bright LED display, internal limiter, and high-pass filter, the 302 can accommodate nearly any over-the-shoulder production and perform reliably in just about any indoor/outdoor field condition. Controls on the 302 mixer are accessible on its three main surfaces, and the mixer is powered by three internal AA batteries or an external 5 to 18 VDC adapter (sold separately).This mixer is a suitable tool for production companies and camera operators wanting to take control of their audio. In addition, an XL-14 headphone extension cable, four adhesive rubber bumpers, four color dot stickers, and a setup menu reference card are also included.
  3 Transformer Balanced Inputs
  • The compact mixer features 3 transformer-balanced microphone or line-level switchable inputs via XLR female 3-pin connectors.
  Flexible Monitoring
  • The 302's headphone monitor out is capable of varying output impedance between 8 to 2000 Ohms. The monitor source is capable of individual channel, mono, stereo, M-S to stereo monitoring, and more.
  Input and Output Limiting
  • Each input and stereo outputs provide limiting that prevents signal overload, eliminating noise and distortion.
  Polarity (Phase) Reverse Switch
  • Channels 1 & 2 are stereo linkable and channel 2 features a polarity (phase) reverse switch. This makes the 302 ideal for decoding M-S stereo captured audio signal.
  Selectable Phantom Power
  • The unit is capable of powering condenser microphones requiring +48V, +12V and +12V-T phantom power. Phantom power is individually switched for every channel.
  High-Pass Filters
  • A three-position high-pass filter switch is available on every input and is used to reduce excessive low frequencies at 12 dB per octave at 80 Hz or 160 Hz. Center position is off.
  UPC: 859108005253
• Sachtler Lightweight Audio Bag (Small) The small version of the Lightweight Audio Bag from Sachtler features a variety of innovative features designed specifically for sound recording engineers in the studio, on set, and in the field. The bag includes a transparent top window that allows for easy viewing of equipment controls within the fully padded main compartment. Access to equipment controls are provided by side, back, and top panels.

  Removable internal dividers allow for custom configurations of your gear and multiple storage pouches are provided for batteries, cassettes, and connectors to enable quick organization.

  A double floor makes it easier to organize headphone cables. An internal pocket can house the mixer's battery and exterior straps allow you to carry a boom pole and extra cables with ease. The system can be expanded by using snap-on pouches for transmitters or receivers. For comfort while working, the bag features padded adjustable shoulder straps.
• Versa-Flex HS1N Professional Audio Harness The Versa-Flex HS1N Professional Audio Harness is a heavy-duty, padded, wide strap that prevents shoulder fatigue while carrying audio equipment. It is designed to be used with a professional audio mixer and recording cases. There is a 21" over strap and an 8.0" under strap. The harness features attachment rings for securing cases, two carabineers, removable waist strap, and a carry sack. The HS1N Harness is Made in the U.S.A.
  • Heavy-duty, padded audio harness with wide straps used to prevent shoulder fatigue
  • Soft, cloth padding under straps
  • Chrome-plated adjustment and attachment rings with more room for adjustments than previous model
  • 1.5" wide weight-bearing strap with 4.0" padding underneath
  • More spaces along front allow for additional adaptability in fit and add-on accessories
  • Removable waist strap used to keep sound gear close to waist
• Rip-Tie Carabiner CableCarrier 1x6" (Black 2 Pack) The Rip-Tie Carabiner Style CableCarrier is made to carry extra cables easily. It attaches to a belt loop or tool belt for easy access to extra cables, power cords, speaker wire, microphone or lighting cables. It can also be used as a temporary hanger for cable runs during events, construction, or installations. The regular style carabiner is 3 1/8" with a 1" maximum opening. This item is a pack of 2 regular style carabiner 1 x 6" Black CableCarriers.
  • Attaches to a belt loop or tool belt for easy access to extra cables: power cords, speaker, microphone or lighting cables.
  • It can also be used as a temporary hanger for cable runs during events, construction or installations.
  Regular Style Carabiner;
  • • Size: 31/8" (7.94 cm)
    • Max opening: 1.0" (2.54 cm)
    • Color: Matte Black
  UPC: 733178800805
• Canare BACX25 Cable for Portable Mixers - 25' The Canare BACX25 cable features dual XLR female and dual XLR male connectors for main audio feeds, to and from field mixers. Stereo 1/8" (3.5mm) mini male connectors provide a secondary option for cameras and audio devices without XLR connectors. A 1/8" female output is provided for headphone monitoring. The cable length is 25' (7.62m). UPC: 808447018738
• Sound Devices XL3 Mini Male to TA3-F Connector Cable The Sound Devices XL-3 is a 1/8" (3.5mm) to TA3-female cable, designed for connecting the Tape Output of a MixPre or MP-2 to a Mix input of a 442 or 302. The cable measures 12 inches (30.48cm) in length. UPC: 859108005710
• Varta High-Energy 1.5V AA LR6 Alkaline Battery (4-Pack) Power any device that accepts AA cells with this 4-pack of standard, all-purpose High-Energy 1.5V AA LR6 Alkaline Batteries from Varta. These German-made cells are non-rechargeable and feature an output of 1.5V. Additionally, they offer up to 80% more power in digital cameras than Varta Simply Alkaline batteries. The "Single Press Out" type packaging enables easy opening, allowing you to extract one at a time and providing storage for unused cells.
• Senal SMH-1000 Professional Field and Studio Monitor Headphones The SMH-1000 Professional Field and Studio Monitor Headphones from Senal feature a classic closed-back, over-the-ear, collapsible design. With features like interchangeable cables, a refined frequency response, wire guides, superior comfort, and durable materials, the SMH-1000 is ideal for studio and field applications.

  Equipped with 40mm neodymium drivers at 58-Ohm impedance, the SMH-1000 headphones are designed to be loud enough when attached to low powered devices such as mobile phones and mp3 players, yet robust enough to handle studio headphone amps without distortion.The over-ear, closed-back design is intended to help block unwanted outside noise, which is useful in professional field recording and studio monitoring scenarios where isolation is critical.

  The headphones are designed with an EQ curve that's been tailored for a slightly enhanced low end that allows field engineers to detect wind noise more effectively, and for studio engineers to monitor bass and sub bass frequencies. The high frequency response has been extended to accurately reproduce spatial detail. There is also a pronounced but smooth midrange that reduces ear fatigue over prolonged periods, while maintaining focus on vocal and dialogue intelligibility.

  Designed for flexibility as well as great sound, the SMH-1000 makes use of twist-lock detachable cabling. There are two detachable cables included in each box that can be used interchangeably. There is a stretchable 4 to 10' coiled cable that provides better mobility and reach, that also helps prevent snags from pulling the headphones off of your head. This can be useful when navigating through gear-cluttered recording studio environments. There is also a 3' straight cable that is useful when less slack is ideal, such as when using a waist-mounted field recorder or mixer, or when using your mobile device.

  The SMH-1000 has been built with convenience, practicality and comfort in mind as well. The headphones have a collapsible folding mechanism for compact storage and transport. They also have wire guides to keep the ear-cup wires from pinching. Furthermore, they are fitted with a padded headband and soft, replaceable ear cushions to maximize comfort during extended listening.
  • An excellent choice for commercial recording, broadcast, home studios, and live and location sound. Also great for home and portable entertainment.
  • Over-ear, closed-back (circumaural) stereo headphone design to help block unwanted environmental noise. Ideal for use in professional applications such as studio or field recording.
  • Detachable, twist-locking 10' coiled cable and 3' straight cable included. Replacement cables also available from Senal.
  • Enhanced low end designed to allow field engineers to detect wind noise effectively, and for studio engineers to monitor bass and sub bass frequencies.
  • Pronounced but smooth midrange tailored to reduce ear fatigue over prolonged periods while maintaining focus on vocal and dialog intelligibility.
  • Extended high frequency response designed to reproduce spatial detail accurately. Gradual roll off at 14 kHz allows for accurate low level monitoring and hearing protection.
  • Padded headband and soft, replaceable ear cushions. Replacement cushions are available for purchase.
  • Easy storage via collapsible folding mechanism.
  UPC: 847628015821

• 302 Portable Compact Production Field Mixer avrttsfzwzczwzevad
• XL14 - Headphone Extension Cable
• Setup Menu Card
• 4 x Color Dot Stickers
• 4 x Adhesive Rubber Bumpers
• Limited 1-Year Warranty
• Limited 2-Year Warranty with Registration

• Sachtler - Lightweight Audio Bag (Small)

• Versa-Flex - HS1N Professional Audio Harness (Re-design) avrttsfzwzczwzevad

• Rip-Tie - Carabiner CableCarrier 1 x 6" - for Carrying Extra Cables (Matte Black, Pack of 2)

• Canare - BACX25 Cable for Portable Mixers with Monitor Output - 25'

• XL3 Mini Male to TA3-F Connector Cable is a 12" Link from a Sound Devices MixPre/MP-2 Tape Output to a 442/302 Series Mix Input avrttsfzwzczwzevad

• Varta - High-Energy 1.5V AA LR6 Alkaline Battery (4-Pack)

• Senal - SMH-1000 Professional Field and Studio Monitor Headphones

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sound Devices 302 Portable Compact Production Field Mixer

  Frequency Response	20 Hz to 30 kHz, +0.2, -0.5 dB, -1 dB @ 5 Hz and 50 kHz Typical
  Equivalent Input Noise	-126 dBu (-128 dBV) Maximum (22 Hz to 22 kHz Bandwidth, Flat Filter, Trim Control Fully Up)
  Input Clip Level	0 dBu Minimum (Trim Control Fully Down)
  Line Output	Clipping Level (1% THD): 20 dBu Minimum, 18 dBu Minimum with 600-Ohm Load
  Dynamic Range	115 dB Minimum (Trim Fully Down)
  Total Harmonic Distortion (THD) + N	0.007% Typical (1 kHz, +4 dBu at Line out), 0.009 Max (50 Hz to 20 kHz, +18 dBu at Line Out, Fader Fully Up)
  Output Noise	-100 dBu (-102 dBV) Maximum (22 Hz to 22 kHz Bandwidth, Flat Filter, Master Gain Fully Up, Faders Fully Down)
  L/R Gain Matching	±0.1 dB (Mic In to Line Out)
  Metering	40-Segment (2 x 20), Sunlight-Viewable Selectable Peak, VU, or Peak (with or without Peak Hold) + VU Ballistics
  High Pass Filter	Switchable 80 Hz or 160 Hz, 12 dB/Oct, Silent Activation
  Microphone Power	None, 12 V Phantom, 48 V Phantom, 12 V T-Power, Selected per Mic Input
  Input Limiter	+18 dBu Threshold, 20:1 Limiting Ratio, 1 mS Attack Time, 200 mS Release Time
  Audio Output Limiter	Affects the Outputs of the Mixer. Threshold Selectable from +4 dBu to +20 dBu, 1 dB steps, 20:1 Limiting ratio, 1 mS Attack Time, 200 mS Release Time
  Power Supply	Internal ±16 VDC (Bipolar) Regulated Audio Rails Batteries: 3 x AA, 2.4 to 6 V Range, Isolated (Floating) External Power Supply: 5-18 VDC Locking 4-Pin Hirose Connector, Pin-4 = (+), Pin-1 = (-)
  Power Consumption	130 mA @ 4.5 V, Internal Batteries, Idle, No Phantom 55 mA @ 12 VDC External, Idle, No Phantom
  Temperature	Operating: -4 to 140°F / -20 to 60°C 0 to 95% Relative Humidity; (non-condensing) Storage: -40 to 185°F / -40 to 85°C
  Dimensions (H x W x D)	1.9 x 8.4 x 4.5" / 4.7 x 21.4 x 11.4 cm
  Weight	1.8 lb / 85 g

  Box Dimensions (LxWxH)	10.8 x 7.4 x 4.9"

• Sachtler Lightweight Audio Bag (Small)

  Operating Temperature	Down to 23°F (-5° C) for window
  Dimensions (L x W x H)	Internal: 9.3 x 4.1 x 6.7" (23.5 x 10.5 x 17.0 cm) External: 9.8 x 5.7 x 7.3" (25.0 x 14.5 x 18.5 cm)
  Weight	2.5 lb (1.1 kg)

  Box Dimensions (LxWxH)	13.2 x 8.3 x 7.9"

• Versa-Flex HS1N Professional Audio Harness

  Material	Exterior: Cordura nylon with laminated closed cell foam Over the shoulder strap: 1/2" dense open cell foam laminated to tricot nylon Back strap: 3/8" dense open cell foam laminated to tricot nylon
  Exterior Dimensions	Over strap: 21 x 4.0" (53.34 x 10.16 cm) (LxW) Under strap: 8.0 x 2.0" (20.32 x 5.08cm) (LxW)
  Weight	1.6 lbs (726g)

  Box Dimensions (LxWxH)	19.9 x 8.45 x 6.05"

• Rip-Tie Carabiner CableCarrier 1x6" (Black 2 Pack)

  Box Dimensions (LxWxH)	3.8 x 3.6 x 0.6"

• Canare BACX25 Cable for Portable Mixers - 25'

  Box Dimensions (LxWxH)	7.323 x 4.724 x 1.181"

• Sound Devices XL3 Mini Male to TA3-F Connector Cable

  Box Dimensions (LxWxH)	9.0 x 5.5 x 0.75"

• Varta High-Energy 1.5V AA LR6 Alkaline Battery (4-Pack)

  Battery Type	4 x AA
  Battery Chemistry	Alkaline
  Battery Voltage	1.5 V

  Box Dimensions (LxWxH)	4.75 x 3.1 x 0.65"

• Senal SMH-1000 Professional Field and Studio Monitor Headphones

  Driver Size	1.6" / 40 mm
  Magnet Type	Neodymium
  Design	Over-Ear (Circumaural)
  Earcup Style	Closed-Back

  Frequency Response	10 Hz to 20 kHz
  Sensitivity	102 dB at 1 kHz / 1 mW
  Impedance	58 Ohms
  Maximum Power Handling	1000 mW
  Total Harmonic Distortion (THD)	1%

  Audio Connector	1/8" (3.5 mm)
  Adapter (Included)	1/4" (6.3 mm)

  Detachable	Yes

  Weight	8 oz / 226.8 g

  Box Dimensions (LxWxH)	9.1 x 8.8 x 3.8"
