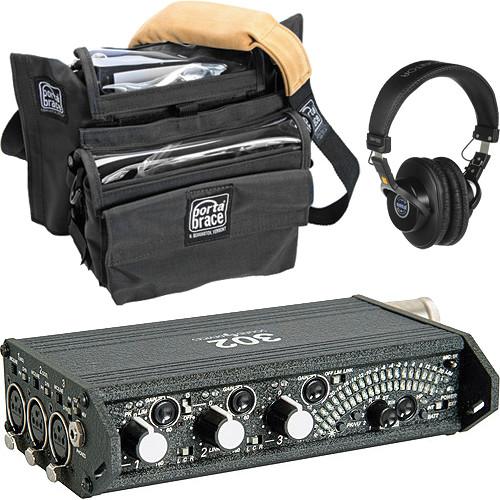

User Manual for Sound Devices 302 Portable 3-Channel Field Mixer and Porta Brace MXC-302B Case Kit Click to enlarge the picture
Contents of the user manual for the Sound Devices 302 Portable 3-Channel Field
- Product category: Field Mixers Sound Devices
- Brand: Sound Devices
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sound Devices Field Mixers
|
User manual for the Sound Devices 302 Portable 3-Channel Field contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sound Devices product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sound Devices user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sound Devices product will considerably shorten its lifespan!
|
Product description The Sound Devices 302 Portable 3-Channel Field Mixer and Porta Brace MXC-302B Case Kit from B&H gets you prepared for professional film, ENG / EFP and broadcast applications.
The Sound Devices 302 features 3 balanced XLR inputs that are capable of accepting mic or line-level signals. The output stage features stereo balanced XLR connections. Channels 1 and 2 are stereo linkable and a polarity reverse switch is provided on channel 2. This makes the 302 ideal for M-S stereo style capturing and monitoring. Each channel provides individually switchable +48V, +12V and +12V-T phantom power for condenser microphones. Input and output limiters are user switchable and eliminate noise and distortion caused by signal overload. Low-cut filter switches eliminate noise below 80Hz and the unit is powered by 3 AA batteries or external 5 - 18VDC power source.
The Porta Brace MXC-302B Case is made with durable 1000D Cordura nylon and comes complete with a suede HB-12 shoulder strap. The case is touch fastened and contains flaps that allow easy access. Two clear vinyl windows provide complete protection to your gear, battery, dials and switches. For ease of use, the case can be worn either over your shoulder or around your neck.The kit also includes the Senal SMH-1000 closed-back professional monitor headphones. - Sound Devices 302 Portable Compact Production Field Mixer The 302 Portable Compact Production Field Mixer from Sound Devices is a compact, battery-powered professional audio mixer with three mic preamps and balanced transformers designed to handle very low frequencies. It can be used to interface with wireless transmitters and receivers, camera audio inputs, or external audio recorders in ENG (electronic news gathering), EFP (electronic field production), and broadcast TV applications.With a complete feature set like the super-bright LED display, internal limiter, and high-pass filter, the 302 can accommodate nearly any over-the-shoulder production and perform reliably in just about any indoor/outdoor field condition. Controls on the 302 mixer are accessible on its three main surfaces, and the mixer is powered by three internal AA batteries or an external 5 to 18 VDC adapter (sold separately).This mixer is a suitable tool for production companies and camera operators wanting to take control of their audio. In addition, an XL-14 headphone extension cable, four adhesive rubber bumpers, four color dot stickers, and a setup menu reference card are also included.
- 3 Transformer Balanced Inputs
- The compact mixer features 3 transformer-balanced microphone or line-level switchable inputs via XLR female 3-pin connectors.
- Flexible Monitoring
- The 302's headphone monitor out is capable of varying output impedance between 8 to 2000 Ohms. The monitor source is capable of individual channel, mono, stereo, M-S to stereo monitoring, and more.
- Input and Output Limiting
- Each input and stereo outputs provide limiting that prevents signal overload, eliminating noise and distortion.
- Polarity (Phase) Reverse Switch
- Channels 1 & 2 are stereo linkable and channel 2 features a polarity (phase) reverse switch. This makes the 302 ideal for decoding M-S stereo captured audio signal.
- Selectable Phantom Power
- The unit is capable of powering condenser microphones requiring +48V, +12V and +12V-T phantom power. Phantom power is individually switched for every channel.
- High-Pass Filters
- A three-position high-pass filter switch is available on every input and is used to reduce excessive low frequencies at 12 dB per octave at 80 Hz or 160 Hz. Center position is off.
UPC: 859108005253 - Porta Brace MXC-302B Audio Combination Case (Black) The black MXC-302B Audio Combination Case from Porta Brace is a custom fit case for your mixer. It's made inside and out with durable 1000D Cordura nylon and comes complete with a suede HB-12 shoulder strap. The case is touch fastened and contains flaps for easy access to your gear. For ease of use, the case can be worn either over your shoulder or around your neck. Two clear vinyl windows provide complete protection to your gear, battery, dials and switches. The RM-Multi Wireless Mic Case can hold up to four transmitters and receivers and can be fastened to either the case or strap. It has a large front pocket and interior dividers for cable storage. The entire Audio Combination Case is made in the USA by Porta Brace and is backed by their 2-year limited warranty.
- Protective, padded carrying case for your mixer
- Two clear vinyl windows serve to both protect the mixer as well as providing a clear view to the dials and switches
- Wear the case over your shoulder or around your neck
- RM-Multi Mic Case holds up to four standard receivers and transmitters
- Carry-On Form Factor
- FAA and airline carry-on specifications are subject to change without notice, please check with your airline before designating this case as a carry-on item. Most airlines require carry-on items to have an external linear measurement that is equal to or less than 45.0" (114.3 cm). The external dimensions of this case add up to 21.5" (54.6 cm)
UPC: 877547018887 - Senal SMH-1000 Professional Field and Studio Monitor Headphones The SMH-1000 Professional Field and Studio Monitor Headphones from Senal feature a classic closed-back, over-the-ear, collapsible design. With features like interchangeable cables, a refined frequency response, wire guides, superior comfort, and durable materials, the SMH-1000 is ideal for studio and field applications.
Equipped with 40mm neodymium drivers at 58-Ohm impedance, the SMH-1000 headphones are designed to be loud enough when attached to low powered devices such as mobile phones and mp3 players, yet robust enough to handle studio headphone amps without distortion.The over-ear, closed-back design is intended to help block unwanted outside noise, which is useful in professional field recording and studio monitoring scenarios where isolation is critical.
The headphones are designed with an EQ curve that's been tailored for a slightly enhanced low end that allows field engineers to detect wind noise more effectively, and for studio engineers to monitor bass and sub bass frequencies. The high frequency response has been extended to accurately reproduce spatial detail. There is also a pronounced but smooth midrange that reduces ear fatigue over prolonged periods, while maintaining focus on vocal and dialogue intelligibility.
Designed for flexibility as well as great sound, the SMH-1000 makes use of twist-lock detachable cabling. There are two detachable cables included in each box that can be used interchangeably. There is a stretchable 4 to 10' coiled cable that provides better mobility and reach, that also helps prevent snags from pulling the headphones off of your head. This can be useful when navigating through gear-cluttered recording studio environments. There is also a 3' straight cable that is useful when less slack is ideal, such as when using a waist-mounted field recorder or mixer, or when using your mobile device.
The SMH-1000 has been built with convenience, practicality and comfort in mind as well. The headphones have a collapsible folding mechanism for compact storage and transport. They also have wire guides to keep the ear-cup wires from pinching. Furthermore, they are fitted with a padded headband and soft, replaceable ear cushions to maximize comfort during extended listening. - An excellent choice for commercial recording, broadcast, home studios, and live and location sound. Also great for home and portable entertainment.
- Over-ear, closed-back (circumaural) stereo headphone design to help block unwanted environmental noise. Ideal for use in professional applications such as studio or field recording.
- Detachable, twist-locking 10' coiled cable and 3' straight cable included. Replacement cables also available from Senal.
- Enhanced low end designed to allow field engineers to detect wind noise effectively, and for studio engineers to monitor bass and sub bass frequencies.
- Pronounced but smooth midrange tailored to reduce ear fatigue over prolonged periods while maintaining focus on vocal and dialog intelligibility.
- Extended high frequency response designed to reproduce spatial detail accurately. Gradual roll off at 14 kHz allows for accurate low level monitoring and hearing protection.
- Padded headband and soft, replaceable ear cushions. Replacement cushions are available for purchase.
- Easy storage via collapsible folding mechanism.
UPC: 847628015821 In the Box - 302 Portable Compact Production Field Mixer wfdddsuwvsadaw
- XL14 - Headphone Extension Cable
- Setup Menu Card
- 4 x Color Dot Stickers
- 4 x Adhesive Rubber Bumpers
- Limited 1-Year Warranty
- Limited 2-Year Warranty with Registration
- Porta Brace - MXC-302B Audio Combination Case (Black) wfdddsuwvsadaw
- Senal - SMH-1000 Professional Field and Studio Monitor Headphones
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sound Devices 302 Portable 3-Channel Field Mixer and Porta Brace MXC-302B Case Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sound Devices 302 Portable Compact Production Field Mixer
| Frequency Response | 20 Hz to 30 kHz, +0.2, -0.5 dB, -1 dB @ 5 Hz and 50 kHz Typical | | Equivalent Input Noise | -126 dBu (-128 dBV) Maximum (22 Hz to 22 kHz Bandwidth, Flat Filter, Trim Control Fully Up) | | Input Clip Level | 0 dBu Minimum (Trim Control Fully Down) | | Line Output | Clipping Level (1% THD): 20 dBu Minimum, 18 dBu Minimum with 600-Ohm Load | | Dynamic Range | 115 dB Minimum (Trim Fully Down) | | Total Harmonic Distortion (THD) + N | 0.007% Typical (1 kHz, +4 dBu at Line out), 0.009 Max (50 Hz to 20 kHz, +18 dBu at Line Out, Fader Fully Up) | | Output Noise | -100 dBu (-102 dBV) Maximum (22 Hz to 22 kHz Bandwidth, Flat Filter, Master Gain Fully Up, Faders Fully Down) | | L/R Gain Matching | ±0.1 dB (Mic In to Line Out) | | Metering | 40-Segment (2 x 20), Sunlight-Viewable Selectable Peak, VU, or Peak (with or without Peak Hold) + VU Ballistics | | High Pass Filter | Switchable 80 Hz or 160 Hz, 12 dB/Oct, Silent Activation | | Microphone Power | None, 12 V Phantom, 48 V Phantom, 12 V T-Power, Selected per Mic Input | | Input Limiter | +18 dBu Threshold, 20:1 Limiting Ratio, 1 mS Attack Time, 200 mS Release Time | | Audio Output Limiter | Affects the Outputs of the Mixer. Threshold Selectable from +4 dBu to +20 dBu, 1 dB steps, 20:1 Limiting ratio, 1 mS Attack Time, 200 mS Release Time | | Power Supply | Internal ±16 VDC (Bipolar) Regulated Audio Rails
Batteries: 3 x AA, 2.4 to 6 V Range, Isolated (Floating)
External Power Supply: 5-18 VDC Locking 4-Pin Hirose Connector, Pin-4 = (+), Pin-1 = (-) | | Power Consumption | 130 mA @ 4.5 V, Internal Batteries, Idle, No Phantom
55 mA @ 12 VDC External, Idle, No Phantom | | Temperature | Operating: -4 to 140°F / -20 to 60°C
0 to 95% Relative Humidity; (non-condensing)
Storage: -40 to 185°F / -40 to 85°C | | Dimensions (H x W x D) | 1.9 x 8.4 x 4.5" / 4.7 x 21.4 x 11.4 cm | | Weight | 1.8 lb / 85 g | | | | Box Dimensions (LxWxH) | 10.8 x 7.4 x 4.9" | - Porta Brace MXC-302B Audio Combination Case (Black)
| Material | Exterior/Interior: 1000 Denier Cordura | | Type of Closure | Touch fastener | | Exterior Dimensions | 9.0 x 4.5 x 8.0" (22.9 x 11.4 x 20.3 cm) | | Interior Dimensions | 8.0 x 2.0 x 8.0" (20.3 x 5.1 x 20.3 cm) | | Carrying/Transport Options | Suede shoulder strap | | Weight | 1.7 lb (0.8 kg) | | | | Box Dimensions (LxWxH) | 9.7 x 9.0 x 4.6" | - Senal SMH-1000 Professional Field and Studio Monitor Headphones
| | | Driver Size | 1.6" / 40 mm | | Magnet Type | Neodymium | | Design | Over-Ear (Circumaural) | | Earcup Style | Closed-Back | | | | Frequency Response | 10 Hz to 20 kHz | | Sensitivity | 102 dB at 1 kHz / 1 mW | | Impedance | 58 Ohms | | Maximum Power Handling | 1000 mW | | Total Harmonic Distortion (THD) | 1% | | | | Audio Connector | 1/8" (3.5 mm) | | Adapter (Included) | 1/4" (6.3 mm) | | | | Box Dimensions (LxWxH) | 9.1 x 8.8 x 3.8" |
