User Manual for Sound Devices 552 Portable 5-Channel Production Mixer and Stereo Recorder Click to enlarge the picture
Contents of the user manual for the Sound Devices 552 Portable 5-Channel Production
- Product category: Field Mixers Sound Devices
- Brand: Sound Devices
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sound Devices Field Mixers
 |
User manual for the Sound Devices 552 Portable 5-Channel Production contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sound Devices product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sound Devices user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sound Devices product will considerably shorten its lifespan!
|

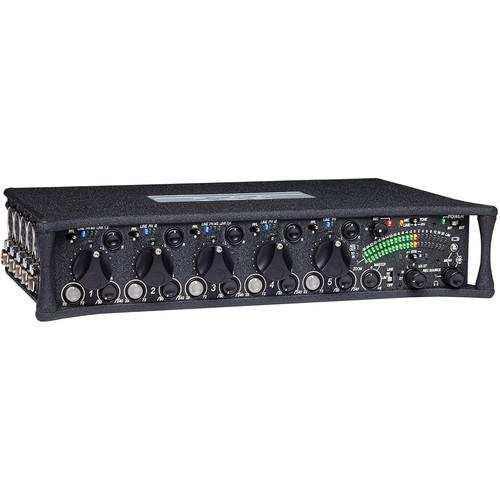

Product description The Sound Devices 552 Production Mixer combines professional-quality analog and digital technologies in a robust metal housing to provide a compact and lightweight mixing and recording solution for a variety of applications. The unit features 5 transformer-balanced XLR mic inputs, each with its own limiter and sweepable high-pass filter. Each of the inputs also has its own pre-or-post-fader direct output. It also features 3 sets of master outputs and several unbalanced outputs, allowing you to connect to a variety of recorders, cameras, and more. The master XLR outputs can be set for analog or digital operation, and are capable of sending 4 channels of 24-bit AES/EBU signals.

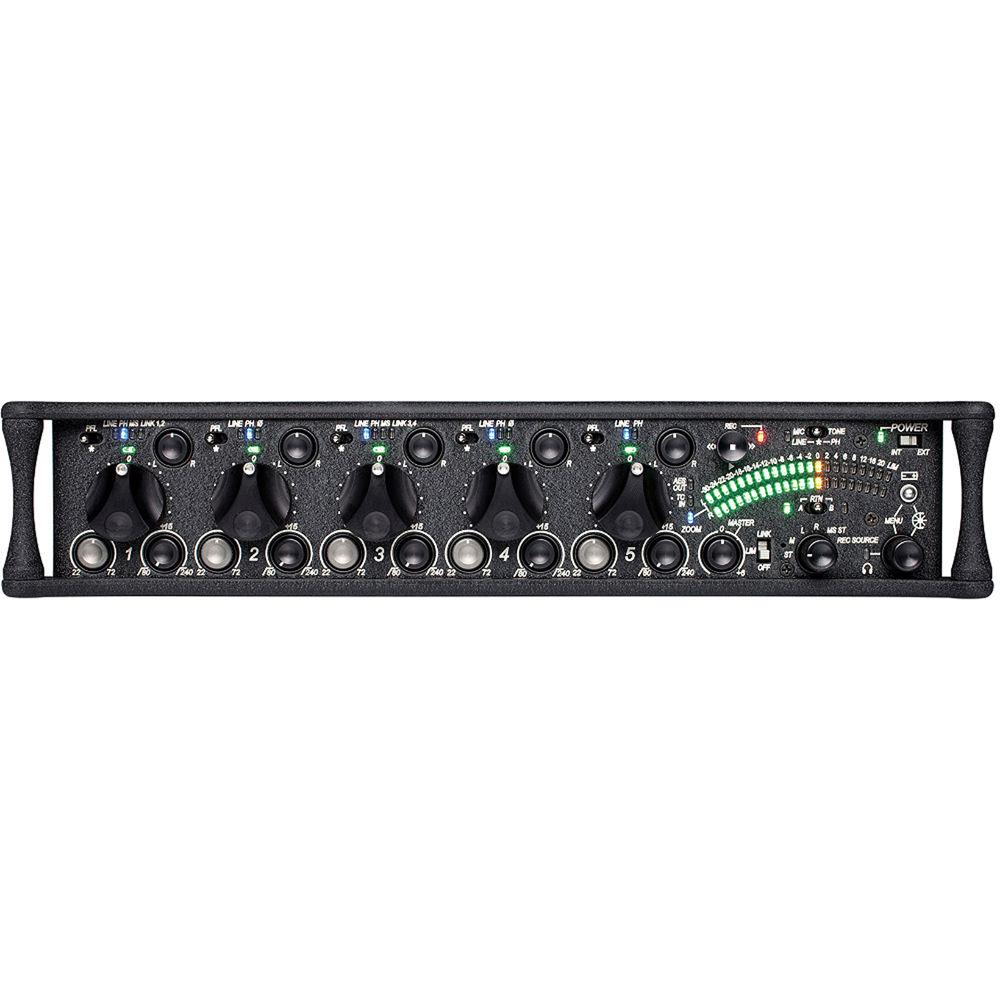

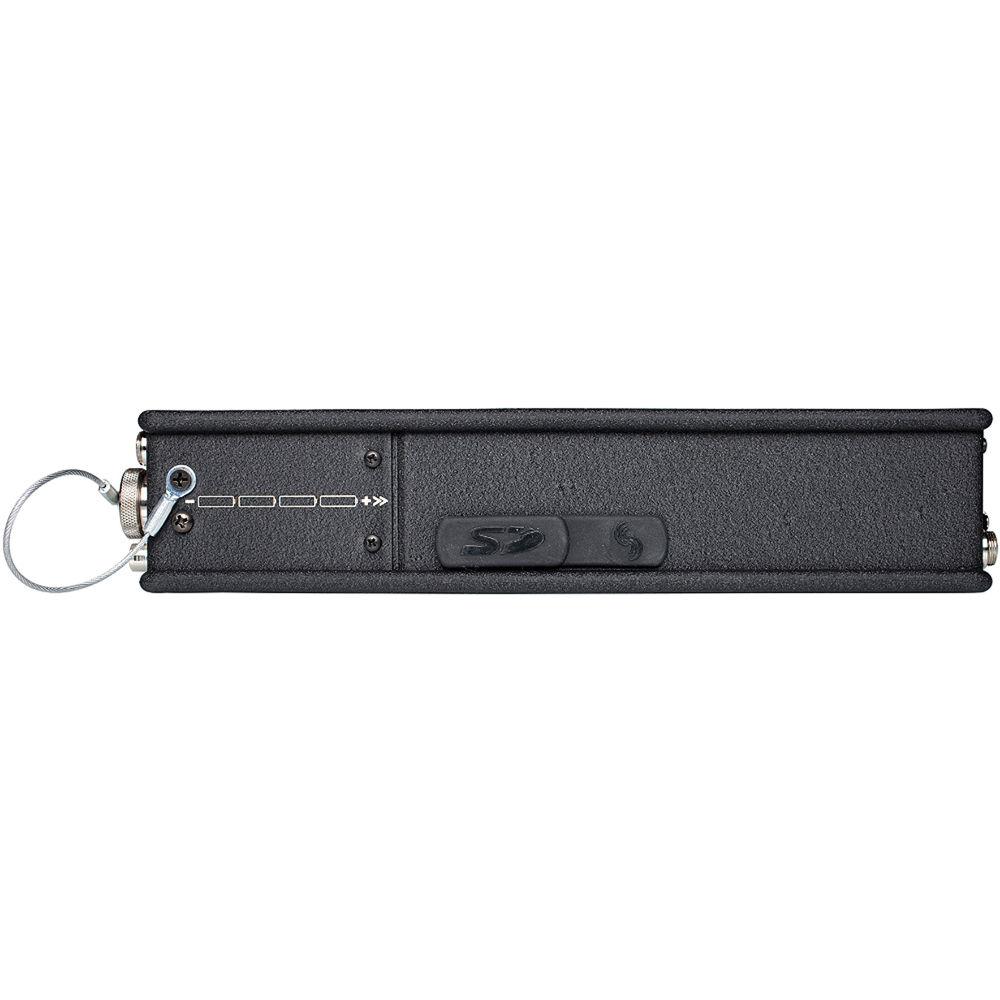

The 552 also features an internal stereo recorder, which can capture WAV or MP3 files at either 16-bit or 24-bit; with sample rates from 44.1kHz all the way up to 96kHz. The unit accepts SD and SDHC flash memory cards, which are widely-available and feature no moving parts for exceptional reliability. A simple joystick control on the 552's front panel lets you take command of recording functions.
All of this technology is packed into a compact unit that weighs less than 5 pounds. The top and bottom chassis panels are constructed from molded, metalized carbon fiber for exceptional durability. The front panel is gasketed for excellent moisture resistance. The unit can operate on a set of 4 AA batteries, or an external 10-18VDC power supply. Note: Please note that not all memory cards are approved to work with this device. Please check manufacturer's website for a list of approved cards. - Lightweight and Portable
- The unit has a lightweight design that uses metalized, molded carbon fiber top and bottom panels for strength and durability. It also has a gasketed front panel for resistance to moisture
- 5 Input Channels

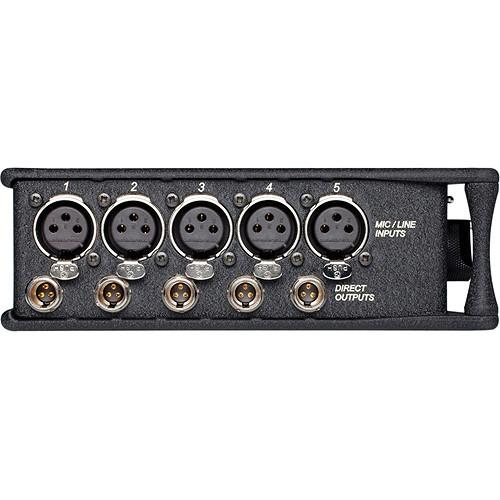

- The mixer features 5 XLR inputs, each with 2-stage gain control, a limiter, a sweepable high-pass filter, and solo monitoring. Each input also has its own dedicated pre-or-post-fader TA3 direct output
- Analog and Digital Outputs
- The mixer has 3 sets of balanced master outputs, as well as several unbalanced connectors for versatile connectivity to complex and multi-camera setups. The XLR outputs can be set for analog or digital operation, and are capable of outputting 4 channels of 24-bit AES/EBU digital audio
- Built-in Stereo Recorder
- The internal recorder can write WAV or MP3 files to SD or SDHC cards at rates as high as 24-bit/96kHz. Recording controls are accessed by an easy-to-use joystick on the front panel
- Flexible Metering
- The bright LED meters offer accurate level metering, including a zoom mode for high-precision monitoring near 0dB
- Time Code Capability
- The mixer can accept time code input in order to time-stamp your files
- Setup Menu and Voice Confirmation
- When accessing and navigating the Setup Menu, voice confirmations are played back in your headphones to supply you with critical operational information
- Powering Options
- The mixer can be powered with a set of 4 AA batteries, or by an external 10-18VDC power supply for terrific flexibility
UPC: 859108005260 In the Box Sound Devices 552 Portable 5-Channel Production Mixer and Stereo Recorder Limited 2-Year Warranty User Manual PDF 1.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sound Devices 552 Portable 5-Channel Production Mixer and Stereo Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSound Devices 552 Specs | Inputs | 5 x Balanced XLR Inputs

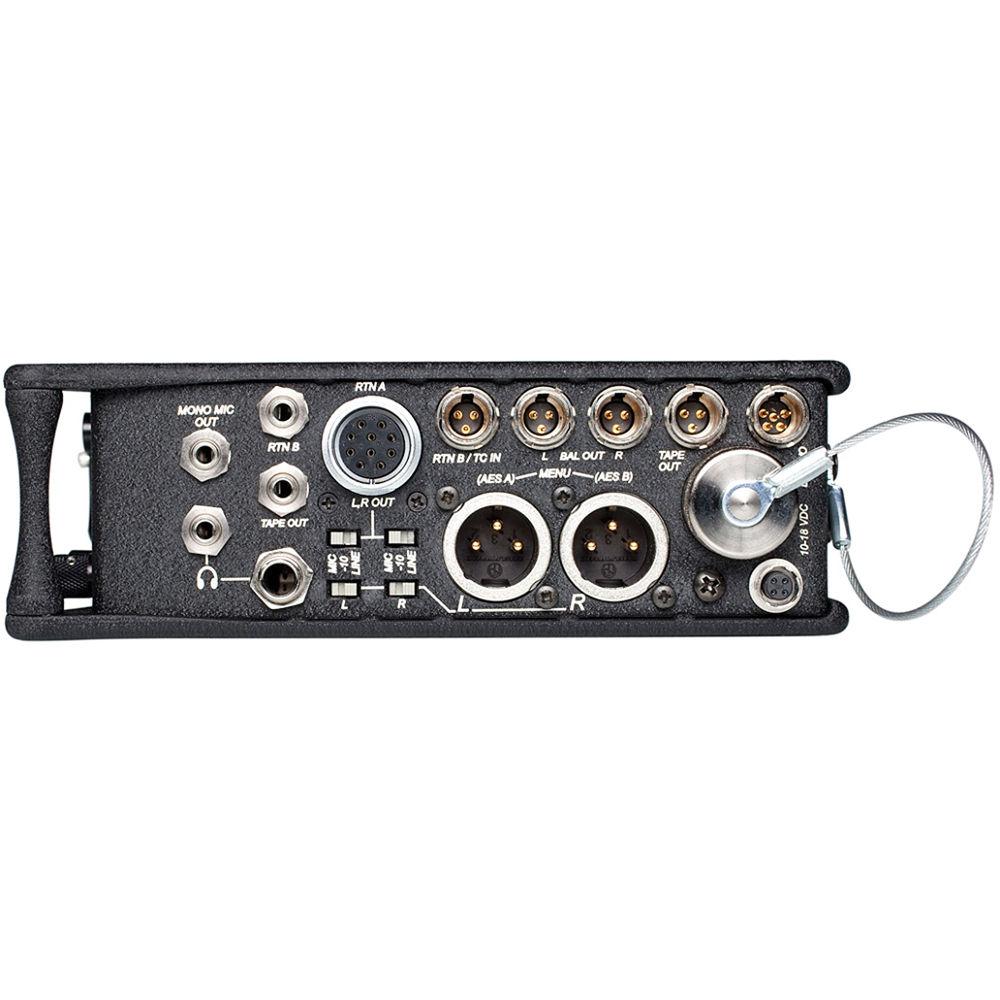

1 x DC Power Input | | Recording Media | Accepts SD / SDHC / SDXC cards, high-speed class 10 cards are recommended - please see manufacturer's site for list of approved cards | | Outputs | 5 x TA3 Direct Outputs
2 x Analog/Digital XLR Outputs
1 x 10-Pin Hirose Mic/Line "Return A" Output
1 x 3.5mm "Return B" Output
1 x 3.5mm Tape Output
1 x 3.5mm Mono Mic Output
1 x TA3 "Return B"/Time Code In Connector
1 x TA3 Balanced Stereo Output (2 Jacks, L/R)
1 x TA3 Tape Output
1 x TA5 Output
1 x 3.5mm Headphone Output
1 x 1/4" Headphone Output | | Impedance | Input:
XLR Mic: 2 kOhms
XLR Line: 16 kOhms
Return A/B: 20 kOhms
Output
XLR Line: 85 Ohms
XLR -10 Setting: 3.2 kOhms
XLR Mic: 150 Ohms
10-Pin Hirose Line: 85 Ohms
10-Pin Hirose -10 Setting: 3.2 kOhms
10-Pin Hirose Mic: 150 Ohms
TA3 Mic/Line: 1 kOhms
TA3 Direct Outs: 1 kOhms
Tape Outs: 1.8 kOhms
Mono Mic Out: 150 Ohms
Headphones: 50 Ohms | | Gain | 93dB (Mic In to Line Out)
53dB (Mic In to Mic Out)
79dB (Mic In to Tape Out)
107dB (Mic In to Headphone Out) | | THD & Noise | 0.09% Max (50Hz - 20kHz, +18dBu at Line Out, Fader Fully Up) | | Frequency Response | 20Hz - 30kHz (+0.2, -0.5dB) | | Metering | LED Meters | | Control Voltage Out | Not Specified by Manufacturer | | Phantom Power | 12V and 48V Phantom (Each Mic Selectable) | | Operating Temperature | -20°C to 60°C, 0 to 90% Relative Humidity | | Power | Internal ±16V (Bi-Polar) Regulated Audio Rails
3.2-8V Range Internal Batteries
Isolated (Floating) External DC Input Jack, 5-18V | | Dimensions (HxWxD) | 2.1 x 11 x 6.6" (53 x 279 x 168mm) | | Weight | 4.4 lbs (2kg) (Without Batteries) | | | | Package Weight | 6.45 lb | | Box Dimensions (LxWxH) | 16.1 x 11.0 x 5.1" |
