User Manual for Sound Devices 664 Six-Channel Portable Production Mixer with Integrated Recorder Click to enlarge the picture
Contents of the user manual for the Sound Devices 664 Six-Channel Portable Production
- Product category: Field Mixers Sound Devices
- Brand: Sound Devices
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sound Devices Field Mixers
 |
User manual for the Sound Devices 664 Six-Channel Portable Production contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sound Devices product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sound Devices user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sound Devices product will considerably shorten its lifespan!
|

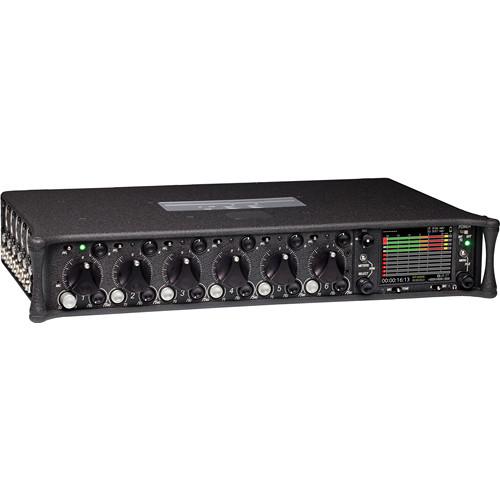

Product description The 664 Six-Channel Portable Production Mixer with Integrated Recorder from Sound Devices has an unprecedented amount of functionality from a unit that can be battery operated. It starts with a low-noise, transformerless preamplifier section, continues to an intuitive mixing surface, adds a host of digitally-controlled routing features, allows room for analog inserts and aux busses, and finally terminates with versatile, plentiful output connectivity. By the way, the 664 can be configured to record digital audio to CompactFlash or an SD Card from any point in that signal flow.

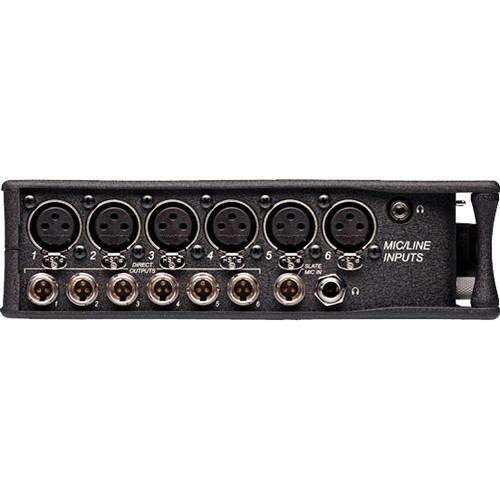

The Sound Devices 664 has an input board that features six balanced XLR connections. Within the firmware, they can be selected to accept microphone or line level signals. Additionally, inputs 1 and 6 can configured to accept AES digital signals. Each channel has a direct output on an independent TA3 connector. There is also an input for a slate microphone, if you don't wish to use the 664's internal slate mic. Two headphone outputs are also provided.

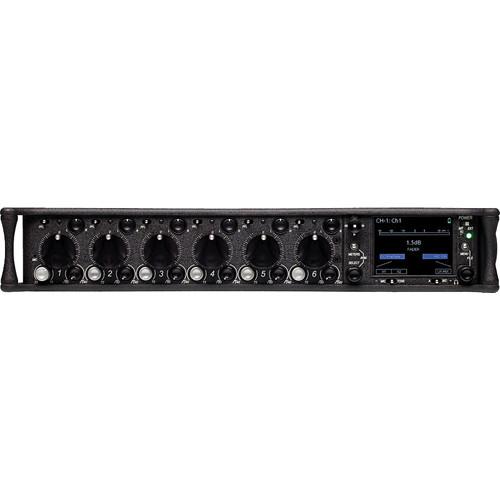

The physical mixing surface of the 664 has the basic features you'd expect, such as trim pots, panning and level knobs. But it also has more advanced features, like sweepable high-pass filters and pre-fader listen switches on each channel.
The 664 has very flexible routing options within its LCD-based menu. When a channel's pre-fader listen switch is pushed to the right, it brings up that channel's menu options. Input level, pre/post track routing, aux buss routing, mix routing and polarity can all be adjusted. Channels can be paired in left/ride or mid/side modes. Phantom power can also be engaged at either 48V or 12V.

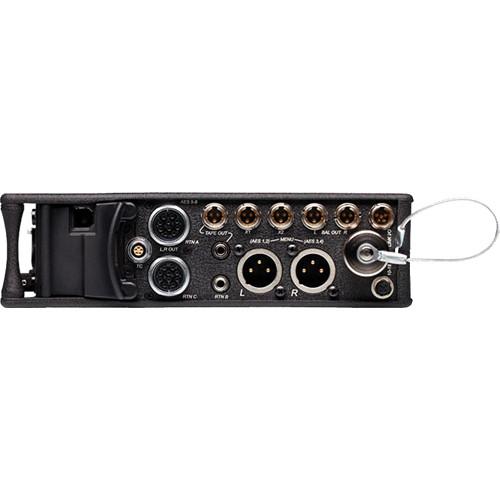

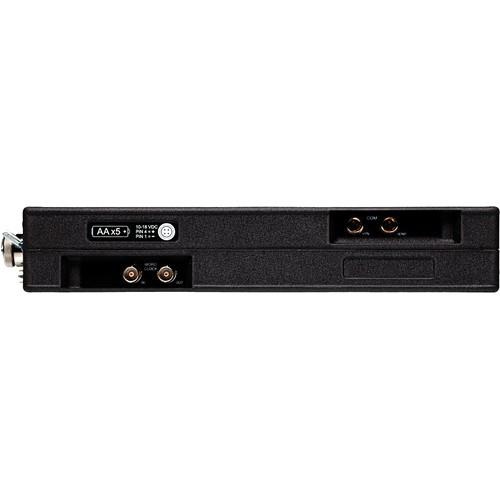

The Sound Devices 664 has many output options, from its balanced XLR main outputs to the unbalanced 1/8" stereo tape output. It can even send and receive word clock and timecode signals. Two Aux outputs on TA3 connectors allow custom track groups to be routed to external devices. The outputs can even be set to send AES digital signals of each buss and channel.
The 664 has an integrated recording system that tracks WAV files at up to 24-bit/48.048kHz resolution to CompactFlash or SD cards. The whole device can be powered by five AA batteries or an optional DC adapter. Note: Please note that not all memory cards are approved to work with this device. Please check manufacturer's website for a list of approved cards. - Sound Devices 664 - Additional Features
-
- Dedicated COM send/return
- Three camera audio returns
- Dual headphone jacks
- USB type B port for keyboard connection
- X1 and X2 aux busses
- Transflective LCD screen
- Metalized, gasketed carbon fiber chassis
UPC: 859108005284 In the Box Sound Devices 664 Six-Channel Portable Production Mixer with Integrated Recorder Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sound Devices 664 Six-Channel Portable Production Mixer with Integrated Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSound Devices 664 Specs | | | Inputs | 6 x XLR balanced - Mic/Line
1 x TA3 - Slate Mic In | | AES Digital Audio Inputs | XLR inputs 1 and 6 can accept AES3 or AES42 signals (10V power), SRC | | Return | 1 x 1/8" TRS stereo input - Return B | | Outputs | 2 x XLR balanced - Master Outs L/R (Can also send AES3 digital signals)
2 x TA3 balanced - X1 and X2 (Line, -10, or Mic)
2 x TA3 balanced - Balanced Outs (Line, -10, or Mic level)
6 x TA3 balanced - Direct Outs | | Other Connectors | 2 x 10-pin connector
Each has a pair of transformer-isolated outputs and a stereo unbalanced Return input. Output levels are selectable between Line, -10, and Mic | | Headphone Outputs | 1 x 1/4" TRS stereo
1 x 1/8" TRS stereo mini | | COM Ports | 1 x TA3 - COM Send
1 x TA3 - COM Return | | Word Clock I/O | 1 x 5-pin LEMO connector - Timecode I/O
1 x BNC - Word Clock In
1 x BNC - Word Clock Out | | Link Input/Output | 1 x 5-pin connector (links to Sound Devices 664, 552, 302, 442, or MixPre mixers) | | Stereo Tape Outputs/Type | 1 x TA3 stereo unbalanced tape level output
1 x 1/8" TRS stereo unbalanced tape level output | | Compact Flash Slot | Compatible with Type I and Type II cards; high-speed UDMA cards are recommended for higher track count recording | | SD Card Slot | Accepts SD / SDHC / SDXC cards, high-speed class 10 cards are recommended
Please see manufacturer's site for a list of approved cards | | USB Port | 1 x USB type B (for factory use and keyboard connection with adapter) | | | | Input Impedances | XLR Mic: 4kΩ : for use with ≤ 600Ω mics
XLR Line: 10kΩ : for use with ≤ 2kΩ outputs
Returns: 30kΩ : for use with ≤ 2kΩ outputs | | Maximum Input Level | XLR Mic: 0 dBu (0.78 Vrms)
XLR Line: +40 dBu (80 Vrms)
Returns: +24 dBu (12.4 Vrms) | | High-Pass Filter | Sweepable 80 Hz to 240 Hz, -12 dB/oct @ 80 Hz, -6 dB/octave @ 240 Hz | | Limiter | Individual input limiters on both trim and fader stages
+16 dBu threshold, 20:1 limiting ratio, 1 mS attack time, 500 mS release time | | Output Impedances | Line: 100Ω : for use with ≥ 600Ω inputs
-10: 3.2kΩ : for use with ≥ 10kΩ inputs
Mic: 150Ω : for use with ≥ 600Ω inputs | | Clipping Level | Line Outputs: (1% THD) 20 dBu minimum with 10k load | | Maximum Output Level | Line: +20 dBu (7.8 Vrms)
-10: +6 dBu (1.5 Vrms)
Mic: -20 dBu (0.078 Vrms)
Tape Outs: +6 dBu (1.5 Vrms) | | Limiter | Analog output limiter: threshold selectable from +4 dBu to +20 dBu, 1 dB steps, 20:1 limiting ratio, 1 mS attack time, 500 mS release time | | Maximum Gain | Mic-In-to-Line-Out: 93 dB
Mic-In-to-Aux-Out @ -10dBV: 79 dB
Line-In-to-Line-Out: 39 dB | | Frequency Response | 20 Hz to 50 kHz ±0.5 dB | | THD + Noise | 0.09% max (1 kHz, 22 Hz to 22 kHz BW, fader at 0, 0 dBu output) | | Equivalent Input Noise | -126 dBu (-128 dBV) max (22 Hz to 22 kHz bandwidth, flat filter, trim control fully up) | | | | Recording Tracks | 10 tracks (6 inputs, 4 output buses) | | A/D Conversion | 24-bit | | Sampling Rates | 44.1, 47.952, 48, 48.048 kHz | | Dynamic Range (Typical) | 114 dB, A-weighted | | Digital Outputs | AES3 transformer-balanced, in pairs; 1-2 XLR-L, 3-4 XLR-R, 5-6, multi-pin 1, 7-8, multi-pin 2, 110Ω, 2 V p-p, AES and S/PDIF compatible | | File System Format | FAT32 formatted, will format memory cards on-board, WAV (Broadcast Wave File format) polyphonic | | Accuracy | ± 0.2 ppm (0.5 frames per 24 hours) | | Timecode | Modes Supported: off, Rec Run, Free Run, 24h Run, External
Frame Rates: 23.976, 24, 25, 29.97DF, 29.97ND, 30DF, 30ND
Accuracy: Ambient Generator, 0.5 frames in 24 hr
Time Code Input: 20kΩ impedance, 0.3 V to 3.0 V p-p (-17 dBu to +3 dBu)
Time Code Output: 1kΩ impedance, 3.0V p-p (+12 dBu)
Word In/Out: square wave; 10k/75Ω, 1-5V p-p input; 75Ω, 3.3V p-p output, at SR | | | | Power Supply | Isolated 10-18 V on locking 4-pin Hirose connector (sold separately) | | Battery Operable | Accepts 5 x AA (LR6) batteries, 1.2 to 1.5V nominal (NiMH rechargeable compatible) | | Operating Temperature Range | -4 to 140°F (-20 to 60°C), up to 90% relative humidity | | Storage Temperature Range | -40 to 185°F (-40 to 85°C) | | Dimensions (H x W x D) | 2.1 x 12.6 x 7.8" (5.3 x 32 x 19.8 cm) | | Weight | 4.75 lb (2.15 kg) | | | | Package Weight | 6.67 lb | | Box Dimensions (LxWxH) | 16.2 x 11.0 x 5.3" |
