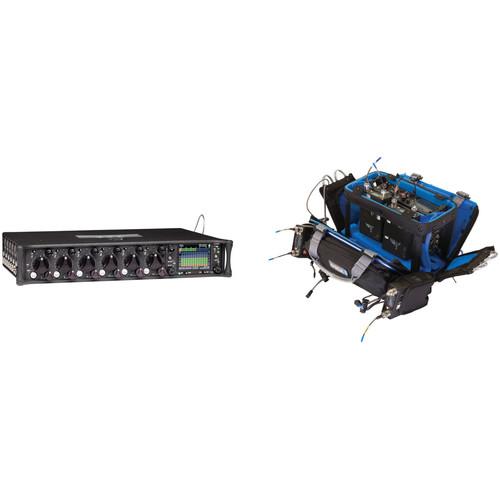

User Manual for Sound Devices 688 12-Input Field-Production Mixer Kit with Orca OR-34 Audio Mixer Bag Click to enlarge the picture
Contents of the user manual for the Sound Devices 688 12-Input Field-Production Mixer
- Product category: Portable Digital Recorders Sound Devices
- Brand: Sound Devices
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sound Devices Portable Digital Recorders
|
User manual for the Sound Devices 688 12-Input Field-Production Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sound Devices product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sound Devices user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sound Devices product will considerably shorten its lifespan!
|
Product description Bundled together by for your convenience, the Sound Devices 688 Kit gives both a 12-input mixer for recording in the field and a sturdy, rugged carry case for holding your recorder, wireless devices, and ancillary items.
The 688 records at sample rates up 192 kHz and sports an ambient timecode generator, all while offering you six XLR mic/line inputs, six line-level TA3 inputs, six auxiliary TA3 outputs, and AES42/AES3 digital inputs. The Orca OR-34 carry bag boasts an aluminum frame to ensure durability and provides six access points to the recorder. Also included are two pockets for storing accessories, front bungee cords to hold boom poles and cables, four external detachable pouches, and nine rubber bands to support aspects of your wireless system. Brushed blue polyester affords you easy glimpses into all aspects of your mixer, and a shoulder strap is supplied to facilitate ease in carrying. - Sound Devices 688 12-Input Field Production Mixer and 16-Track Recorder Providing you with 12 analog inputs and the ability to record up to 16 inputs to SD and CompactFlash cards, the 688 12-Input Field Production Mixer and 16-Track Recorder from Sound Devices boasts a streamlined design with flexible routing and the company's MixAssist auto-mix system. Input comes in the form of 6 high-bandwidth mic/line inputs on XLR connectors and 6 line inputs on TA3 connectors, in addition to 2 AES42/AES3 digital inputs.
The 688 can record up to 16 tracks of your audio as mono- or polyphonic broadcast WAV files, supporting sample rates up to 192 kHz on up to 6 tracks. With its dual memory card recording, you can set up redundant recording or combinations of WAV and MP3 files. The recorder is compatible with both the SL-6 power distribution and 6-channel wireless system, and the CL-6 input controller. - I/O
- The 688 has six high-bandwidth mic/line inputs on XLR connectors, each complete with phantom power, high-pass filter, analog input limiter and variable pan. Six additional line-level inputs on TA3 connectors offer flexibility for more complex productions.
- Routing Flexibility
- All inputs are assignable, pre- or post-fade to its eight output buses, left/right plus Aux 1-6. The 688 can send its main left/right mix to three cameras simultaneously via transformer-balanced XLR and Hirose outputs
- Mix Assist
- The 688's digital processing engine delivers 12-channel auto-mixing capability using a proprietary algorithm. MixAssist automatically attenuates the level of inputs that are not active and helps maintain consistent background sound levels regardless of the number of open microphones. Comb filtering and phasing artifacts are also reduced when multiple mics pick up the same sound source by intelligently attenuating redundant mics
- Recording
- The 688 offers 16-track, polyphonic or monophonic broadcast WAV file recording to SD and CompactFlash cards. All common sampling rates are supported, including 192 kHz on up to six tracks. The memory cards can be set independently, recording either identical material for real-time backup, or combinations of WAV and MP3 files
- PowerSafe
- The 688 incorporates exclusive PowerSafe circuitry with smart sensing of available power sources, front panel warning indication of power loss, and an integrated 10-second power reserve that will, in the event of an inadvertent power loss, allow the 688 to safely stop recording, properly end all file operations, and then automatically shut down
- QuickBoot
- Power on and start recording in less than two seconds. You never have to wait on sound
- Timecode and Metadata
- The 688 features an Ambient timecode generator and reader supporting all common rates and modes. A time code compare utility shows the difference between internal and external timecode. The 688 also generates sound reports and supports extensive metadata, via the front panel or attached USB keyboard
-
- 16-track recording to SD & CompactFlash cards; Timecode-stamped WAV & MP3 files
- Eight output buses: L/R mix plus Aux 1-6; transformer-balanced XLR & Hirose outs for freedom from ground loops Two AES42/AES3 inputs, eight AES3 outputs
- Direct menu control of SuperSlot-compatible wireless (with optional SL-6)
- Supports all sample rates up to 192 kHz
- Adjustable input & output delay
- Three camera returns & dedicated COM return
- Internal & external slate mic inputs
- Ambient TC generator and reader and internal TC backup battery
- Easy to navigate interface, 1000-nit LCD visible in all light conditions, configurable metering
- USB Keyboard for metadata entry
- User-configurable headphone presets
- Lightweight, durable carbon-fiber chassis
- Powered by AA-battery, external DC or NP1 via optional SL-6
UPC: 859108005178 - ORCA OR-34 Audio / Mixer Bag The OR-34 Audio / Mixer Bag from ORCA is designed to carry, protect, and enable access to your audio mixer. The bag's aluminum frame allows for access to the gear from six directions, and its bright blue polyester lining provides easy viewing of the equipment. The top clear TPU allows you to see your gear without opening the bag. The bag features two pockets for accessory storage, front bungee cords to hold a boom pole or cables, 2 external detachable pouches, and 9 rubber bands to support your wireless system. The rubber battery fittings secure your battery in place while the interior sliding system secures your gear. The bag also features detachable carrying handles and a shoulder strap and can be connected to the ORCA Harness for easier carrying.
- Sliding system to secure mixture inside the bag
- Top clear TPU for viewing
- Battery pocket with extra battery fittings
- Detachable carrying handles and shoulder strap
- 2 pockets for storing audio accessories
- 2 external detachable pouches and 9 rubber bands to hold a wireless system
- Front bungee cords can hold a boom pole or cables
- Aluminum frame allows access to the gear from six directions
- Inside lining made from bright blue brushed polyester for easier equipment viewing
In the Box - 688 12-Input Field Production Mixer and 16-Track Recorder vrwuetxqdbcryqfbwdxabdawxyustefx
- Limited 2-Year Warranty
- ORCA - OR-34 Audio / Mixer Bag
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sound Devices 688 12-Input Field-Production Mixer Kit with Orca OR-34 Audio Mixer Bag in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sound Devices 688 12-Input Field Production Mixer and 16-Track Recorder
| Inputs | 6x XLR mic/line inputs
6x TA3 line inputs
2x AES42/AES3 inputs | | Outputs | 2x XLR mix outputs (L, R)
2x Hirose outputs
6x TA3 auxiliary outputs
2x AES3 digital outputs | | Sample Rate | Supports all sample rates up to 192 kHz | | Power | 5x AA batteries
External DC or NP1 via SL-6 | | | | Box Dimensions (LxWxH) | 16.0 x 11.2 x 5.2" | - ORCA OR-34 Audio / Mixer Bag
| Internal Dimensions | L x W x H: 13.0 x 7.5 x 9.1" (33.0 x 19.0 x 23.0 cm) | | External Dimensions | L x W x H:15.4 x 13.0 x 9.5" (39.0 x 33.0 x 24.0 cm) | | Weight | 6.11 lb (2.78 kg) | | | | Box Dimensions (LxWxH) | 16.0 x 13.0 x 11.0" |
