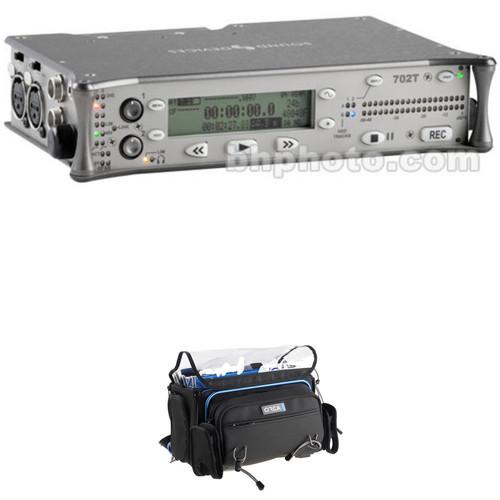

User Manual for Sound Devices 702T High-Resolution CompactFlash Field Recorder with OR-41 Bag Kit Click to enlarge the picture
Contents of the user manual for the Sound Devices 702T High-Resolution CompactFlash Field
- Product category: Portable Digital Recorders Sound Devices
- Brand: Sound Devices
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sound Devices Portable Digital Recorders
|
User manual for the Sound Devices 702T High-Resolution CompactFlash Field contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sound Devices product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sound Devices user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sound Devices product will considerably shorten its lifespan!
|
Product description This B&H Kit includes the Sound Devices 702T High-Resolution CompactFlash Field Recorder and an ORCA OR-41 audio/mixer bag. With two-track recording at up to 24-bit / 192 kHz resolution, stereo analog and digital I/O, timecode support, and generous device/accessories storage, this kit is ideal for field recording and ENG, as well as TV/film/video production. The detachable handles and strap make this well suited for wearing over the shoulder. - Sound Devices 702T High-Resolution CompactFlash Field Recorder with Time Code The 702T from Sound Devices is a lightweight professional 2-channel CompactFlash field recorder with time code. It can be used to record and play audio to removable CompactFlash cards and/or external FireWire drives in field recordings and ENG (Electronic News Gathering) applications for sound designers, reporters, producers, and more. Featuring a high-resolution 24-bit/192 kHz recorder, the 702T also supports MP3 file playback, and is equipped with a FireWire port, full AES3 digital recording and playback with dedicated digital metering, dedicated function LED indicators, and comprehensive transport and level controls. The 702T High-Resolution CompactFlash Field Recorder with Time Code includes a carrying case, power supply, 3.5mm-to-1/4" adapter for headphones, 1500mAh lithium-ion rechargeable battery, FireWire power conditioner, and a unit-to-unit linking cable. Note: Please note that not all memory cards are approved to work with this device. Please check manufacturer's website for a list of approved cards.
- Two channels of high-grade microphone preamps with phantom power, limiters, and high-pass filters; built-in Time Code reader/generator with full frame-rate support
- Headphone output-level knob, Rotary Switch for Menu selection and headphone-source monitoring, easy-access mic/line-input switching
- Full front-panel transport and input-gain controls, separate digital-input LED metering
- M/S Stereo monitoring and recording
- 24 bit, 192 kHz sample rate maximum A/D, D/A conversion
- Records to removable, readily-available CompactFlash cards for cost-effective audio file storage
- AES3 (XLR) or AES3id (unbalanced AES on BNC) digital inputs and AES3id outputs
- Programmable, sunlight-viewable LED level metering
- WAV format, mono or poly files, uncompressed PCM audio; 24-bit or 16-bit (with or without dither) and sampling at 32 kHz - 192 kHz adjustable rates
- MP3, MP2 decoder, 64 to 320 Kbps stereo file
- FireWire (IEEE-1394) port for high-speed computer access to the CompactFlash card, 6-pin modular C. Link serial input and output for unit linking and control with the CL-1
- Mac OSX v10.2 or better, Windows XP/2000 operating systems supported
- Removable Li-on rechargeable battery compatible with Sony M- and L-mount Li-on batteries, 10 - 18 VDC external input powers and charges on-board battery
UPC: 859108005307 - ORCA OR-41 Audio Bag for Zaxcom Nomad/RX-12/Sound Devices 788T & CL-8 The OR-41 Audio Bag from ORCA is designed to protect and carry your Zaxcom Nomad/RX-12/Sound Devices 788T and CL-8 units. It features a durable external aluminum frame, an internal honeycomb frame, layers of foam, and EVA.This audio bag can be used in conjunction with the Orca Audio Harness and Orca Audio Waist Belt (sold separately), and a carrying strap is included.
- Heavy duty loops to connect to the Orca audio harness or waist belt (sold separately)
- Zipper pocket for easy access to mixer
- Bungee cords to hold boom poles or cables
- Detachable carrying handles
- Aluminum and honeycomb frame
- Large pocket for accessories
In the Box - 702T High-Resolution 2-Channel CompactFlash Field Recorder with Time Code wbyqfbwwutdruxvzwwuzd
- Worldwide 100-240 VAC Power Supply
- 1500mAh Li-Ion Rechargeable Battery
- 3.5mm to 1/4" Adapter for Headphone Output Extension
- C. Link Unit-to-Unit Linking Cable
- XL-1394 FireWire Power Conditioner
- Padded Carrying Case
- Limited 2-Year Warranty
- ORCA - OR-41 Audio Bag for Zaxcom Nomad/RX-12/Sound Devices 788T & CL-8
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sound Devices 702T High-Resolution CompactFlash Field Recorder with OR-41 Bag Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sound Devices 702T High-Resolution CompactFlash Field Recorder with Time Code
| | | Number of Tracks | 2 | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | Built-In Speaker | No | | Display | LED | | Memory Card Support | CompactFlash, Microdrive Please see manufacturer's site for a list of approved cards. | | | | Sample Rates | 32 / 44.1 / 48 / 48.048 / 88.2 / 96 / 96.096 / 176.4 / 192 kHz | | Bit Depth | 16/24-Bit | | Timecode | Yes | | | | Analog I/O | 1 x XLR 3-Pin Balanced Line/Mic Input
1 x XLR 3-Pin Balanced Line/Mic Input
2 x TA3 Active-Balanced Line Output
1 x 1/8" / 3.5 mm TRS Unbalanced Output
1 x 1/8" / 3.5 mm TRS Headphone Output Mic 1 also Carries AES3 Channels 1 & 2 | | Digital I/O | 1 x LEMO 5-Pin Timecode In/Out
1 x BNC AES3id / S/PDIF Input
1 x BNC Word Clock Input
1 x RJ12 RS-232 C. Link Input
1 x RJ12 RS-232 C. Link Output
1 x BNC AES3id Output | | Host Connection | 1 x FireWire 6-Pin (FireWire 400) | | | | Frequency Response | 10 Hz to 40 kHz +0.1/-0.5 dB (at 96 kHz) | | Dynamic Range | A/D Converters:
114 dBA
110 dB
D/A Converters:
112 dBA
108 dB | | THD | Mic Inputs:
0.004%
Line Inputs:
0.004% | | | | Battery Type | Removable Rechargeable | | AC/DC Power Adapter | 10 to 18 VDC (Included) | | | | Dimensions | 8.2 x 4.9 x 1.8" / 209.0 x 125.0 x 45.0 mm | | Weight | 2.1 lb / 1.0 kg | | | | Box Dimensions (LxWxH) | 16.0 x 10.9 x 5.2" | - ORCA OR-41 Audio Bag for Zaxcom Nomad/RX-12/Sound Devices 788T & CL-8
| Compatibility | Zaxcom Nomad, RX-12, and Sound Devices 788T and CL-8 | | Dimensions | 15.0 x 12.0 x 9.5" (38.1 x 30.5 x 24.1 cm) | | | | Box Dimensions (LxWxH) | 15.9 x 13.8 x 10.1" |
