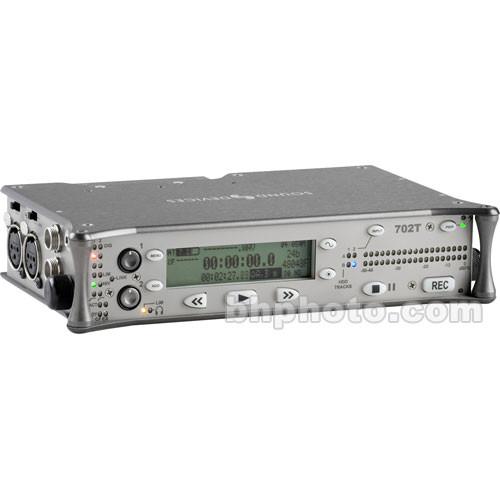

Product description The 702T from Sound Devices is a lightweight professional 2-channel CompactFlash field recorder with time code. It can be used to record and play audio to removable CompactFlash cards and/or external FireWire drives in field recordings and ENG (Electronic News Gathering) applications for sound designers, reporters, producers, and more. Featuring a high-resolution 24-bit/192 kHz recorder, the 702T also supports MP3 file playback, and is equipped with a FireWire port, full AES3 digital recording and playback with dedicated digital metering, dedicated function LED indicators, and comprehensive transport and level controls. The 702T High-Resolution CompactFlash Field Recorder with Time Code includes a carrying case, power supply, 3.5mm-to-1/4" adapter for headphones, 1500mAh lithium-ion rechargeable battery, FireWire power conditioner, and a unit-to-unit linking cable. Note: Please note that not all memory cards are approved to work with this device. Please check manufacturer's website for a list of approved cards. - Two channels of high-grade microphone preamps with phantom power, limiters, and high-pass filters; built-in Time Code reader/generator with full frame-rate support
- Headphone output-level knob, Rotary Switch for Menu selection and headphone-source monitoring, easy-access mic/line-input switching
- Full front-panel transport and input-gain controls, separate digital-input LED metering
- M/S Stereo monitoring and recording
- 24 bit, 192 kHz sample rate maximum A/D, D/A conversion
- Records to removable, readily-available CompactFlash cards for cost-effective audio file storage
- AES3 (XLR) or AES3id (unbalanced AES on BNC) digital inputs and AES3id outputs
- Programmable, sunlight-viewable LED level metering
- WAV format, mono or poly files, uncompressed PCM audio; 24-bit or 16-bit (with or without dither) and sampling at 32 kHz - 192 kHz adjustable rates
- MP3, MP2 decoder, 64 to 320 Kbps stereo file
- FireWire (IEEE-1394) port for high-speed computer access to the CompactFlash card, 6-pin modular C. Link serial input and output for unit linking and control with the CL-1
- Mac OSX v10.2 or better, Windows XP/2000 operating systems supported
- Removable Li-on rechargeable battery compatible with Sony M- and L-mount Li-on batteries, 10 - 18 VDC external input powers and charges on-board battery
UPC: 859108005307 In the Box Sound Devices 702T High-Resolution 2-Channel CompactFlash Field Recorder with Time Code Worldwide 100-240 VAC Power Supply 1500mAh Li-Ion Rechargeable Battery 3.5mm to 1/4" Adapter for Headphone Output Extension C. Link Unit-to-Unit Linking Cable XL-1394 FireWire Power Conditioner Padded Carrying Case Limited 2-Year Warranty User Manual PDF 7.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sound Devices 702T High-Resolution CompactFlash Field Recorder with Time Code in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSound Devices 702T Specs | | | Number of Tracks | 2 | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | Built-In Speaker | No | | Display | LED | | Memory Card Support | CompactFlash, Microdrive Please see manufacturer's site for a list of approved cards. | | | | Sample Rates | 32 / 44.1 / 48 / 48.048 / 88.2 / 96 / 96.096 / 176.4 / 192 kHz | | Bit Depth | 16/24-Bit | | Timecode | Yes | | | | Analog I/O | 1 x XLR 3-Pin Balanced Line/Mic Input
1 x XLR 3-Pin Balanced Line/Mic Input
2 x TA3 Active-Balanced Line Output
1 x 1/8" / 3.5 mm TRS Unbalanced Output
1 x 1/8" / 3.5 mm TRS Headphone Output Mic 1 also Carries AES3 Channels 1 & 2 | | Digital I/O | 1 x LEMO 5-Pin Timecode In/Out
1 x BNC AES3id / S/PDIF Input
1 x BNC Word Clock Input
1 x RJ12 RS-232 C. Link Input
1 x RJ12 RS-232 C. Link Output
1 x BNC AES3id Output | | Host Connection | 1 x FireWire 6-Pin (FireWire 400) | | | | Frequency Response | 10 Hz to 40 kHz +0.1/-0.5 dB (at 96 kHz) | | Dynamic Range | A/D Converters:
114 dBA
110 dB
D/A Converters:
112 dBA
108 dB | | THD | Mic Inputs:
0.004%
Line Inputs:
0.004% | | | | Battery Type | Removable Rechargeable | | AC/DC Power Adapter | 10 to 18 VDC (Included) | | | | Dimensions | 8.2 x 4.9 x 1.8" / 209.0 x 125.0 x 45.0 mm | | Weight | 2.1 lb / 1.0 kg | | | | Package Weight | 6.15 lb | | Box Dimensions (LxWxH) | 16.0 x 10.9 x 5.2" |
