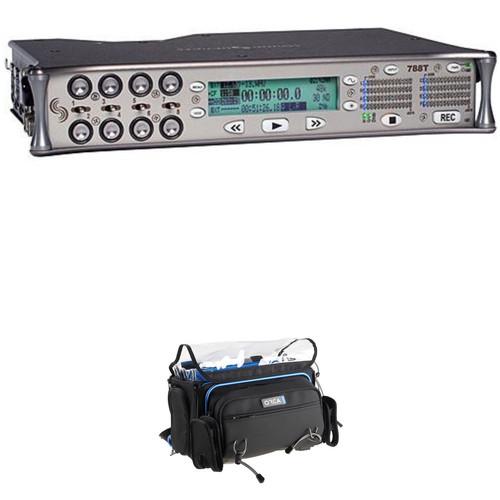

User Manual for Sound Devices 788T-SSD 8-Channel Solid-State Audio-Recorder Kit with Orca OR-41 Carry Bag Click to enlarge the picture
Contents of the user manual for the Sound Devices 788T-SSD 8-Channel Solid-State Audio-Recorder
- Product category: Portable Digital Recorders Sound Devices
- Brand: Sound Devices
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sound Devices Portable Digital Recorders
|
User manual for the Sound Devices 788T-SSD 8-Channel Solid-State Audio-Recorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sound Devices product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sound Devices user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sound Devices product will considerably shorten its lifespan!
|
Product description Bundled together by for your convenience, this Sound Devices 788T-SSD Kit gives both an 8-channel recorder with a solid-state hard drive, as well as a sturdy, rugged carry case for holding your recorder, wireless devices, and ancillary items.
The 8-channel recorder gives you a sturdy internal solid-state hard drive with 256GB of space, as well as four XLR inputs, four TA3-male connections, eight channels of AES3 digital inputs, and six channels of AES3 outputs—allowing you to interface with compatible digital cameras and apposite mixers. Phantom power is also provided, as is an on-board limiter, polarity-reverse control, high-pass filtering, selectable delay, and headphone monitoring. The device can communicate with your computer via USB and Firewire 400/800 connections, and works with CompactFlash media with UDMA support.
The bag gives you a sturdy place to house and transport this recorder, with its aluminum exterior frame and internal honeycomb frame. Bungee cords are provided for holding boom poles and cables, as are accessory pockets, heavy-duty loops for connecting the bag to separately available harnesses, and detachable carrying handles. - Sound Devices 788T-SSD 8-Channel Portable Solid-State Audio Recorder The Sound Devices 788T-SSD Portable Digital Recorder builds on the success of the Sound Devices 7-series digital recorders. The 788T-SSD is a lightweight and compact professional recorder that features 8 digital recording tracks. An internal 256GB SSD, CompactFlash media with UDMA support, external FireWire hard drive or DVD-RAM (with bus powering) all serve as compatible recordable media. Any or all of these options may be used to record audio simultaneously and the 788T-SSD serves as a mass storage device when connected to high-speed USB or FireWire ports on Windows and Mac OS X computers.
The 8 microphone and line-level inputs are provided as 4 XLR and 4 TA3-male connections. The 788T-SSD has 8 channels of balanced AES3 digital input and 6 channels of balanced AES3 output for simple integration with compatible AES3 digital cameras and mixers. All of the 7-series feature still apply; including 48V phantom, limiter, polarity reverse, high-pass, selectable delay and headphone monitoring on each input. Note: Please note that not all memory cards are approved to work with this device. Please check manufacturer's website for a list of approved cards.
Firmware revision 2.01 for the 788T-SSD is now available for download andinstallation. It is recommended that all 788T-SSD users and owners update now. Detailed instructions and changes are on the download page at: http://www.sounddevices.com/download/788t-firmware.htm Compact and Durable - 8-track portable SSD/CompactFlash audio recorder with 256GB internal SSD and full time code implementation
- Compact aluminum and stainless-steel chassis for exceptional durability and light weight, resistant to environmental extremes
Comprehensive Professional Connectivity - 8 channels of improved microphone and line inputs with phantom power, limiting, and high-pass filters
- 3-channel, balanced mic/line level outputs on TA3 connectors
- Multi-pin AES3 I/O for complete compatibility with supported digital cameras, mixers, etc
- High speed FireWire and USB ports for high-speed data transfer to computers for editing and backup
High-Resolution Recording and Synchronization - 24-bit or 16-bit with or without dither, 32kHz - 96kHz sampling rates
- Input-to-track assignment with 256 possible routing combinations
- WAV or BWF format, mono or poly files, uncompressed PCM audio
- MP3 encode and decode, 32 to 320kbps stereo files
- Stable, reliable Ambient time code circuitry, tunable to <0.2 PPM accuracy with all relevant TC rates and full Word Clock I/O
Flexible Metering and Powering - Programmable backlit, sunlight-viewable LED level metering; selectable, menu-driven metering ballistics
- Large backlit, adjustable LCD display; fully dedicated status and activity LED indicators, backlit controls
- Removable Lithium-ion rechargeable battery, compatible with Sony M- and L-mount batteries
- 10-18VDC external input powers and charges on-board battery, 100-240V worldwide power supply
UPC: 859108005345 - ORCA OR-41 Audio Bag for Zaxcom Nomad/RX-12/Sound Devices 788T & CL-8 The OR-41 Audio Bag from ORCA is designed to protect and carry your Zaxcom Nomad/RX-12/Sound Devices 788T and CL-8 units. It features a durable external aluminum frame, an internal honeycomb frame, layers of foam, and EVA.This audio bag can be used in conjunction with the Orca Audio Harness and Orca Audio Waist Belt (sold separately), and a carrying strap is included.
- Heavy duty loops to connect to the Orca audio harness or waist belt (sold separately)
- Zipper pocket for easy access to mixer
- Bungee cords to hold boom poles or cables
- Detachable carrying handles
- Aluminum and honeycomb frame
- Large pocket for accessories
In the Box - 788T-SSD 8-Channel Portable Solid-State Audio Recorder berffyyyzrye
- XL-WPH2 Power Supply
- XL-RJ - C. Link Cable
- CS-MAN Carrying Pouch
- Owner's Manual
- Limited 2-Year Warranty
- ORCA - OR-41 Audio Bag for Zaxcom Nomad/RX-12/Sound Devices 788T & CL-8
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sound Devices 788T-SSD 8-Channel Solid-State Audio-Recorder Kit with Orca OR-41 Carry Bag in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sound Devices 788T-SSD 8-Channel Portable Solid-State Audio Recorder
| | | Number of Tracks | 8 | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | Built-In Speaker | No | | Memory Card Support | CompactFlash, Microdrive Please see manufacturer's site for a list of approved cards. | | Internal Storage | 256 GB FAT32 Formatted | | | | Audio File Formats | BWF, MP3, WAV | | Sample Rates | 32 / 44.1 / 47.952 / 48 / 48.048 / 88.2 / 96 / 96.096 kHz | | Bit Depth | 16/24-Bit | | Timecode | Yes | | | | Analog I/O | 4 x XLR 3-Pin Balanced Line/Mic Input
4 x TA3 Male Balanced Line/Mic Input
4 x TA3 Male Balanced Output
1 x 1/8" / 3.5 mm TRS Unbalanced Output | | Digital I/O | 2 x DB15 AES3 In/Out
2 x TA3 AES3 Output
1 x LEMO 5-Pin Timecode Output
1 x BNC Video/Word Clock Input
1 x BNC Word Clock Output | | Host Connection | 1 x FireWire 9-Pin (FireWire 800)
1 x FireWire 6-Pin (FireWire 400)
1 x USB Type-B | | | | Frequency Response | 10 Hz to 20 kHz +0.1/-0.5 dB | | Dynamic Range | A/D Converters:
114 dBA
110 dB
D/A Converters:
112 dBA
108 dB | | THD | Mic Inputs:
0.004%
Line Inputs:
0.004% | | | | Battery Type | Removable Rechargeable | | | | Dimensions | 10.1 x 6.4 x 1.8" / 256.5 x 163.0 x 44.0 mm | | Weight | 3.8 lb / 1.7 kg (without Batteries) | | | | Box Dimensions (LxWxH) | 15.9 x 10.9 x 5.2" | - ORCA OR-41 Audio Bag for Zaxcom Nomad/RX-12/Sound Devices 788T & CL-8
| Compatibility | Zaxcom Nomad, RX-12, and Sound Devices 788T and CL-8 | | Dimensions | 15.0 x 12.0 x 9.5" (38.1 x 30.5 x 24.1 cm) | | | | Box Dimensions (LxWxH) | 15.9 x 13.8 x 10.1" |
