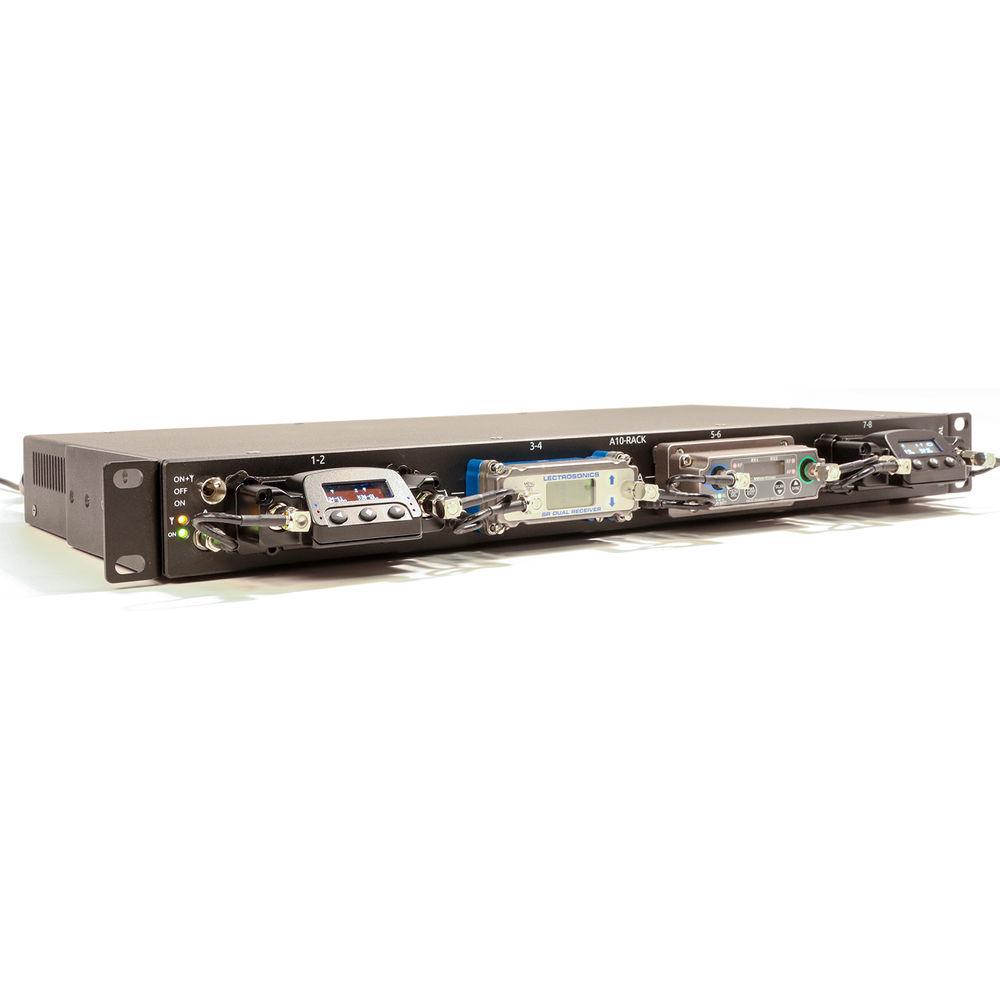

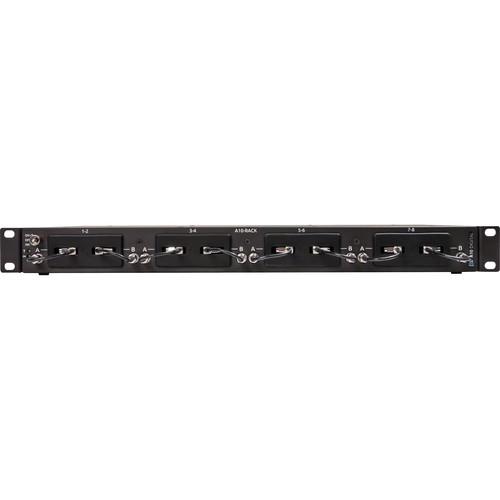

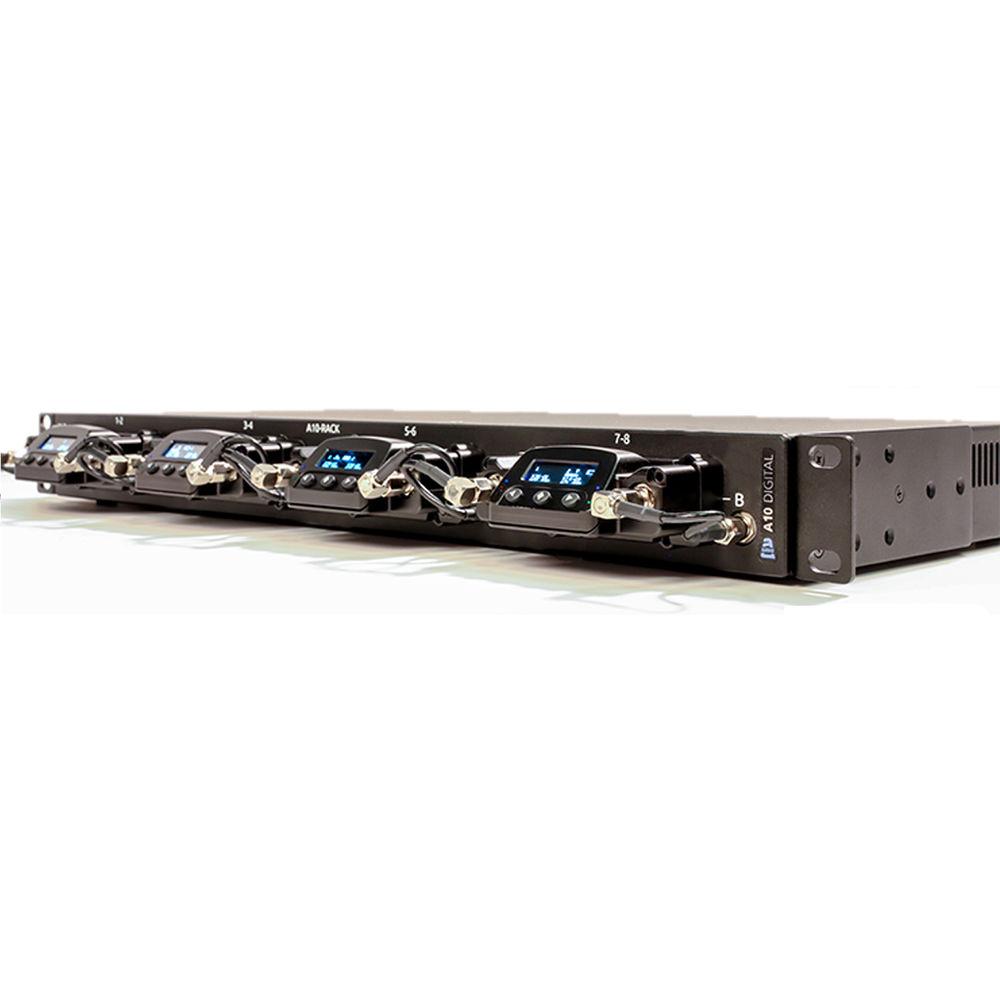

Product description The A10-RACK 4-Slot Wireless Enclosure from Sound Devices is a 1 RU enclosure that accepts slot-in wireless receivers and features built-in power and antenna distribution plus Dante for up to four 2-channel slot-in receivers. It can be used with single-channel Unislot receivers or most two-channel Superslot-compatible receivers from Lectrosonics, Audio Ltd, or Wisycom (sold separately) for networking applications using Dante.Connect the A10-RACK to a Dante network, and all eight channels of high-quality audio from the wireless receivers can be transported over a single Cat5 network cable. Monitoring and routing of signals from transmitters to receivers is simplified with the Dante Controller, a free software application from Audinate.Furthermore, the A10-RACK also sports RF inputs with 12V powering of active antennas, plus loop-through connections for another A10-RACK. This provides seamless integration between two connected units with a single pair of antennas. Finally, the rack is powered with a standard 4-pin XLR-F 10 to 18 VDC power supply. - 4-slot wireless receiver rack system (receivers sold separately)
- 8-channel Dante/AES/analog outs
- Receiver diversity (Unislot/Superslot)
- Built-in power and antenna distribution
- Antenna loop-through for 16-channel setups
- USB serial port for firmware updates
In the Box Sound Devices A10-RACK 4-Slot Wireless Enclosure Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sound Devices A10-RACK 4-Slot Wireless Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSound Devices A10-RACK Specs | Compatible Receivers | Audio Ltd A10-RX / En2 CX2-P
Lectrosonics SRb / SRa / SRc

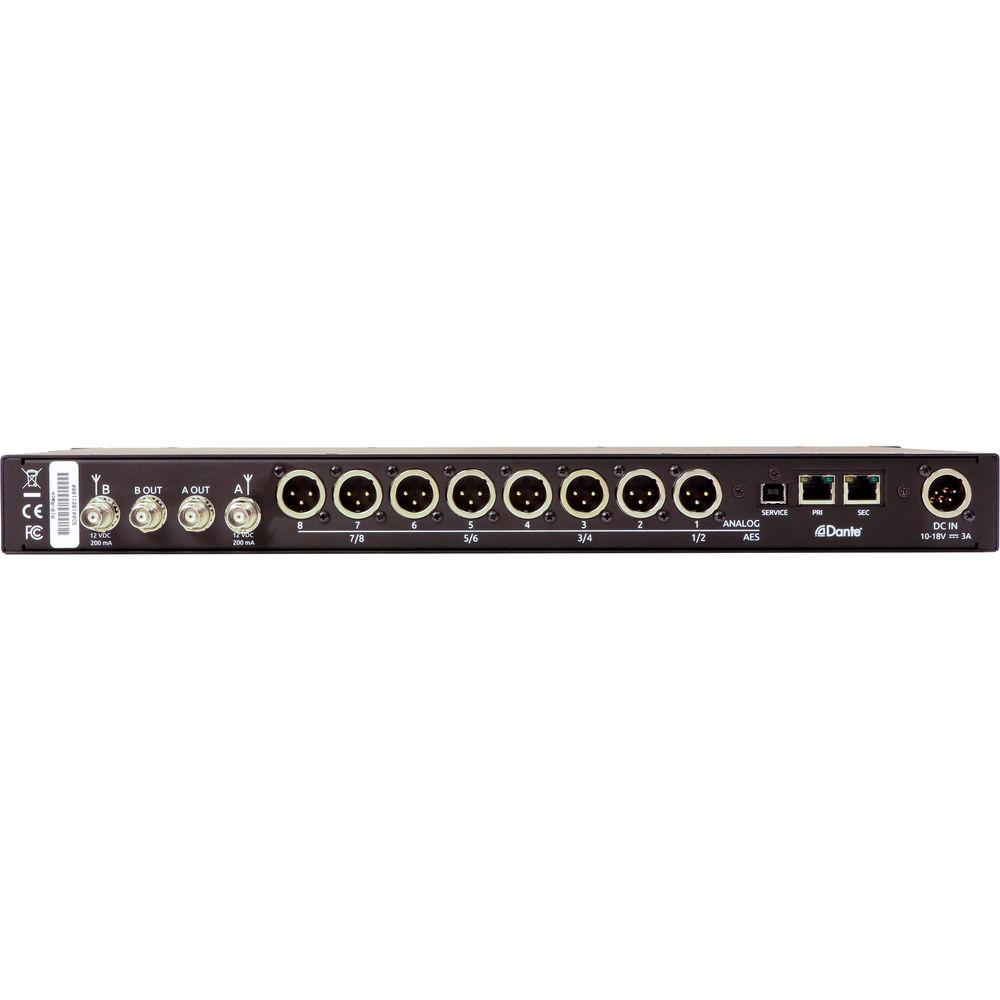

Wisycom MCR42 | | Frequency Range | 470 to 697 MHz | | Number of Diversity Receivers | Up to 4 | | Bandwidth | Amplifier: 224 MHz, with phantom powering for active antennas, 12 V, 200 mA | | Antenna Inputs | 2 x BNC, 50 Ohms | | Aux RF Outputs | 2 x BNC, 50 Ohms | | Powering Options | Rack: 10 to 18 VDC, 3 A via 4-pin XLR-M socket | | Audio Outputs | 8 x 3-pin XLR-M analog and/or AES
2 x RJ45, to provide Dante primary and secondary | | Output Level | +18 dBu maximum, transformer-balanced (analogue) | | Audio Frequency Response | 20 Hz to 20 kHz
