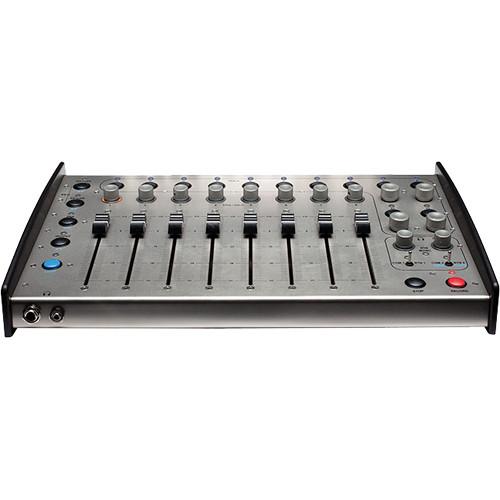

User Manual for Sound Devices CL-9 Linear Fader Controller for 788T Recorder Click to enlarge the picture
Contents of the user manual for the Sound Devices CL-9 Linear Fader Controller
- Product category: Portable Recorder Accessories Sound Devices
- Brand: Sound Devices
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sound Devices Portable Recorder Accessories
|
User manual for the Sound Devices CL-9 Linear Fader Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sound Devices product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sound Devices user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sound Devices product will considerably shorten its lifespan!
|
Product description The Sound Devices CL-9 Linear Fader Controller features a small profile, 8 linear faders, rotary and push-button controls that establishes a comfortable recording and mixing surface when used with the 788T digital recorder. The USB powered CL-9 features dedicated connections for talk-back and talent / engineer communication, controllers for accessing the 788T's EQ and dynamics processing DSP, low latency operation and more. - Eight 100mm linear faders for precise input level control
- Rotary trim control for each input with ring LED metering
- Sweepable, single-band parametric EQ per input with variable frequency, gain and filter Q
- Four rotary level controls for Left, Right, Aux1, and Aux2 tracks
- Quick control of input, track, or output solo monitoring
- Output level control for outputs 1-6
- Two communication return inputs for private talkback circuits
- Slate circuit for recording slate mic to tracks and sending to outputs
- Power and control from the 788T over the USB connection
- Remote level metering on Mac OS or Windows computers using Wave Agent
- Footswitch input for programmable switch closure (GPI)
- Four additional user-progammable controls, useful to assign menu items to physical controls
- Stainless-steel chassis with and machined aluminum end panels
UPC: 859108005383 In the Box Sound Devices CL-9 Linear Fader Controller for 788T Recorder Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sound Devices CL-9 Linear Fader Controller for 788T Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSound Devices CL-9 Specs | Connections | Balanced Line level XLR Inputs (40k ohm) x2
1/4" TRS Phone Headphone Input (10k ohm) 1/4" TRS and 1/8" (3.5mm) Mini Headphone Outputs
1/4" TRS Phone Headphone Pass-Through (100 ohm) USB Bus to 788T | | Frequency Response | 20Hz to 20kHz +/- 1dB @ 1kHz | | Metering | Sunlight-Viewable LED Metering
PPM, VU or Combination Level Metering Multi-color Backlit LCD
Signal Present, Peak and Limiting LEDS | | Power | USB Bus Powered from 788T
200mA @ 5V Typical | | Construction | Aluminum and Stainless Steel Chassis | | Dimensions | 2.75 x 13.75 x 8.75" (7 x 34.5 x 22.5cm) | | Weight | 4 lb 11 oz (2.4kg) | | | | Package Weight | 6.4 lb | | Box Dimensions (LxWxH) | 16.0 x 11.0 x 5.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
