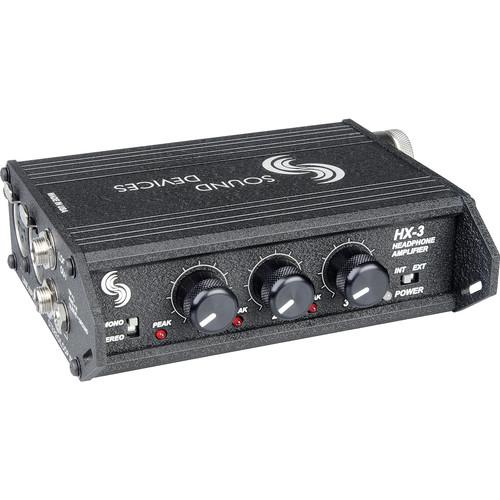

User Manual for Sound Devices HX-3 - 3 Channel Portable Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the Sound Devices HX-3 - 3 Channel
- Product category: Headphone Amplifiers Sound Devices
- Brand: Sound Devices
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sound Devices Headphone Amplifiers
|
User manual for the Sound Devices HX-3 - 3 Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sound Devices product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sound Devices user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sound Devices product will considerably shorten its lifespan!
|
Product description The Sound Devices HX-3 is a remarkably robust and well crafted portable headphone amplifier intended for professional location use in the film, broadcast, and music industries. The HX-3 is among the elite of it's category in terms of flexible design and durability of construction, offering a very high level of sound quality and frequency response. Loaded with features, both practical and technical, the HX-3 also comes with a very affordable price tag. - Very lightweight, AA battery powered portable 3-channel headphone amplifier
- Durable, high-strength, extruded aluminum chassis with protective end paneling
- High output, very low noise; frequency response from 10 Hz - 50 kHZ
- Three isolated headphone outputs with individual volume controls
- 125 dB dynamic range with flat frequency response
- Panel mounted headphone connectors
- Dual XLR line level plus 1/4" and 1/8" stereo input connectors
- All-metal connectors solidly mounted to the chassis for durability and RF immunity
- Stereo or mono monitoring
- Peak LED indicates headphone overload
- Loop Output to connect additional HX-3's in series
- Internal battery-power for up to 18 hours from two AA alkaline batteries
- Power LED with low battery indication
- Chassis-isolated 5 to 18 VDC input for external alternative DC powering.
UPC: 859108005406 In the Box Sound Devices HX-3 - 3 Channel Portable Headphone Amplifier 4 x Rubber Feet 1 x 1/4" to 1/8" TRS Interconnect Cable 1 x Locking DC Jack Owner's Manual Limited 2-Year Warranty User Manual PDF 278.6kbsfzdwqvrxrrcccsyuvbfuwq Table of Contents
|
Upload User Manual
Have you got an user manual for the Sound Devices HX-3 - 3 Channel Portable Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSound Devices HX-3 Specs Number of Channels | 3 | Input Connections | 2 x XLR Female, Balanced Line 1 x 1/4" TRS Stereo/Loop In, Unbalanced Line 1 x 1/8" Stereo Mini, Unbalanced Line | Output Connectors | 3 x 1/4" TRS Stereo Headphone, Line 1 x 1/8" Stereo Mini Headphone, Line 1 x 1/4" TRS Loop Out | Maximum Output Level | +18 dBu | Function Controls | 3 x Channel Volume Knobs 1 x Mono/Stereo Switch 1 x Internal/External Power Switch | Frequency Response | 10 Hz - 50 kHz +/-1.0 dB, any input to any output, Gain set to 50% | THD + N | 0.03% maximum, 10 Hz - 22 kHz @ +10 dBu input and output level(300 Ohm Load) | Noise | Not specified by Manufacturer | Display | Peak Indicators | Dimensions | 1.7 x 3.7 x 5.5" (43 x 94 x 140mm) | Weight | 1.24 lb (0.56 kg) | Specialties | AA battery operation Peak indicators Stereo and Mono monitoring | | Package Weight | 2.0 lb | Box Dimensions (LxWxH) | 10.8 x 7.3 x 5.0" |
