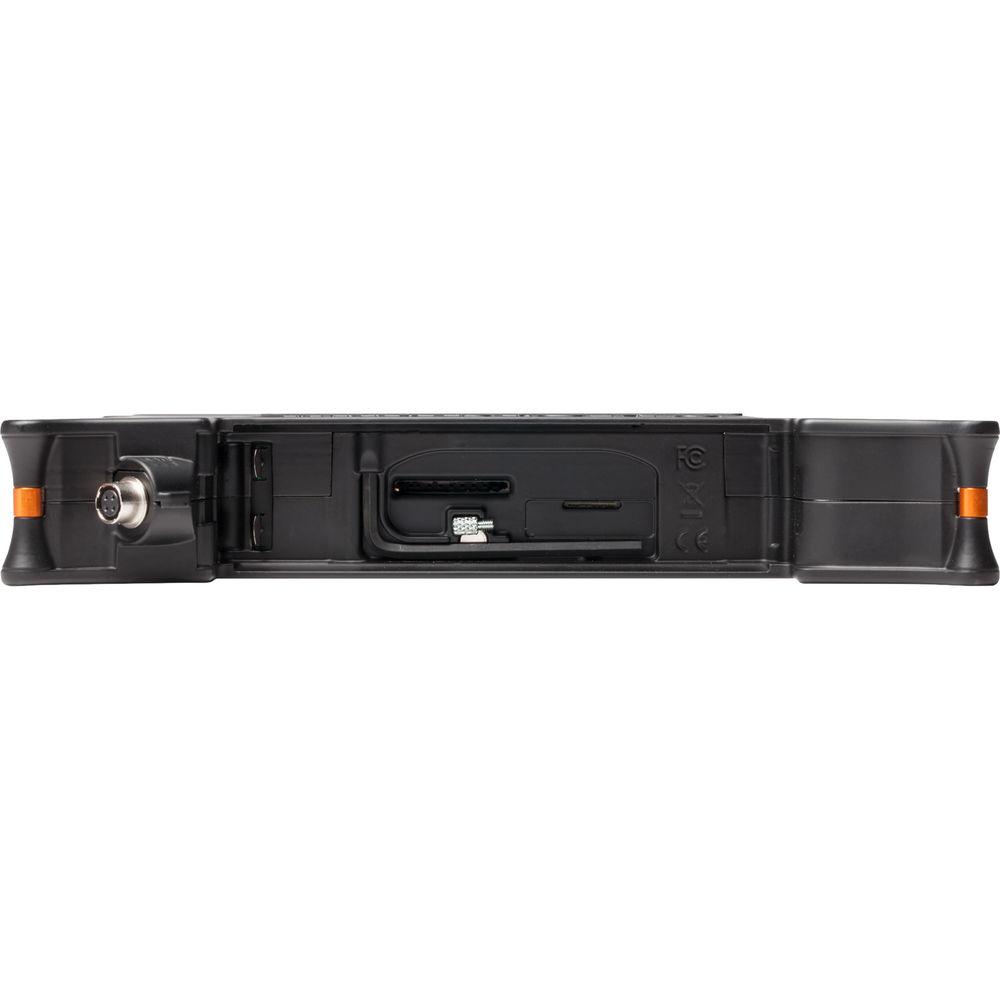

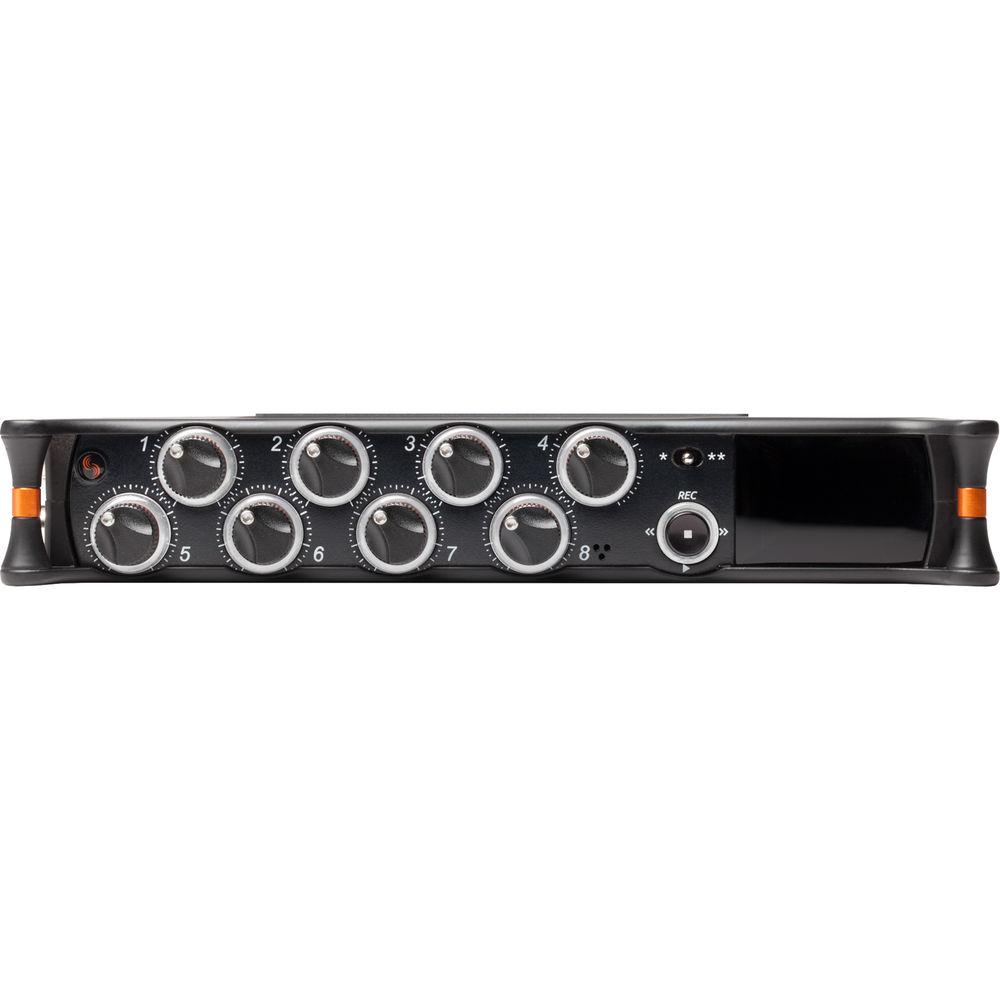

User Manual for Sound Devices MixPre-10M Recorder & USB Audio Interface for Musicians Click to enlarge the picture
Contents of the user manual for the Sound Devices MixPre-10M Recorder & USB
- Product category: Portable Digital Recorders Sound Devices
- Brand: Sound Devices
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sound Devices Portable Digital Recorders
 |
User manual for the Sound Devices MixPre-10M Recorder & USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sound Devices product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sound Devices user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sound Devices product will considerably shorten its lifespan!
|
Product description Introducing the MixPre-10M with Overdub and Remix from Sound Devices Read More - First Look | Sound Devices MixPre-10M
- Introducing the MixPre-3M & MixPre-6M Multitrack Recorders for Musicians

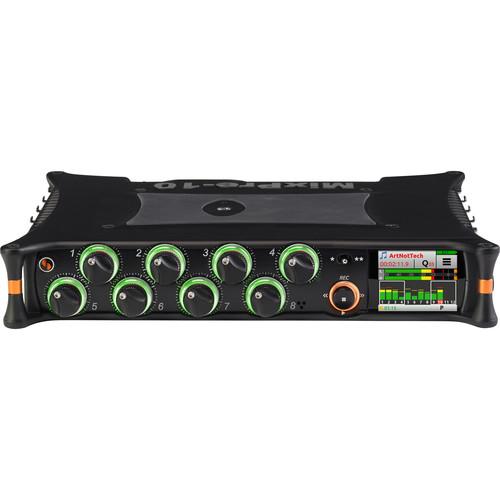

The Sound Devices MixPre-10M is a portable 10-input/12-track audio recorder designed to deliver musician-focused functions such as simultaneous recording, playback, overdubbing, mixing, monitoring, and bouncing for simplified song creation. The metronome function provides a stable tempo reference and can be recorded to a discrete track. Integrated punch recording and efficient cue points streamline your workflow. Enhance your mix with built-in effects such as reverb and vocal air. The sunlight-readable color touchscreen LCD offers convenient navigation and access to routing. The M-Series is geared towards the musician with its touch-screen interface, allowing you to quickly get vocal melodies, instrumental hooks, and rhythms down. Use the built-in reverb and vocal air effects allow you to add character to the sound of instruments and vocals. The bounce feature can be used to free up tracks to allow the layering of more instruments or for rendering in effects. After laying and overdubbing tracks, musicians can mix their song using dedicated knobs to control levels, pans, solos, and mutes, allowing you to create a mix without hooking the device up to a computer. Render recordings for uploading to website/social media, sharing with band members or exporting to a DAW for further production.
It features eight Sound Devices Kashmir ultra-low noise, discrete, and Class-A microphone preamps. Built with 32-bit A-to-D converters, it ensures audio performance beyond that of off-the-shelf, IC-based mic preamps. The unit can record at up to a 96 kHz sample rate to an SD card or stream multi-channel audio via USB at up to 96 kHz while simultaneously recording to an SD card.The MixPre-10M is constructed with a lightweight die-cast aluminum chassis and sports a robust build. Though relatively compact, it boasts intuitive operation, advanced mixing capabilities, 1/4"-20 mounting capacity, 3.5mm headphone monitoring, balanced TA3 outputs, and multiple powering options. - Musician-Focused Features
- The MixPre-10M's musician-focused features simplify typical computer-based music creation, allowing you to create great songs rather than getting hung up in the technology. The MixPre-10M allows you to simultaneously record, playback, mix, monitor, layer, and overdub up to 12 tracks, and if you need more, the bounce feature helps free up tracks. Punch in/out and utilize cue points to streamline your workflow.
- Improved Session Efficiency
- A built-in metronome helps keep your performance in time, while premium smooth reverb and vocal air effects add depth to your recordings, and can also inspire a great performance. The vocal air effect is an easily dialed-in combination of EQ and compression that results in a breathy intimacy to vocals, popular today with singers and songwriters.
- Solid Audio Quality
- Featuring eight handcrafted, high-performance, ultra-low-noise, discrete, Class-A Kashmir microphone preamps, the MixPre-10M has a -130 dBV noise floor, analog limiters, and 32-bit A-to-D converters. These features ensure quality audio recordings.
- Live Performance Companion
- Not only is the MixPre-10M great for creating songs, it's also an aide for live performances. Whether being used as a mixer to feed a PA for smaller ensemble performances, or for playing back pre-prepared, multi-channel backing tracks for your solo performances, the MixPre-10M is ideal for live gigging.
- Musician-Inspired User Experience
- The MixPre-10M's musician-friendly, touch-screen interface and transport joystick enables you to quickly get vocal melodies, instrumental hooks, and rhythms down. Once you've completed laying and overdubbing tracks, get the final mix in the bag using the dedicated, front panel knobs to control mix levels, pans, solos, mutes, reverb, air, and more.
- Flexible Powering
- The MixPre-10M sports multiple powering options, such as a locking 4-pin Hirose connector (10 to 18V) for external battery power, or AC power (with the optional AC adapter). Like the MixPre-3 and MixPre-6, the MixPre-10M can also be powered from AA batteries in a convenient detachable sled of eight cells, or via an optional sled that offers powering from up to two hot-swappable Sony L-Mount lithium-ion batteries.
- Flexible I/O Routing

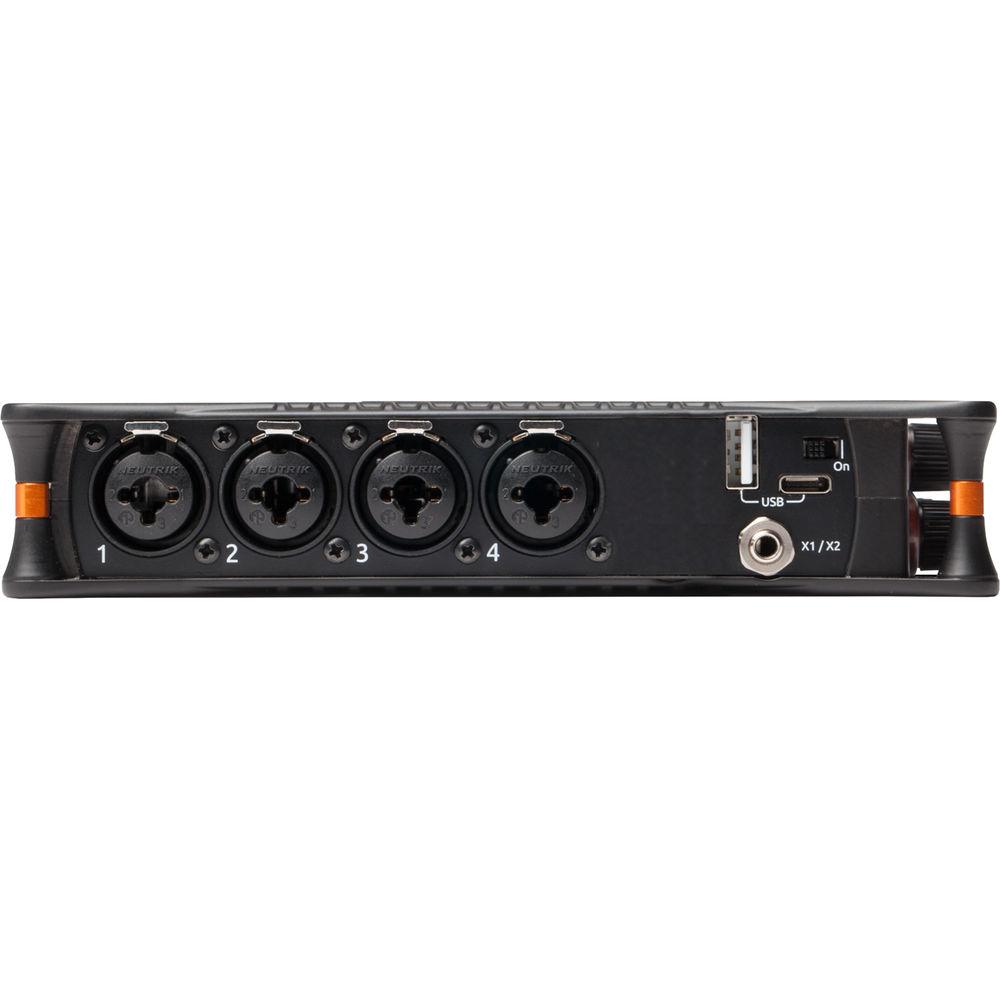

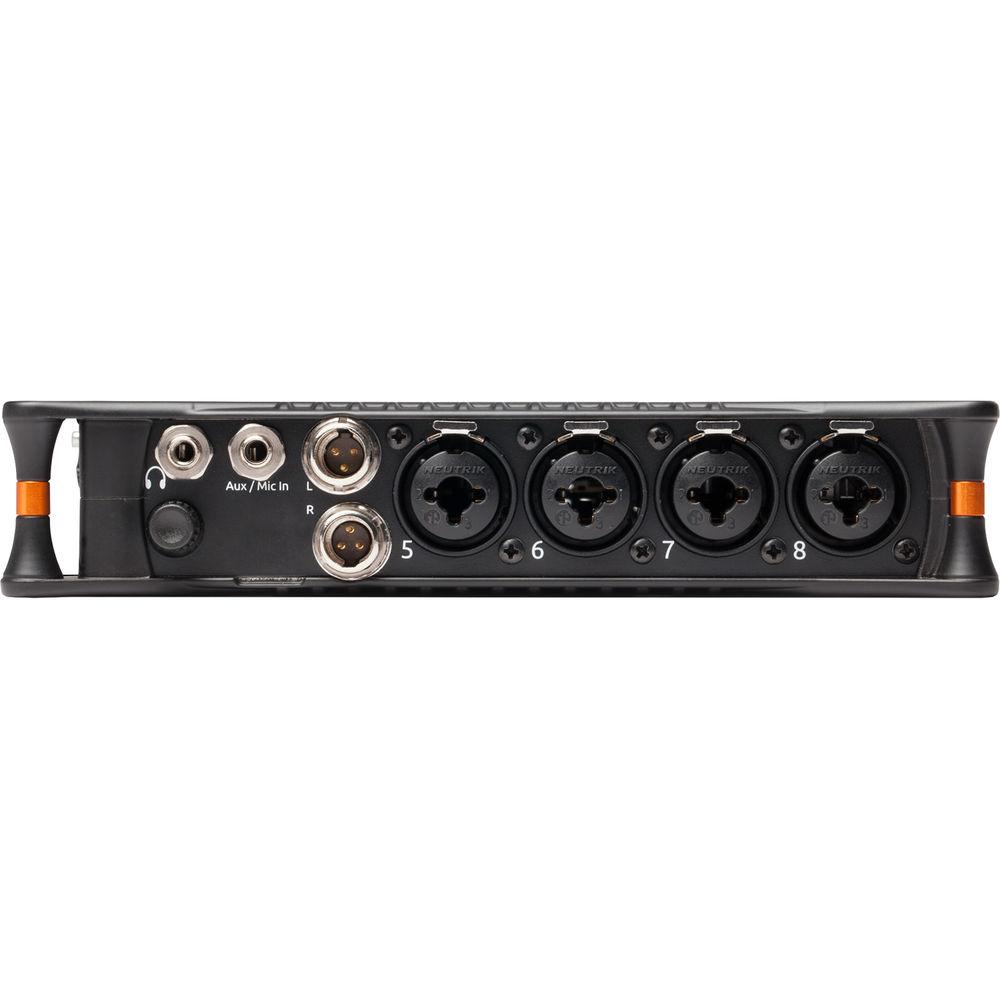

- The MixPre-10M offers eight XLR/TRS combo mic/line level inputs, a four-channel USB Type-C input, and a two-channel 3.5mm aux/mic input. You can route any of these physical inputs to any channel knob, eliminating the need to re-plug inputs when you want to record an input to a different track. The metronome can also be selected as an input, so you can record its click to a discrete track. The MixPre-10M's two balanced outputs, two unbalanced outputs, and stereo headphone output can be individually configured, providing a wealth of options for monitoring.
- Auto Copy
- Record to a SD card, while automatically copying to a USB thumb drive to safeguard your recording or hand off to a band member. At any time, share your multi-track song with other musicians, so that they can collaborate using their MixPre-10M or favorite DAW. Export the mix to SD card, USB thumb drive, or computer as a stereo WAV or AAC file—ideal for emailing or uploading to SoundCloud or other music-sharing services.
- Multi-Channel USB Audio Interface
- The MixPre-10M operates as a 12-in/4-out USB audio interface with the ability to simultaneously record to an SD card while streaming audio via USB, ideal for recording computer-based software instruments or backing up your takes while you're tracking to a computer.
- Metering and Monitoring
- For metering, the unit provides easy-to-read ring LEDs with limiter activity, along with three LCD views for multitrack, mix, and USB-return metering. The MixPre-10M also includes a custom-designed integrated headphone amplifier for efficiently monitoring with a wide range of headphone impedances.
- Bluetooth Remote Control
- Sound Devices Wingman, which is a free downloadable app for iOS/Android devices, communicates with your MixPre-10M via Bluetooth Smart to give users touchscreen access to high-resolution meters, record/stop/play operations, track naming/arming, and more.
- USB Control Surface Support
- Control fader, trim (gain), pan, low-cut filtering, reverb, record, stop, and more from the Korg nanoKONTROL Studio, Korg nanoKONTROL2, Akai MIDImix, or Novation Launch Control XL USB control surfaces (all available separately).
UPC: 854454006381 In the Box Sound Devices MixPre-10M Recorder & USB Audio Interface for Musicians XL-WPH3 45W DC Power Supply for Sound Devices Recorders and Mixers MX-8AA Battery Sled for MixPre-3 and MixPre-6 Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Sound Devices MixPre-10M Recorder & USB Audio Interface for Musicians in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Sound Devices MixPre-10M Recorder & USB Audio Interface for Musicians can be downloaded in PDF format at the link stated below.
Technical parametersSound Devices MixPre-10M Specs | | | Number of Tracks | 12 | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | Built-In Speaker | No | | Display | Color LCD | | Memory Card Support | SD, SDHC, SDXC, USB Flash Drive (Up to 512 GB) Card format: FAT32 (32 GB or less) or exFAT (>32 GB) | | | | Audio File Formats | AAC, WAV | | Sample Rates | 44.1 / 48 / 96 kHz | | Bit Depth | 24-Bit
32-Bit (AD/DA Conversion) | | Signal Processing | EQ, Limiter, Low-Cut Filter, Reverb | | Timecode | No | | | | Analog I/O | 8 x Combo XLR / 1/4" Active-Balanced Input
1 x 1/8" / 3.5 mm TRS Unbalanced Aux/Mic Input
2 x TA3 Balanced Output
1 x 1/8" / 3.5 mm TRS Unbalanced Output
1 x 1/8" / 3.5 mm TRS Headphone Output | | Phantom Power | +48 V | | Phantom Power Current | 10 mA per Channel | | Plug-In Power | Yes, 3 V At 3 kOhms Source Impedance | | Host Connection | 1 x USB Type-A (Control, Text Entry, Thumb Drive)
1 x USB Type-C (I/O, USB 2.0) | | | | Frequency Response | 10 Hz to 80 kHz
