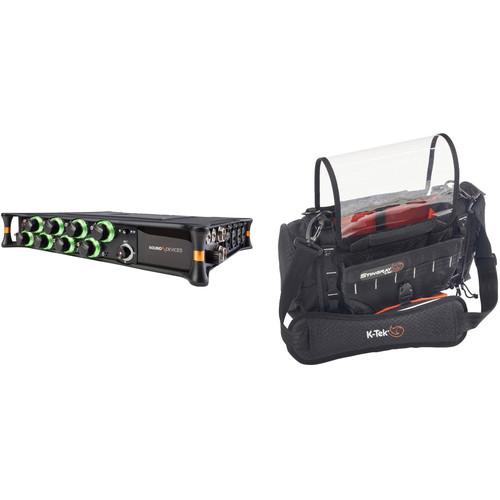

User Manual for Sound Devices Mixpre-10T Audio Recorder with K-Tek Audio Bag Kit

• Product category: Portable Digital Recorders Sound Devices
• Brand: Sound Devices
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sound Devices Portable Digital Recorders

Product description

• Sound Devices MixPre-10T Multi-Channel Audio Recorder
  • Hands-On Review | Sound Devices MixPre-10T
  • Introducing the Sound Devices MixPre-10T Audio Recorder
  The Sound Devices MixPre-10T is a high-resolution audio recorder with flexible routing, integrated USB audio streaming, timecode-generating abilities, clocking, and more. It can be used by field recordists, sound designers, podcasters, videographers, and musicians in various audio environments.

  The MixPre-10T features Sound Devices' Kashmir ultra-low noise, discrete, and Class-A microphone preamps. Built with 32-bit A-to-D converters, this sound device ensures audio recordings surpass those of off-the-shelf, IC-based mic preamps. The unit can function as a USB audio interface and record audio to an SD card while simultaneously streaming multiple channels of audio via USB. Furthermore, the sunlight-readable color LCD of the MixPre-10 provides convenient navigation.

  The MixPre-10T is constructed with a die-cast aluminum chassis, is lightweight, and sports a robust build. Also, it is relatively compact, making it well suited for jobs where portability is a plus.

  Boasting intuitive operation and advanced mixing capabilities such as ergonomic gain-control knobs, pan and soloing, timecode connections in multiple formats, BNC I/O for clocking, 1/4"-20 mounting capacity, 3.5mm headphone monitoring, balanced TA3 outputs, and the AA battery/Sony L-Mount lithium-ion battery powering options, the MixPre-10T is sure to meet all your audio-application needs.
  Solid Audio Quality
  • Featuring eight handcrafted, high-performance, ultra-low-noise, discrete, Class-A Kashmir microphone preamps, the MixPre-10T has a -130 dBV noise floor, analog limiters, and 32-bit A-to-D converters. These features ensure quality audio recordings. The MixPre-10T's pre-roll feature captures ten seconds of audio before the record button is pressed, ensuring the capture of crucial audio even when the operator can't start recording fast enough.
  Accurate Timecode Generator/Reader with Wordclock
  • The MixPre-10T features a built-in, accurate timecode generator and reader. Even when turned off, or when all power is removed, the MixPre-10T continues to hold accurate timecode for hours, long enough for lunch breaks and other pauses in the daily schedule. With its BNC, Aux, and HDMI timecode connections, all common frame rates and timecode modes are supported, as is the ability to synchronize with/output wordclock, making it suitable for the digital audio environment.
  Flexible Powering
  • The MixPre-10T sports multiple powering options, such as a locking 4-pin Hirose connector (10 to 18V) for external battery power, or AC power (with the optional AC adapter). Like the MixPre-3 & MixPre-6, the MixPre-10T can also be powered from AA batteries in a convenient detachable sled of eight cells, or via an optional sled that offers powering from up to two hot-swappable Sony L-Mount lithium-ion batteries.
  Flexible I/O Routing
  • The MixPre-10T offers eight XLR/TRS combo Mic/Line level inputs, as well as a 3.5mm Aux/Mic input that can be used for 2-channel line input, camera return, or timecode. Also provided are two TA3 balanced outputs and a 3.5mm Stereo output, each with its own routing matrix; this further bolsters routing flexibility.
  Auto Copy
  • With this feature, you can record files up to 192 kHz/24-bit to an SD card, while automatically copying to a USB thumb drive (USB Type-A) for handing off to a client (or as a backup copy).
  Mixing, Metering, and Monitoring
  • The MixPre-10T incorporates a simple mixer that offers gain-control knobs and access to panning and soloing via a simple press of the knob. For metering, the unit provides easy-to-read ring LEDs with limiter activity, along with three LCD views for multitrack, mix, and USB-return metering. The MixPre-10T also includes a 3.5mm jack for headphone monitoring with user-programmable routing presets.
  Ambisonics Integration
  • Upon installation of the free Ambisonics plug-in (from the Sound Devices Plug-In Store), field recordists, game developers, and VR content creators will appreciate the support for simultaneous multi-format recording (AmbiX, FuMa, LR Stereo, and LR Binaural), real-time binaural/stereo monitoring, and A-Format, B-Format, and A- to B-Format conversion.
  Wireless Control and Workflow
  • The MixPre-10T features integrated Bluetooth Smart for easy wireless connection, control, and metering via the free Sound Devices Wingman app (compatible with iOS and Android devices). It also allows you to manage and create sound reports, and, via Wingman, email those reports directly from a mobile device.
  USB Audio Interface
  • The MixPre-10T doubles as a USB audio interface with 12 inputs and four outputs, communicating with computers at sample rates of up to 96 kHz. The unit also sports the ability to record to an SD card while simultaneously streaming audio via USB.
  USB Control Surface Support
  • Control fader, trim (gain), pan, low-cut filtering, reverb, record, stop, and more from the Korg nanoKONTROL Studio, Korg nanoKONTROL2, Akai MIDImix, or Novation Launch Control XL USB control surfaces (all available separately).
  UPC: 854454006251
• K-Tek Stingray Junior - Audio Mixer Recorder Bag
  • Hands-On Review | Sound Devices MixPre-10T
  • Introducing the Sound Devices MixPre-10T Audio Recorder
  The K-Tek Stingray Junior is an audio mixer recorder bag designed for small rigs with a couple of wireless receivers and transmitters. Like its larger brethren, the Stingray Junior offers a dual full vertical frame that allows the bag to better stand on its own, while protecting equipment and providing full access to the sides and bottom of the mixer recorder to access connectors and media. The large trap door on the bottom and zippered side access panels complement the accessibility offered by the frame and further ease setup, cabling, and battery swaps.Oversized side pockets offer plenty of room to store NP batteries, while Hook-and-Loop access allows cabling from side pockets into the main compartment. A separate front compartment can be expanded or closed tight and is protected by a rigid front panel. Various cable pass-through locations and smart storage points allow for versatility when using various equipment choices and recording environments. Web loops, Molle straps, and D-Rings offer plenty of rigging points for additional accessories and allow the Stingray Jr. to be connected by harnesses and waist-belts. The built-in kickstand allows the bag to sit at an angle when placed on a tabletop or when resting on the ground. The Stingray Jr. ships with an adjustable shelf divider, a shoulder strap, a clear shield, and a stealth cover.
  General Features
  • • Rigid internal vertical frame for strength and stability
    • Side Pockets large enough to hold NP batteries with cup adapters
    • Bottom trap door for fast access and convenience
    • Built in kick-stand for table mixing
    • Collapsible front pocket with Molle Straps and hard protective front
    • Comes with Clear Shield, Stealth Cover and Shoulder Strap
    • Perfect companion for the optional K-Tek Waist belt and is fully compatible with the optional Stingray Harness.
  Device Compatibility
  • • Audio Developments AD162
    • Fostex FM-3
    • Fostex FM-4
    • Fostex FR-2LE
    • Kamesan KS-T2000
    • PSC DVPROMIX3
    • PSC Alphamix
    • Rolls MX124
    • Shure FP33
    • Sonosax SX-R4
    • Sonosax SX-R4+
    • SoundDevices MixPre-10M
    • SoundDevices MixPre-10T
    • Sound Devices 633
    • Sound Devices 744t
    • Sound Devices 302
    • Tascam DR-680mkII
    • Wendt X3
    • Zaxcom Maxx
    • Zoom F8
    • Zoom F4
  UPC: 649906207146

• MixPre-10T Multi-Channel Audio Recorder zvfszxbu
• MX-8AA Battery Sled for MixPre-3 and MixPre-6
• Limited 2-Year Warranty

• K-Tek - Stingray Junior - Audio Mixer Recorder Bag

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sound Devices MixPre-10T Multi-Channel Audio Recorder

  Number of Tracks	12 (10 Inputs + Stereo Mix)
  Max Sample Rate/Resolution	192 kHz / 24-Bit
  Built-In Speaker	No
  Display	Color LCD
  Memory Card Support	SD, SDHC, SDXC, USB Flash Drive (Up to 512 GB) Card format: FAT32 (32 GB or less) or exFAT (>32 GB)

  Audio File Formats	BWF, WAV
  Sample Rates	44.1 / 47.952 / 48 / 48.048 / 96 / 192 kHz
  Bit Depth	16/24-Bit 32-Bit (AD/DA Conversion)
  Signal Processing	Limiter, Low-Cut Filter
  Timecode	Yes
  Frame Rates Supported	23.976 / 24 / 25 / 29.97 / 29.97 DF / 30 / 30 DF

  Analog I/O	8 x Combo XLR / 1/4" Active-Balanced Input 1 x 1/8" / 3.5 mm TRS Unbalanced Aux/Mic Input 2 x TA3 Balanced Output 1 x 1/8" / 3.5 mm TRS Unbalanced Output
  Digital I/O	1 x BNC Timecode Input 1 x BNC Timecode Output 1 x HDMI Type-D Timecode Input
  Phantom Power	+48 V
  Phantom Power Current	10 mA per Channel
  Plug-In Power	Yes, 3 V At 3 kOhms Source Impedance
  Host Connection	1 x USB Type-A (Control, Text Entry) 1 x USB Type-C (I/O, USB 2.0)

  Frequency Response
