User manual

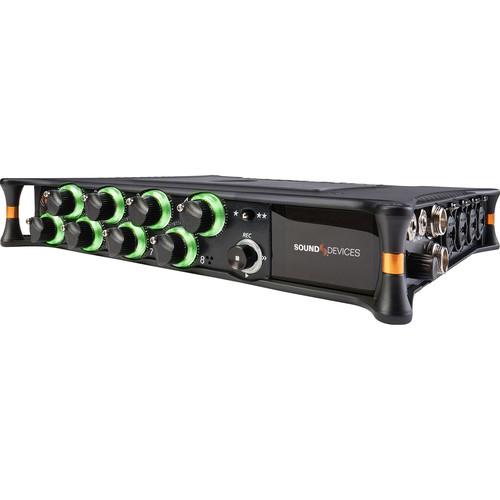

Sound Devices MixPre-10T Multi-Channel Audio Recorder

User Manual for Sound Devices MixPre-10T Multi-Channel Audio Recorder

• Product category: Portable Digital Recorders Sound Devices
• Brand: Sound Devices
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sound Devices Portable Digital Recorders

Product description

• Hands-On Review | Sound Devices MixPre-10T
• Introducing the Sound Devices MixPre-10T Audio Recorder

Solid Audio Quality
• Featuring eight handcrafted, high-performance, ultra-low-noise, discrete, Class-A Kashmir microphone preamps, the MixPre-10T has a -130 dBV noise floor, analog limiters, and 32-bit A-to-D converters. These features ensure quality audio recordings. The MixPre-10T's pre-roll feature captures ten seconds of audio before the record button is pressed, ensuring the capture of crucial audio even when the operator can't start recording fast enough.

Accurate Timecode Generator/Reader with Wordclock
• The MixPre-10T features a built-in, accurate timecode generator and reader. Even when turned off, or when all power is removed, the MixPre-10T continues to hold accurate timecode for hours, long enough for lunch breaks and other pauses in the daily schedule. With its BNC, Aux, and HDMI timecode connections, all common frame rates and timecode modes are supported, as is the ability to synchronize with/output wordclock, making it suitable for the digital audio environment.

Flexible Powering

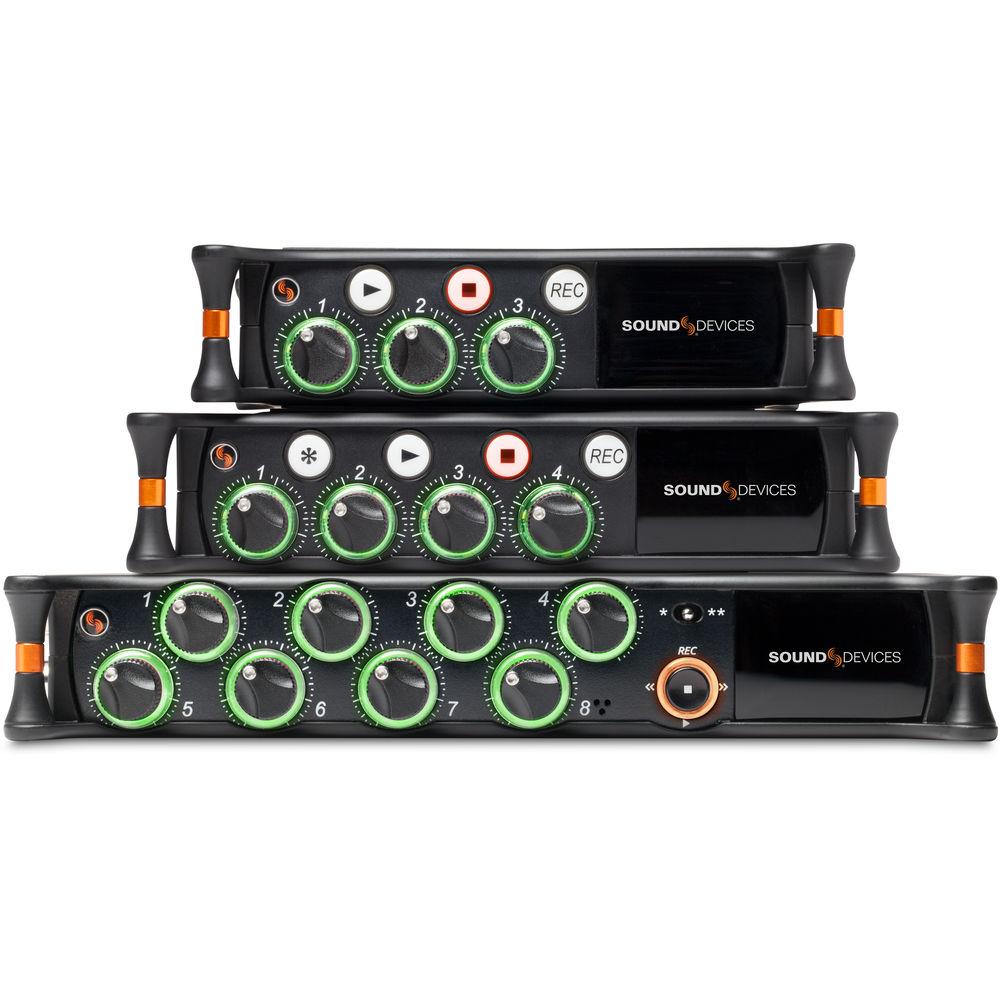

• The MixPre-10T sports multiple powering options, such as a locking 4-pin Hirose connector (10 to 18V) for external battery power, or AC power (with the optional AC adapter). Like the MixPre-3 & MixPre-6, the MixPre-10T can also be powered from AA batteries in a convenient detachable sled of eight cells, or via an optional sled that offers powering from up to two hot-swappable Sony L-Mount lithium-ion batteries.

Flexible I/O Routing

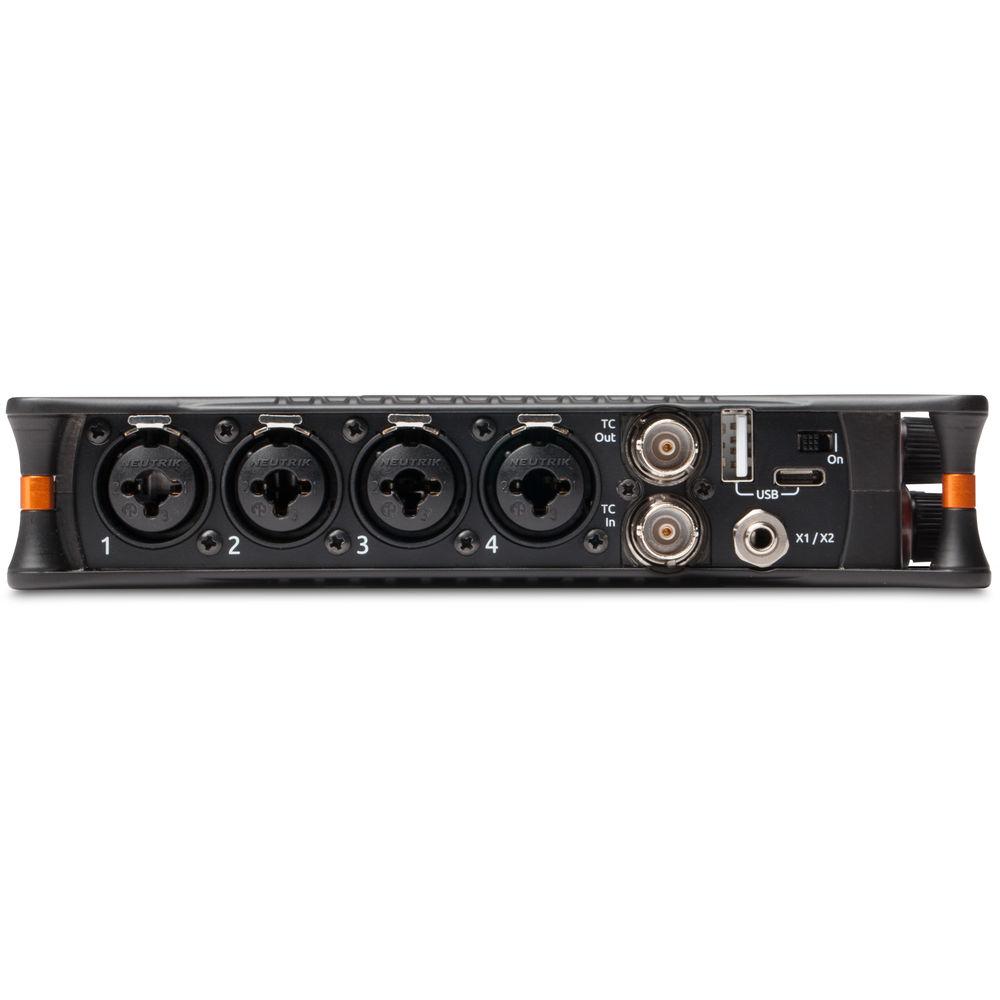

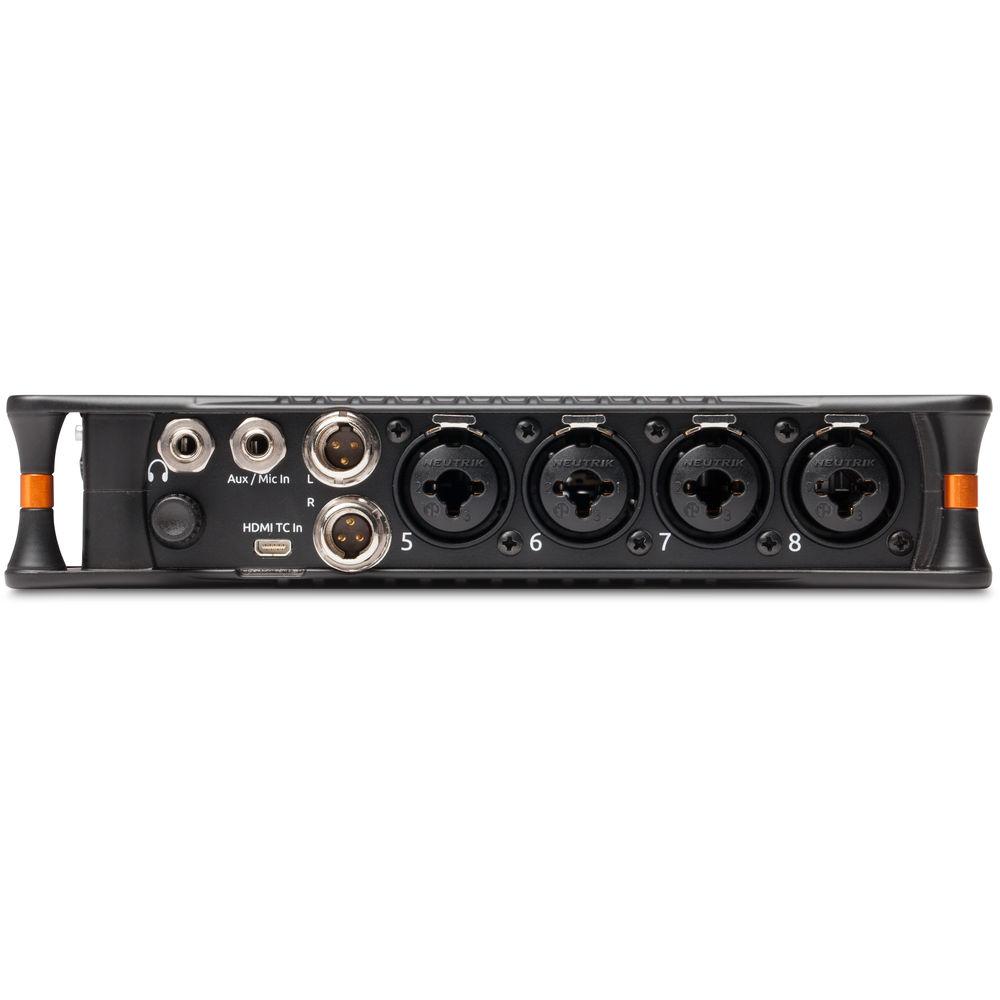

• The MixPre-10T offers eight XLR/TRS combo Mic/Line level inputs, as well as a 3.5mm Aux/Mic input that can be used for 2-channel line input, camera return, or timecode. Also provided are two TA3 balanced outputs and a 3.5mm Stereo output, each with its own routing matrix; this further bolsters routing flexibility.

Auto Copy
• With this feature, you can record files up to 192 kHz/24-bit to an SD card, while automatically copying to a USB thumb drive (USB Type-A) for handing off to a client (or as a backup copy).

Mixing, Metering, and Monitoring

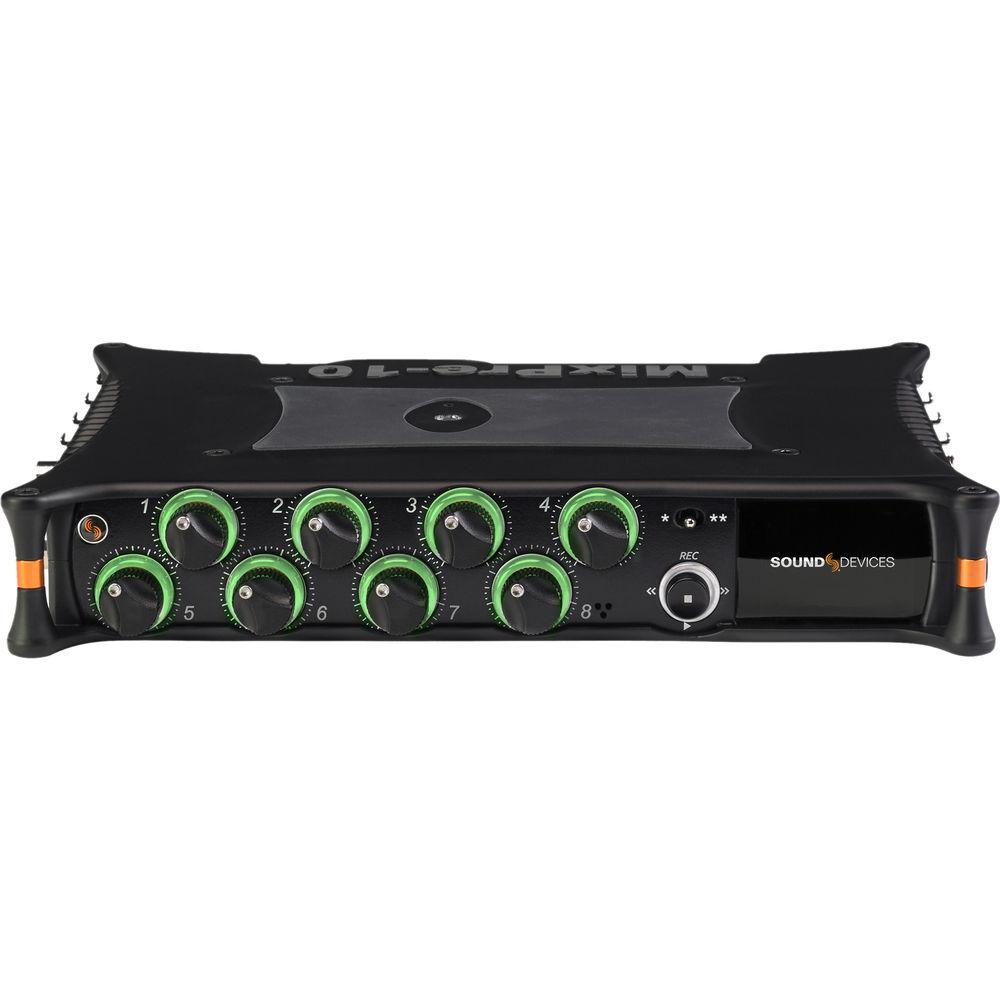

• The MixPre-10T incorporates a simple mixer that offers gain-control knobs and access to panning and soloing via a simple press of the knob. For metering, the unit provides easy-to-read ring LEDs with limiter activity, along with three LCD views for multitrack, mix, and USB-return metering. The MixPre-10T also includes a 3.5mm jack for headphone monitoring with user-programmable routing presets.

Ambisonics Integration
• Upon installation of the free Ambisonics plug-in (from the Sound Devices Plug-In Store), field recordists, game developers, and VR content creators will appreciate the support for simultaneous multi-format recording (AmbiX, FuMa, LR Stereo, and LR Binaural), real-time binaural/stereo monitoring, and A-Format, B-Format, and A- to B-Format conversion.

Wireless Control and Workflow
• The MixPre-10T features integrated Bluetooth Smart for easy wireless connection, control, and metering via the free Sound Devices Wingman app (compatible with iOS and Android devices). It also allows you to manage and create sound reports, and, via Wingman, email those reports directly from a mobile device.

USB Audio Interface
• The MixPre-10T doubles as a USB audio interface with 12 inputs and four outputs, communicating with computers at sample rates of up to 96 kHz. The unit also sports the ability to record to an SD card while simultaneously streaming audio via USB.

USB Control Surface Support
• Control fader, trim (gain), pan, low-cut filtering, reverb, record, stop, and more from the Korg nanoKONTROL Studio, Korg nanoKONTROL2, Akai MIDImix, or Novation Launch Control XL USB control surfaces (all available separately).

Upload User Manual

Please enter here the link to the user manual of this product: User manual for Sound Devices MixPre-10T Multi-Channel Audio Recorder can be downloaded below, so the upload option is not active. OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0% User manual for Sound Devices MixPre-10T Multi-Channel Audio Recorder can be downloaded below, so the upload option is not active.

Download User Manual

Download PDF User Manual - Sound Devices MixPre-10T Multi-Channel Audio Recorder (PDF file, 0 MB)

Technical parameters

Sound Devices MixPre 10T Specs

Frequency Response

10 Hz to 80 kHz Rating 92% users recommend this product to others. And what about you? This product has already been rated by 39 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
