Product description - Introducing the MixPre-3M & MixPre-6M Multitrack Recorders for Musicians
Putting their Kashmir microphone preamp technology in a more musician-friendly package, the Sound Devices M-Series MixPre-3M is a multi-channel recorder and USB interface. It's designed to be a studio-grade, portable solution for musicians and singer/songwriters. You can use it to capture stray moments of inspiration, or small rehearsals and live performances.

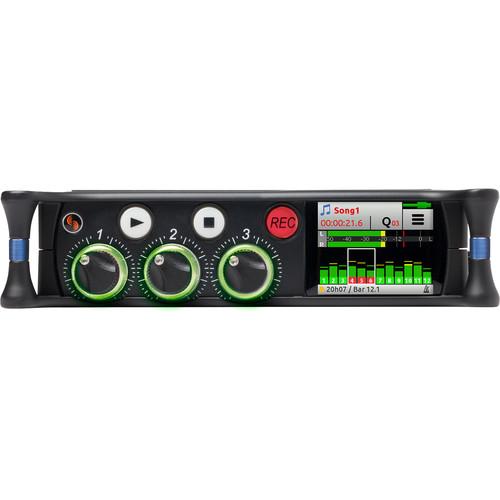

The M-Series is geared towards the musician with its touch-screen interface, allowing you to quickly get vocal melodies, instrumental hooks, and rhythms down. Use the built-in reverb and vocal air effects allow you to add character to the sound of instruments and vocals. The bounce feature can be used to free up tracks to allow the layering of more instruments or for rendering in effects. After laying and overdubbing tracks, musicians can mix their song using dedicated knobs to control levels, pans, solos, and mutes, allowing you to create a mix without hooking the device up to a computer. Render recordings for uploading to website/social media, sharing with band members or exporting to a DAW for further production.

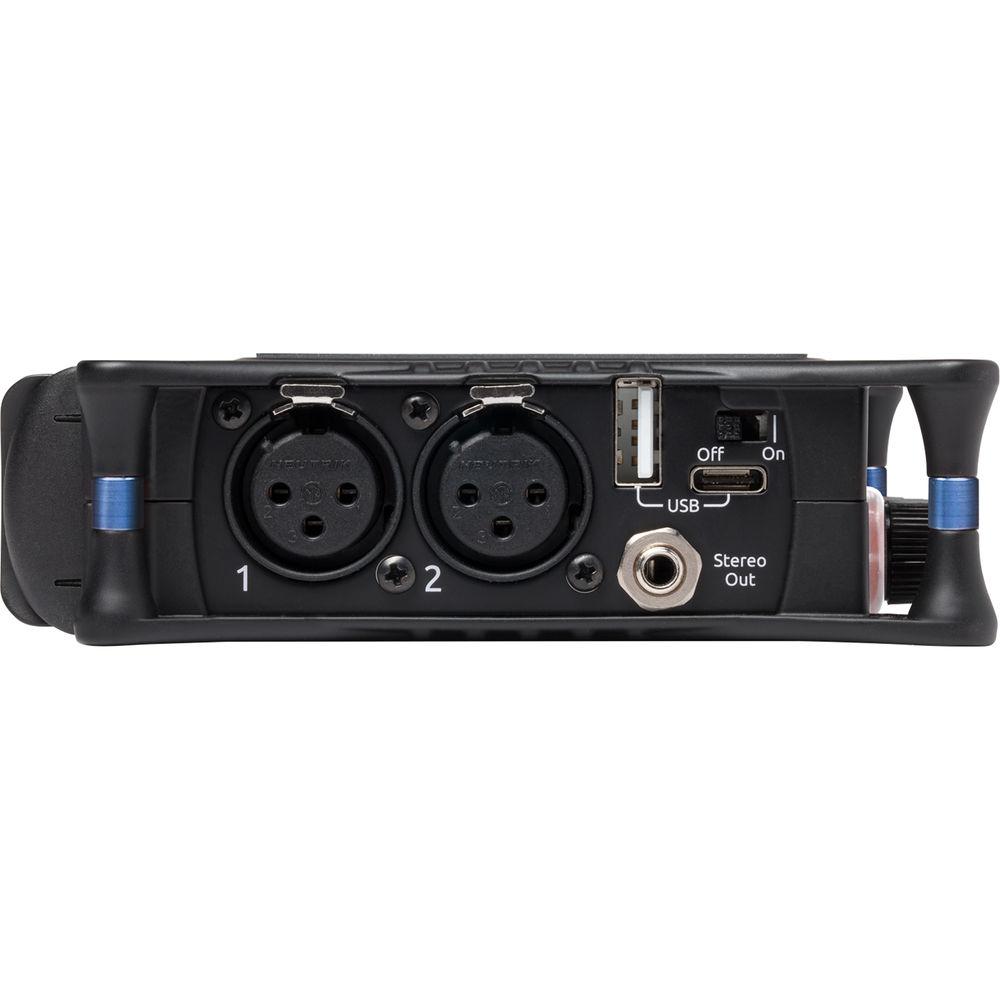

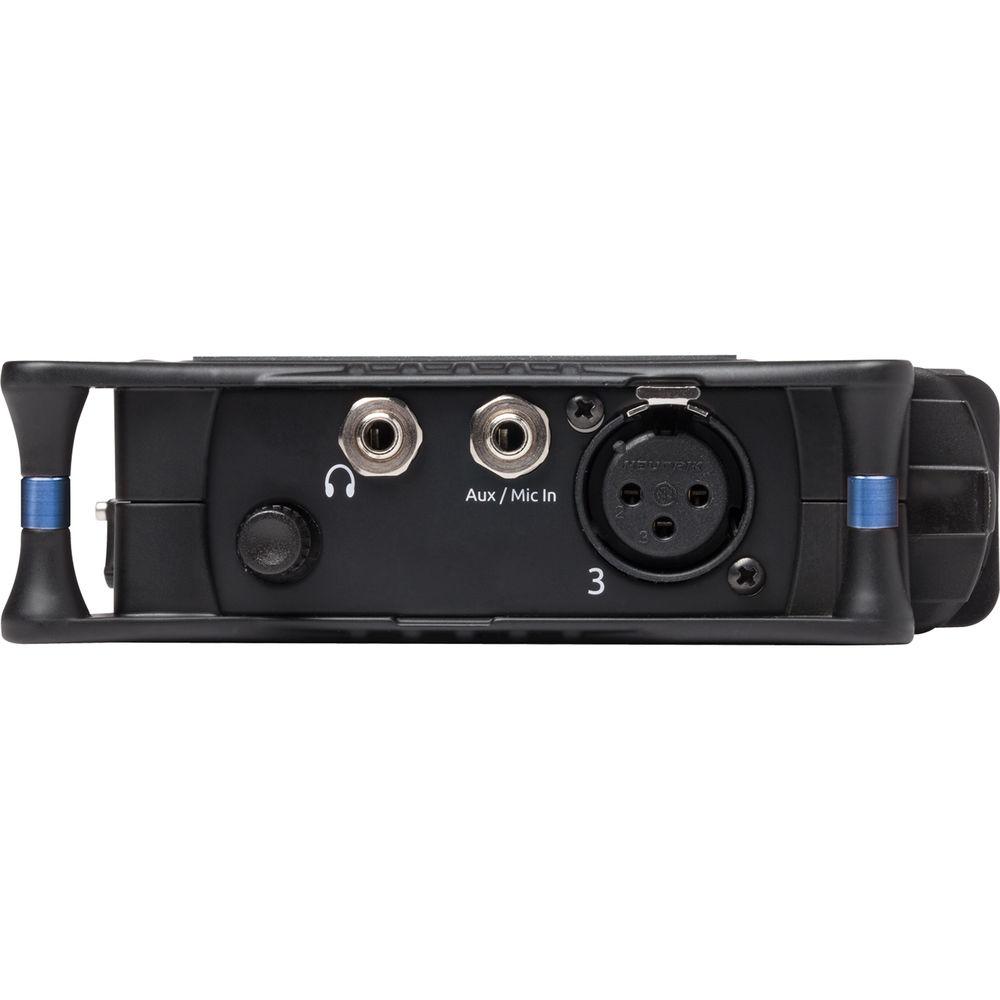

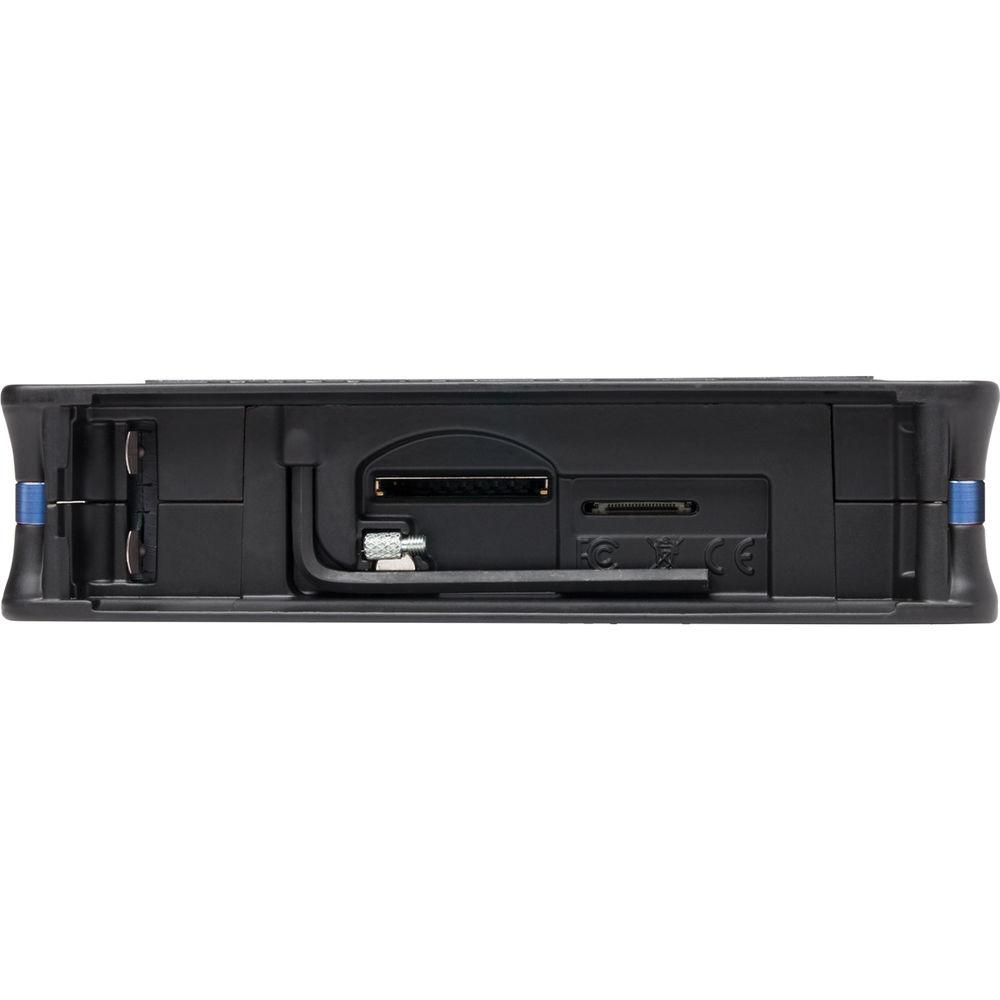

The interface provides 3 XLR inputs, as well as a 3.5mm stereo input that's suitable for use with plug-in power microphones or stereo line sources. 3.5mm jacks are on hand for both unbalanced and headphone outputs. Comprehensive metering is made possible by an easily-readable LCD screen and LED backlit buttons. With card slots for SD, SDHC, or SDXC, you'll have plenty of space to record straight to the device—or to load/save user setups (as this is a digital mixer with a digital patch bay to boot, you can route sound through it in all sorts of ways).
Vocal Air and Reverb effects are offered, as are gain, pan, and fader controls. 48V phantom power is built-in for your condenser microphones, and a variable low-cut is provided to round off lows from 40 to 160 Hz. With analog input limiters and digital output limiters, you can minimize clipping distortion.
The unit sports a die-cast aluminum chassis with a 1/4"-20 thread for mounting. You can power this unit via the included MX-4AA battery sled (which accepts 4 AA batteries), or with the included MX-PSU, which connects to the unit via USB-C. - Recording
-
- Recording Media: SD, SDHC, SDXC
- Tracks: 12 (with overdub)
- Max Sampling Rate: 96 kHz
- Max Bit Depth: 24-bit
- Audio File Format: WAV Mono, AAC, or Stereo WAV (render)
- Playback Audio Scrub: 1/8x to 16x (FFWD and REW)
- Music Creation Tools
-
- Overdub
- Reverb and Vocal Air effects
- Punch in/out
- Bouncing
- Cue points
- Metronome
- Render (export) stereo mix (WAV or AAC) or multichannel (WAV)
- USB Audio Streaming
-
- 5 in / 2 out from Mac or Windows with ASIO driver
- Mixer
-
- Simultaneous recording, mixing, and USB audio streaming
- 3 x XLR inputs with Kashmir preamps
- 1 x stereo 3.5mm input (for plug-in-power microphones and 2-channel line-inputs)
- 48V phantom power
- Low-cut filter: 40 to 160 Hz, 18 dB/oct
- Analog input limiters
- Digital output limiters
- Pair linking in groups of two from 1-2 to 11-12
- Input gain, pan, and fader controls
- Polarity inversion
- Input solo
- 3.5mm unbalanced stereo output
- 3.5mm headphone output
- User-programmable headphone presets
- LCD metering
- Multi-color ring LED metering
- Onboard tone generator
- Control Interface
-
- Sunlight-readable touchscreen
- Ergonomic channel knobs
- Backlit button transport controls
- Load/Save User Setups: 4 internal, unlimited to SD card
- USB Control Surface Support
-
- Control fader, trim (gain), pan, low-cut filtering, reverb, record, stop, and more from the Korg nanoKONTROL Studio, Korg nanoKONTROL2, Akai MIDImix, or Novation Launch Control XL USB control surfaces (all available separately)
- Bluetooth Remote Control
-
- Sound Devices Wingman, which is a free downloadable app for iOS/Android devices, communicates with your MixPre-3M via Bluetooth Smart to give touchscreen access to high-resolution meters, record/stop/play operations, track naming/arming, and more
UPC: 854454006404 In the Box Sound Devices MixPre-3M Recorder & USB Audio Interface for Musicians MX-4AA Battery Sled MX-PSU (Wall Power Supply with USB-C) Limited 1-Year Warranty (Extendable to 2 Years upon Registration) Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Sound Devices MixPre-3M Recorder & USB Audio Interface for Musicians in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Sound Devices MixPre-3M Recorder & USB Audio Interface for Musicians can be downloaded in PDF format at the link stated below.
Technical parametersSound Devices MixPre-3M Specs | | | Number of Tracks | 12 | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | Built-In Speaker | No | | Display | LCD | | Memory Card Support | SD, SDHC, SDXC | | | | Signal Processing | Limiter, Output Limiting | | Timecode | No | | | | Analog I/O | 3 x XLR 3-Pin Input
1 x 1/8" / 3.5 mm Aux/Mic Input
1 x 1/8" / 3.5 mm TRS Headphone Output
1 x 1/8" / 3.5 mm TRS Unbalanced Output | | Host Connection | 1 x USB Type-A
1 x USB Type-C | | | | Power Options | Batteries, USB Bus Power | | Battery Type | 4 x AA
8 x AA (Requires Optional Equipment)
2 x L Series (Requires Optional Equipment, Hot-Swappable) | | | | Mounting Options | 1/4"-20 Female | | Dimensions | 5.7 x 4.4 x 1.4" / 144.0 x 110.0 x 36.0 mm | | Weight | 16.8 oz / 0.5 kg | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 10.4 x 7.3 x 4.1" |
