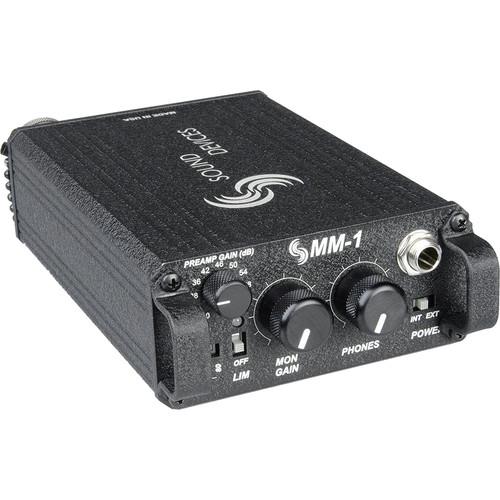

User Manual for Sound Devices MM-1 Single Channel Portable Microphone Preamp Click to enlarge the picture
Contents of the user manual for the Sound Devices MM-1 Single Channel Portable
- Product category: Field Mixers Sound Devices
- Brand: Sound Devices
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sound Devices Field Mixers
 |
User manual for the Sound Devices MM-1 Single Channel Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sound Devices product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sound Devices user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sound Devices product will considerably shorten its lifespan!
|

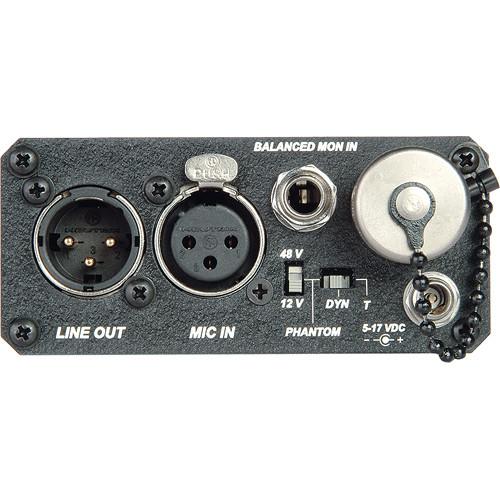

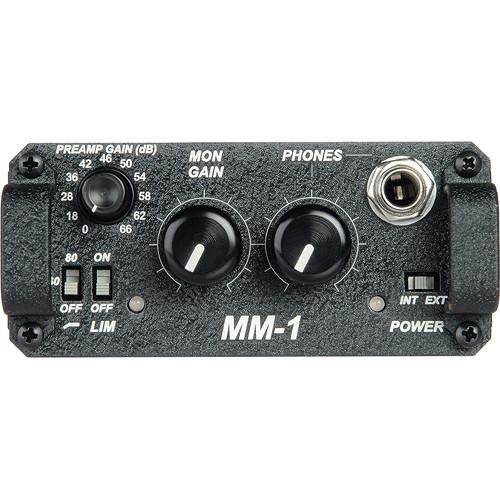

Product description The Sound Devices MM-1 is a single-channel, portable microphone preamp and headphone monitor designed for monitoring sound for film (boom operators), broadcast and ENG, field recording, voice-over work, and corporate/industrial environments. The mic preamp features exceptional audio quality, with a dynamic range exceeding 120 dB and an audio bandwidth from 10 Hz to 50 kHz.The balanced XLR microphone input provides user-switchable +48V, 12V, and 12V-T phantom power. A separate balanced monitor input accepts balanced or unbalanced line-level signal. The 1/4" TRS headphone output is capable of monitoring microphone signal, external line level signal, or a mix of both. A 3-position low-cut filter switch eliminates noise below 80 Hz and 160 Hz. The compact unit features a belt clip and is powered with 2 AA batteries or an external DC power source. - Compact & Portable
- The MM-1 microphone preamp is compact, lightweight, and features a belt clip, allowing comfortable operation for field audio engineers
- Versatile Monitoring
- A separate input accepts line-level signal and the headphone output is capable of monitoring the mic input signal, line input signal, or a mix of both
- Peak Limiter
- Peak limiter eliminates noise and distortion caused by signal overload
- Low Cut Filter
- A 3-position low-cut filter switch eliminates noise at the 80 Hz and 160 Hz frequency ranges
- Superior Audio Quality
- The transformer-balanced mic input and premium electronics yield a dynamic range exceeding 120 dB with a 10 Hz to 50 kHz audio bandwidth
UPC: 859108005420 In the Box Sound Devices MM-1 Single Channel Portable Microphone Preamp 4 x Rubber Feet Limited 2-Year Warranty User Manual PDF 881.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sound Devices MM-1 Single Channel Portable Microphone Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSound Devices MM-1 Specs | Inputs | 1 x 3-Pin XLR Female mic input | | Output | 1 x 3-Pin XLR Male line output | | Monitor/Headphone Out | 1 x 1/4" / 6.3 mm TRS phone | | ALT I/O | 1 x 1/4" / 6.3 mm monitor in | | Link Input/Output | No | | Impedance | Mic In: 2 kOhms
Monitor In: 22 kOhms
Line Out: 130 Ohms
Headphone Out: 200 Ohms | | Gain | 0 to 66 dB, selectable | | Hum & Noise | -126 dBu (EIN) | | Frequency Response | 20 Hz - 20 kHz (+0.1, -0.5 dB) | | Distortion | 0.05% | | Metering | Power and limiter/peak LEDs | | Control Voltage Out | No | | Phantom Power | +48 V, +12 V, and +12 V-T | | Operating Temperature | Not Specified by Manufacturer | | Power | 2 x AA batteries
5 - 17 VDC via threaded coaxial jack | | Dimensions (HxWxD) | 1.95 x 3.75 x 6.55" / 49 x 95 x 166 mm | | Weight | 1.42 lb / 0.64 kg | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 10.787 x 7.48 x 4.961" |
