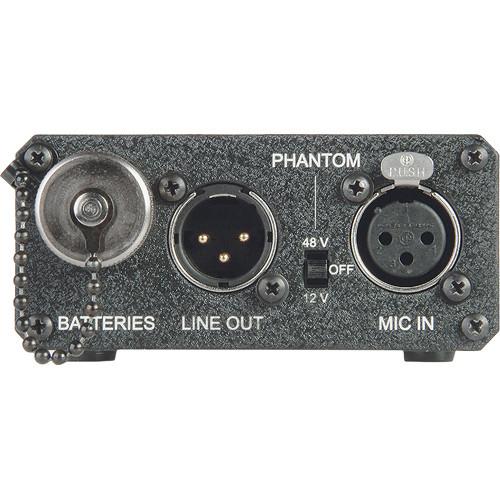

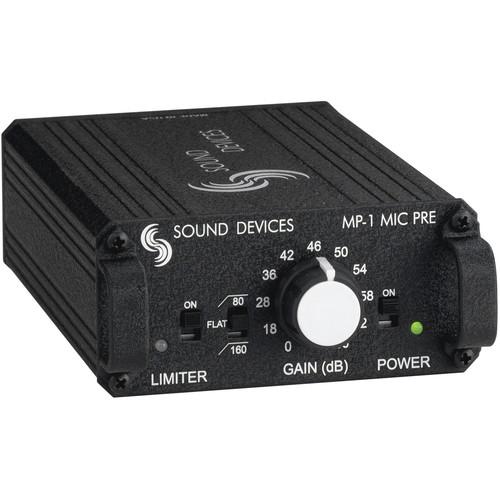

Product description Designed for high-definition field production applications, the Sound Devices MP-1 is a single channel microphone preamp that delivers studio grade audio in a portable, lightweight package. The unit features a transformer balanced XLR microphone input and line level output resulting in high gain and low noise floor. A large gain adjustment dial provides up to 66 dB of gain in eleven discrete steps. A 3-position phantom power switch enables 12V or 48V phantom power for condenser microphones. A low-cut filter switch eliminates noise due to wind and proximity effect at 80 Hz or 160 Hz (user switchable). Peak limiter switch moderates signal peaks, eliminating distortion due to signal over load. The MP-1 is powered with 2 AA batteries for approximately 24 hours. - Transformer Balanced I/O
- The MP-1 features a transformer balanced XLR microphone input and line level output resulting in high gain and low noise floor.

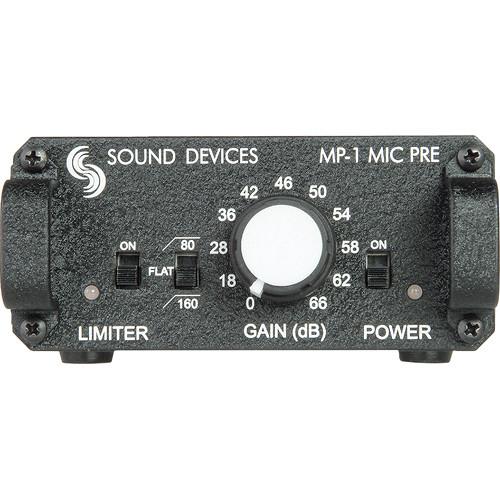

- Variable Gain
- A large gain adjustment dial provides up to 66 dB of gain in eleven discrete steps.
- Compact & Portable
- The unit measures approximately 3" wide and 5" in depth and operates on 2-AA alkaline batteries for up to 24 hours (typical).
- Peak Limiter & Low-Cut Filter
- Peak limiter switch moderates signal peaks, eliminating distortion due to signal over load. A low-cut filter switch eliminates noise due to wind and proximity effect at 80 Hz or 160 Hz (user switchable).
UPC: 020709341013 In the Box Sound Devices MP-1 - Single Channel Portable Microphone Preamplifier Limited 2-Year Warranty User Manual PDF 220kbbzvcazvuffzqfyacfqyeefuucxxr Table of Contents
|
Upload User Manual
Have you got an user manual for the Sound Devices MP-1 - Single Channel Portable Microphone Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSound Devices MP-1 Specs | Inputs | 1 - XLR 3-pin female, transformer-balanced | | Output | 1 - XLR 3-pin male, transformer-balanced | | Monitor/Headphone Out | No | | ALT I/O | No | | Link Input/Output | No | | Impedance | Input: 2000 Ohms
Output: 130 Ohms | | Gain | 0 dB to 66 dB input to output, switch selectable | | Hum & Noise | EIN: -126 dBu (-128 dBV) max
150 Ohms source, flat weighting, 22 Hz - 22 kHz bandwidth, gain setting 36 dB or greater) | | Frequency Response | 20 Hz - 22 kHz, +0.1, -0.5 dB, -1 dB at 50 kHz
(relative to 1 kHz level with 150 Ohms source) | | Distortion | 0.05% max.
(from 60 Hz to 22 kHz @ +4 dBu output level, 22 Hz - 22 kHz filter bandwidth, +46 dB gain setting) | | Metering | Power LED
Green: Indicates power and full battery Red: Indicates power and low battery - red status indicates 4 hours of battery life remain | | Control Voltage Out | No | | Phantom Power | +48 V & +12 V | | Operating Temperature | 0 to 70 degrees C (32 to 1 degrees F) | | Power | 2-AA alkaline batteries
24 hours life typical with +4 dBu signal into 600 Ohms, no phantom power | | Dimensions | 1.7 x 3.7 x 5.5" (43 x 94 x 140 mm) (HxWxD) | | Weight | 1.24 lbs (0.56 kg) | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 10.7 x 7.3 x 5.0" |
