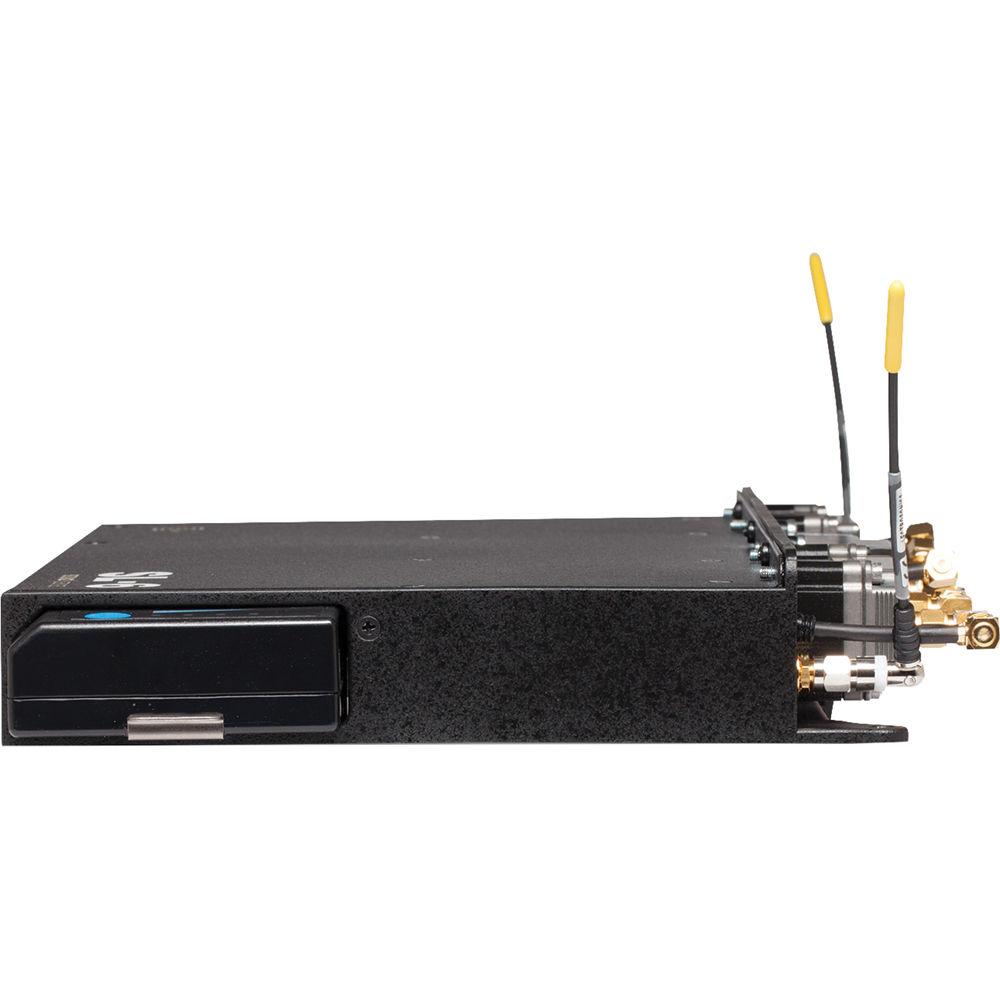

Product description Designed to provide power and simplified wireless interconnection for their 688 field mixer, the SL-6 Powering and Wireless System for 688 Field Mixer from Sound Devices features an NP1 battery slot (battery not included), two 12V isolated outputs, a USB charging port, and two non-isolated direct battery outputs. It incorporates Sound Devices' SuperSlot wireless connectivity system, and supports models from Audio Ltd, Lectrosonics, and Wisycom. - Powering

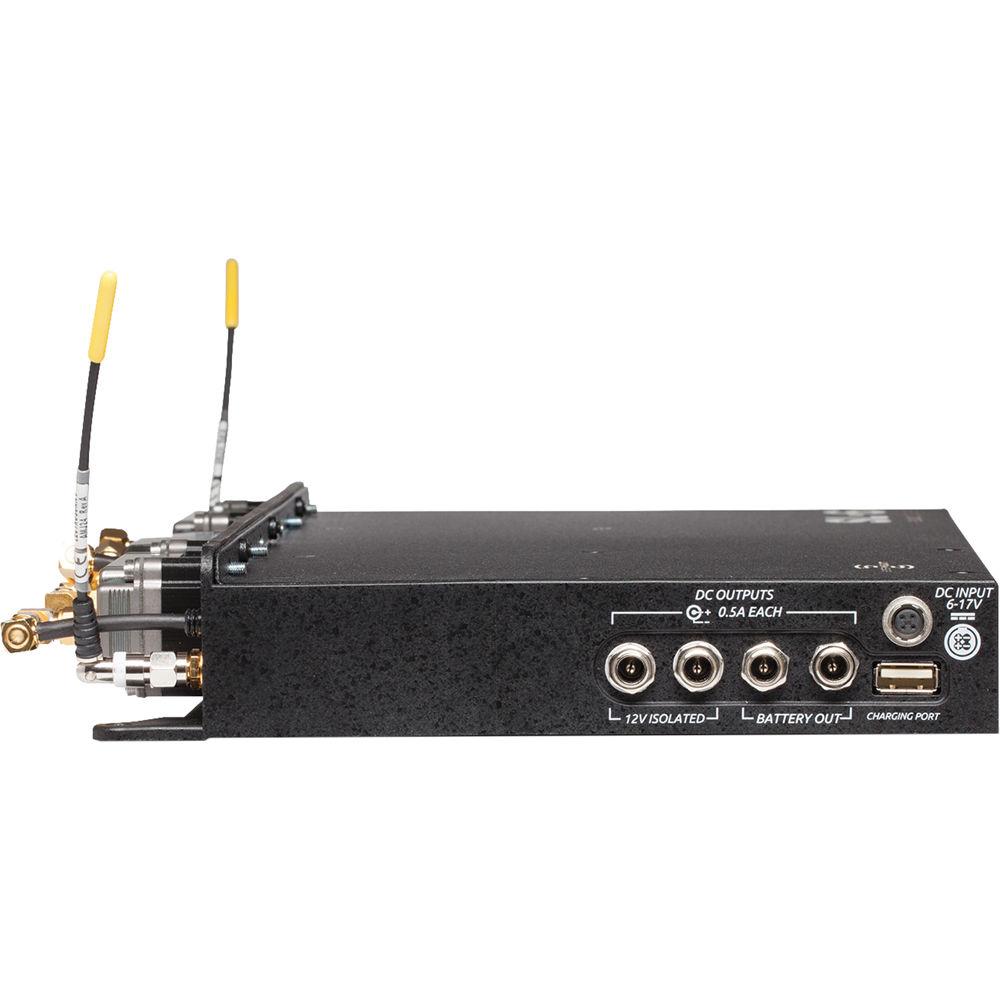

- With its NP1 battery slot, USB charging port, two 12V isolated outputs, and two non-isolated direct battery outputs, the SL-6 is a powering hub for peripheral devices in a sound mixer's bag
- SuperSlot
- A non-proprietary, open wireless control and interfacing standard, SuperSlot was developed by Sound Devices, and is the result of its collaboration with a number of wireless manufacturers including Audio Ltd, Lectrosonics, Sennheiser, and Wisycom. The standard allows for all powering and audio interconnection, plus control and monitoring between SuperSlot-compatible mixers and receivers
-

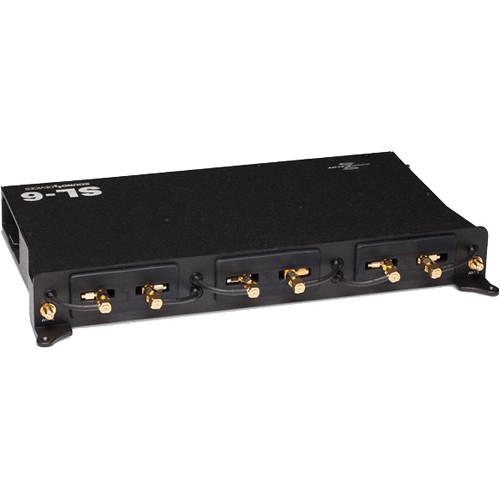

- Accepts three dual-channel slot-in wireless receivers for a total of six channels
- Compatible with existing slot-in and new SuperSlot wireless receivers
- Ability to set SuperSlot-compatible receiver frequency and power on/off from the 688
- Ability to monitor SuperSlot-compatible receiver battery, audio, and RF levels from the 688
- Accepts analog or digital audio depending on wireless receiver
- Built-in antenna signal distribution
- NP-1 battery slot for powering 688, receivers, and external peripherals
- USB charging port
- Two 12V isolated outputs
- Two non-isolated direct battery outputs
- PowerSafe 10-second power reserve
- Easy to attach to the 688
UPC: 859108005239 In the Box Sound Devices SL-6 Powering and Wireless System for 688 Field Mixer Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sound Devices SL-6 Powering and Wireless System for 688 Field Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSound Devices SL-6 Specs | Compatibility | Audio Ltd En2 CX2-P: SL-6 audio and powering compatible
Lectrosonics SRa: SL-6 audio and powering compatible, SuperSlot compatible with SRb & audio board updates from Lectrosonics
Lectrosonics SRb: SL-6 audio and powering compatible, SuperSlot compatible with audio board update from Lectrosonics
Wisycom MCR42: SL-6 audio and powering compatible, SuperSlot compatible with SLK42 rear-panel adapter | | | | Package Weight | 4.35 lb | | Box Dimensions (LxWxH) | 16.1 x 10.9 x 5.3" |
