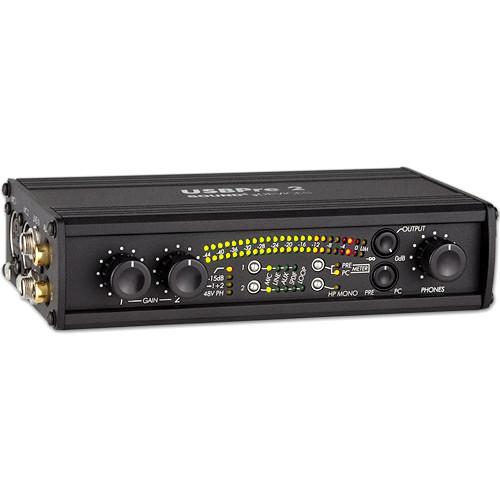

User Manual for Sound Devices USBPre 2 - Microphone Interface for Computer Audio Click to enlarge the picture
Contents of the user manual for the Sound Devices USBPre 2 - Microphone
- Product category: Audio Interfaces & Systems Sound Devices
- Brand: Sound Devices
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sound Devices Audio Interfaces & Systems
 |
User manual for the Sound Devices USBPre 2 - Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sound Devices product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sound Devices user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sound Devices product will considerably shorten its lifespan!
|
Product description The USBPre 2 from Sound Devices is a high-resolution, portable interface that connects professional microphones, line-level sources, consumer audio electronics and S/PDIF digital sources with Mac OS X and Windows computers via USB. The unit includes two discrete-transistor microphone preamps with 24-bit converters and sampling rates up to 192 kHz. The preamp topology is shared with the company's premier 744T digital audio recorder and includes peak limiters, high-pass filters, and a 15 dB pad for overload protection.The interface is a class-compliant audio device, allowing for simple plug-and-play connection to computers running Mac OS X, Windows and Linux operating systems. There are no drivers to install and no software-only features, with all additional controls and settings available on back panel DIP switches. The USB port also provides power to the unit, both when connected as an audio interface and when used in stand-alone operation. All analog-to-digital and digital-to-analog conversion is performed by the USBPre 2.When used in stand-alone mode, the unit operates as a high-quality, portable microphone preamplifier and analog-to-digital converter. Incoming digital signals are converted to analog and available at the headphone, XLR and RCA outputs. This mode is a great option when an additional microphone preamplifer, A-D converter, or D-A converter is required.The unit includes numerous output connection types, including balanced microphone or line level on XLR, unbalanced consumer line-level on RCA, S/PDIF coaxial (RCA) and optical (TOSLink). The outputs have their own, dedicated front-panel level control. The USBPre 2 includes an accurate 23-segment, multi-color LED meter for precise level indication. The meter is switchable between input and output signal metering. The meter indicates both VU and peak (PPM) ballistics.The interface is designed to stand up to the most demanding environments. Its extruded aluminum chassis and panels, machined knobs, metal connectors, and laser-etched nomenclature are designed to hold up to years of abuse. - Extended bandwidth, low-noise microphone preamplifiers with 48V phantom power, limiters, high-pass filters, and 15 dB pad
- Dynamic range greater than 114 dB (in 24-bit operation)
- Flat 10 Hz to 40 kHz (@ 96 kHz SR) audio bandwidth with very low distortion characteristics
- Each input individually selectable between microphone, line and aux level signals (both channels selected simultaneously for S/PDIF connections)
- Precision, 23-segment, multicolor LED peak/VU meter, selectable between input and output sources
- High-output headphone amplifier can drive a wide range of headphones

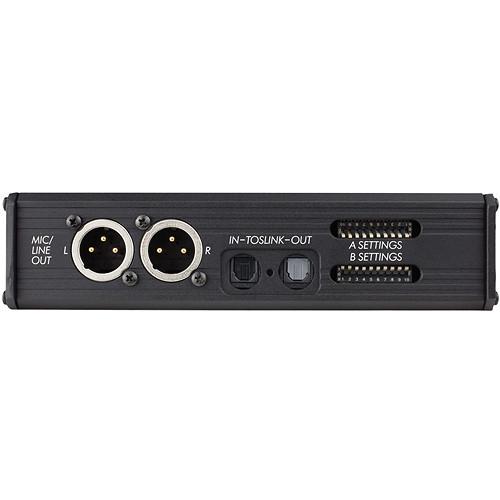

- Balanced outputs on XLR connectors with dedicated level control can be used to drive line or microphone level inputs
- Mix control enables zero-delay monitoring of source audio, computer audio, or a mix of both source and computer audio for multitrack recording or computer telephony

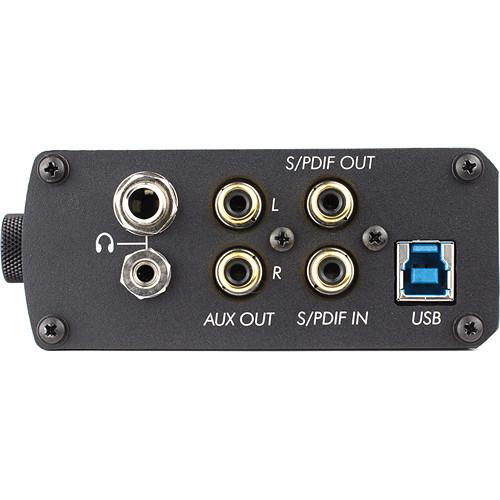

- Phono (RCA) jacks connect Aux Output to external loudspeakers or preamplifiers
- Bus powering via USB for convenient, single-cable connection to the computer
- In standalone mode the USBPre 2 operates as a microphone preamplifier and analog-to-digital converter
- Hardware loop-through for test and measurement to send computer audio directly back to an input
- High-strength extruded aluminum chassis
- Mac OS X 10.4+, Windows XP, Vista, Windows 7, and Linux class-compliant audio device
- Additional features controlled by hardware DIP switches on the back panel - no software only features and no control panel
UPC: 859108005505 In the Box Sound Devices USBPre 2 - Microphone Interface for Computer Audio USB Cable Rubber Feet Limited 2-Year Warranty User Manual PDF 1.3mbecvtscauvcxzbddwyq Table of Contents
|
Upload User Manual
Have you got an user manual for the Sound Devices USBPre 2 - Microphone Interface for Computer Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

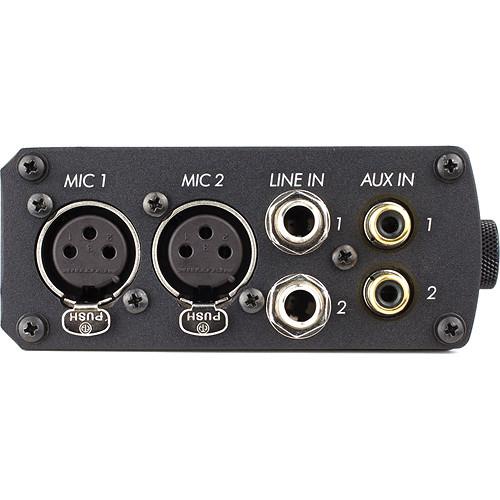

Technical parametersSound Devices USBPre 2 Specs | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | Display and Indicators | 2 x Multi-Segment LED Meter | | | | Host Connection | USB Type-B (USB 2.0) | | Analog I/O | 2 x XLR 3-Pin Mic Input
2 x 1/4" (6.3 mm) TRS Line Input
2 x RCA Aux Input
1 x 1/4" (6.3 mm) TRS Headphone Output
1 x 1/8" (3.5 mm) TRS Headphone Output
2 x XLR 3-Pin Mic/Line Output
2 x RCA Aux Output | | Phantom Power | +48 V | | Digital I/O | 1 x TOSLINK / S/PDIF Input
1 x TOSLINK / S/PDIF Output
1 x RCA Coaxial / S/PDIF Input
1 x RCA Coaxial / S/PDIF Output | | MIDI I/O | None | | | | Frequency Response | 10 Hz to 40 kHz
