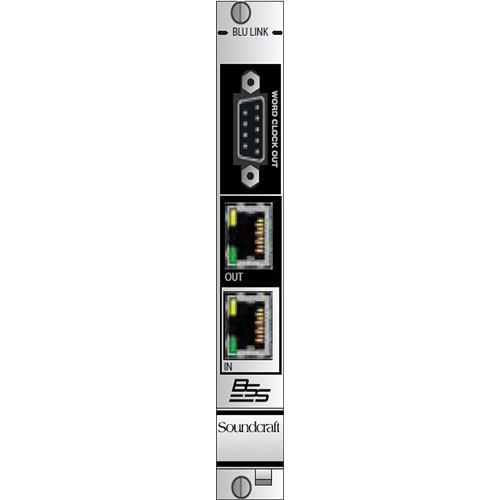

User Manual for Soundcraft BLU LINK CARD for VI Stageboxes and Local Racks Click to enlarge the picture
Contents of the user manual for the Soundcraft BLU LINK CARD for VI
- Product category: DSP Accelerators Soundcraft
- Brand: Soundcraft
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Soundcraft DSP Accelerators
|
User manual for the Soundcraft BLU LINK CARD for VI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Soundcraft product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Soundcraft user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Soundcraft product will considerably shorten its lifespan!
|
Product description The Soundcraft BLU LINK CARD for VI Stageboxes and Local Racks provides 32 audio inputs and 32 outputs of I/O expansion to and from a BSS BLU LINK ring, allowing the stagebox or local rack to interface with BSS London networked audio systems or to a PMC Personal Monitoring Controller.
A BLU LINK redundant ring enables up to 256 channels. The BLU LINK CARD features internal DIP switches that allow for a block of 32 sequential channels from the available 256 channels to be addressed by the card as separately selectable inputs and outputs.
The card can be set to function as either a clock master or a clock slave depending on the requirements of the application and system setup. When functioning as a clock slave, an included jumper cable must be connected from the card's wordclock output to the VI console's wordclock input. In the Box Soundcraft BLU LINK CARD for VI Stageboxes and Local Racks Wordclock Jumper Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundcraft BLU LINK CARD for VI Stageboxes and Local Racks in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundcraft Blu Specs | I/O | 32 audio inputs
32 audio outputs | | Interface | BSS BLU LINK ring
PMC Personal Monitoring Controller | | Connectors | 1x BLU LINK input
1x BLU LINK output
1x Wordclock on D-Sub | | Compatibility | Vi Stagebox
Local Rack/CSB | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer |
