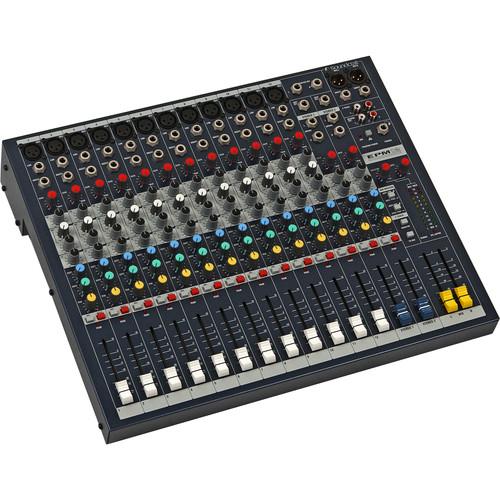

User Manual for Soundcraft EPM 12 - 12 Mono 2 Stereo Audio Console Click to enlarge the picture
Contents of the user manual for the Soundcraft EPM 12 - 12 Mono
- Product category: Sound Reinforcement Mixers Soundcraft
- Brand: Soundcraft
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Soundcraft Sound Reinforcement Mixers
|
User manual for the Soundcraft EPM 12 - 12 Mono contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Soundcraft product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Soundcraft user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Soundcraft product will considerably shorten its lifespan!
|

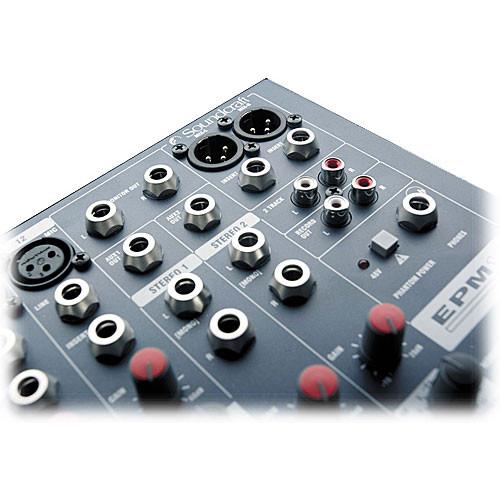

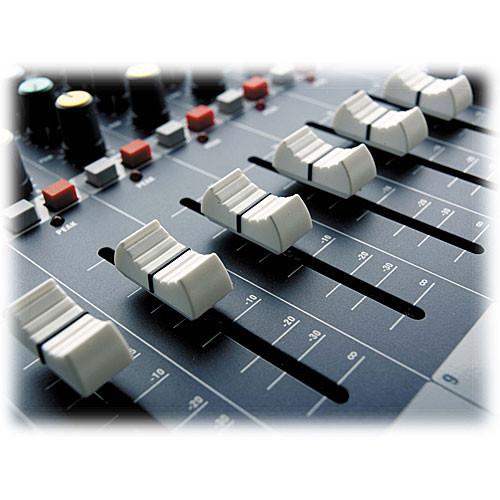

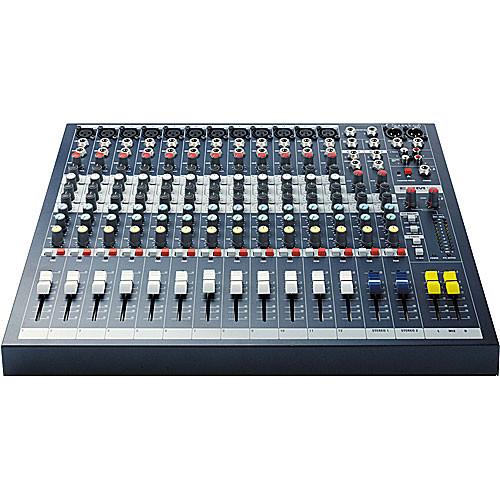

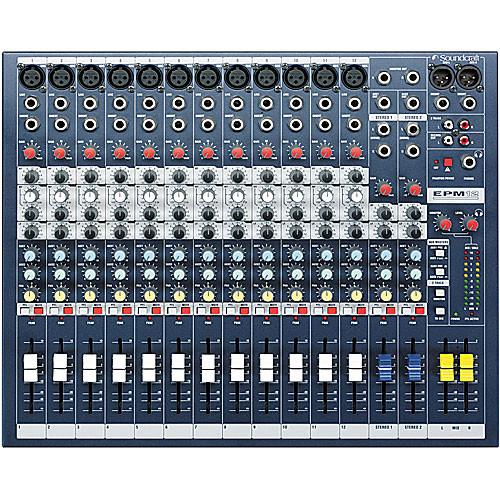

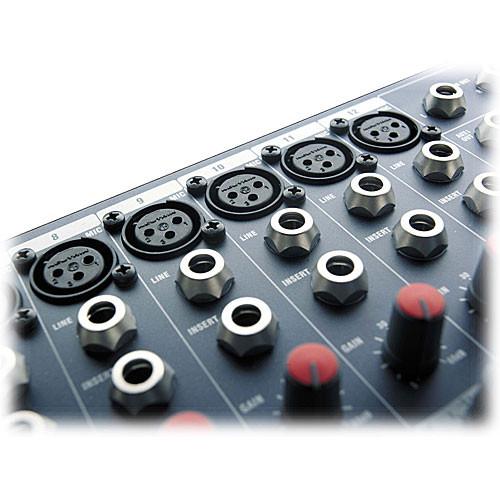

Product description The Soundcraft EPM Series provides a straight-forward, yet professional alternative to complex audio mixers. Constructed in a 6-, 8- or 12-channel chassis, the EPM mixers are well-suited for recording and sound reinforcement applications.The EPM 12 features 12 mono and 2 stereo input channels providing the flexibility needed to accommodate the recording studio, venue or touring musician. All mono inputs feature 1/4" phone line and balanced XLR microphone inputs. The famed GB30 microphone preamps provide the quiet, detailed signal synonymous with Soundcraft's large FOH consoles. The stereo inputs provide L/R 1/4" phone connections and are ideal for connecting stereo devices such as keyboards, returning effects, etc. The EQ section features a sweepable mid-range on all mono channels and provides smooth frequency contouring. Inserts on all mono channels and stereo output enable signal routing to external signal processors. The compact profile, rich sound quality and flexibility of the EPM Series provides everything necessary for use in project recording, video editing, night clubs, bars, meeting halls, houses-of-worship, and more. - 12 Mono and 2 Stereo Channels
- The EPM 12 features 12 mono microphone and line input channels, 2 stereo inputs feature L/R 1/4" phone connections
- Comprehensive Controls
- The comprehensive layout is designed to attract users who require a straight-forward mixing environment
- GB30 Microphone Preamplifiers
- All 12 mono inputs feature Soundcraft's GB30 microphone preamps for quiet, clean large-format FOH console quality
- Compact and Professional
- The EPM Series consoles pack a professional feature set in a compact, mobile enclosure
UPC: 688705210490 In the Box Soundcraft EPM 12 - 12 Mono + 2 Stereo Audio Console Limited 1-Year Warranty User Manual PDF 6.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundcraft EPM 12 - 12 Mono 2 Stereo Audio Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundcraft EPM 12 Specs Total # Of Inputs | 12x Mono 2x Stereo | Mic/Line Inputs | 12x Line Mono: 1/4" TRS Phone 2x Line Stereo: L/R 1/4" TRS Phone 12x Microphone: 3-pin XLR | Stereo Line Inputs | 2x Stereo: L/R 1/4" TRS Phone | In-Line Inputs/Returns | No | AUX Sends | 2x Aux Sends | AUX Returns | No dedicated returns | Inserts | 1/4" TRS Phone - Mono Inputs, Main Stereo Output | BUS (Group) Outputs | Stereo Output Only | 2 Trk Master I/O | Mix L/R: Stereo Paired L/R RCA Phono | ALT I/O | No | Monitor Outputs | Monitor: L/R Stereo Paired 1/4" TRS Phone | EQ Section | Mono Inputs +/- 15 dB Lo: 80 Hz Mid: 150 Hz - 3.5 kHz (swept) Hi: 12 kHz Q: 1.5 Stereo Inputs +/-15 dB Lo: 80 Hz Mid: 720 Hz Hi: 12 kHz | Solo/Mute | All Input Channels | Channel Level Control | 100 mm Faders | Trim/Gain Control | Rotary Potentiometers | Phantom Power | +48 V Phantom | Metering | 10-Segment L/R Peak LEDs +48 V Phantom Power LED PFL Active LED Power Indicator LED | Frequency Response | 20 Hz to 20 kHz +/-1.5 dB | Dynamic Range | Not specified by manufacturer | Signal-to-Noise Ratio | Noise (22 Hz - 22 kHz measurement bandwidth) Mic EIN @ max gain, 150 ohms source impedance -127 dBu Mix @ max, faders to down <-85 dBu | Total Harmonic Distortion (THD) | Mic sensitivity 30 dB, +14 dBu @ mix output: <0.02% | Power Supply | Integral lightweight switched-mode PS AC mains supply: 85-270 V AC, 50/60 Hz universal input Power Consumption: Less than 20 W | Dimensions (W x H x D) | 17 x 3.56 x 14.25" (432 x 90.5 x 362 mm) | Weight | 12.13 lb (5.5 kg) | | Package Weight | 17.0 lb | Box Dimensions (LxWxH) | 21.0 x 18.0 x 8.0" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
