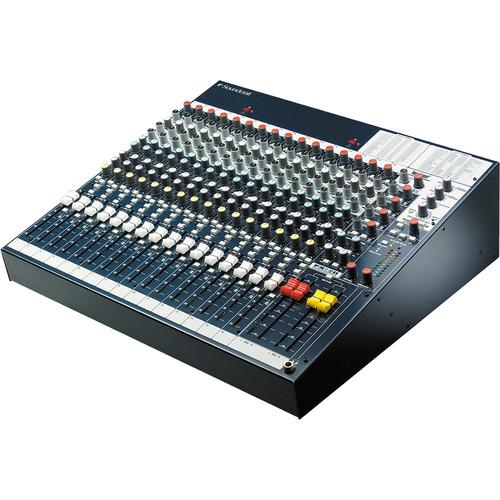

Product description The Soundcraft / Spirit FX16ii Mixer provides 16-channels of powerful mixing and flexible routing in recording, sound reinforcement and monitor mixing applications. A total of 16 input channels are provided and feature 16 direct outputs that are capable of pre or post fader signal routing to a multitrack recorder, additional mixer, monitors etc.A 24-bit Lexicon effects processor engine uses the same AudioDN® processor featured in many of the Digitech® and Lexicon outboard equipment; including the highly respected Lexicon MX400 processor.Up to 32 high-qualiy effects are fully editable with three parameter controls and a tap-temppo function. In addition to all this, all input channels feature insert connections to external gear and a rotating connector pod makes desk-mounting or rack-mounting quick and easy. - 16 Input Channels with Direct Outputs
- A total of 16 input channels feature 16 direct outputs. The direct outputs are capable of pre or post fader signal routing to a multitrack recorder, additional mixer, monitors etc
- Lexicon Effects Processor
- A 24-bit Lexicon effects processor engine uses the same AudioDN® processor featured in many of the Digitech® and Lexicon outboard equipment; including the highly respected Lexicon MX400 processor.
- Two Sub-Group Outputs
- Two sub-group outputs provide alternative routing from the main output.
- Split Phantom Power Control
- Two phantom power switches split power between channels 1 through 8 and 9 through 16.
- Rotating Connector Pod
- A rotating connector pod makes desk-mounting or rack-mounting quick and easy.
UPC: 688705210902 In the Box Soundcraft FX16ii 16-Channel Mixer with Lexicon Effects Processor 1 Year Warranty User Manual PDF 4.7mbedyyetcuvztsavzaascuasd Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundcraft FX16ii 16-Channel Mixer with Lexicon Effects Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Soundcraft FX16ii 16-Channel Mixer with Lexicon Effects Processor can be downloaded in PDF format at the link stated below.
Technical parametersSoundcraft FX16ii Specs | Total # Of Inputs | 16 | | Mic/Line Inputs | 16 1/4" TRS Phone
16 XLR Microphone | | Stereo Line Inputs | No | | In-Line Inputs/Returns | No | | AUX Sends | 3 - Stereo 1/4" TRS Phone | | AUX Returns | 4 - 1/4"TRS Paired Phone | | Inserts | TRS 1/4" Phone All Input Channels and Mix Output | | BUS (Group) Outputs | 16 - 1/4" TRS Phone Direct Outputs | | 2 Trk Master I/O | No | | ALT I/O | Sub Outputs - 1/4" TRS Phone x2
Sub Inputs - 1/4" TRS Phone x2 | | Monitor Outputs | Mix Outputs: 3-pin XLR x2
Monitor Outputs: L/R 1/4" TRS Phone | | EQ Section | Hi Frequency - 12kHz +/- 15dB
Mid Frequency Swept - 150Hz to 3.5kHz +/- 15dB Low Frequency - 80Hz +/- 15dB | | Solo/Mute | Mute, Dir/Pre, Sub, Mix and Solo | | Channel Level Control | 100mm Fader | | Trim/Gain Control | Rotary Control | | Phantom Power | +48V | | Metering | 10 Segment Stereo LEDs | | Frequency Response | 20Hz to 20kHz +/-1dB | | Dynamic Range | Not Specified By Manufacturer | | Signal-to-Noise Ratio | Mic Input E.I.N. (maximum gain) 127dBu (150 Ohm Source) | | Total Harmonic Distortion (THD) | < 0.09% @ 1kHz | | Power Supply | Less than 40W | | Dimensions (WxHxD) | 17.46 x 5.83 x 17.42 (443.6 x 148 x 442.5mm) | | Weight | Not Specified By Manufacturer | | | | Package Weight | 26.32 lb | | Box Dimensions (LxWxH) | 22.6 x 21.1 x 10.5" |
