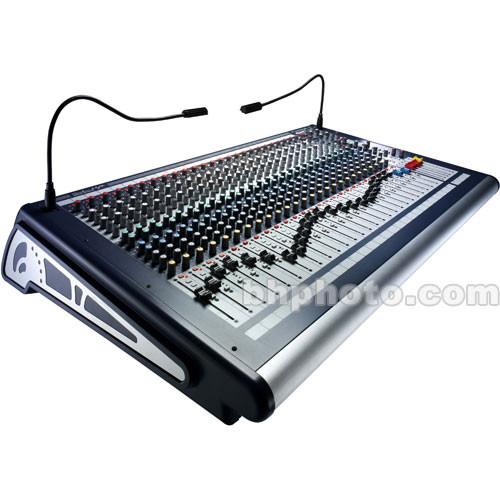

User Manual for Soundcraft GB2 - 32 Mono Channel Live Sound Recording Console with 2 Stereo Channels and 2 Stereo Group Outputs Click to enlarge the picture
Contents of the user manual for the Soundcraft GB2 - 32 Mono Channel
- Product category: Sound Reinforcement Mixers Soundcraft
- Brand: Soundcraft
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Soundcraft Sound Reinforcement Mixers
|
User manual for the Soundcraft GB2 - 32 Mono Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Soundcraft product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Soundcraft user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Soundcraft product will considerably shorten its lifespan!
|
Product description The Soundcraft GB2 live console series is designed to deliver the audio fidelity and mixing capabilities necessary in front-of-house (FOH) or monitor mixing applications in large or small venues. The GB2 is available in 16, 24, 32 channel frames to suite specific needs in live sound mixing.This model is configured with 32 input channels. 32 inputs feature microphone and line level connections, an additional 2 stereo inputs are also provided. The stereo inputs (STE1 - STE2) provide L/R stereo line level inputs and 3-pin XLR microphone inputs for stereo microphone placement when capturing vocals, instruments, ambiance, etc. The console features 2 stereo paired group outputs enabling routing to monitors, external recorders, etc. The GB2 series implements Soundcraft's GB30 microphone preamp and EQ, delivering the sonic quality expected of more costly consoles. Additional features include Soundcraft's famed matrix mixer for added routing flexibility and an integrated meter bridge, enabling accurate metering. - 32 Mono, 2 Stereo Input Channels
- The GB2 series is available in a variety of frame configurations. This model features 32 mono and 2 stereo inputs
- 2 Subgroup Outputs
- The GB2 series feature 2 group outputs for routing to external recorders, monitors, etc.
- Matrix Mixer
- The matrix output mixer provides added routing flexibility.
- 4 Auxiliary Sends
- 4 auxiliary sends provide plenty of routing to external effects, monitors, etc.
- Direct Outputs
- All mono inputs provide direct outputs for direct routing to recorders, mixers, etc.
UPC: 688705210780 In the Box Soundcraft GB2 - 32 Mono Channel Live Sound / Recording Console with 2 Stereo Channels and 2 Stereo Group Outputs 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundcraft GB2 - 32 Mono Channel Live Sound Recording Console with 2 Stereo Channels and 2 Stereo Group Outputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundcraft GB2 Specs | Total # Of Inputs | 32 Total | | Mic/Line Inputs | 32 Line: 1/4" TRS Phone
32 Microphone: 3-pin XLR | | Stereo Line Inputs | 2 Stereo: L/R Paired 1/4" Phone Line & 3-pin XLR Microphone | | In-Line Inputs/Returns | No | | AUX Sends | 4 Aux Sends | | AUX Returns | 4 Stereo Returns | | Inserts | 1/4" TRS Phone - Mono Inputs, Main Output and Subgroup Outputs | | BUS (Group) Outputs | 2 Subgroups: Balanced 3-pin XLR | | 2 Trk Master I/O | Mix L/R: Stereo Paired 3-pin XLR Balanced and 1/4" Phone | | ALT I/O | ALT Stereo: L/R Stereo Paired 1/4" Output | | Monitor Outputs | Monitor: L/R Stereo Paired 1/4" TRS Phone | | EQ Section | High Filter: 13kHz, +/- 15dB, 2nd order shelving
Hi-Mid: 550Hz - 13khz, +/- 15dB, Q=1.5Lo-Mid: 80Hz - 1.9kHz, +/- 15dB, Q=1.5
Low Filter: 80Hz, +/- 15dB, 2nd order shelving | | Solo/Mute | All Input Channels | | Channel Level Control | 100mm Faders | | Trim/Gain Control | Rotary Potentiometers | | Phantom Power | +48V Phantom individually switched | | Metering | 12-segment LED bar graphs | | Frequency Response | 20Hz to 20kHz <1dB | | Dynamic Range | Not Specified by Manufacturer | | Signal-to-Noise Ratio | Measured RMS, 22Hz to 22kHz Bandwidth
-128dBu Mic E.I.N. @ unity gain, 150 ohms source impedance | | Total Harmonic Distortion (THD) | <0.006%Mic sens. -30dBu, +20dBu at all outputs @ 1kHz | | Power Supply | Internal AC PSU - 85V, 270V AC, 50/60Hz universal input
Power Consumption Less than 150W | | Dimensions (WxHxD) | 49.09 x 6.24 x 25.81" (1247 x 159 x 656mm) | | Weight | Not Specified By Manufacturer | | | | Package Weight | 83.0 lb | | Box Dimensions (LxWxH) | 54.0 x 30.5 x 11.5" |
