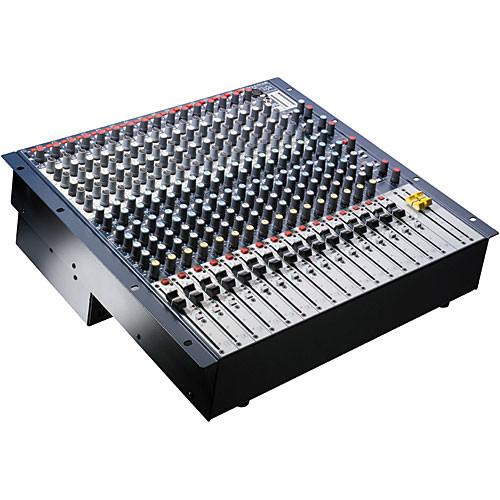

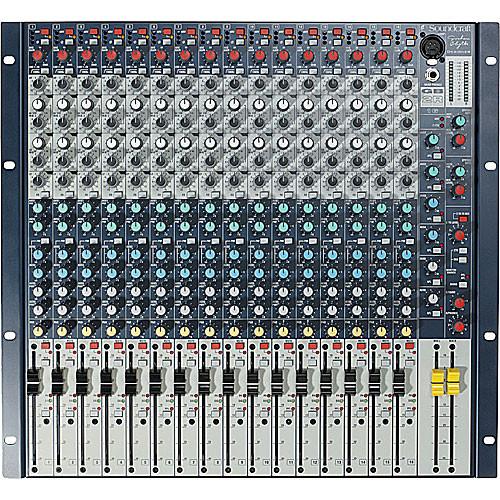

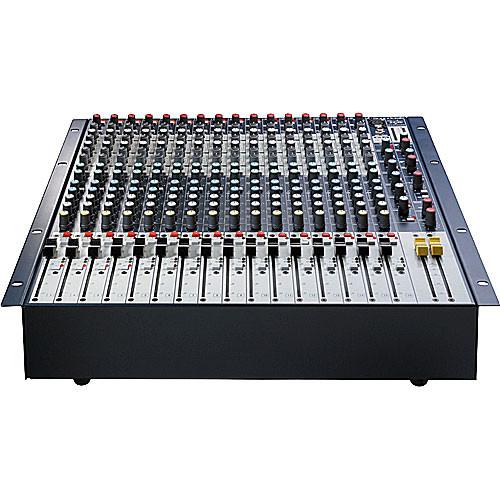

Product description The Soundcraft GB2R-16 16-Channel Console is a versatile audio mixer that draws on the technology based on their famous GB-series audio consoles. The GB2R-16 is equipped with the GB-30 microphone preamplifiers and precision EQ section on all mono channels. The mixer features 16 mono input channels, each with balanced 1/4" TRS phone and balanced XLR microphone inputs with individual switchable +48V phantom power.All channels also include direct outputs for feeding signal to monitors, additional mixers and recording devices. Inserts are provided on all channels as well, and provide easy routing to external processors.A total of 6 auxiliary sends feed external effects, monitors, etc. The GB2R-16 features durable construction and its rack-mountable chassis features a rotating connector pod for easy mounting and cable access. In all, the mixer is an ideal solution for project studio recording, sound reinforcement application, video production and many other professional audio mixing applications. - GB-Series Technology
- The GB2R-16 draws on the technology based on Soundcraft's famous GB-series audio consoles. The GB2R-16 is equipped with the GB-30 microphone preamplifiers and precision EQ section on all mono channels.
- 16-Total Mono Channels
- The mixer features 16 mono input channels, each with balanced 1/4" TRS phone and balanced XLR microphone inputs with individual switchable +48V phantom power.
- Rotating Connector Pod
- The GB2R-16 features durable construction and its rack-mountable chassis features a rotating connector pod for easy mounting and cable access.
UPC: 688705210827 In the Box Soundcraft GB2R-16 - 16-Channel Rack-Mountable Audio Mixer 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundcraft GB2R-16 - 16-Channel Rack-Mountable Audio Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundcraft RW5754SM Specs | Total # Of Inputs | 16-Channels | | Mic/Line Inputs | 16 Mono Balanced XLR Microphone
16 Mono Balanced 1/4" TRS Phone Line | | Stereo Line Inputs | No | | In-Line Inputs/Returns | No | | AUX Sends | 6-Total

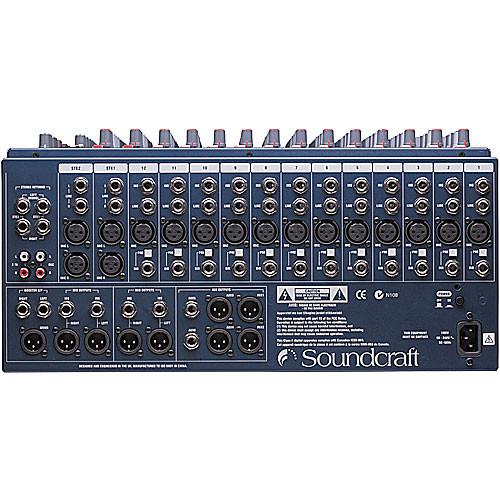

4 Balanced XLR 2 Balanced 1/4" TRS Phone | | AUX Returns | 2 Stereo L/R 1/4" TRS Phone | | Inserts | 1/4" TRS Phone
All Mono Inputs, Mix Output and Subgroup Outputs | | BUS (Group) Outputs | Stereo Output Only | | 2 Trk Master I/O | Mix Output - 2 Balanced XLR Mono Output - 1 Balanced XLR | | ALT I/O | Direct Outputs (All Mono Channels) - 1/4" TRS Phone | | Monitor Outputs | Stereo L/R 1/4" TRS Phone | | EQ Section | Mono Input Channels:
High pass Filter - 100Hz, 18dB/Octave HF - 13kHz, +/-15dB, 2nd order shelving
Hi-Mid - 550Hz-13kHz, +/- 15dB, Q=1.5 Lo-Mid - 80Hz-1.9kHz, +/- 15dB, Q=1.5
LF - 80Hz, +/- 15dB, 2nd order shelving | | Solo/Mute | Mute, Mix, Subgroup and PFL on all channels | | Channel Level Control | 100mm Fader | | Trim/Gain Control | Rotary Controls | | Phantom Power | +48V | | Metering | Input Channels: Single LEDs, Signal Present & Peak
Outputs: 2 tri-color, 12-segment LEDs | | Frequency Response | 20Hz to 20kHz < 1dB | | Dynamic Range | Not Specified By Manufacturer | | Signal-to-Noise Ratio | -128dBu, Measured RMS, 22Hz to 22kHz Bandwidth | | Total Harmonic Distortion (THD) | <0.006% | | Power Supply | Internal PSU: 90V-240V AC, 50/60Hz Universal Input
Power Consumption: Less than 100W | | Dimensions (WxHxD) | 17.36 x 8.20 x 21.05" (441 x 208.42 x 534.79mm) | | Weight | Not Specified By Manufacturer | | | | Package Weight | 35.0 lb | | Box Dimensions (LxWxH) | 26.0 x 22.1 x 12.8" |
