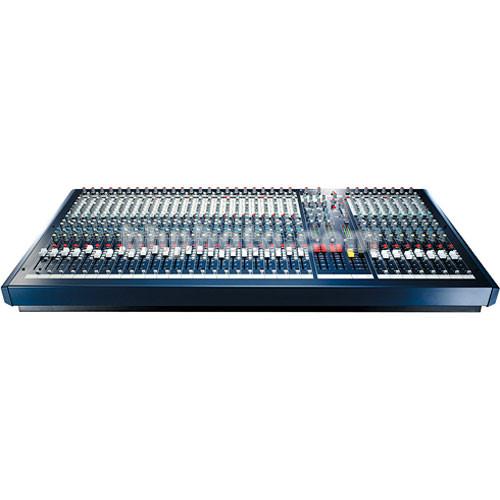

User Manual for Soundcraft LX7 II - 24 Channel Recording Mixer Click to enlarge the picture
Contents of the user manual for the Soundcraft LX7 II - 24 Channel
- Product category: Sound Reinforcement Mixers Soundcraft
- Brand: Soundcraft
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Soundcraft Sound Reinforcement Mixers
|
User manual for the Soundcraft LX7 II - 24 Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Soundcraft product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Soundcraft user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Soundcraft product will considerably shorten its lifespan!
|
Product description The Soundcraft LX7 II series of professional analog consoles improves upon an impressive feature set, suited to meet the demands of professional recording and live sound engineers. The LX7 II series is available in 16, 24 and 32 input configurations. Every input features balanced 1/4" phone line level inputs, direct outputs are featured on the first 16 channels for recording and monitoring applications.High quality redesigned microphone preamps are located on every input channel, as well as 1/4" TRS phone inserts for routing signal to external processors. All LX7 II configurations feature 4 sub group outputs that can be used for routing signal to monitors, recorders etc. 6 Aux sends are featured and provide routing to external effects and signal processors. The LX7 II series features the routing and functionality that will prove suitable for crucial recording and live sound reinforcement. - 24 Input Configuration
- The LX7 II console is available in three different channel configurations. This model features 24 input channels with 4 sub group outputs.
- 4 Sub Group Outputs
- 4 sub group outputs are featured and allow audio signals to be routed to multi track recorders and monitors.
- Inserts
- Inserts are featured on all input channels and group outputs. Inserts allow routing to and from external signal processors.
- Enhanced Mic Preamplifiers
- Every input features a Graham Blyth designed microphone preamplifier that delivers exceptional headroom, smooth detail and very low noise floor.
UPC: 688705209081 In the Box Soundcraft LX7 II - 24 Channel Recording Mixer 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundcraft LX7 II - 24 Channel Recording Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundcraft LX7ii Specs Total # Of Inputs | 24 - Total Line Inputs | Mic/Line Inputs | 24 - Balanced 1/4" TRS Phone Inputs 24 - Balanced XLR Mic Inputs | Stereo Line Inputs | 2 - L/R Stereo Paired 1/4" TRS Phone | In-Line Inputs/Returns | No | AUX Sends | 6 - 1/4" TRS Phone | AUX Returns | 2 - L/R Stereo Paired 1/4" TRS Phone ) | Inserts | No | BUS (Group) Outputs | AUX Outputs: 6 - 1/4" TRS Phone | 2 Trk Master I/O | Main Outputs: L/R Balanced 3-pin XLR male | ALT I/O | Monitor Output: L/R 1/4" TRS Phone 2 Trk Input: L/R RCA Phono jacks | Monitor Outputs | Monitor Output: L/R 1/4" TRS Phone | EQ Section | 100Hz, 18dB per octave HF: 12kHz, +/-15dB, 2nd order shelving Hi-Mid: 550Hz-13kHz, +/-15dB, Q=1 Lo-Mid: 80Hz-1.9kHz, +/-15dB, Q=1 LF: 80Hz, +/-15dB 2nd order shelving | Solo/Mute | Mute & Solo on all channels | Channel Level Control | 100mm Faders | Trim/Gain Control | Sealed Rotary Potentiometers | Phantom Power | +48 Volt | Metering | 12-segment multicolored LED: Group Masters, L/R Master sections AFL/PFL LED indicator | Frequency Response | XLR input to any output: 20Hz to 20kHz, +0/-1dB | Dynamic Range | not specified by manufacturer | Signal-to-Noise Ratio | < -128dBu (150 Ohm source) 22Hz - 22kHz bandwidth, unweighted | Total Harmonic Distortion (THD) | All measurements at +10dBu output 30dB gain XLR Input to Direct Output: <0.007% @ 1kHz XLR Input to Mix Output: <0.008% @ 1kHz | Power Supply | Universal Mains input 85V-270V AC, 50Hz/60Hz Power Consumption - less than 50W | Dimensions | 33.7 x 6.5 x 19.8" (856 x 164 x 503mm) (WxHxD) | Weight | 48lbs (21.8kg) | | Package Weight | 47.4 lb | Box Dimensions (LxWxH) | 37.0 x 25.0 x 13.0" |
