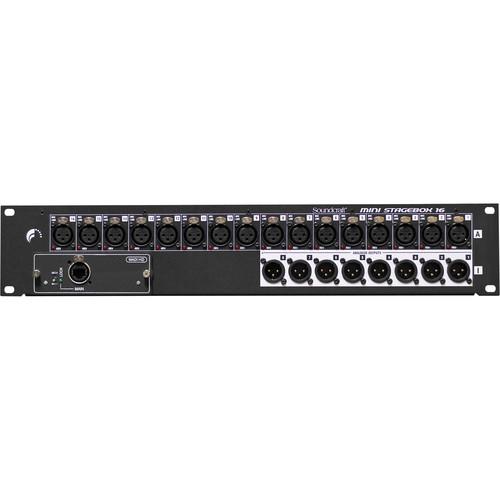

Product description The Mini Stagebox 16 from Soundcraft is suitable for for expanding the I/O capabilities of any of the Vi or Si range of consoles, whether that I/O is needed locally or hundreds of meters away on the stage. The Mini Stagebox 16 requires only 2U of rack space, yet provides 16 recallable mic/line inputs and 8 balanced line outputs for a total I/O capacity of 16 inputs and 8 outputs, all lifted directly from the Vi1 and the larger Compact Stagebox.The Mini Stagebox 16 comes fitted with a single-cable Cat 5 MADI HD interface for connection to the host console using an approved Cat 5 cable (not included). If required, this MADI HD interface card can be upgraded (sold separately) to either redundant (dual-cable) Cat 5 or redundant (dual-fibre) optical fiber with the compatible MADI HD interface card. Note: MADI card is not included. - Connects to any of the Soundcraft Si Expression, Si Compact, Si Performer, Si Series and Vi Series consoles via a MADI card fitted to the option card slot.
- Requires only 2U of rack space and provides 16 recallable mic/line inputs and 8 balanced line outputs.
UPC: 668705000383 In the Box Soundcraft Mini Stagebox 16 for Soundcraft Mixer Consoles Limited 1-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundcraft Mini Stagebox 16 for Soundcraft Mixer Consoles in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundcraft 5049655 Specs | Frequency Response | Mic / Line Input to any Output: +0/-1 dB, 20 Hz to 20 kHz | | THD | Mic Sensitivity -30 dBu: < 0.01% @ 1 kHz | | Residual Noise | -85 dBu | | Mic Input Noise (E.I.N.) | -125 dBu (150 Ω source) | | CMRR | Mix noise, masters at unity: < -86 dBu
1 input to mix at unity gain: -84 dBu
CMRR mic @1 kHz (max gain): -86 dBu | | Crosstalk | <-80 dB @ 1 kHz | | Input Gain | -5 to 58 dB integrated pad design 1 dB steps | | Maximum Input Level | +24 dBu | | Maximum Output Level | +22 dBu | | Sample Rate | 48 kHz | | Converter | 24-bit | | Latency | 1.5 ms | | Clock Accuracy | +/- 25 ppm | | Power Consumption | 33 W | | Operating Range | 90 to 264 VAC, 47 to 63 Hz | | Operating Temperature Range | 14 to 122°F (-10 to +50°C) | | Relative Humidity | 0 to 90% | | Storage Temperature Range | 14 to 122°F (-10 to +50°C) | | Dimensions (W x H x D) | 3.5 x 17.5 x 11.1" (88 x 444.5 x 281.9 mm) | | | | Package Weight | 16.45 lb | | Box Dimensions (LxWxH) | 21.3 x 16.6 x 9.6" |
