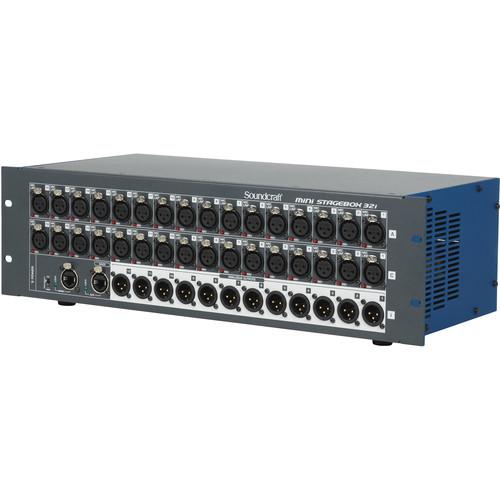

User Manual for Soundcraft Mini Stagebox 32i for Si Series Consoles Click to enlarge the picture
Contents of the user manual for the Soundcraft Mini Stagebox 32i for Si
- Product category: Digital Mixer Accessories Soundcraft
- Brand: Soundcraft
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Soundcraft Digital Mixer Accessories
|
User manual for the Soundcraft Mini Stagebox 32i for Si contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Soundcraft product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Soundcraft user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Soundcraft product will considerably shorten its lifespan!
|
Product description The Mini Stagebox 32i from Soundcraft offers multiple channels of remote controlled I/O for Si Series products—including the Si Impact mixing console—and is well suited for live sound engineers, houses of worship, bands, clubs, and corporate events. The Mini Stagebox requires only 3 RU of rack space, yet provides 32 recallable, high-quality, Studer-designed microphone preamp inputs, and 12 balanced line outputs, all remotely controlled from the console.The Mini Stagebox 32i comes fitted with dual MADI over RJ45 connectors, eliminating the need for expensive and heavy analog cable snakes for the stage to the front-of-house mixing position. The second MADI connector can work as a redundant connection, or as an auxiliary, which splits the signals for use with a monitor console, recording, or broadcast setup. The RJ45/Cat5 connector allows for cable runs up to 328' (100m) between the stage and front-of-house. - Connects to any of the Soundcraft Si Expression, Si Compact, Si Performer, Si Impact Series consoles via a MADI card fitted to the optional card slot
- Requires only 3 RU of rack space and provides 32 recallable mic/line inputs and 12 balanced line outputs
UPC: 668705002622 In the Box Soundcraft Mini Stagebox 32i for Si Series Consoles IEC Power Cord Limited 1-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundcraft Mini Stagebox 32i for Si Series Consoles in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundcraft Mini Stagebox 32i Specs | Digital Connectivity | 2 x MADI over RJ45/Cat5 | | Analog Inputs and Outputs | Remote-controlled mic preamps and A/D converters: 32 XLR
Analog Line-Level Outputs: 12 x XLR | | Maximum Distance | 328.1' / 100.0 m | | Frequency Response | Mic/Line Input to Any Output: +0/-1 dB, 20 Hz to 20 kHz | | THD | Mic Sensitivity -30 dBu: < 0.01% @ 1 kHz | | Residual Noise | -85 dBu | | Mic Input Noise (E.I.N.) | -125 dBu (150 Ω source) | | CMRR | Mix Noise, Masters at Unity: < -86 dBu
1 Input to Mix at Unity Gain: -84 dBu
CMRR Mic @1 kHz (Max Gain): -86 dBu | | Crosstalk | < -80 dB @ 1 kHz | | Input Gain | -5 to 58 dB integrated pad design (1 dB steps) | | Maximum Input Level | +24 dBu | | Maximum Output Level | +22 dBu | | Sample Rate | 48 kHz | | Converter | 24-bit | | Latency | 1.5 ms | | Clock Accuracy | ±25 ppm | | Power Consumption | 33 W | | Operating Range | 90 to 264 VAC, 47 to 63 Hz | | Operating Temperature Range | 14 to 122°F (-10 to +50°C) | | Relative Humidity | 0 to 90% | | Storage Temperature Range | 14 to 122°F (-10 to +50°C) | | Dimensions (W x H x D) | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 14.75 lb | | Box Dimensions (LxWxH) | 21.3 x 16.7 x 9.6" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
