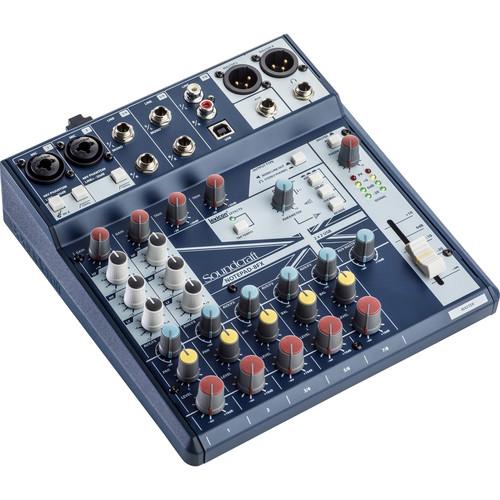

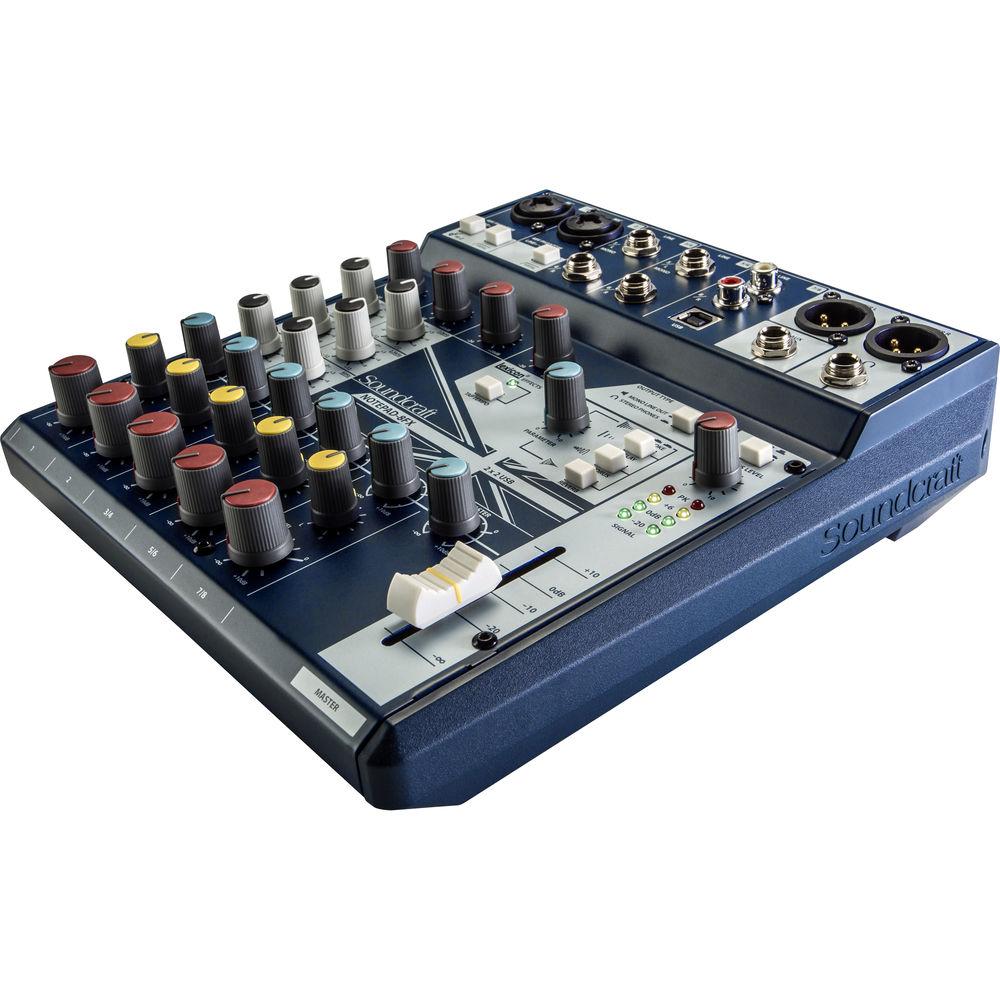

Product description The Notepad-8FX from Soundcraft is a small-format, 8-channel analog mixing console with an integrated 2x2 USB audio interface and built-in Lexicon effects, well suited for music production, podcasts, video production, interviews, rehearsals, writing sessions, and mobile events. The mixer combines professional-grade analog components such as two microphone preamps with combo XLR-1/4" inputs, 3-band EQ, and 100 Hz high-pass filters. Additionally, input 1 offers a Hi-Z instrument input for incorporating guitars and other high-impedance instruments.
Channels 1-6 include gain/trim controls, and all channels feature an aux send, pan knob, and level controls. Channels 3/4 and 5/6 feature 1/4" line-level inputs, while channels 7/8 include stereo RCA inputs. Outputs include Master L/R on XLR, a 1/4" aux send, and a dedicated 1/4" headphone output with selectable monitoring of the master bus or aux bus. The on-board effects include delay with tap-tempo, reverb, chorus, and karaoke. The master section offers a master fader and four LED meters with -20, 0, +6 dB, and peak settings. The Notepad-8FX features a durable metal enclosure and ships with an external power supply. -
- Soundcraft-quality sound from professional microphone preamps
- Easily record, edit, and play back from your Mac or Windows computer with an integrated USB audio interface. Simply plug-and-play with your Mac (Windows computers require Soundcraft driver installation)
- Sweeten your mix with HARMAN digital signal processing including Lexicon reverb, echo, and delay
- Getting a great mix is easy with a familiar channel-strip layout that includes EQ, aux send, master fader level, and rotary headphone-volume control

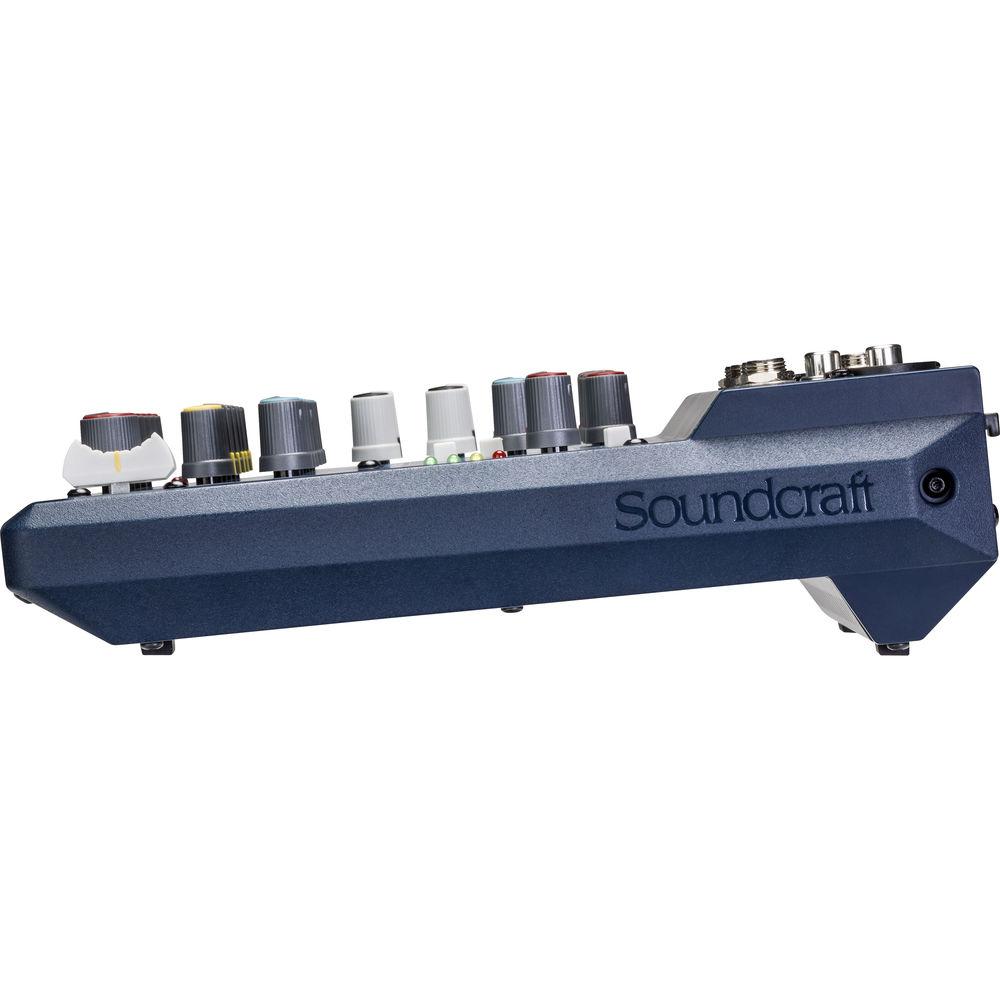

- Durable metal enclosure that’s built to last
UPC: 668705003032 In the Box Soundcraft Notepad-8FX Small-Format Analog Mixing Console with USB I/O and Lexicon Effects External Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundcraft Notepad-8FX Small-Format Analog Mixing Console with USB I O and Lexicon Effects in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

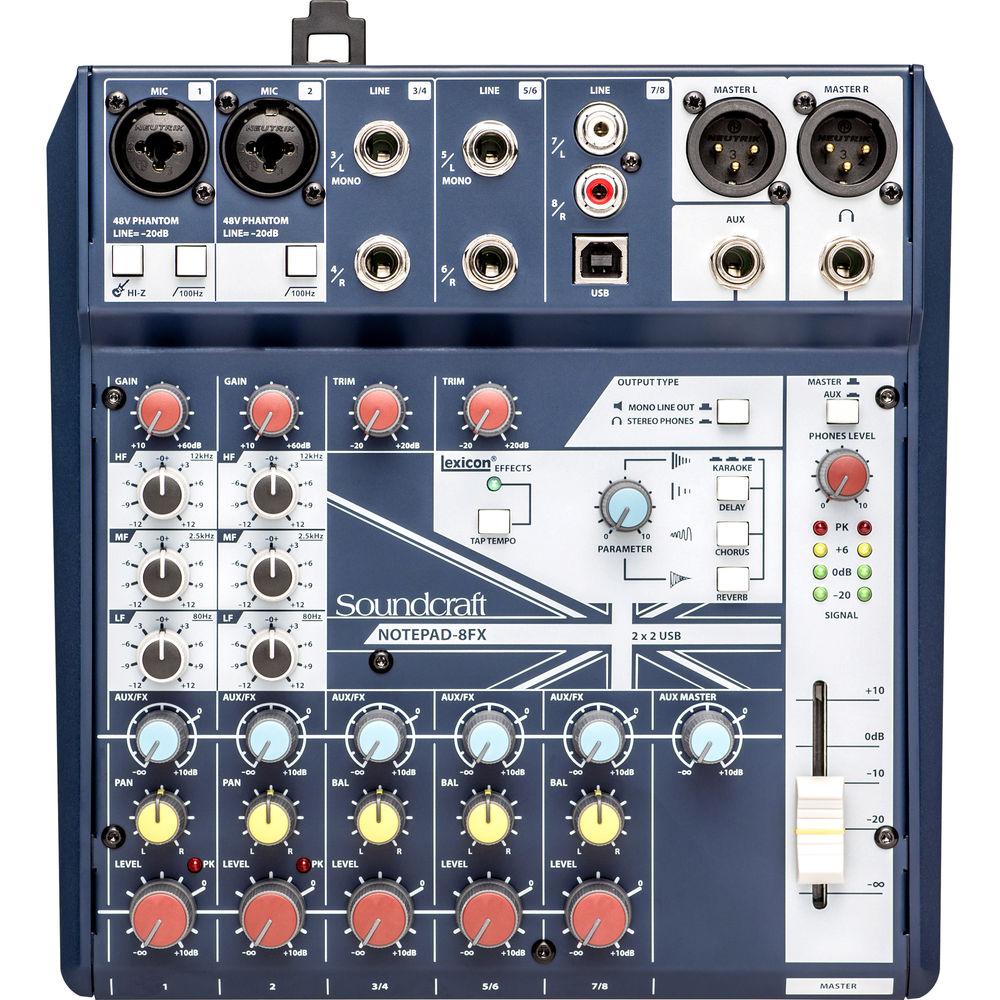

Technical parametersSoundcraft NOTEPAD-8FX Specs | Inputs | Mic/Line (Channels 1-2): 2 x combo XLR-1/4" / 6.35 mm
Line (Channels 3/4): 2 x 1/4" / 6.35 mm
Line (Channels 5/6): 2 x 1/4" / 6.35 mm
Line (Channels 7/8): 2 x RCA | | Outputs | Master (L/R): 2 x XLR
Aux: 1 x 1/4" / 6.35 mm
Headphone: 1 x 1/4" / 6.35 mm | | Controls | Gain (Channels 1/2): 2 x Gain knobs
Trim (Channels 3/4 & 5/6): 2 x Trim knobs
Aux Send (Channels 1/2, 3/4, 5/6, 7/8): 5 x Aux/FX knobs
Pan (Channels 1/2, 3/4, 5/6, 7/8): 8 x pan knobs
Level (Channels 1/2, 3/4, 5/6, 7/8): 8 x Level knobs
Master Level: 1 x Fader
Aux Master: 1 x Aux Master knob
Headphone Level: 1 x knob
Parameter: 1 x Parameter knob for FX
Tap Tempo: 1 x Button
Output Type: Button for mono line out or stereo headphones
Headphone Input: 1 x button for Master or Aux
| | EQ Controls | 3-Band EQ (Channels 1/2)
HF: ±12 at 12 kHz
MF: ±12 at 2.5 kHz
LF: ±12 at 80 Hz | | Effects | Karaoke
Delay
Chorus
Reverb | | USB | Connector: Type-B
Sound Card: USB 2 x 2 | | Indicator LEDs | Meters: 4 x LED (-20, 0, +6 dB, Peak)
Delay Tap Tempo: 1 x LED | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 12.1 x 11.0 x 3.6" |
