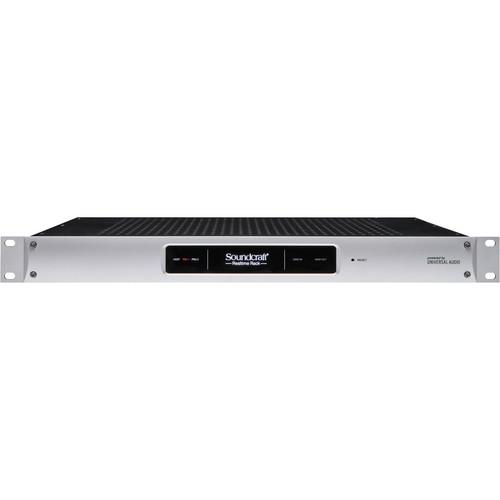

User Manual for Soundcraft Realtime Rack - Live Sound UAD Plug-In Processor Click to enlarge the picture
Contents of the user manual for the Soundcraft Realtime Rack - Live Sound
- Product category: DSP Accelerators Soundcraft
- Brand: Soundcraft
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Soundcraft DSP Accelerators
|
User manual for the Soundcraft Realtime Rack - Live Sound contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Soundcraft product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Soundcraft user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Soundcraft product will considerably shorten its lifespan!
|
Product description The Soundcraft Realtime Rack - Live Sound UAD Plug-In Processor (Core Version) is a 1RU 19" rackmountable processor designed in collaboration between Soundcraft and Universal Audio. The unit utilizes four SHARC-based processors to enable adding Universal Audio Plug-ins or UAD Direct Developer Plug-ins at 48 kHz with sub-2 millisecond latency to up to 16 MADI optical channels of your live sound mix through a Soundcraft Vi digital mixing console.
For I/O the real time rack features two Thunderbolt ports, one for connecting to your Mac computer and the other for connecting to a Thunderbolt-to-Ethernet adapter and then to the Ethernet port on your Vi console. MADI optical I/O provides 64 channels at 48 kHz, and up to four Real-Time racks can be daisy chained together with each processing 16 channels of the MADI stream for a total of 64 UAD processed channels. Fourteen plug-ins are available in the core version of the processor.
The device supports sample rates from 44.1 to 96 kHz and supports internal, MADI, and Word Clock formats through Word Clock I/O (BNC) with input termination. It also allows you to create store and recall channel strip presets and snapshots of the effect processes. Dual Power supplies provide a redundant backup to ensure reliable operation in critical live sound applications. - Core Version Available Plug-Ins
-
- 1176LN Legacy Limiter
- 1176SE Legacy Limiter
- dbx 160 Compressor
- CS-1 Channel Strip
- Lexicon 224 Reverb
- Pultec EQP-1A Legacy Equalizer
- Pultec Pro Legacy Equalizer
- RealVerb Pro Reverb
- Studer A800 Tape Machine
- Teletronix LA-2A Legacy Limiter
In the Box Soundcraft Realtime Rack - Live Sound UAD Plug-In Processor (Core Version) 2 x Power Cords Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundcraft Realtime Rack - Live Sound UAD Plug-In Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundcraft Realtime Rack Core Specs | | | Audio Connector | MADI - Dual Optical SC-Plug (ISO/IEC 9314-3) | | MADI | AES10 (64 channels) | | Sample Rate | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz (48kHz only, when used with Soundcraft Vi console) | | Host Connection Type | 2x Thunderbolt | | Word Clock | 1x BNC input
1x BNC output | | Input Terminal | 75 Ω, switchable | | Clock Sources | MADI, Word Clock, Internal (Thunderbolt/FireWire) | | AC | 2x IEC Male with integrated switch | | | | Configuration | Two switching power supplies. Integrated failover circuit controls redundant power supplies | | AC Input Range | 100 to 240 VAC | | Power Rating | Less than 30 Watts | | Frequency | 50 to 60 Hz | | | | Humidity | 60% | | Temperature | 32 to 113°F (0 to 45°C) | | | | Rack Spaces | 1U | | Dimensions (W x D x H) | 17.0 x 12.0 x 1.3"(431.8 x 304.8 x 33.8 mm) | | Weight | 9.0 lb (4.1 kg) |
