User Manual for Soundcraft Si Impact 40-Input Digital Mixing Console and 32-In 32-Out USB Interface with iPad Control Click to enlarge the picture
Contents of the user manual for the Soundcraft Si Impact 40-Input Digital Mixing
- Product category: Digital Mixers Soundcraft
- Brand: Soundcraft
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Soundcraft Digital Mixers
 |
User manual for the Soundcraft Si Impact 40-Input Digital Mixing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Soundcraft product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Soundcraft user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Soundcraft product will considerably shorten its lifespan!
|

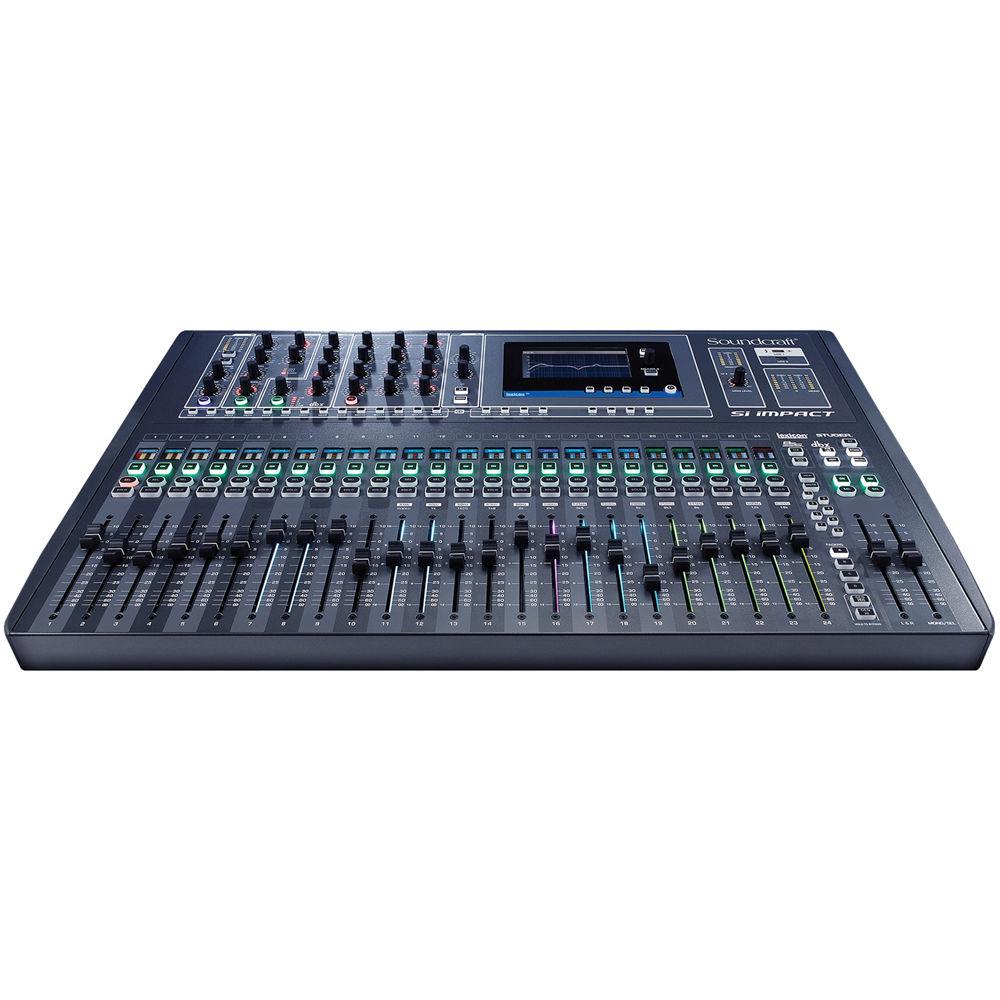

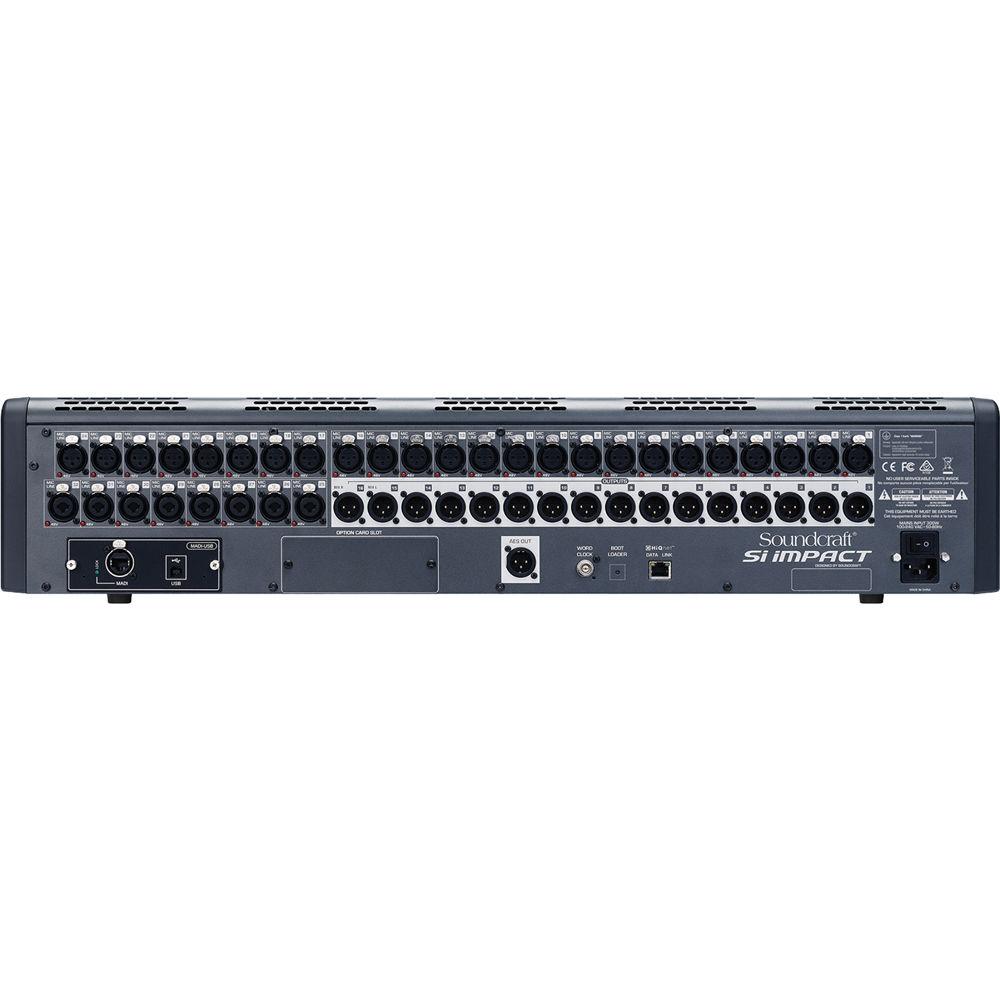

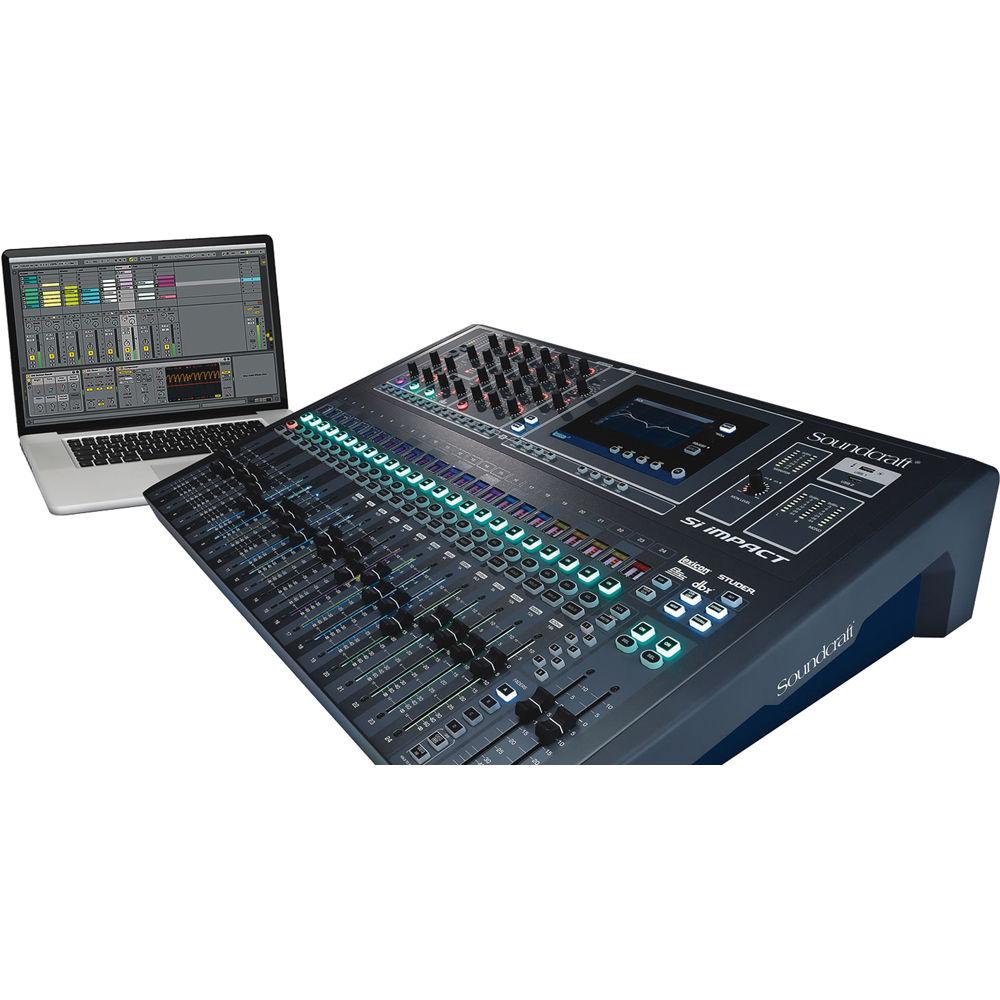

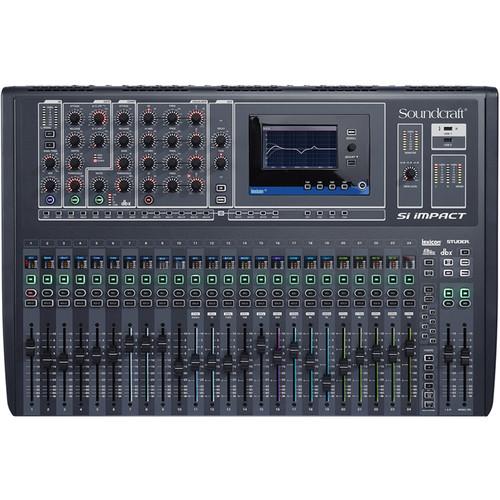

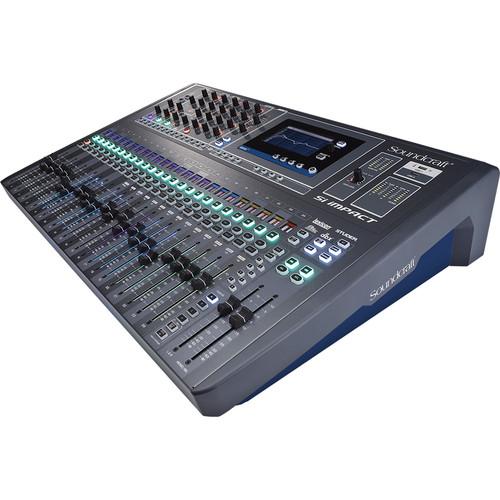

Product description Soundcraft Si Impact 40-Input Digital Mixing Console with iPad Control Read More The Soundcraft Si Impact is a 40-input digital mixing console and 32-in/32-out USB audio interface that supports remote iPad mixing using a proprietary app. The console is designed to be as simple as an analog mixer, but offers workflow enhancements such as the FaderGlow system, which illuminates each fader track in different colors to provide at-a-glance status information on precisely what the fader is controlling.
Featuring studio-grade reverbs, delays, and modulations from Lexicon, dbx dynamics, and BSS graphic equalizers, the Si Impact comes fully equipped to mix everything from rock bands to stage plays. Also a 32-in/32-out USB audio interface, the Si Impact mixer delivers professional digital recording directly to your DAW, and comes with a free download of Ableton Live Lite 9. -
- 32 mic inputs
- 8 XLR/1/4" combi-jacks for line inputs and instruments
- 40 DSP input channels (32 mono inputs and 4 stereo channels/returns)
- 31 output busses (all with full DSP processing and GEQ)
- 4-band fully parametric EQ on each channel and bus
- 8 VCAs + 8 Mute groups
- 26 motorized faders (24 input + LR/Mono)
- 4 fully customizable fader layers
- Built-in stagebox connectivity
- 5" touchscreen display
- Multi-color LCD channel displays on each input fader
- 4 studio-grade Lexicon FX engines and dedicated FX busses
- BSS graphic equalizers on every bus
- 20 sub-group / aux busses
- 4 mono/stereo matrix busses
- 32x32 USB audio interface for multi-track recording and playback
UPC: 668705001632 In the Box Soundcraft Si Impact 40-Input Digital Mixing Console and 32-In/32-Out USB Interface with iPad Control Ableton Live Lite 9 (Download) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundcraft Si Impact 40-Input Digital Mixing Console and 32-In 32-Out USB Interface with iPad Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundcraft 5056170 Specs | Frequency Response | Mic / Line In to any Output: +/-1.5 dB, 20 Hz to 20 kHz | | THD | Mic Sensitivity: -30 dBu < 0.01% @ 1 kHz | | Noise | Residual Noise: -86 dBu
Mic Input E.I.N.: 22 Hz to 22 kHz, Unweighted (max gain)
126 dBu (150 ohm source)
Mix Noise, Masters at Unity: < -86 dBu
1 Input to Mix at Unity Gain: -84 dBu
CMRR Mic @ 1 kHz (max gain): -80 dBu | | Crosstalk | Crosstalk (@ 1 kHz)
Channel ON Attenuation: < 120 dB
Channel Fader Attenuation: < 120 dB
Mic: -100 dB @ 1 kHz, -85 dB @ 10 kHz
Line: -100 dB @ 1 kHz, -85 dB @ 10 kHz | | Input Gain | Mic Gain: -5 to 58 dB integrated pad design, 1 dB steps
Line Trim: -10 to +16 dB | | Gate | Threshold: -60 to -6 dBfs
Depth: -60 to -3 dB
Attack: 0.1 to 200 ms
Release: 20 to 500 ms
Side-chain HPF: 22 Hz to 2.5 kHz
Side-chain LPF: 160 Hz to 20 kHz | | Compressor | Threshold: -52 to -6 dBfs
Ratio: 1:1 to 20:1
Attack: 0.1 to 200 ms
Release: 5 to 900 ms
Makeup Gain: 0 to 24 dB | | Equalization | All Bands: 22 Hz to 20 kHz, +/-15 dB, Q 6 to 0.3
Shelf (HF): 800 Hz to 20 kHz, +/-15 dB
Shelf (LF): 20 Hz to 500 Hz, +/-15 dB
HPF: 40 Hz to 1 kHz | | Delay | User adjustable delay: 1 sample to 500 ms | | Graphic EQ | 31 Hz to 16 kHz 1/3 octave | | Digital I/O | External Word Clock: In range 48 kHz +/-7 Hz (internal systems), +/-3 Hz with stageboxes
Word Clock Out Jitter: +/-7 ns
Analog Out for 0 dBfs: +21.5 dBu
Converter Resolution: 24-bit
DSP Resolution: 40-bit floating point | | Latency | Mic In to Line Out: < 0.8 ms
Analog In to AES Out: < 0.6 ms
Stagebox Mic In to Stagebox: < 0.9 ms | | Levels | Mic Input: +22 dBu max
Line Input: +22 dBu max
Mix Output: +21.5 dBu max
Headphones: (@ 150 ohms) 300 mW (recommended impedance 75 to 200 ohms) | | Impedance | Mic Input: 3 kOhms
Line Input: 10 kOhms
Outputs: 150 ohms (balanced), 75 ohms (unbalanced)
Word Clock used as Output: 50 ohms
Word Clock used as Input: 47 ohms
AES Output: 110 ohms | | USB | Max Current: 500 mA | | Power | Consumption: < 130 W (typical)
AC Input Voltage Range: 88 to 264 VAC auto sensing
AC Frequency Range: 47 to 63 Hz | | Operating Conditions | Operating Temperature Range: 41 to 113°F (5 to 45°C)
Humidity: 0-90%, non-condensing Ta = 104°F (40°C)
Storage Temperature Range: -4 to 140°F (-20 to 60°C) | | Dimensions | 6.3 x 29.5 x 19.7" (160 x 750 x 500 mm) | | Weight | 44.1 lb (20.0 kg) | | | | Package Weight | 53.0 lb | | Box Dimensions (LxWxH) | 35.5 x 26.5 x 12.5" |
