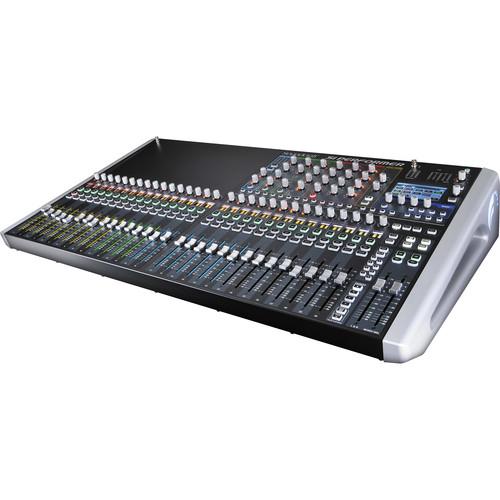

User Manual for Soundcraft Si Performer 3 Digital Live Console Click to enlarge the picture
Contents of the user manual for the Soundcraft Si Performer 3 Digital Live
- Product category: Digital Mixers Soundcraft
- Brand: Soundcraft
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Soundcraft Digital Mixers
 |
User manual for the Soundcraft Si Performer 3 Digital Live contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Soundcraft product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Soundcraft user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Soundcraft product will considerably shorten its lifespan!
|

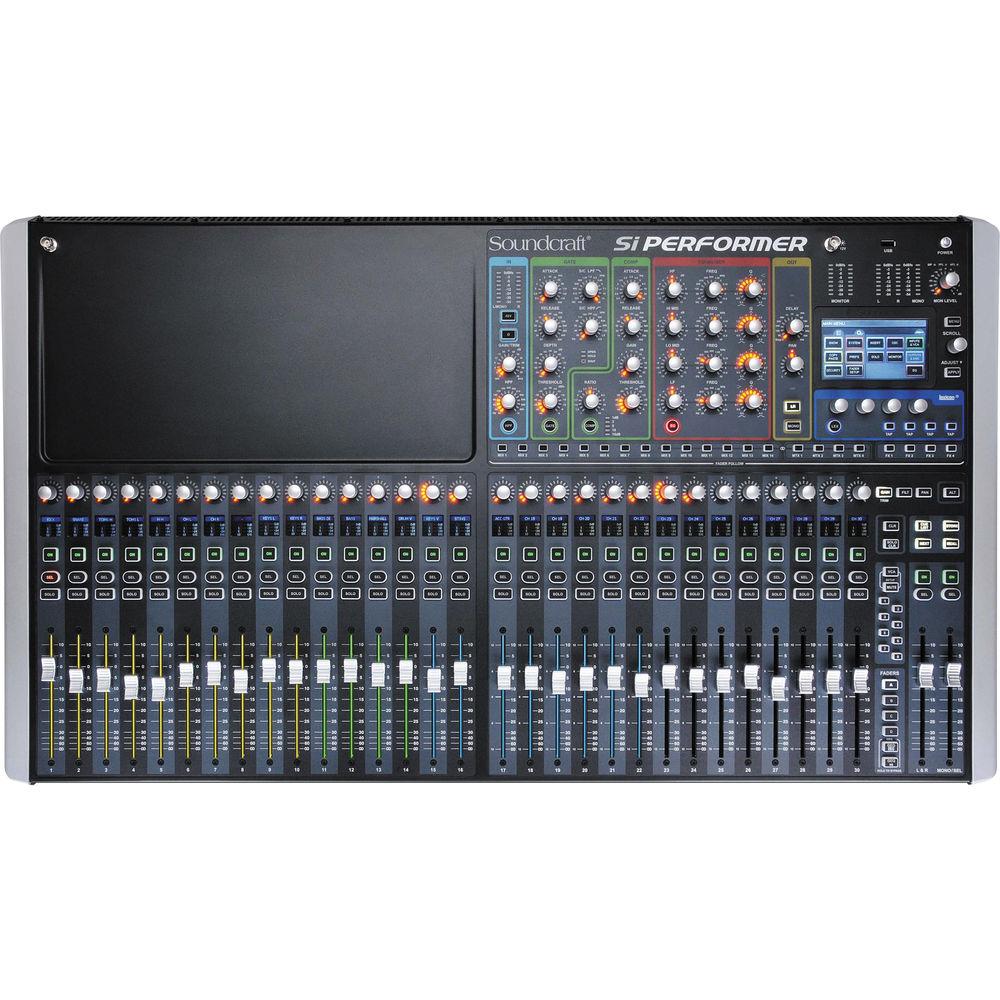

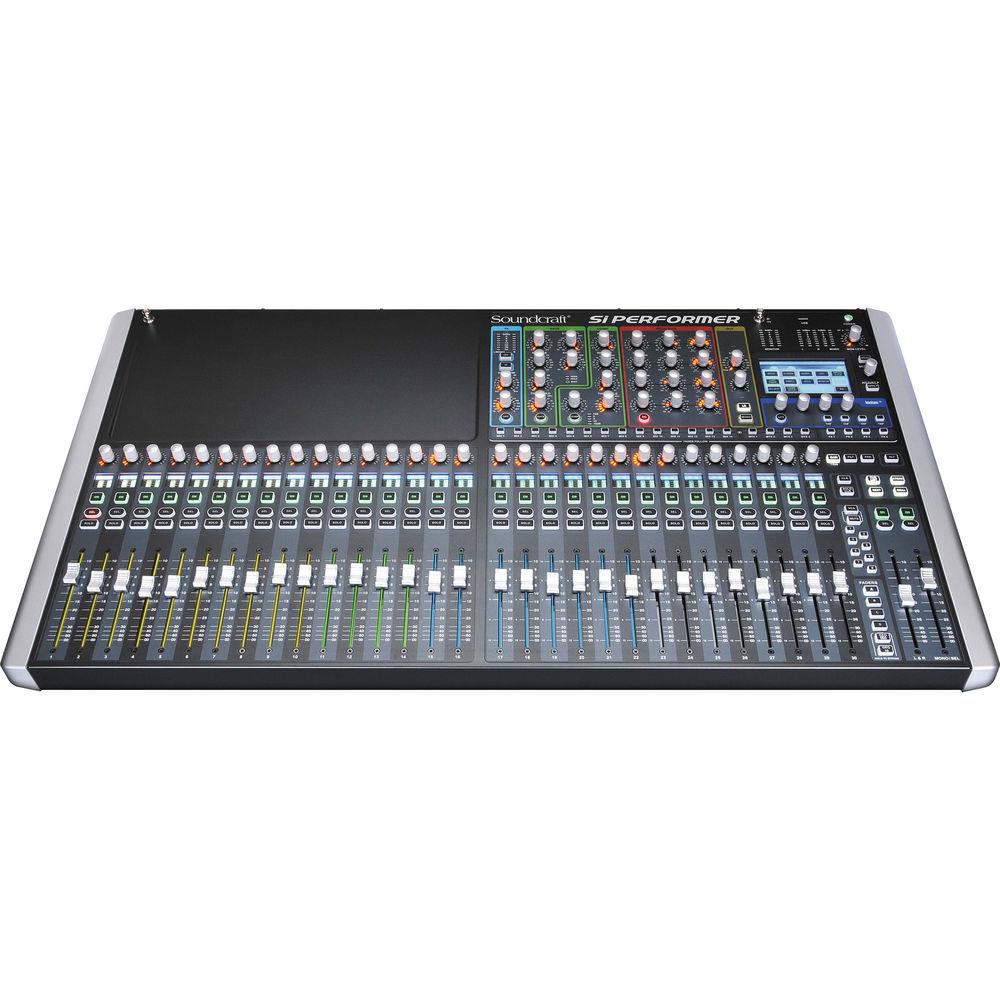

Product description The Soundcraft Si Performer 3 Digital Live Console is designed as a live sound reinforcement system for houses of worship, music venues, musicians, bands, theaters, touring companies, corporate events, and more. It is especially useful for applications wherein one operator will control both the sound and the lighting for a performance because of its integrated DMX controller and support for Soundcraft's ViSi Remote App for Apple iPad.
The mixer features 32 recallable mono microphone preamplifiers over balanced XLR connections, 8 line inputs, AES digital I/O, 80 total mix channels, 20-sub group/aux busses, 4 FX busses, 8 matrix busses, 8 mute groups, 8 VCA groups, assignable insert loops, selectable delay on all I/O, Harman HiQnet integration, headphone monitoring, LCR panning, motorized faders with backlit LED Faderglow visual feedback to denote fader function, and a color touch screen interface.
The mixer utilizes EMMA DSP processors to provide the equivalent of 448 rack units worth of DSP including 4-band fully parametric EQ, four MX4000-based Lexicon stereo effects engines, and extensive dynamic processing. For customization it includes assignable faders, assignable patching, and flexible routing. The four mix busses utilize internal Lexicon FX processors for left/center/right micing, and each features a compressor, 4-band fully parametric EQ, graphic EQs, and delay.
An innovative feature of the mixer is the integrated DMX 512 control interface with full automation for simultaneously controlling a simple lighting display (spots and can color mixing with fader level) while mixing live sound.
The I/O of the mixer can be expanded with an additional 128x96 input/output paths through two ViSi Connect option cards (one 64x64 expansion slot and one 64x32 expansion slot). The cards accept a range of formats including the MultiDigital Card (Firewire/USB/ADAT), BSS Digital Audio Bus (BLU link), Dante, CAT5 or optical MADI, AVIOM, and CobraNet among others for integration with other live mixing and multi-track recording environments.
The available ViSi Remote iPad control application allows for the use of an iPad to adjust individual channel strip settings such as the EQ, compressor, Gate, Pan, LR/MONO, and phase invert switches to optimize the front of house mix. - Eight Voltage-Controlled Amplifiers
- Enables control over multiple channels using a single fader which sends a DC control voltage to the VCA, which in turn controls the assigned channels
- Dual ViSi Connect Card Slots
- Expands functionality of the mixer by installing two Optical MADI, CobraNet, AES/EBU, BLU link, Multi Digital Card, Dual Cat5 MADI, Aviom A-Net, AES/EBU D-Type, Rocknet, or Dante interface cards
- DMX Interface
- Provides simultaneous control over DMX-capable lighting installations
- ViSi Remote iPad app
- Allows remote control of channel strip settings from anywhere in the room using an Apple iPad and connecting the mixer's HiQnet Ethernet output to a wireless router
- Assignable Fader Layers
- Customizes the four fader layer page functions for the user's needs
- FaderGlow
- Illuminates fader slots according to function with defined colors for FX, Stereo, Linked Mono, GEQ, Post Fade Aux, and PRE Fade Aux
- 4-Band Parametric EQ
- Expands upon the Soundcraft Expression's 2-Band Parametric EQ with an additional 2 bands of control
- 1:1 Controls
- Connects 1 control with 1 function on the mixer to avoid complicated nested navigation of menus
- TOTEM (The One Touch Easy Mix)
- Enables mixing to an AUX, FX, or matrix bus with the press of a single key
- BSS GEQ
- Provides dedicated graphic equalizer on each channel to ensure you will not run out of processing resources
- Security Lockout
- Locks entire console or selected elements from unauthorized users and maintains user profile settings
- Personal Monitoring Interface
- Connects to the dbx PMC16 Personal Monitoring System through the Si BLU link option card and Cat5 cable
- D.O.G.S. (Direct Out Gain Stabilizer)
- Prevents accidental manual change of a microphone gain control that would influence direct out levels such as when using a common stagebox or recording the direct outputs
- Global Mode Controls
- Provides rotary controls that can be assigned to be GAIN, PAN, or High Pass Filter for all inputs
- Copy & Paste
- Copies whole channels, busses, mixes, Lexicon effects, a single part such as an EQ, or multiple parts of a channel strip such as the gate and compressor
- Instant Access Keys
- Provide dedicated front panel keys for STORE, RECALL, NEXT, MUTE 1-8, TAP TEMPO, and more
- Function Focus
- Displays information about the absolute value of the controls, channel name, and number for a channel whenever a control is moved or the select key is pressed
In the Box Soundcraft Si Performer 3 Digital Live Console Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundcraft Si Performer 3 Digital Live Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

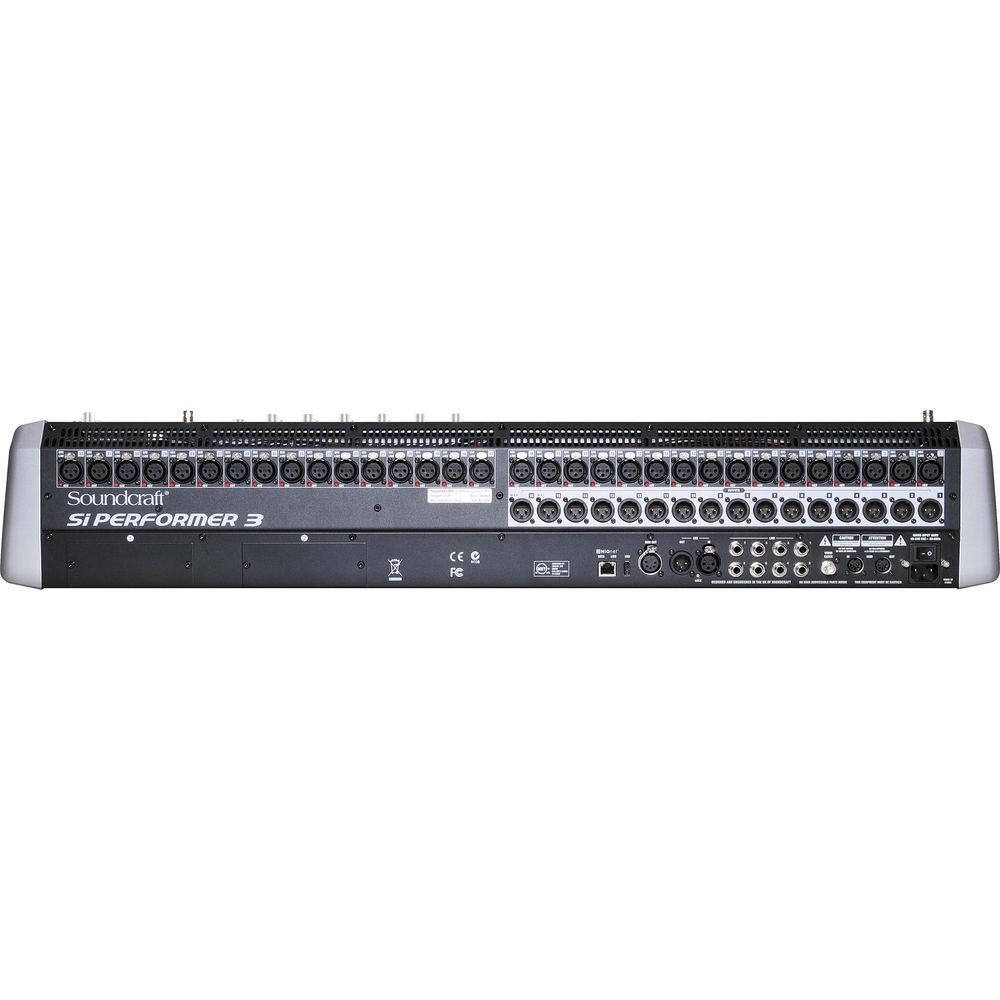

Technical parametersSoundcraft SI Performer 3 Specs | I/O | 32x microphone preamps
8x line inputs
16x analog line outputs
1x Headphone output
1x Word Clock
1x MIDI in
1x MIDI out
1x AES IN
1x AES OUT
1x DMX OUT
1x HiQnet Ethernet Port & USB#2
2x Optional expansion card slots | | Expandability | Card 1: 64 x 64 input/output paths
Card 2: 64 x 32 input/output paths
Compatibility
MultiDigital Card (Firewire/USB/ADAT)
BSS Digital Audio Bus (BLU Link)
Dante
CAT5 or optical MADI
AVIOM
CobraNet | | Frequency Response | Mic/Line input to any output: ±1.5 dB from 20 Hz to 20 kHz | | THD | Mic sensitivity -30 dBu: <0.01% at 1 kHz | | Noise | Residual noise -86 dBu
Mic input E.I.N. (maximum gain): -126 dBu (150 ohms source)
Mix noise, masters at unity: < -86 dBu
1 input to mix at unity gain: -84 dBu
CMRR mic at 1 kHz (max gain): -80 dBu | | Crosstalk | Channel on attenuation: < 120 dB
Channel fader attenuation: < 120 dB
Mic - Mic: -100 dB at 1 kHz and -85 dB at 10 kHz
Line - Line: -100 dB at 1 kHz and -85 dB at 10 kHz | | Input Gain | Mic gain: -5 to 58 dB integrated pad design in 1 dB steps
Line trim: -10 to +16 dB | | Gate | Threshold: -60 to -6 dBfs
Depth: -60 to -3 dB
Attack: 0.1 to 200 ms
Release: 20 to 500 ms
Side-chain HPF: 22 Hz to 25 kHz
Side-chain LPF: 160 Hz to 20 kHz | | Compressor | Threshold: -52 to -6 dBfs
Ratio: 1:1 to 20:1
Attack: 0.1 to 200 ms
Release: 5 to 900 ms
Makeup Gain: 0 to 24 dB | | EQ Section | All bands: 22 Hz to 20 kHz, ± 15 dB with Q from 6 to 0.3
Shelf (HF):800 Hz to 20 kHz, ±15 dB
Shelf (LF): 20 to 500 Hz, ±15 dB
HPF: 40 Hz to 1 kHz | | Delay | User adjustable delay: 1 sample to 500 ms | | Graphic EQ | 31 Hz to 16 kHz, 1/3 octave | | Digital I/O | AES sample rate converter range: 8 kHz to 200 kHz
External word clock in range 48 kHz ± 7 Hz (internal systems), ±3 Hz with stageboxes
Word clock out jitter:± 7 ns
Analog out for 0 dBfs: +21.5 dBu
Converter resolution: 24-bit
DSP resolution: 40-bit floating point | | Latency | Mic in to Line out: < 0.8 ms
Analog in to AES out: < 0.6 ms
AES in to line out: < 0.8 ms
AES in to AES out: < 0.5 ms
Stagebox mic in to stagebox: < 0.9 ms | | Levels | Mic input: + 22 dBu max
Line input: + 22 dBu max
Mix output: + 21.5 dBu max
Headphones (at 150 ohms): 300 mW (recommended impedance of 32 to 200 ohms) | | Impedance | Mic input: 3 kOhms
Line input: 10 kOhms
AES input: 110 ohms
Outputs: 150 ohms (balanced), 75 ohms (unbalanced)
Word clock used as output: 50 ohms
Word clock used as input: 47 kOhms
AES Output: 110 ohms
DMX: 120 ohms | | Power Consumption | 130 W | | AC Input | Voltage range: 88 to 246 VAC auto-sensing
Frequency range: 47 to 63 Hz | | Lamp Power | 12 VDC: 100 mA max (per socket) | | Operating Temperature | 41 to 113°F (5 to 45°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 90%, non-condensing at 104°F (40°C) | | Dimensions (H x W x D) | 6.70 x 37.0 x 21.2" (17.0 x 94.0 x 53.8 cm) | | Weight | 47.5 lb (21.5 kg) | | | | Package Weight | 57.0 lb | | Box Dimensions (LxWxH) | 40.0 x 25.3 x 10.0" |
