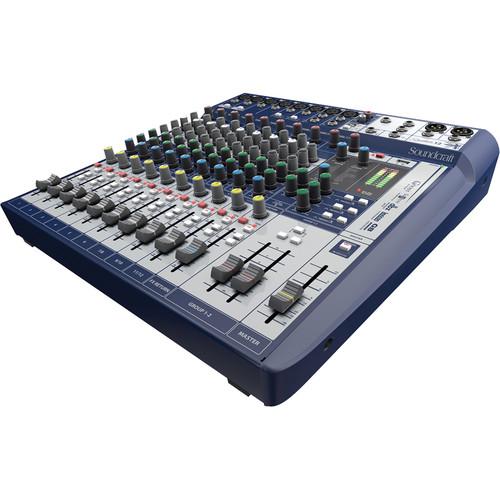

User Manual for Soundcraft Signature 12 12-Input Mixer with Effects Click to enlarge the picture
Contents of the user manual for the Soundcraft Signature 12 12-Input Mixer with
- Product category: Sound Reinforcement Mixers Soundcraft
- Brand: Soundcraft
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Soundcraft Sound Reinforcement Mixers
|
User manual for the Soundcraft Signature 12 12-Input Mixer with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Soundcraft product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Soundcraft user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Soundcraft product will considerably shorten its lifespan!
|
Product description The Signature 12 from Soundcraft is a 12-input analog mixer with onboard effects. The Signature 12 features faders with GB Series audio routing, flexible pre/post switching on each Aux, subgroups with powerful routing and switching options, and dedicated outputs. Housed in a robust metal construction and equipped with an internal universal power supply, this mixer is recommended for use by musicians and bands, in music venues and theaters, for tour sound, houses of worship, and more.
The built-in Ghost microphone preamps deliver high-quality audio with a wide dynamic range, clarity, and a high level of headroom. Additionally, the mixer uses Sapphyre Asymmetric EQ for equalizing every vocal and instrumental element in a mix, and GB Series audio routing technology. The mixer provides a wide variety of built-in Lexicon studio-grade effects including reverb, chorus, and modulation, as well as dbx limiters on the input channels. XLR and switchable Hi-Z inputs enable guitars, basses, and other instruments to be connected directly.
The Signature 12 comes with a 2-in/2-out USB interface and free downloads of the Lexicon MPX-L native plug-in and Ableton Live 9 Lite. - High-performance 12-input small format analog mixer with onboard effects
- Ghost mic preamps with low noise performance
- Sapphyre British EQ with sweepable mid-bands per channel
- Lexicon effects engine featuring reverbs, delays, choruses, and modulations
- dbx limiters (high-ratio compressors) on input channels
- 2-in/2-out USB audio playback and recording
- Switchable Hi-Z inputs for guitars, basses, and other instruments
- Hi-pass filters (low-cut) and 48V phantom power on all mic channels
- Comprehensive GB Series audio routing
- Robust metal construction for tour-grade build quality and reliability
- Internal universal power supply
UPC: 668705001144 In the Box Soundcraft Signature 12 12-Input Mixer with Effects Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundcraft Signature 12 12-Input Mixer with Effects in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundcraft 5049555 Specs | Channels | 12 | | Preamps | 8 x Ghost | | Input Limiter | dbx: 2 | | Effects | Lexicon: Single engine | | Faders | 2" (60 mm) | | Frequency Response | Mic / Line In to any Output: +/-1.5 dB, 20 Hz to 20 kHz | | THD | Mono Mic Sensitivity -30 dBu, Input level -16 dBu, +14 dBu @ Mix Output: < 0.002% @ 1 kHz
Stereo Mic Sensitivity -30 dBu, Input level -16 dBu, +14 dBu @ Mix Output: < 0.007% @ 1 kHz | | Noise | Mono Mic Input E.I.N. (max gain): <-126 dbu (150 ohms source)
Stereo Mic Input E.I.N. (max gain): <-124 dBu (150 Ohms source) | | Crosstalk | Channel Mute: >-90 dB
Fader Cut-off (rel +10 mark): >-90 dB
Aux Send Pots Offness: >-82 dB | | EQ Section | EQ (Mono inputs)
HF: 12 kHz, +/-15 dB
MF (swept): 140 Hz to 3 kHz, +/-15 dB
LF: 60 Hz, +/-15 dB
EQ (Stereo inputs)
HF: 12 kHz, +/-15 dB
MF: 1 kHz, +/-15 dB
LF: 60 Hz, +/-15 dB | | Input and Output Level | Mic Input: +12.5 dBu max
Line Input: >+26 dBu max
Stereo Inputs: >+26 dBu max
Mix Output: +21.5 dBu max
Headphones (@150 Ohms): 300 mW | | Input and Output Impedance | Mic Input: 1.2 kOhms
Hi-Z Input: 968 kOhms
Line Input: 10 kOhms
Stereo Input: 21.5 kOhms
Outputs: 150 Ohms (balanced), 75 Ohms (unbalanced) | | USB Audio | Inputs/Outputs: 2-in, 2-out
Bit Depth: 16-bit, 24-bit
Sampling rate: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz | | Operating Conditions | Temperature Range: 41 to 104°F / 5 to 40°C | | Power Consumption | <60 VA | | Dimensions (W x H x D) | 19.3 x 17.9 x 8.3" / 490.0 x 455.0 x 210.0 mm | | Weight | 12.5 lb / 5.7 kg | | | | Package Weight | 15.8 lb | | Box Dimensions (LxWxH) | 19.2 x 18.1 x 8.3" |
